4-60 — REAR SUSPENSION (#29897) — 118 parça

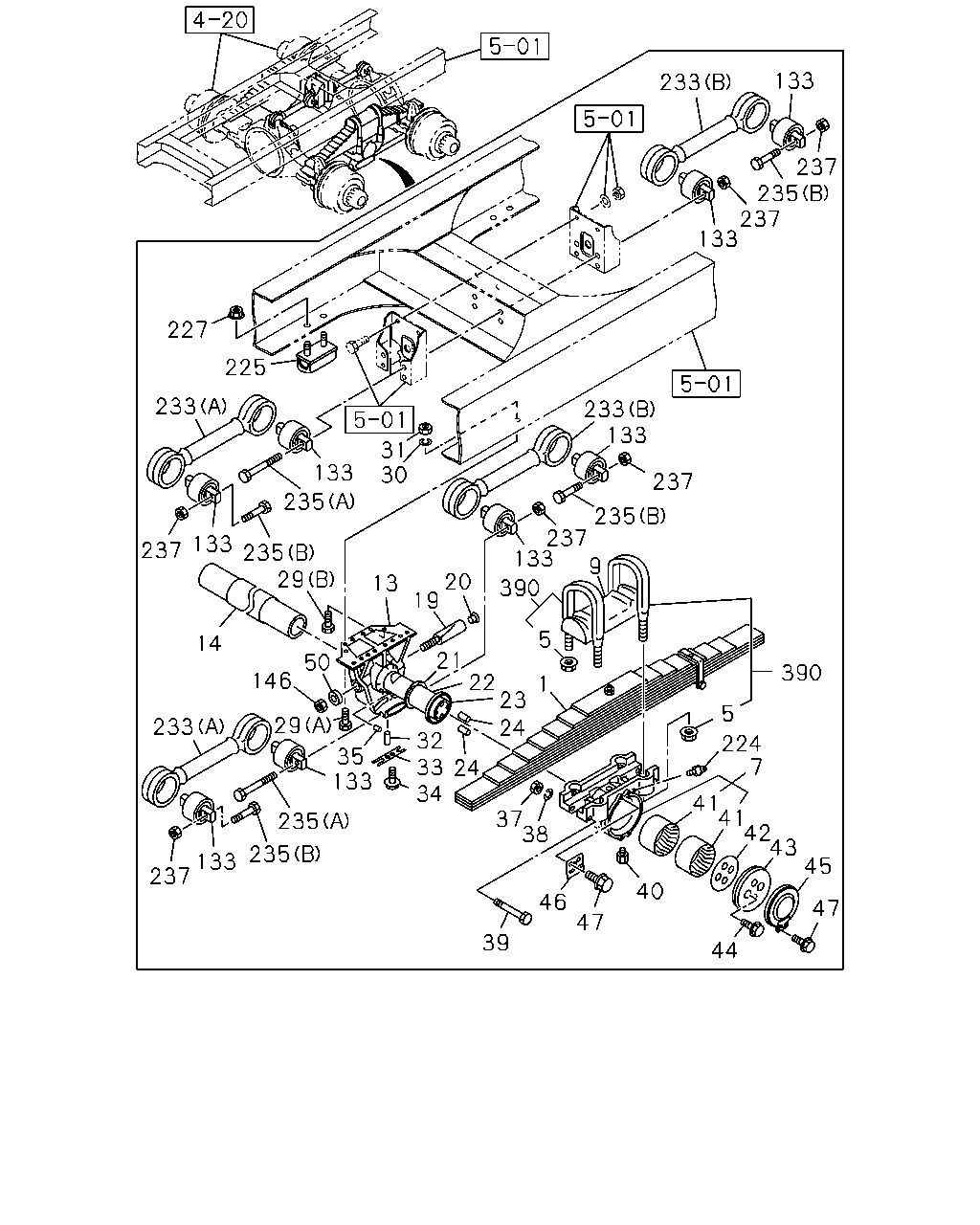

çizim 104361
133 233 237 235 237 133 227 225 233 233 133 31 30 133 237 235 235 237 133 133 237 235 29 9 20 19 13 390 5 14 21 50 390 146 22 23 24 1 29 35 133 233 32 33 34 224 7 24 41 41 42 43 45 37 38 235 235 133 237 40 46 47 47 39 44
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) 6-LEAF 		1-51410-285-2 02 1 0407-0511 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) 6-LEAF 		1-51410-285-2 02 1 0512-0604 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) 6-LEAF 		8-97614-046-0 02 1 0605-0802 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) 6-LEAF 		8-98101-099-0 02 1 0803- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF 		1-51410-301-0 02 1 0407-0511 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF 		1-51410-301-0 02 1 0512-0604 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-97614-093-0 02 1 0605-0802 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98102-211-1 02 1 0803- ● ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE 		1-09440-058-0 08 1 0407-0511 ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE 		1-09440-058-0 08 1 0512- ● ●
7 SEAT; SPR,LWR 1-51385-091-2 02 1 0407-0511 ●
7 SEAT; SPR,LWR 1-51385-091-2 02 1 0512-0604 ● ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 0605- ● ●
9 PAD; U BOLT,RR SPR 1-51372-019-1 02 1 0407-0511 ●
9 PAD; U BOLT,RR SPR 1-51372-019-1 02 1 0512-1010 ● ●
9 PAD; U BOLT,RR SPR 8-98177-265-0 02 1 1011- ● ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 0407-0511 ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 0512- ● ●
14 PIPE; TRUNNION BRKT 1-51389-032-0 01 1 0407-0511 ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 0512- ● ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 0407-0511 ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 0512- ● ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 0407-0511 ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 0512- ● ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 0407-0511 ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 0512- ● ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 0407-0511 ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 0512- ● ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 0407-0511 ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 0512- ● ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 0407-0511 ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 0512- ● ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		1-09000-221-2 24 1 0407-0511 ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		1-09000-221-2 24 1 0512-0712 ● ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		8-98012-872-0 24 1 0801- ● ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 0407-0511 ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 0512- ● ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 0407-0511 ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 0512- ● ●
31 NUT; TRUNNION BRKT
M18 		9-99110-518-0 28 1 0407-0511 ●
31 NUT; TRUNNION BRKT
M18 		9-99110-518-0 28 1 0512-0512 ● ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 0601- ● ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 0407-0511 ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 0512- ● ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 0407-0511 ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 0512- ● ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28081-016-0 02 1 0407-0511 ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28081-016-0 02 1 0512-0512 ● ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 0601- ● ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 0407-0511 ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 0512- ● ●
37 NUT; SPR SETTING
M22 		9-09110-522-0 04 1 0407-0511 ●
37 NUT; SPR SETTING
M22 		9-09110-522-0 04 1 0512-0512 ● ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 0601- ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 		9-09150-622-0 04 1 0407-0511 ●
38 WASHER; LK,SPR SETTING
ID=22.5 		9-09150-622-0 04 1 0512-0603 ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 0604- ● ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 0407-0511 ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 0512- ● ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 0407-0511 ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 0512- ● ●
41 BUSHING; TRUNNION SHAFT 1-51386-004-0 04 1 0407-0511 ●
41 BUSHING; TRUNNION SHAFT 1-51386-004-0 04 1 0512-0902 ● ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 0903- ● ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 0407-0511 ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 0512- ● ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 0407-0511 ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 0512- ● ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 0407-0511 ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 0512- ● ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 0407-0511 ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 0512- ● ●
46 BRACKET; COVER 1-51387-015-2 02 1 0407-0511 ●
46 BRACKET; COVER 1-51387-015-2 02 1 0512- ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28080-812-0 08 1 0407-0511 ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28080-812-0 08 1 0512-0512 ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 0601- ● ●
50 WASHER; PL,TRUNNION SHAFT 1-09503-071-0 02 1 0407-0511 ●
50 WASHER; PL,TRUNNION SHAFT 1-09503-071-0 02 1 0512- ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 0407-0511 ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 0512- ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 08 1 0407-0511 ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 08 1 0512- ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-1 04 1 0407-0511 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-1 04 1 0512- ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-1 08 1 0407-0511 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-1 08 1 0512- ● ●
146 NUT; KEY BOLT
M24 		9-99110-524-0 02 1 0407-0511 ●
146 NUT; KEY BOLT
M24 		9-99110-524-0 02 1 0512-0512 ● ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 0601- ● ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0407-0511 ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0512-0512 ● ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ●
225 RUBBER; CUSHION,RR SPR 1-53366-192-0 04 1 0407-0511 ●
225 RUBBER; CUSHION,RR SPR 1-53366-192-0 04 1 0512-0607 ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH 		1-53366-045-1 02 1 0608- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH 		1-53366-046-1 02 1 0608- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 08 1 0407-0511 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 08 1 0512-0602 ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=525 		1-51511-656-0 01 1 0407-0511 ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=525 		1-51511-656-0 01 1 0512- ● ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=525 		1-51511-656-0 02 1 0407-0511 ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=515 		1-51511-655-0 02 1 0512- ● ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=550 		1-51511-659-0 03 1 0407-0511 ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=550 		1-51511-659-0 03 1 0512- ● ●
235 BOLT; TORQUE ROD
(A) M18X265 		1-09000-078-1 06 1 0407-0511 ●
235 BOLT; TORQUE ROD
(A) M18X265 		1-09000-078-1 06 1 0512-0805 ● ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 0806- ● ●
235 BOLT; TORQUE ROD
(B) M18X102 		1-09000-568-0 12 1 0407-0511 ●
235 BOLT; TORQUE ROD
(B) M18X102 		1-09000-568-0 12 1 0512-0805 ● ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 0806- ● ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 0407-0511 ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 0512- ● ●
390 U-BOLT SET; RR SPRING
REAR SPRING HEAVY DUTY(G50) L=370 		1-87870-217-3 04 1 0407-0511 ●
390 U-BOLT SET; RR SPRING
REAR SPRING HEAVY DUTY(G50) L=370 		1-87870-217-3 04 1 0512- ● ●
390 U-BOLT SET; RR SPRING
EXC. REAR SPRING HEAVY DUTY(G50) L=350 		1-87870-392-1 04 1 0407-0511 ●
390 U-BOLT SET; RR SPRING
EXC. REAR SPRING HEAVY DUTY(G50) L=350 		1-87870-392-1 04 1 0512- ● ●
