4-50 — FRONT SUSPENSION (#29895) — 114 parça

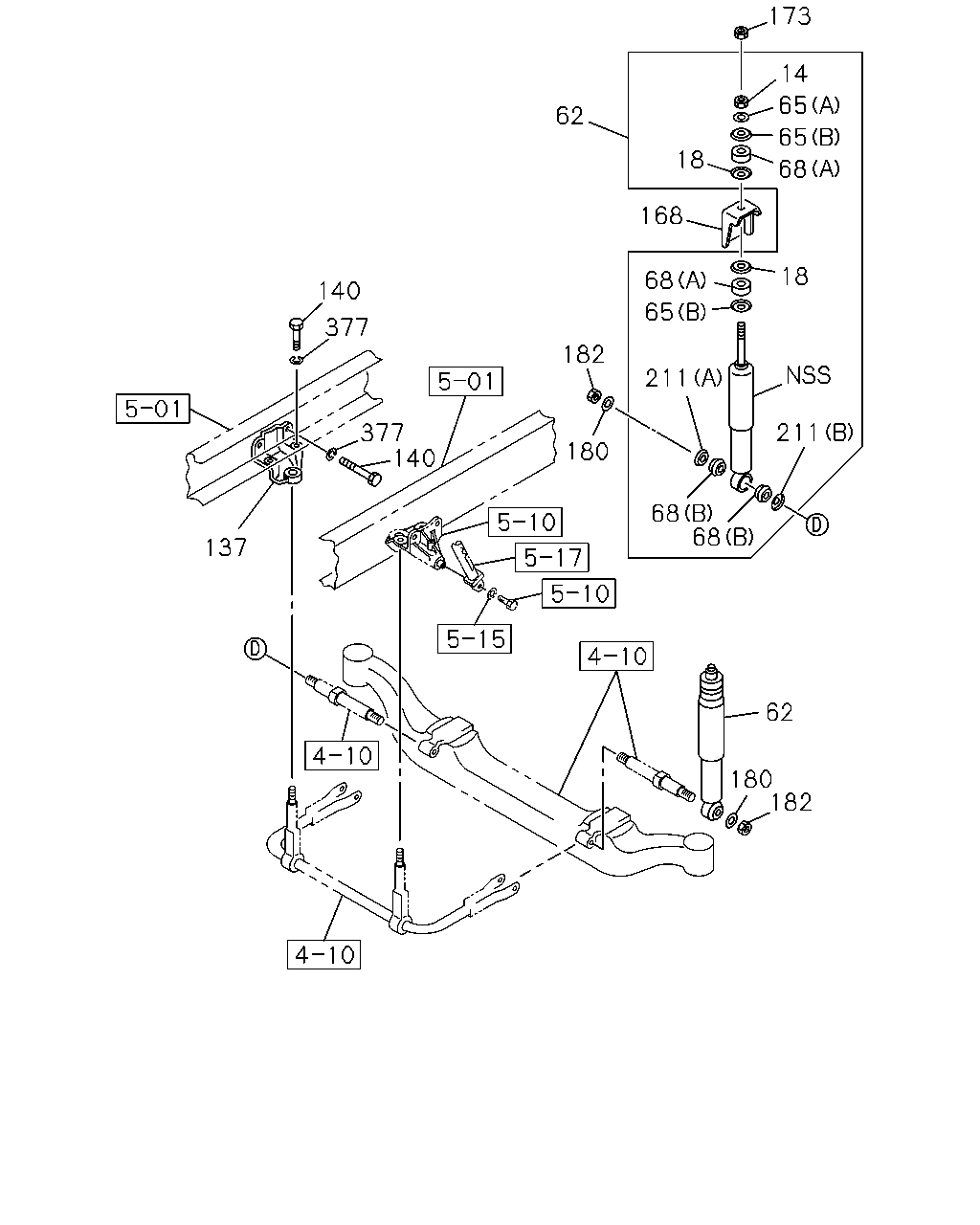

çizim 87176
173 14 65 62 65 18 68 168 18 68 140 65 377 182 211 211 377 140 180 68 68 137 62 180 182
BalonParca AdiParca NoAdetTipApplied Date A B C
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0407-0511 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0512- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0407-0511 ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0512- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-830-0 02 1 0407-0511 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-830-0 02 1 0512- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0407-0511 ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0512- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0407-0511 ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0512- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0407-0511 ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0512- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0407-0511 ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0512- ● ●
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 0407-0511 ●
137 BRACKET; STAB BAR TO FRAME
FUEL TANK 400L<SDH> 		1-51781-111-0 01 1 0512- ● ●
140 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0407-0511 ●
140 BOLT; BRKT
FUEL TANK 400L<SDH> M14X50 		9-92061-450-0 04 1 0512-0512 ● ●
140 BOLT; BRKT
FUEL TANK 400L<SDH> M14X50 		0-20951-450-0 04 1 0601- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0407-0511 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0512- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0407-0511 ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0512-0512 ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 0601- ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0407-0511 ●
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 0512-0605 ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0512-0605 ●
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> ID=21 		0-91610-520-0 02 1 0606- ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606- ●
182 NUT; S/ABS LWR
M20 		9-99110-520-0 02 1 0407-0511 ●
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		9-99110-520-0 02 1 0512-0512 ●
182 NUT; S/ABS LWR
M20 		9-99110-520-0 02 1 0512-0512 ●
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 0601- ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 0601- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0407-0511 ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0512- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0407-0511 ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0512- ● ●
377 WASHER; LK,BRKT
ID=15 		9-09651-069-0 04 1 0407-0511 ●
377 WASHER; LK,BRKT
FUEL TANK 400L<SDH> ID=15 		9-09651-069-0 04 1 0512-1201 ● ●
377 WASHER; LK,BRKT
FUEL TANK 400L<SDH> ID=15 		8-98010-627-1 04 1 1202- ● ●

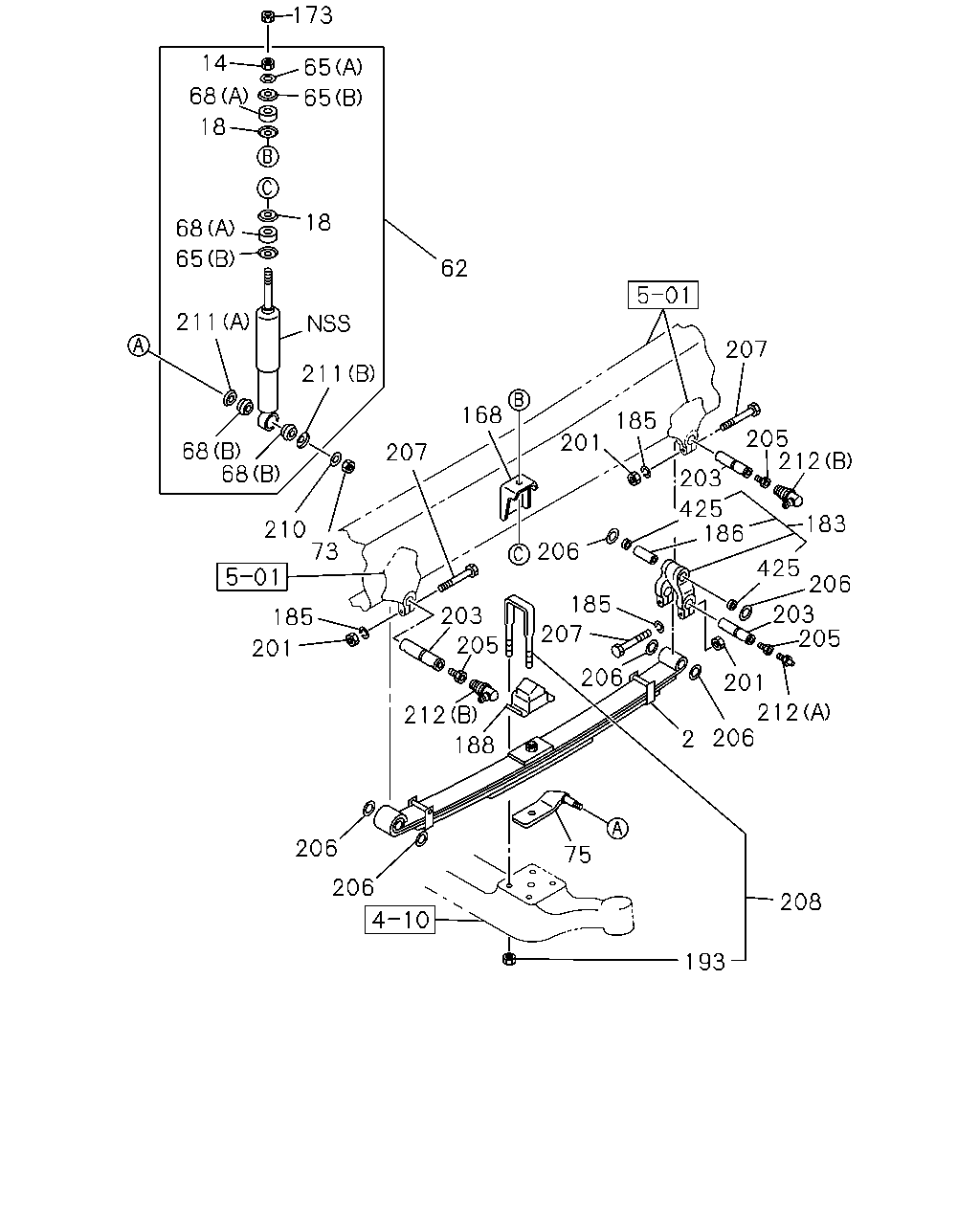

çizim 104466
173 14 65 68 65 18 18 68 65 62 211 207 211 168 185 205 212 201 68 68 207 203 425 186 183 210 73 206 425 206 185 203 205 203 185 207 205 201 206 201 212 206 212 2 188 206 75 206 208 193
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 4-LEAF 		1-51130-893-0 02 1 0407-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 4-LEAF 		1-51130-893-0 02 1 0512- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 4-LEAF 		1-51130-892-0 02 1 0407-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 4-LEAF 		1-51130-892-0 02 1 0512-0709 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 4-LEAF 		8-97618-758-0 02 1 0710- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0407-0511 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0512- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0407-0511 ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0512- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-830-0 02 1 0407-0511 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-830-0 02 1 0512- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0407-0511 ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0512- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0407-0511 ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0512- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0407-0511 ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0512- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0407-0511 ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0512- ● ●
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 0512- ●
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-1 01 1 0512- ●
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-1 01 1 0512- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0407-0511 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0512- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0407-0511 ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0512-0512 ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 0601- ● ●
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 0407-0511 ●
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 0512-1005 ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1006- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0407-0511 ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0512-0603 ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 0407-0511 ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 0512-1005 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1006- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-0 02 1 0407-0511 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 0512- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0407-0511 ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0512-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0407-0511 ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0512-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0407-0511 ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0512- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0407-0511 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0512- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0407-0511 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0512- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0407-0511 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0512-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) L=230 		1-87870-269-1 04 1 0407-0511 ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) L=230 		1-87870-269-2 04 1 0512-1206 ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) L=230 		1-87870-493-0 04 1 1207- ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=210 		1-87870-380-0 04 1 0407-0511 ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=210 		1-87870-380-1 04 1 0512-1206 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) L=210 		1-87870-498-0 04 1 1207- ● ●
210 WASHER; S/ABS,OUTER
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 0512- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0407-0511 ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0512- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0407-0511 ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0512- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0407-0511 ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0512-0512 ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 04 1 0407-0511 ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 04 1 0512-0512 ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 0601- ● ●
425 SEAL; DUST 1-51177-321-0 04 1 0407-0511 ●
425 SEAL; DUST 1-51177-321-0 04 1 0512-1005 ● ●
