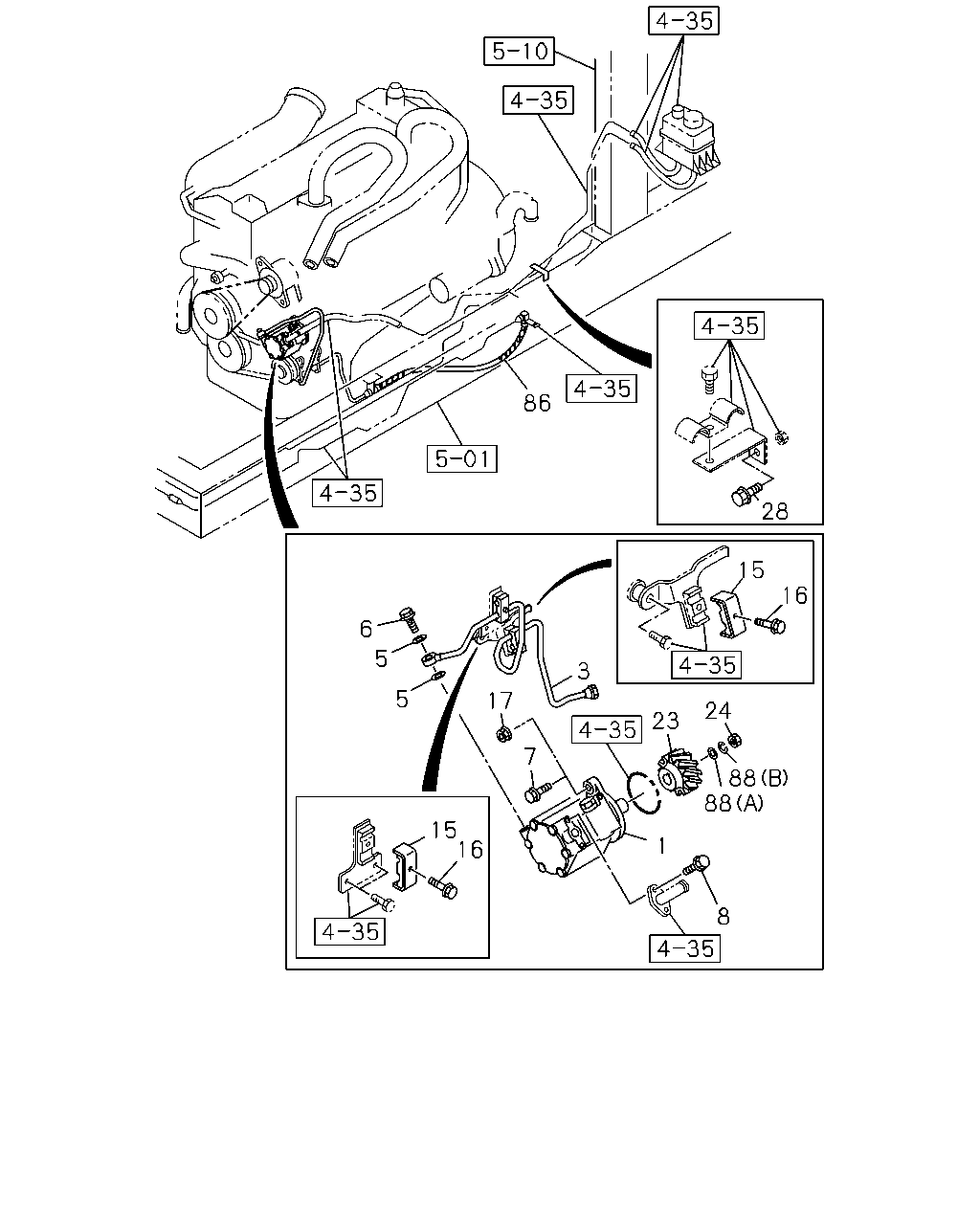

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#29892) — 38 parça

86 28 15 16 6 5 3 5 17 24 23 7 88 88 15 16 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WF1 TC-C(1B8)	1-19500-561-3	01	1	0512-	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-616-1	01	1	0407-0511		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WG1 TC-C(72L)	1-19500-616-3	01	1	0512-	●		●
3	PIPE; OIL,CHARGE,P/S 6WF1 TC-C(1B8)	1-13313-773-1	01	1	0512-	●
3	PIPE; OIL,CHARGE,P/S	1-13314-057-0	01	1	0407-0511		●
3	PIPE; OIL,CHARGE,P/S 6WG1 TC-C(72L)	1-13314-057-0	01	1	0512-	●		●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	02	1	0407-0511		●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	02	1	0512-	●		●
6	BOLT; EYE,P/S PIPE 6WF1 TC-C(1B8) M18X36	1-09675-205-0	01	1	0512-	●
6	BOLT; EYE,P/S PIPE M18X33	1-09675-058-0	01	1	0407-0511		●
6	BOLT; EYE,P/S PIPE 6WG1 TC-C(72L) M18X33	1-09675-058-0	01	1	0512-	●		●
7	BOLT; OIL PUMP,P/S M10X130 FLANGE	0-28186-013-0	02	1	0407-0511		●
7	BOLT; OIL PUMP,P/S M10X130 FLANGE	0-28186-013-0	02	1	0512-0512	●		●
7	BOLT; OIL PUMP,P/S 6WG1 TC-C(72L) M10X130 FLANGE	0-28156-013-0	02	1	0601-	●		●
8	BOLT; OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	0407-0511		●
8	BOLT; OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	0512-0512	●		●
8	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●
15	CLIP; OIL PIPE SUCTION	1-09701-195-2	02	1	0407-0511		●
15	CLIP; OIL PIPE SUCTION	1-09701-195-3	02	1	0512-	●		●
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28680-635-0	02	1	0407-0511		●
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28680-635-0	02	1	0512-0512	●		●
16	BOLT; STAY,P/S OIL PUMP M6X35 FLANGE	0-28650-635-0	02	1	0601-	●		●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	0512-0602	●
17	NUT; POWER STRG PUMP 6WF1 TC-C(1B8) M10 FLANGE	0-91180-110-0	02	1	0603-	●
23	GEAR; OIL PUMP Z=20	1-19581-041-0	01	1	0407-0511		●
23	GEAR; OIL PUMP Z=20	1-19581-041-0	01	1	0512-	●		●
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0407-0511		●
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0512-	●		●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28680-830-0	01	1	0407-0511		●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28680-830-0	01	1	0512-0512	●		●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28650-830-0	01	1	0601-	●		●
86	HOSE; FLEX,P/S 6WG1 TC-C(72L) L=470	1-09365-177-0	01	1	0512-	●		●
86	HOSE; FLEX,P/S L=430	1-09365-045-0	01	1	0407-0511		●
86	HOSE; FLEX,P/S 6WF1 TC-C(1B8) L=430	1-09365-045-0	01	1	0512-	●
88	WASHER; GEAR,P/S PUMP (A)	1-19519-293-0	01	1	0407-0511		●
88	WASHER; GEAR,P/S PUMP (A)	1-19519-293-0	01	1	0512-	●		●
88	WASHER; GEAR,P/S PUMP (B)	9-09150-016-0	01	1	0407-0511		●
88	WASHER; GEAR,P/S PUMP (B)	9-09150-016-0	01	1	0512-	●		●
