Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#29891) — 266 parça

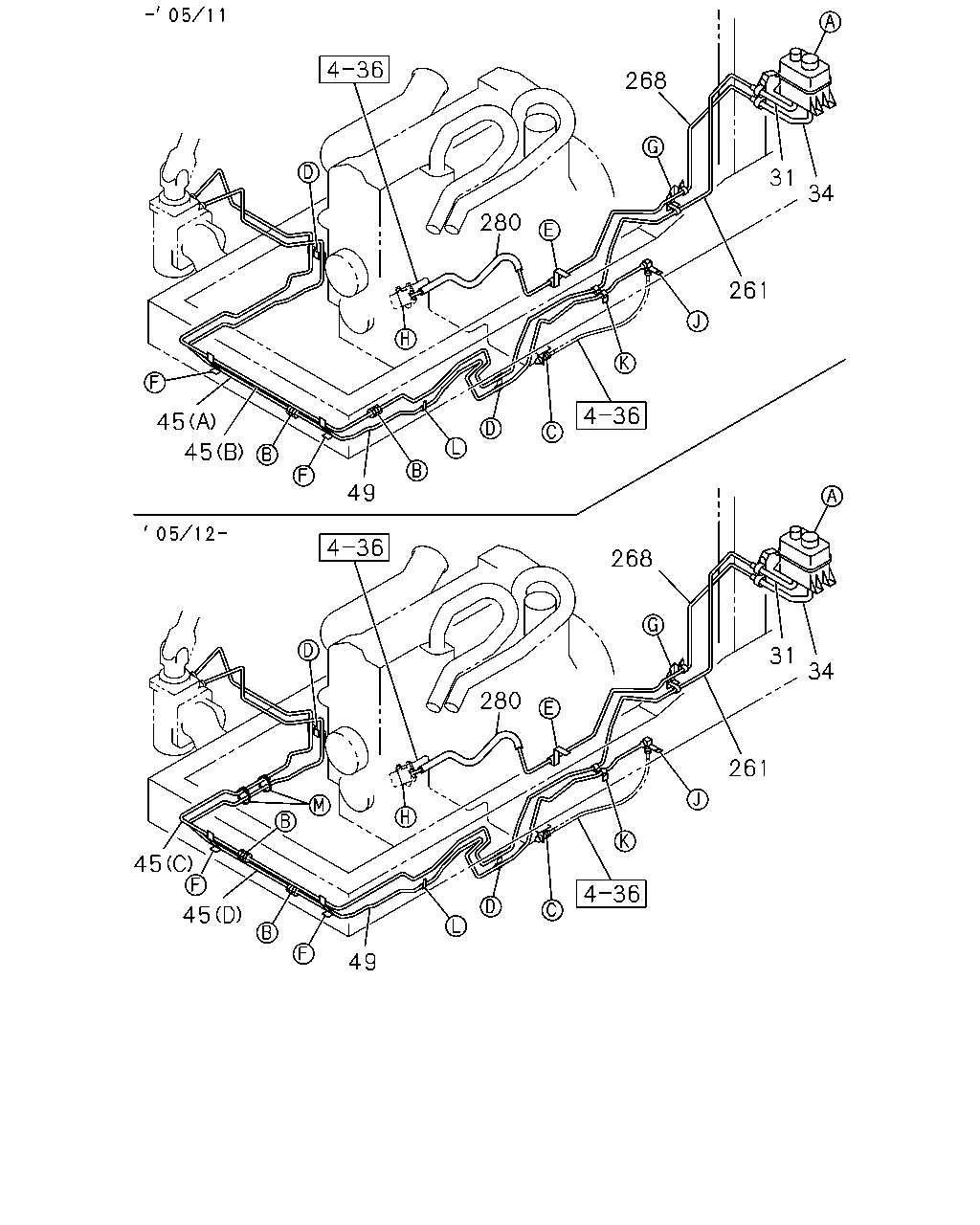

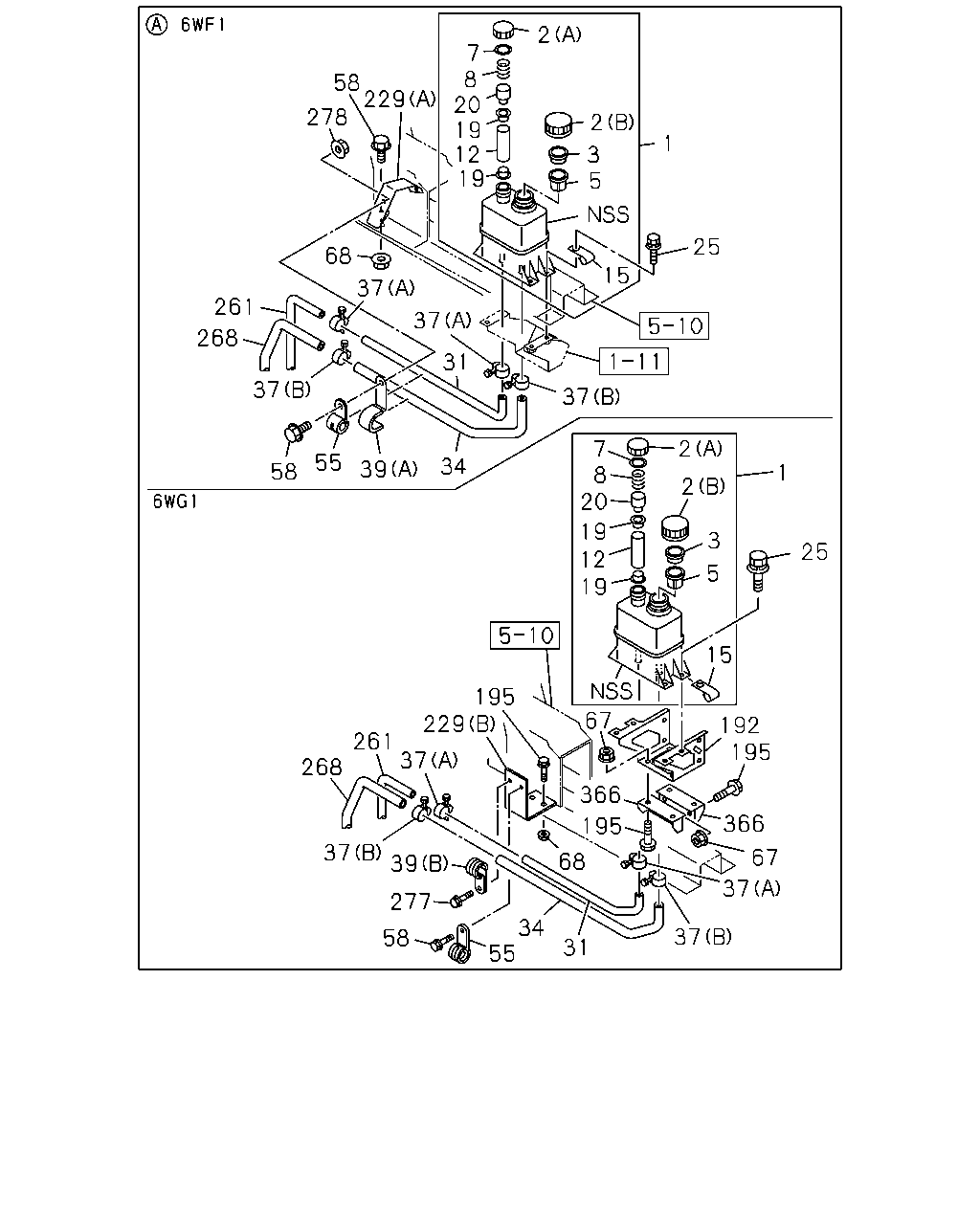

45 45 49 280 268 261 31 34 45 45 49 280 268 261 31 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	HOSE; P/S OIL TANK,INL 6WG1 TC-C(72L)	1-21117-509-1	01	1	0512-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0407-0511			●
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8)	1-21114-284-0	01	1	0512-	●
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-C(72L)	1-21117-510-1	01	1	0512-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0407-0511			●
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8)	1-21114-283-0	01	1	0512-	●
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-306-0	01	1	0407-0505			●
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-776-0	01	1	0506-0511			●
45	PIPE; OIL,P/S UNIT TO UNION (D) L=1474	1-21117-739-0	01	1	0512-0611	●	●
45	PIPE; OIL,P/S UNIT TO UNION (C) L=1404	1-21117-917-0	01	1	0612-1309	●	●
45	PIPE; OIL,P/S UNIT TO UNION (C) L=1404	8-98257-625-0	01	1	1310-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2201	1-21117-307-0	01	1	0407-0511			●
45	PIPE; OIL,P/S UNIT TO UNION (C) L=1403	1-21117-738-0	01	1	0512-0611	●	●
45	PIPE; OIL,P/S UNIT TO UNION (D) L=1475	1-21117-916-0	01	1	0612-1309	●	●
45	PIPE; OIL,P/S UNIT TO UNION (D) L=1475	8-98257-624-0	01	1	1310-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L) L=2147	1-21117-763-0	01	1	0512-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2050	1-21117-367-0	01	1	0407-0511			●
49	PIPE; OIL,FLEX HOSE TO UNION 6WF1 TC-C(1B8) L=2048	1-21117-741-0	01	1	0512-	●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L) L=3362	1-21117-802-0	01	1	0512-	●	●
261	PIPE; OIL,UNION TO HOSE L=2500	1-21117-369-1	01	1	0407-0511			●
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3322	1-21117-801-0	01	1	0512-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L) L=1367	1-21117-813-0	01	1	0512-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0407-0511			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0512-	●
280	HOSE; P/S OIL PUMP,INL 6WF1 TC-C(1B8)	1-21117-831-0	01	1	0604-	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0407-0511			●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0512-0603	●	●
280	HOSE; P/S OIL PUMP,INL 6WG1 TC-C(72L)	1-21117-301-0	01	1	0604-	●	●

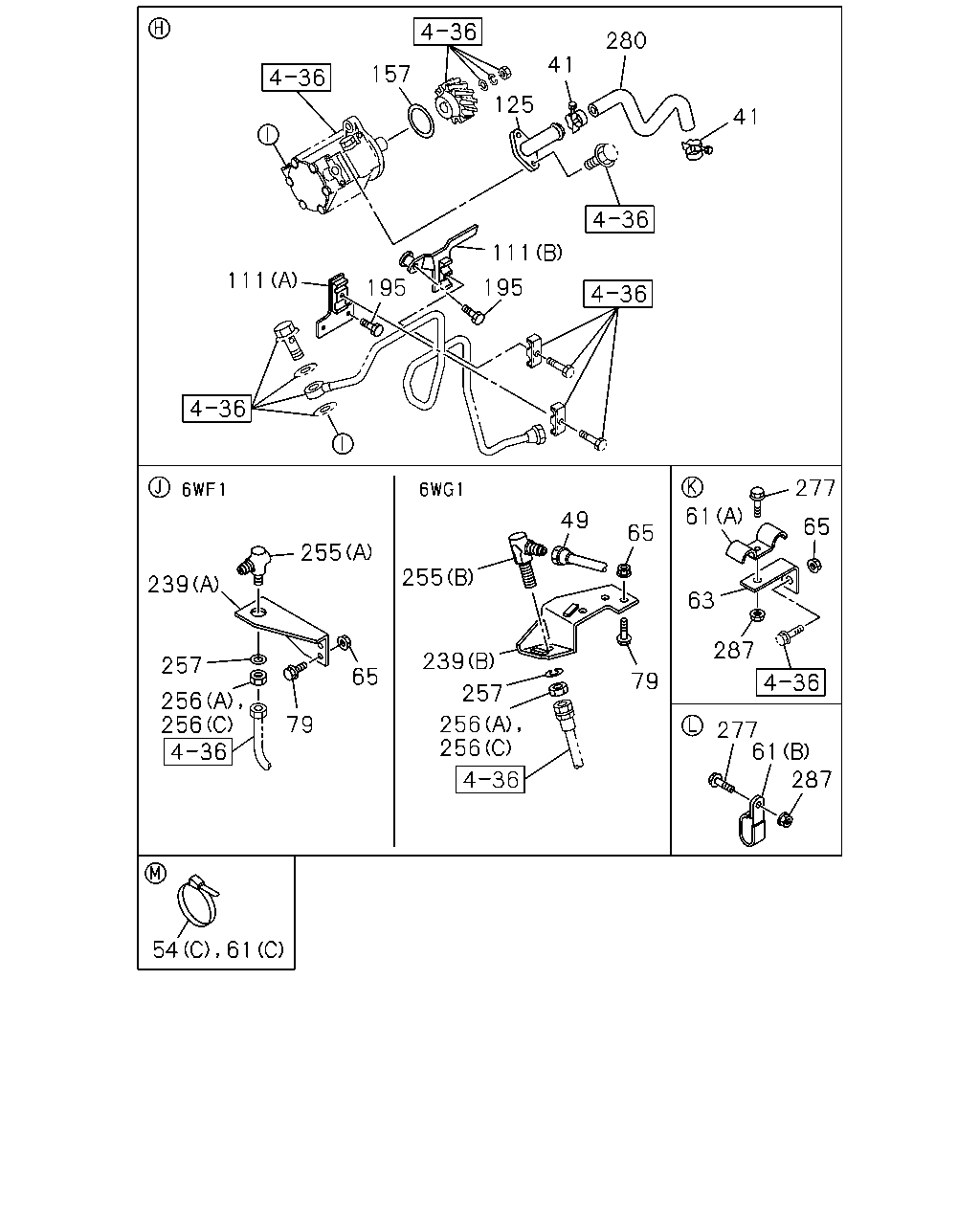

157 41 125 280 41 111 195 195 111 255 239 257 256 256 79 65 61 54 255 239 257 256 256 61 65 49 79 63 287 277 65 277 61 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0407-0511			●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0512-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L) L=2147	1-21117-763-0	01	1	0512-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2050	1-21117-367-0	01	1	0407-0511			●
49	PIPE; OIL,FLEX HOSE TO UNION 6WF1 TC-C(1B8) L=2048	1-21117-741-0	01	1	0512-	●
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-	●	●
54	CLIP; OIL PIPE 6WG1 TC-C(72L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0512-	●	●
54	CLIP; OIL PIPE 6WG1 TC-C(72L) (B) ID=26 L=27	1-09701-006-0	01	1	0512-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0407-0511			●
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0512-	●
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0407-0511			●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0512-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0407-0511			●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0512-0606	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0607-	●	●
63	BRACKET; CLIP,P/S L=115 B=25	1-47476-758-0	01	1	0407-0511			●
63	BRACKET; CLIP,P/S L=115 B=25	1-47476-758-0	01	1	0512-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0511			●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0512-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0511			●
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0512-0512	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0407-0511			●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0512-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0407-0511			●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0512-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0407-0511			●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0512-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0407-0511			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0512-	●	●
195	BOLT; BRKT 6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	08	1	0512-0512	●	●
195	BOLT; BRKT 6WG1 TC-C(72L) M8X25 FLANGE	0-28650-825-0	08	1	0601-	●	●
195	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0407-0511			●
195	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0512-0512	●	●
195	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
195	BOLT; BRKT M10X35 FLANGE	0-28181-035-0	01	1	0407-0511			●
195	BOLT; BRKT M10X35 FLANGE	0-28181-035-0	01	1	0512-0512	●	●
195	BOLT; BRKT M10X35 FLANGE	0-28151-035-0	01	1	0601-	●	●
239	BRACKET; FLEX HOSE 6WG1 TC-C(72L) (B)	1-47471-227-0	01	1	0512-	●	●
239	BRACKET; FLEX HOSE (A)	1-47479-664-0	01	1	0407-0511			●
239	BRACKET; FLEX HOSE 6WF1 TC-C(1B8) (A)	1-47479-664-0	01	1	0512-	●
255	UNION; FLEX HOSE 6WG1 TC-C(72L) (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0512-	●	●
255	UNION; FLEX HOSE (A) M22 & M22 ELBOW	1-09650-375-1	01	1	0407-0511			●
255	UNION; FLEX HOSE 6WF1 TC-C(1B8) (A) M22 & M22 ELBOW	1-09650-375-1	01	1	0512-	●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0407-0511			●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0512-0512	●	●
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0407-0511			●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0512-0512	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0407-0511			●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0407-0511			●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0512-0603	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0512-0603	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0407-0511			●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0512-0512	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0407-0511			●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512	●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●
277	BOLT; HOSE CLIP M10X20 FLANGE	0-28681-020-0	01	1	0407-0511			●
277	BOLT; HOSE CLIP 6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512	●	●
277	BOLT; HOSE CLIP 6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
280	HOSE; P/S OIL PUMP,INL 6WF1 TC-C(1B8)	1-21117-831-0	01	1	0604-	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0407-0511			●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0512-0603	●	●
280	HOSE; P/S OIL PUMP,INL 6WG1 TC-C(72L)	1-21117-301-0	01	1	0604-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0511			●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0512-0602	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

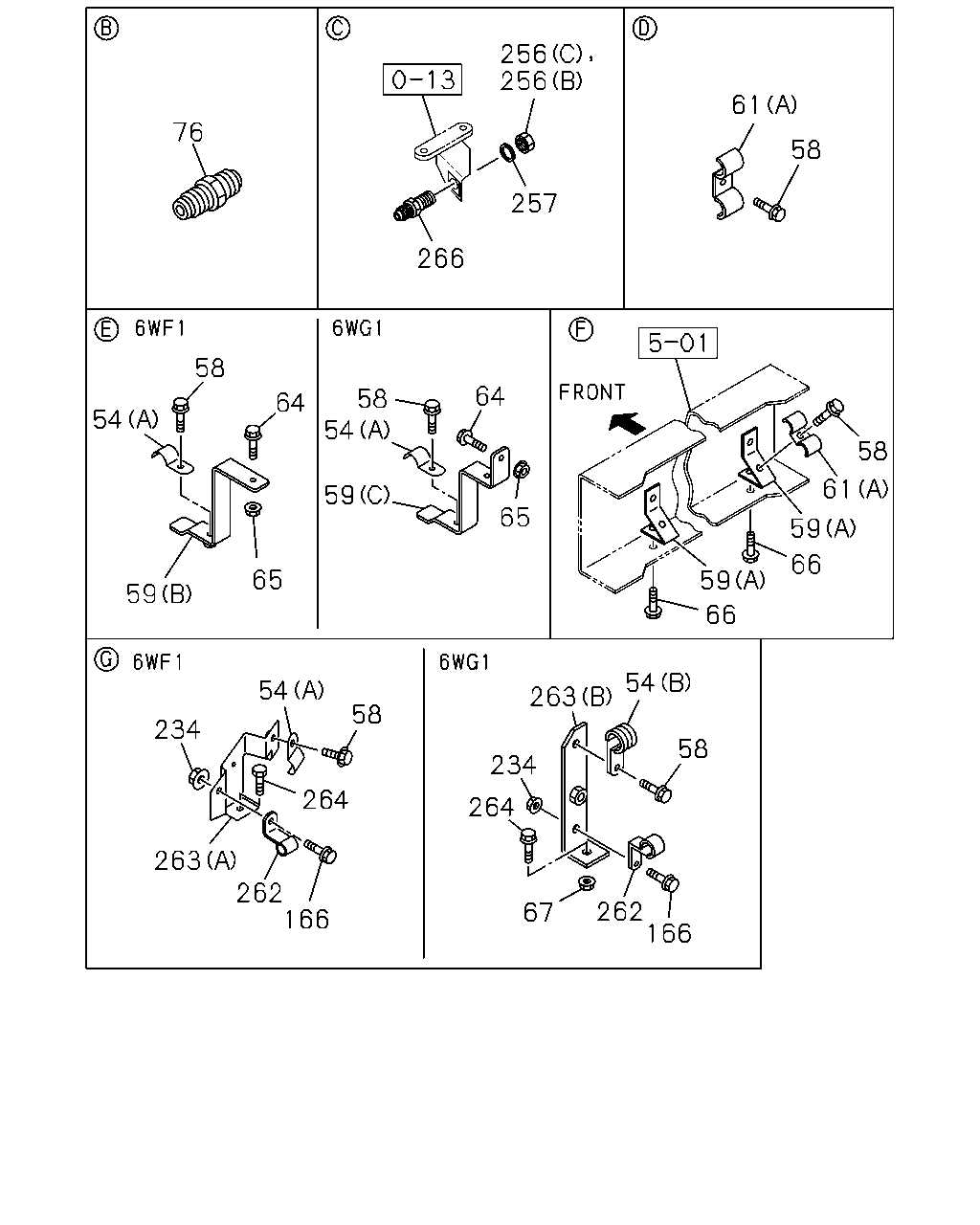

256 256 61 76 58 257 266 58 64 58 54 64 54 58 61 59 65 59 66 65 59 59 66 54 54 263 58 234 58 234 264 264 263 262 166 262 166 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-	●	●
54	CLIP; OIL PIPE 6WG1 TC-C(72L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0512-	●	●
54	CLIP; OIL PIPE 6WG1 TC-C(72L) (B) ID=26 L=27	1-09701-006-0	01	1	0512-	●	●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0407-0511			●
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0512-	●
58	BOLT; CLIP 6WG1 TC-C(72L) M10X20 FLANGE	0-28681-020-0	03	1	0512-0512	●	●
58	BOLT; CLIP 6WG1 TC-C(72L) M10X20 FLANGE	0-28651-020-0	03	1	0601-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0512-0512	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0407-0511			●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0407-0511			●
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512	●
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-C(72L) (C)	1-47471-183-0	01	1	0512-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-145-0	01	1	0407-0511			●
59	BRACKET; CLIP,OIL PIPE 6WF1 TC-C(1B8) (B)	1-47477-145-0	01	1	0512-	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	0407-0511			●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	0512-	●	●
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0407-0511			●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0512-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0407-0511			●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0512-0606	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0607-	●	●
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0511			●
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	01	1	0512-0512	●	●
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0511			●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0512-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0407-0511			●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0512-0512	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
67	NUT; BRKT 6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	04	1	0512-0602	●	●
67	NUT; BRKT 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
76	UNION; OIL PIPE M22	9-09233-015-1	02	1	0407-0511			●
76	UNION; OIL PIPE M22	9-09233-015-1	02	1	0512-0607	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0608-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0511			●
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0512-0512	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0512-0602	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0407-0511			●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0512-0512	●	●
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0407-0511			●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0512-0512	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0407-0511			●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0407-0511			●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0512-0603	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0512-0603	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0407-0511			●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0512-	●	●
263	BRACKET; P/S PIPE 6WG1 TC-C(72L) (B)	1-47471-191-1	01	1	0512-	●	●
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0407-0511			●
263	BRACKET; P/S PIPE 6WF1 TC-C(1B8) (A)	1-47476-483-2	01	1	0512-	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511			●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0512-0512	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0407-0511			●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0512-	●	●

2 7 8 20 19 12 19 58 229 278 2 1 3 5 25 68 15 37 261 37 268 31 37 37 2 7 8 20 55 34 39 58 1 2 19 12 19 3 25 5 15 195 229 67 192 195 261 37 268 366 195 68 366 37 39 67 37 277 34 55 37 58 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0407-0508			●
1	TANK ASM; OIL,P/S	1-21210-235-0	01	1	0509-0511			●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0512-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	0407-0511			●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0512-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	0407-0511			●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0512-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0407-0511			●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0512-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0407-0511			●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0512-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0407-0511			●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0512-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0407-0508			●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-0511			●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0512-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0407-0511			●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0512-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0407-0508			●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-0511			●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0512-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0407-0511			●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0512-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0407-0511			●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0512-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0407-0511			●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0512-0512	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
31	HOSE; P/S OIL TANK,INL 6WG1 TC-C(72L)	1-21117-509-1	01	1	0512-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0407-0511			●
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8)	1-21114-284-0	01	1	0512-	●
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-C(72L)	1-21117-510-1	01	1	0512-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0407-0511			●
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8)	1-21114-283-0	01	1	0512-	●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0407-0511			●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0512-	●	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0407-0511			●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0512-	●	●
39	CLIP; FLEX HOSE 6WG1 TC-C(72L) (B) ID=37 L=35	1-09701-109-0	01	1	0512-	●	●
39	CLIP; FLEX HOSE (A) ID=32 L=75	1-09700-702-0	01	1	0407-0511			●
39	CLIP; FLEX HOSE 6WF1 TC-C(1B8) (A) ID=32 L=75	1-09700-702-0	01	1	0512-	●
55	CLIP; P/S RUBBER HOSE 6WG1 TC-C(72L) ID=28 L=32	1-09701-107-1	01	1	0512-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0407-0511			●
55	CLIP; P/S RUBBER HOSE 6WF1 TC-C(1B8) ID=28 L=30	1-09700-607-1	01	1	0512-	●
58	BOLT; CLIP 6WG1 TC-C(72L) M10X20 FLANGE	0-28681-020-0	03	1	0512-0512	●	●
58	BOLT; CLIP 6WG1 TC-C(72L) M10X20 FLANGE	0-28651-020-0	03	1	0601-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0512-0512	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0407-0511			●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512	●	●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0407-0511			●
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512	●
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●
67	NUT; BRKT 6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	04	1	0512-0602	●	●
67	NUT; BRKT 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
68	NUT; CLIP,OIL PIPE 6WG1 TC-C(72L) M10 FLANGE	0-91150-210-0	02	1	0512-0602	●	●
68	NUT; CLIP,OIL PIPE 6WG1 TC-C(72L) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
68	NUT; CLIP,OIL PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	01	1	0512-0602	●
68	NUT; CLIP,OIL PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	01	1	0603-	●
192	BRACKET; P/S OIL TANK 6WG1 TC-C(72L)	1-21489-200-1	01	1	0512-	●	●
195	BOLT; BRKT 6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	08	1	0512-0512	●	●
195	BOLT; BRKT 6WG1 TC-C(72L) M8X25 FLANGE	0-28650-825-0	08	1	0601-	●	●
195	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0407-0511			●
195	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0512-0512	●	●
195	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
195	BOLT; BRKT M10X35 FLANGE	0-28181-035-0	01	1	0407-0511			●
195	BOLT; BRKT M10X35 FLANGE	0-28181-035-0	01	1	0512-0512	●	●
195	BOLT; BRKT M10X35 FLANGE	0-28151-035-0	01	1	0601-	●	●
229	BRACKET; HOSE,POWER STRG 6WG1 TC-C(72L) (B)	1-21464-780-0	01	1	0512-	●	●
229	BRACKET; HOSE,POWER STRG (A)	1-21464-407-1	01	1	0407-0511			●
229	BRACKET; HOSE,POWER STRG 6WF1 TC-C(1B8) (A)	1-21464-407-1	01	1	0512-	●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L) L=3362	1-21117-802-0	01	1	0512-	●	●
261	PIPE; OIL,UNION TO HOSE L=2500	1-21117-369-1	01	1	0407-0511			●
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3322	1-21117-801-0	01	1	0512-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L) L=1367	1-21117-813-0	01	1	0512-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0407-0511			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0512-	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0407-0511			●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0512-0512	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0407-0511			●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512	●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●
277	BOLT; HOSE CLIP M10X20 FLANGE	0-28681-020-0	01	1	0407-0511			●
277	BOLT; HOSE CLIP 6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512	●	●
277	BOLT; HOSE CLIP 6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0407-0511			●
278	NUT; HOSE CLIP 6WF1 TC-C(1B8) M10 FLANGE	0-91150-210-0	01	1	0512-0602	●
278	NUT; HOSE CLIP 6WF1 TC-C(1B8) M10 FLANGE	0-91180-210-0	01	1	0603-	●
366	SPACER; BRKT TO MEMBER 6WG1 TC-C(72L)	1-21489-196-1	02	1	0512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
