4-20 — REAR AXLE CASE AND SHAFT (#29886) — 173 parça

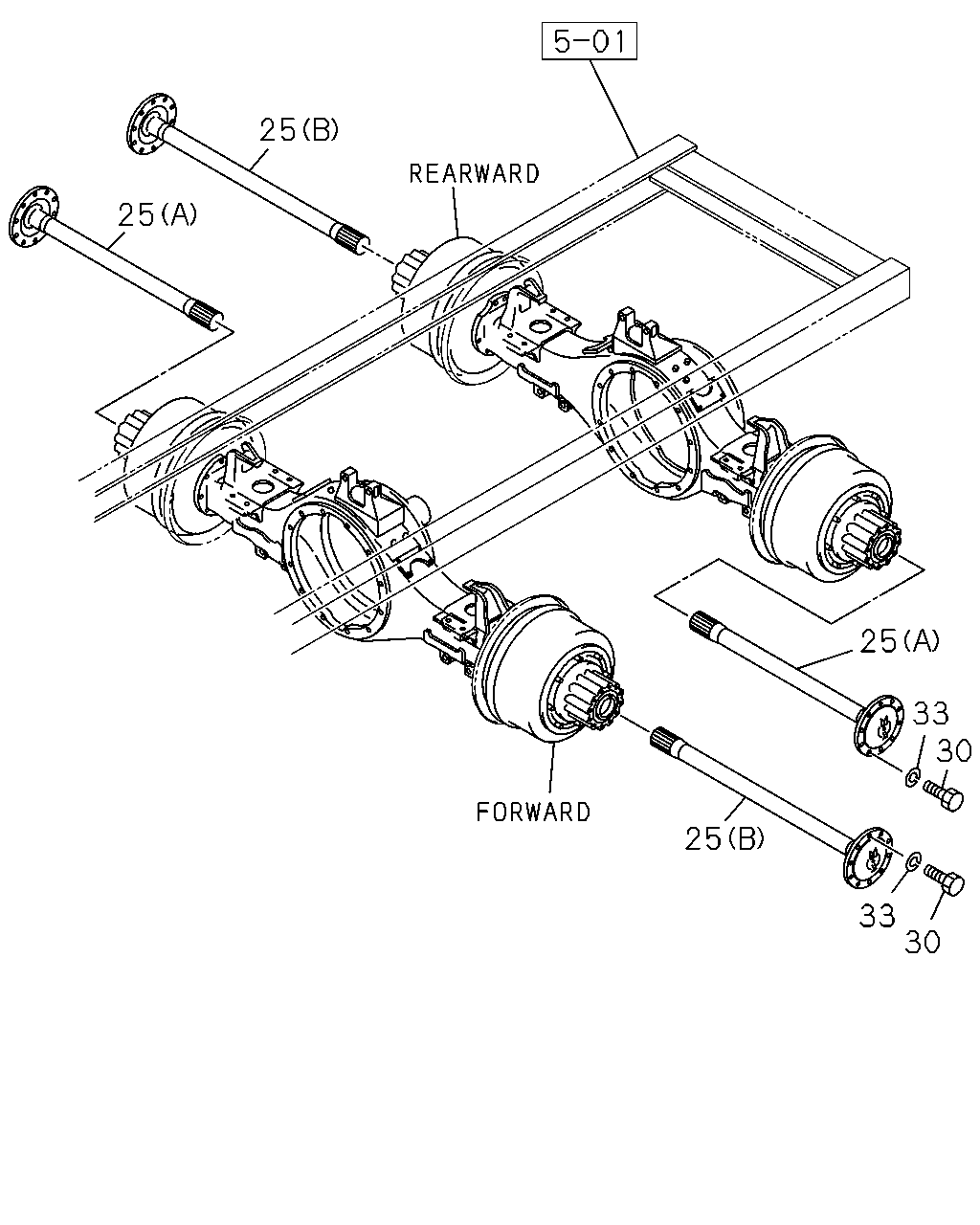

25 25 25 33 30 25 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	SHAFT; AXLE,RR (A) L=976	1-42171-356-0	01	1	0407-0511	●
25	SHAFT; AXLE,RR (A) L=976	1-42171-356-0	01	1	0407-0511	●
25	SHAFT; AXLE,RR (A) L=976	1-42171-356-0	01	1	0512-0910		●	●
25	SHAFT; AXLE,RR (A) L=976	1-42171-356-0	01	1	0512-0910		●	●
25	SHAFT; AXLE,RR (A) L=990	8-98146-166-0	01	1	0911-		●	●
25	SHAFT; AXLE,RR (A) L=990	8-98146-166-0	01	1	0911-		●	●
25	SHAFT; AXLE,RR (B) L=1106	1-42171-357-0	01	1	0407-0511	●
25	SHAFT; AXLE,RR (B) L=1106	1-42171-357-0	01	1	0407-0511	●
25	SHAFT; AXLE,RR (B) L=1106	1-42171-357-0	01	1	0512-0910		●	●
25	SHAFT; AXLE,RR (B) L=1106	1-42171-357-0	01	1	0512-0910		●	●
25	SHAFT; AXLE,RR (B) L=1110	8-98146-167-0	01	1	0911-		●	●
25	SHAFT; AXLE,RR (B) L=1110	8-98146-167-0	01	1	0911-		●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0407-0511	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0407-0511	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0512-		●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0512-		●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0407-0511	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0407-0511	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0512-0603		●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0512-0603		●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0604-		●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0604-		●	●

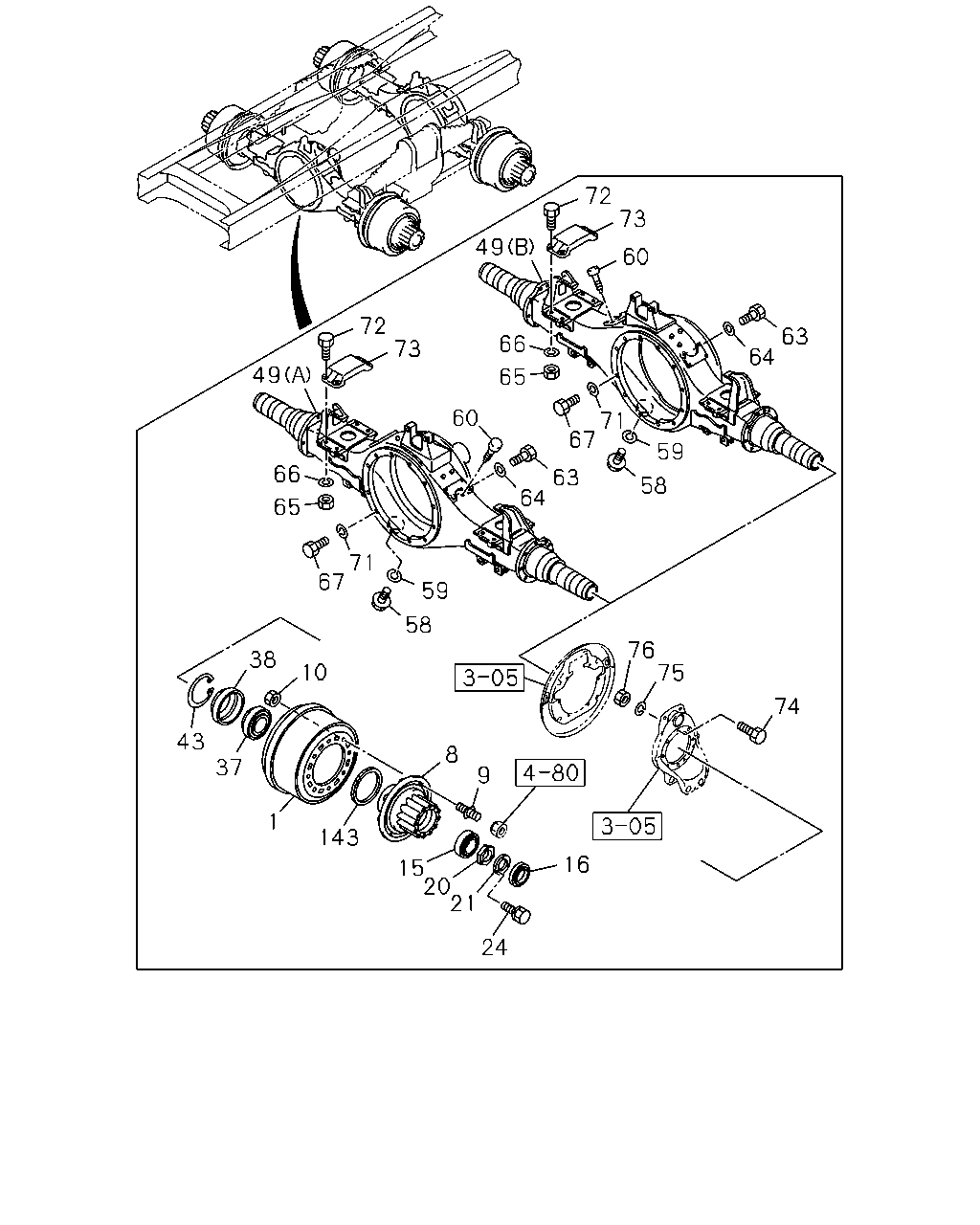

72 73 49 60 72 73 63 64 66 49 65 71 67 60 59 66 63 64 58 65 71 67 59 58 76 75 38 10 74 43 8 37 9 1 143 16 15 20 21 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRUM; BRK,RR	1-42315-383-0	02	1	0407-0511	●
1	DRUM; BRK,RR	1-42315-383-0	02	1	0407-0511	●
1	DRUM; BRK,RR	1-42315-377-2	02	1	0512-		●	●
1	DRUM; BRK,RR	1-42315-377-2	02	1	0512-		●	●
8	HUB; RR AXLE REARWARD	1-42311-094-0	02	1	0407-0511	●
8	HUB; RR AXLE REARWARD	1-42311-094-0	02	1	0512-		●	●
8	HUB; RR AXLE FORWARD	1-42311-085-0	02	1	0407-0511	●
8	HUB; RR AXLE FORWARD	1-42311-085-0	02	1	0512-		●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD	1-42337-070-0	20	1	0407-0511	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD	1-42337-070-0	20	1	0407-0511	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> M22X109 RH THREAD	1-42337-076-1	20	1	0512-		●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> M22X109 RH THREAD	1-42337-076-1	20	1	0512-		●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD	1-42337-069-0	20	1	0407-0511	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD	1-42337-069-0	20	1	0407-0511	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL AL<SDM> M22X93 RH THREAD	1-42337-066-2	20	1	0512-		●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL AL<SDM> M22X93 RH THREAD	1-42337-066-2	20	1	0512-		●	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0407-0511	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0407-0511	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-		●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-		●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-		●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-		●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0407-0511	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0407-0511	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0512-		●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0512-		●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0407-0511	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0407-0511	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0512-		●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0512-		●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0407-0511	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0407-0511	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0512-		●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0512-		●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0407-0511	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0407-0511	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0512-		●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0512-		●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0407-0511	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0407-0511	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0512-0512		●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0512-0512		●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-		●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-		●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-		●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-		●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0407-0511	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0407-0511	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0512-		●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0512-		●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	0407-0511	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	0407-0511	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	0512-		●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	0512-		●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0407-0511	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0407-0511	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0512-		●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0512-		●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0407-0511	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0407-0511	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0512-		●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0512-		●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0407-0511	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0407-0511	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0512-		●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0512-		●	●
49	CASE; RR AXLE (B)	1-42190-287-5	01	1	0512-		●	●
49	CASE; RR AXLE (A)	1-42190-401-3	01	1	0407-0511	●
49	CASE; RR AXLE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42190-483-1	01	1	0512-		●	●
49	CASE; RR AXLE (B)	1-42190-442-0	01	1	0407-0511	●
49	CASE; RR AXLE EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42190-330-4	01	1	0512-		●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0407-0511	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0407-0511	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0512-		●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0512-		●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0407-0511	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0407-0511	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0512-		●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0512-		●	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	0407-0511	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	0512-1412		●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	1501-		●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0407-0511	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0407-0511	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0512-		●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0512-		●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0407-0511	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0407-0511	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0512-		●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0512-		●	●
65	NUT M14	9-99110-514-0	08	1	0407-0511	●
65	NUT M14	9-99110-514-0	08	1	0407-0511	●
65	NUT M14	9-99110-514-0	08	1	0512-0512		●	●
65	NUT M14	9-99110-514-0	08	1	0512-0512		●	●
65	NUT M14	0-91110-514-0	08	1	0601-		●	●
65	NUT M14	0-91110-514-0	08	1	0601-		●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0407-0511	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0407-0511	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0512-0603		●	●
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0512-0603		●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0604-		●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	0604-		●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	0407-0511	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	0512-0512		●	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	0601-		●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0407-0511	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0407-0511	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0512-0512		●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0512-0512		●	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	0601-		●	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	0601-		●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	0407-0511	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	0512-0512		●	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	07	1	0601-		●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0407-0511	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0407-0511	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0512-0603		●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0512-0603		●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0604-		●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0604-		●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0407-0511	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0407-0511	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0512-0805		●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0512-0805		●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0806-		●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	0806-		●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0407-0511	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0407-0511	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0512-		●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0512-		●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	10	1	0407-0511	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	16	1	0512-		●	●
74	BOLT; RR BRK ASM SETTING M14X80	9-92621-480-0	04	1	0407-0511	●
74	BOLT; RR BRK ASM SETTING M14X80	9-92621-480-0	04	1	0512-1504		●	●
74	BOLT; RR BRK ASM SETTING M14X60	1-09040-084-0	04	1	1505-		●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0407-0511	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	12	1	0512-		●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0407-0511	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0407-0511	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0512-0603		●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0512-0603		●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-		●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-		●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0407-0511	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0407-0511	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0512-0512		●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0512-0512		●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-		●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-		●	●
143	RING; EXCITER	1-42319-173-0	02	1	0407-0511	●
143	RING; EXCITER	1-42319-173-0	02	1	0512-		●	●
