4-02 — PROPELLER SHAFT GUARD (#29883) — 23 parça

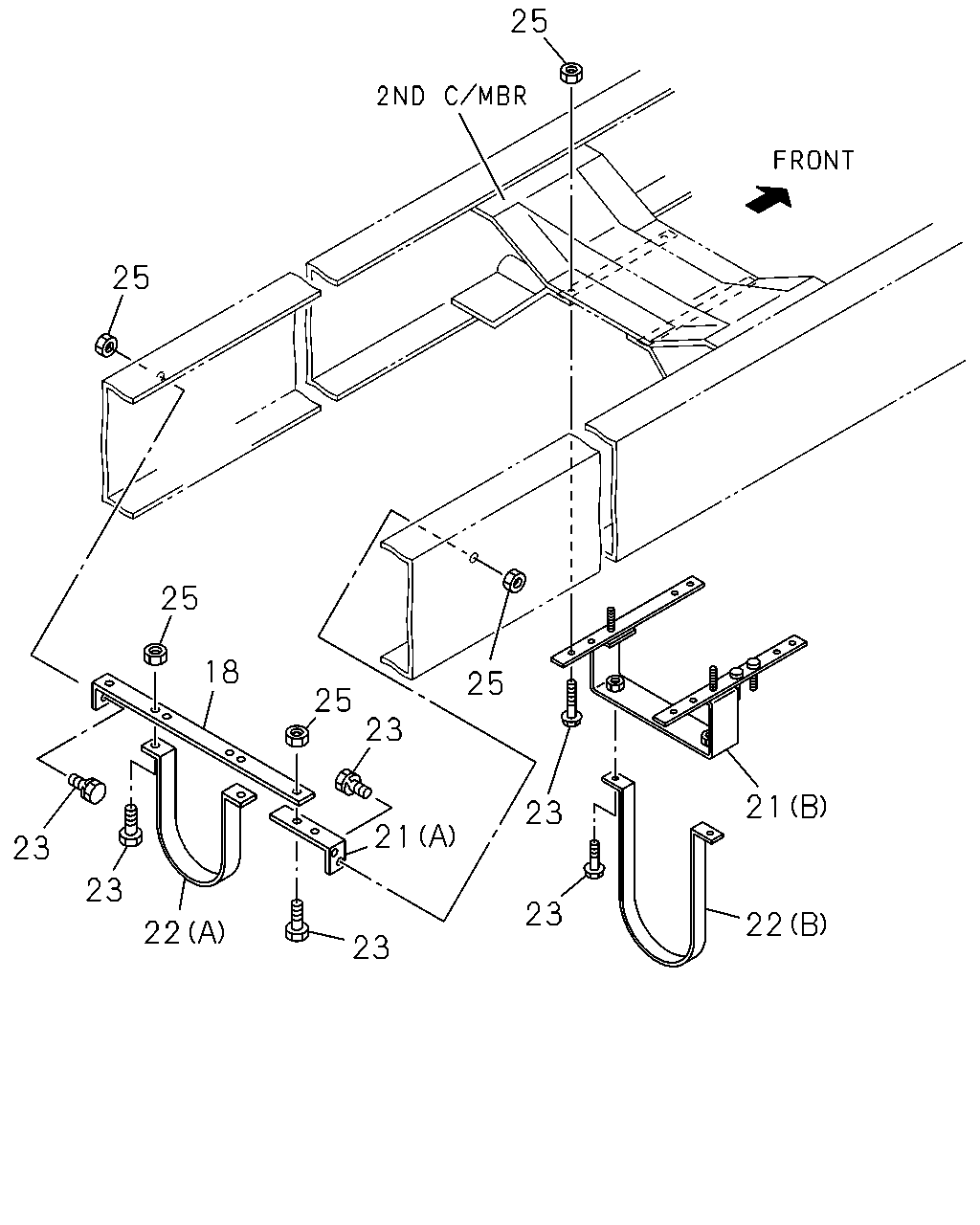

çizim 87241
25 25 25 18 25 25 23 21 23 21 23 23 23 22 22 23
BalonParca AdiParca NoAdetTipApplied Date A B C
18 BRACKET; PROP SHAFT GUARD 1-53279-249-0 01 1 0407-0511 ●
18 BRACKET; PROP SHAFT GUARD 1-53279-249-0 01 1 0512- ●
21 BRACKET; PROP GUARD
(B) 		8-97610-669-2 01 1 0512- ●
21 BRACKET; PROP GUARD
(A) 		1-53279-248-0 01 1 0407-0511 ●
21 BRACKET; PROP GUARD
(A) 		1-53279-248-0 01 1 0512- ●
22 GUARD; PROP SHAFT
(B) 		1-53279-174-0 01 1 0512- ●
22 GUARD; PROP SHAFT
(A) 		1-53279-166-0 01 1 0407-0511 ●
22 GUARD; PROP SHAFT
(A) 		1-53279-166-0 01 1 0512- ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28051-030-0 05 1 0805- ●
23 BOLT; GUARD
M8X35 FLANGE 		0-28680-835-0 02 1 0512-0512 ●
23 BOLT; GUARD
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28681-030-0 07 1 0512-0512 ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28651-030-0 07 1 0601-0804 ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28651-030-0 02 1 0805- ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28681-030-0 07 1 0407-0511 ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28681-030-0 02 1 0512-0512 ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28651-030-0 02 1 0601-0804 ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28051-030-0 02 1 0805- ●
25 NUT; GUARD
M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
25 NUT; GUARD
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
25 NUT; GUARD
M10 FLANGE 		0-91150-210-0 07 1 0407-0511 ●
25 NUT; GUARD
M10 FLANGE 		0-91150-210-0 07 1 0512-0602 ●
25 NUT; GUARD
M10 FLANGE 		0-91180-210-0 07 1 0603- ●
