◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#29882) — 138 parça

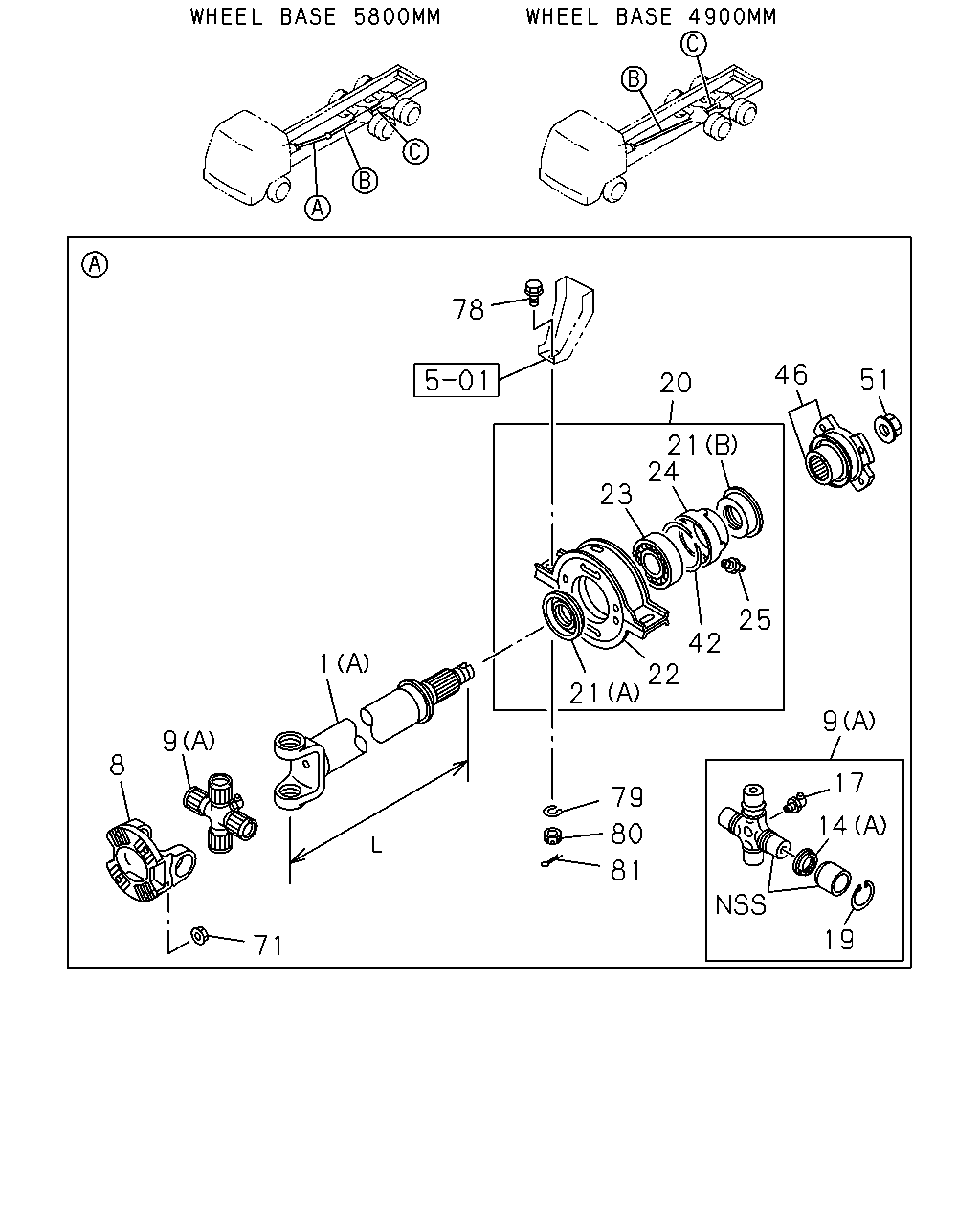

çizim 87263
78 46 51 20 21 24 23 25 42 22 1 21 9 9 8 17 79 14 80 81 19 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) 1ST L=769 		1-37153-587-0 01 1 0512- ●
1 SHAFT; PROP
(B) END L=1010 		1-37124-712-1 01 1 0407-0511 ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO149 18(Y4C) (B) END L=1130 		1-37125-398-0 01 1 0512- ●
1 SHAFT; PROP
(A) 1ST L=752 		1-37153-398-0 01 1 0407-0511 ●
1 SHAFT; PROP
MJX16P M/T(Y3Z) (B) END L=995 		8-98020-692-0 01 1 0512- ● ●
8 YOKE; FLANGE,PROP SHAFT
1ST 		1-37211-077-1 01 1 0407-0511 ●
8 YOKE; FLANGE,PROP SHAFT
1ST 		1-37211-084-0 01 1 0512- ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-077-1 02 1 0407-0511 ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-084-0 02 1 0512- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0407-0511 ●
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0512- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-112-0 01 1 0407- ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-112-0 02 1 0407-0511 ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-112-0 02 1 0512- ● ●
14 COVER; DUST,SPIDER
(A) 1ST 		1-37249-133-0 04 1 0407- ●
14 COVER; DUST,SPIDER
(A) END 		1-37249-133-0 08 1 0407-0511 ●
14 COVER; DUST,SPIDER
(A) END 		1-37249-133-0 08 1 0512- ● ●
14 COVER; DUST,SPIDER
(B) REAR 		1-37319-004-0 08 1 0407-0511 ●
14 COVER; DUST,SPIDER
(B) REAR 		1-37319-004-0 08 1 0512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0407-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0407-0511 ●
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0407-0511 ●
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0512-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0512-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST T=2.2 		1-09587-103-1 04 1 0407- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
END T=2.2 		1-09587-103-1 08 1 0407-0511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
END T=2.2 		1-09587-103-1 08 1 0512- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST T=2.17 		1-09587-107-0 04 1 0407- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
END T=2.17 		1-09587-107-0 08 1 0407-0511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
END T=2.17 		1-09587-107-0 08 1 0512- ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST ID=65 		1-37510-116-1 01 1 0407- ●
21 SEAL; OIL,CENTER BRG
(A) 1ST OD=114 		1-09625-222-1 01 1 0407- ●
21 SEAL; OIL,CENTER BRG
(B) 1ST OD=106 		1-09625-622-0 01 1 0407- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
1ST 		1-37516-056-0 01 1 0407- ●
23 BEARING; CENTER,PROP SHAFT
1ST 		1-09800-210-0 01 1 0407- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-110-0 01 1 0407- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ●
42 RING; SNAP,CTR BRG
1ST 		1-09587-085-1 01 1 0407- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-349-0 01 1 0407- ●
51 NUT; FLANGE,SPLINED
1ST M45 FLAMGE 		1-09449-040-0 01 1 0407- ●
71 NUT; YOKE
1ST M14 FLANGE 		1-09440-048-0 04 1 0407-0511 ●
71 NUT; YOKE
1ST WB 5800MM,END WB 4900MM M14 FLANGE 		1-09440-048-0 04 1 0512-0805 ● ●
71 NUT; YOKE
1ST WB 5800MM,END WB 4900MM M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0407- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0407- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0407-0605 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0407-0606 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●

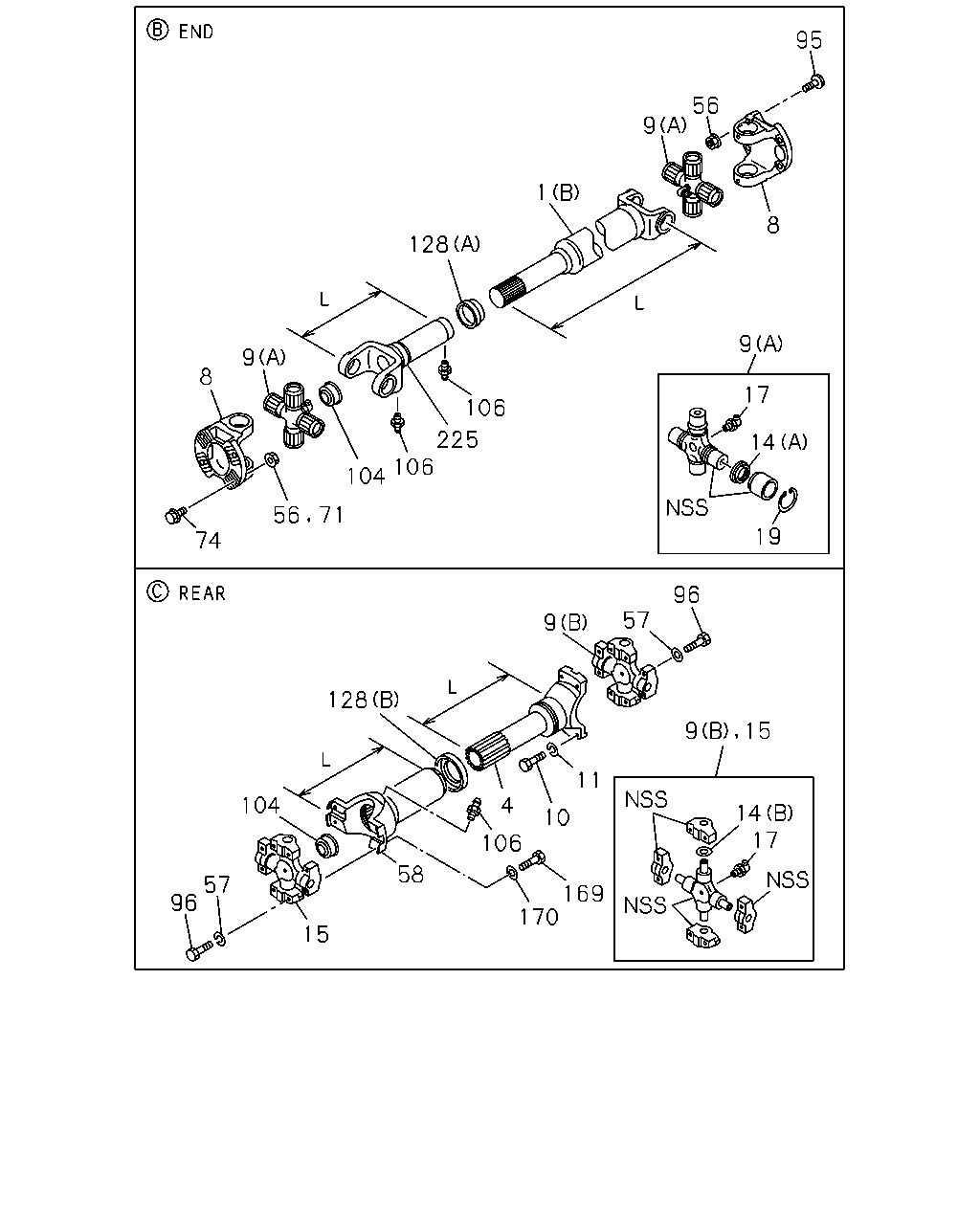

çizim 104264
95 56 9 1 8 128 9 9 8 17 106 225 106 104 14 19 74 96 57 9 128 9 15 11 104 4 14 17 10 106 58 57 96 169 170 15 56 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) 1ST L=769 		1-37153-587-0 01 1 0512- ●
1 SHAFT; PROP
(B) END L=1010 		1-37124-712-1 01 1 0407-0511 ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO149 18(Y4C) (B) END L=1130 		1-37125-398-0 01 1 0512- ●
1 SHAFT; PROP
(A) 1ST L=752 		1-37153-398-0 01 1 0407-0511 ●
1 SHAFT; PROP
MJX16P M/T(Y3Z) (B) END L=995 		8-98020-692-0 01 1 0512- ● ●
4 SHAFT; PROP
REAR L=348 		1-37171-127-1 01 1 0407-0511 ●
4 SHAFT; PROP
REAR L=348 		1-37171-127-2 01 1 0512- ● ●
8 YOKE; FLANGE,PROP SHAFT
1ST 		1-37211-077-1 01 1 0407-0511 ●
8 YOKE; FLANGE,PROP SHAFT
1ST 		1-37211-084-0 01 1 0512- ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-077-1 02 1 0407-0511 ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-084-0 02 1 0512- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0407-0511 ●
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0512- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-112-0 01 1 0407- ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-112-0 02 1 0407-0511 ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-112-0 02 1 0512- ● ●
10 BOLT; UJT
REAR M12X45 		9-91066-245-0 04 1 0407-0511 ●
10 BOLT; UJT
REAR M12X45 		9-91066-245-0 04 1 0512-0805 ● ●
10 BOLT; UJT
REAR M12X45 		8-98036-382-0 04 1 0806- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
REAR ID=12.2 		9-09150-612-0 04 1 0407-0511 ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
REAR ID=12.2 		9-09150-612-0 04 1 0512-0603 ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
REAR ID=12.2 		0-91510-612-0 04 1 0604- ● ●
14 COVER; DUST,SPIDER
(A) 1ST 		1-37249-133-0 04 1 0407- ●
14 COVER; DUST,SPIDER
(A) END 		1-37249-133-0 08 1 0407-0511 ●
14 COVER; DUST,SPIDER
(A) END 		1-37249-133-0 08 1 0512- ● ●
14 COVER; DUST,SPIDER
(B) REAR 		1-37319-004-0 08 1 0407-0511 ●
14 COVER; DUST,SPIDER
(B) REAR 		1-37319-004-0 08 1 0512- ● ●
15 UNIVERSAL CENTER
REAR 		1-37300-100-1 01 1 0407-0511 ●
15 UNIVERSAL CENTER
REAR 		1-37300-100-1 01 1 0512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0407-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0407-0511 ●
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0407-0511 ●
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0512-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0512-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST T=2.2 		1-09587-103-1 04 1 0407- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
END T=2.2 		1-09587-103-1 08 1 0407-0511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
END T=2.2 		1-09587-103-1 08 1 0512- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST T=2.17 		1-09587-107-0 04 1 0407- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
END T=2.17 		1-09587-107-0 08 1 0407-0511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
END T=2.17 		1-09587-107-0 08 1 0512- ● ●
56 NUT; YOKE
END M14 FLANGE 		1-09440-048-0 04 1 0407-0511 ●
56 NUT; YOKE
END M14 FLANGE 		1-09440-048-0 04 1 0407-0511 ●
56 NUT; YOKE
END M14 FLANGE 		1-09440-048-0 04 1 0512-0805 ● ●
56 NUT; YOKE
END M14 FLANGE 		1-09440-048-0 04 1 0512-0805 ●
56 NUT; YOKE
END M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
56 NUT; YOKE
END M14 FLANGE 		8-97365-444-0 04 1 0806- ●
57 WASHER; LK,YOKE
REAR ID=12.2 		9-09150-612-0 08 1 0407-0511 ●
57 WASHER; LK,YOKE
REAR ID=12.2 		9-09150-612-0 08 1 0512-0603 ● ●
57 WASHER; LK,YOKE
REAR ID=12.2 		0-91510-612-0 08 1 0604- ● ●
58 FLANGE; SPLINED
REAR L=265 		1-37245-317-0 01 1 0407-0511 ●
58 FLANGE; SPLINED
REAR L=265 		1-37245-317-0 01 1 0512- ● ●
71 NUT; YOKE
1ST M14 FLANGE 		1-09440-048-0 04 1 0407-0511 ●
71 NUT; YOKE
1ST WB 5800MM,END WB 4900MM M14 FLANGE 		1-09440-048-0 04 1 0512-0805 ● ●
71 NUT; YOKE
1ST WB 5800MM,END WB 4900MM M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
74 BOLT; YOKE,TRANS
END M14X50 		1-09000-645-0 04 1 0407- ●
95 BOLT; YOKE,FINAL
END M14X50 		1-09000-645-0 04 1 0407-0511 ●
95 BOLT; YOKE,FINAL
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> END M14X50 		1-09000-645-0 04 1 0512- ● ●
96 BOLT; PROP SHAFT
REAR M12X45 		9-91066-245-0 08 1 0407-0511 ●
96 BOLT; PROP SHAFT
REAR M12X45 		9-91066-245-0 08 1 0512-0805 ● ●
96 BOLT; PROP SHAFT
REAR M12X45 		8-98036-382-0 08 1 0806- ● ●
104 PLUG; SLEEVE YOKE
END AND REAR 		1-09600-049-0 01 1 0407-0511 ●
104 PLUG; SLEEVE YOKE
END AND REAR 		1-09600-049-0 01 1 0407-0511 ●
104 PLUG; SLEEVE YOKE
END AND REAR 		1-09600-049-0 01 1 0512- ● ●
104 PLUG; SLEEVE YOKE
END AND REAR 		1-09600-049-0 01 1 0512- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
REAR PT1/8 STRAIGHT 		9-09031-010-0 01 1 0407-0511 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
REAR PT1/8 STRAIGHT 		9-09031-010-0 01 1 0512-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
REAR PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END PT1/8 STRAIGHT 		9-09031-010-0 02 1 0407-0511 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END PT1/8 STRAIGHT 		9-09031-010-0 02 1 0512-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ●
128 SEAL; SLEEVE
(A) END 		1-37247-020-0 01 1 0407-0511 ●
128 SEAL; SLEEVE
(A) END 		1-37247-020-0 01 1 0512- ● ●
128 SEAL; SLEEVE
(B) REAR 		8-97603-618-0 01 1 0407-0511 ●
128 SEAL; SLEEVE
(B) REAR 		8-97603-618-0 01 1 0512- ● ●
169 BOLT; YOKE,SLEEVE
REAR M12X45 		9-91066-245-0 04 1 0407-0511 ●
169 BOLT; YOKE,SLEEVE
REAR M12X45 		9-91066-245-0 04 1 0512-0805 ● ●
169 BOLT; YOKE,SLEEVE
REAR M12X45 		8-98036-382-0 04 1 0806- ● ●
170 WASHER; LK,YOKE,SLEEVE
REAR ID=12.2 		9-09150-612-0 04 1 0407-0511 ●
170 WASHER; LK,YOKE,SLEEVE
REAR ID=12.2 		9-09150-612-0 04 1 0512-0603 ● ●
170 WASHER; LK,YOKE,SLEEVE
REAR ID=12.2 		0-91510-612-0 04 1 0604- ● ●
225 YOKE; SLEEVE,PROP SHAFT
END L=339 		1-37241-140-0 01 1 0407-0511 ●
225 YOKE; SLEEVE,PROP SHAFT
END L=339 		1-37241-140-0 01 1 0512- ● ●
