Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#29879) — 565 parça

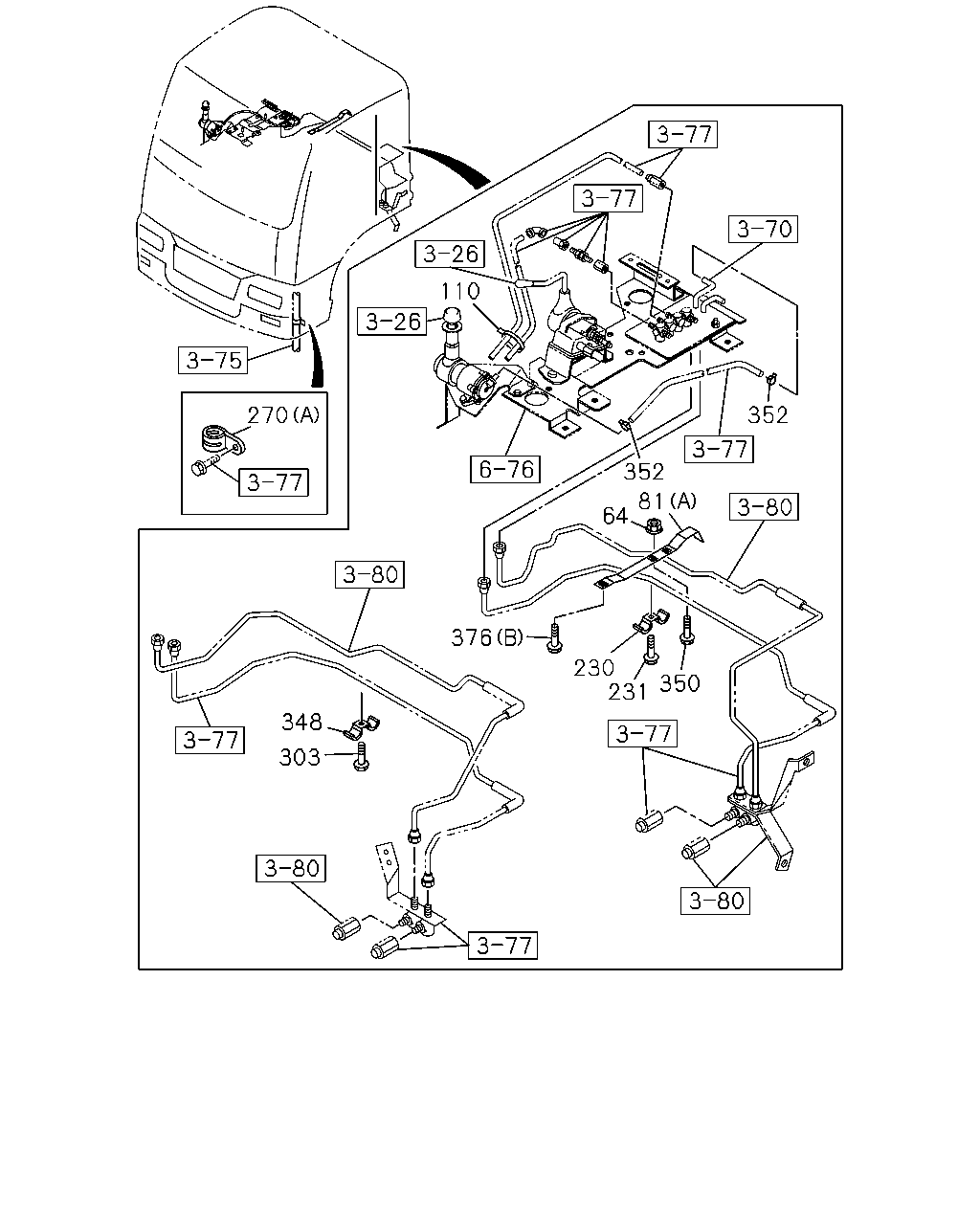

110 352 270 352 81 64 376 230 231 350 348 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
64	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0512-0602		●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0407-0511	●
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0512-		●	●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	03	1	0407-0511	●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	03	1	0512-		●	●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0407-0511	●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0512-		●	●
81	BRACKET; CLIP (E)	1-47479-562-0	02	1	0407-0410	●
81	BRACKET; CLIP (E) W/STUD M8X20	1-47471-209-0	02	1	0411-0511	●
81	BRACKET; CLIP (E) W/STUD M8X20	1-47471-209-0	02	1	0512-		●	●
81	BRACKET; CLIP (D) L=130	1-47479-575-0	02	1	0407-0511	●
81	BRACKET; CLIP (D) L=130	1-47479-575-0	02	1	0512-		●	●
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	0407-0511	●
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	0512-		●	●
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0407-0511	●
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0512-		●	●
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●	●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-0511	●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0512-		●	●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-0511	●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0512-		●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0407-0511	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0512-		●	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●	●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0407-0511	●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0512-		●	●
350	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0407-0511	●
350	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0512-		●	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0407-0511	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0512-		●	●
376	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
376	BOLT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●
376	BOLT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●	●

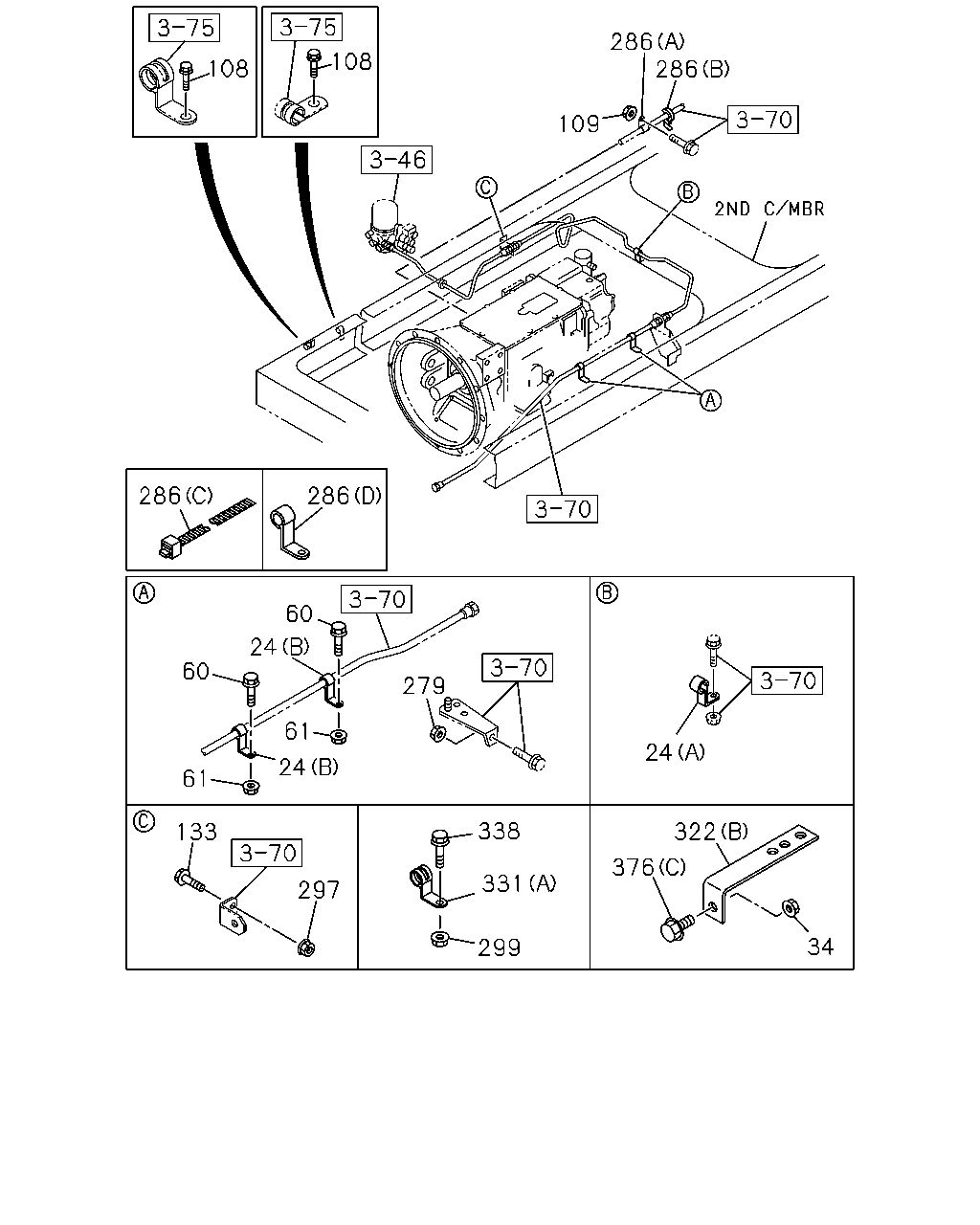

286 286 108 108 109 286 286 60 24 60 279 61 24 24 61 338 322 133 376 331 297 34 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0407-0511	●
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0512-		●	●
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0407-0511	●
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0512-		●	●
34	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
34	NUT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
34	NUT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	01	1	0603-		●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28680-830-0	02	1	0407-0511	●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●	●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	0601-		●	●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0512-0602		●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-		●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	09	1	0407-0511	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	09	1	0512-0512		●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	09	1	0601-		●	●
109	NUT; TUBE CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
109	NUT; TUBE CLIP TRANSMISSION-FULLER RTLO149 18(Y4C) M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
109	NUT; TUBE CLIP TRANSMISSION-FULLER RTLO149 18(Y4C) M8 FLANGE	0-91180-108-0	01	1	0603-		●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0407-0511	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0512-0602		●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-		●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	04	1	0512-0512			●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-			●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0407-0511	●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0512-0512		●	●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0512-0512			●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-		●	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-			●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0511	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0512-0512		●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-		●	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0407-0511	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0512-0512		●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-		●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	07	1	0512-0512		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0601-		●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	06	1	0407-0511	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-		●	●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-		●	●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	14	1	0512-0602			●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	14	1	0603-			●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	17	1	0512-0602		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	17	1	0603-		●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	16	1	0407-0511	●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0603		●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0603		●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0604-		●	●
279	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	0604-		●	●
286	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO149 18(Y4C) (D) ID=16 L=50 H=25	1-09700-838-0	01	1	0512-		●
286	CLIP; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=18 L=28	1-09701-067-0	01	1	0407-0511	●
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=18 L=28	1-09701-067-0	01	1	0512-		●
286	CLIP; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=15 & 7	1-09709-311-0	01	1	0407-0511	●
286	CLIP; NYLON TUBE FULLER M/T<X9B> (C) L=250	1-09707-126-0	02	1	0512-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	20	1	0512-0602			●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	20	1	0603-			●
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91150-212-0	01	1	0407-0511	●
297	NUT; BRKT M12 FLANGE	0-91150-212-0	01	1	0512-0602		●	●
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0603-		●	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	13	1	0512-0602		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	13	1	0603-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	22	1	0407-0511	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
299	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
299	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0512-0602			●
299	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-			●
322	BRACKET; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=120 H=35	1-82699-970-0	01	1	0407-0511	●
322	BRACKET; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=120 H=35	1-82699-970-0	01	1	0512-0905		●
322	BRACKET; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-82698-358-0	01	1	0906-		●
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	0407-0511	●
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	0512-0601		●	●
322	BRACKET; CLIP (A)	1-79996-659-1	01	1	0602-0702		●	●
331	CLIP; NYLON TUBE (A) ID=13 H=75 L=25	1-09700-601-0	01	1	0407-0511	●
331	CLIP; NYLON TUBE (A) ID=13 H=75 L=25	1-09700-601-0	01	1	0512-			●
331	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	02	1	0407-0511	●
331	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	02	1	0512-			●
338	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
338	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0512-0512			●
338	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-			●
376	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
376	BOLT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●
376	BOLT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●	●

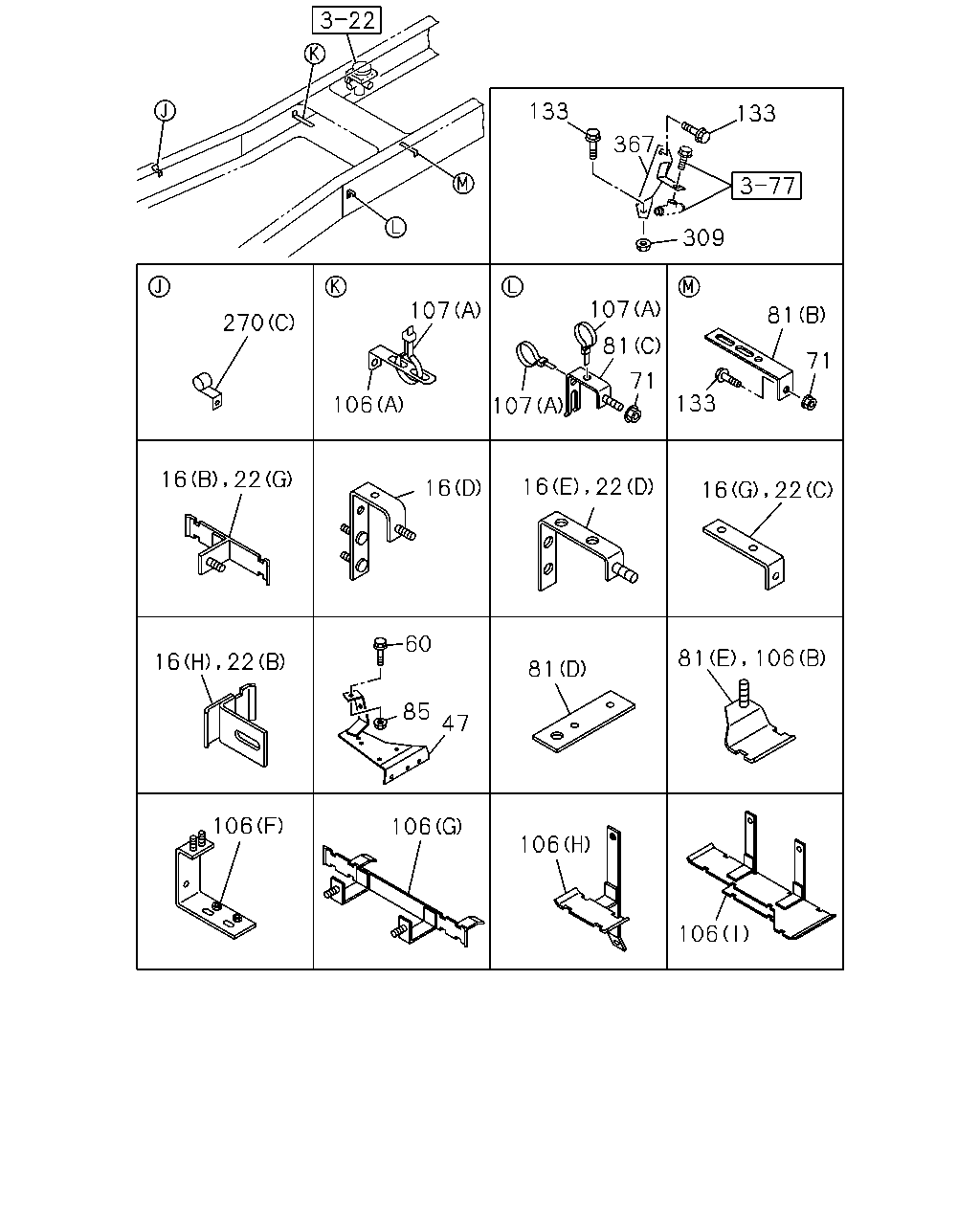

133 133 367 309 107 107 1 270 81 71 71 133 106 107 16 16 22 60 81 106 81 85 47 106 106 106 106 16 22 16 22 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0407-0511	●
1	CLIP; AIR PIPE 6WF1 TC-C(1B8) ID=6 H=20 L=20	1-09700-603-0	01	1	0512-		●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	08	1	0512-			●
16	BRACKET; PIPE CLIP SMOOTHER-G(C1W) (I)	1-47479-381-2	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	04	1	0512-		●
16	BRACKET; PIPE CLIP (D)	1-47479-329-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (D)	1-47479-329-0	01	1	0512-		●	●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	08	1	0407-0511	●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	02	1	0512-			●
16	BRACKET; PIPE CLIP (G) L=30	1-47479-481-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (G) L=30	1-47479-481-0	02	1	0512-		●	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	02	1	0512-		●	●
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	0512-		●	●
16	BRACKET; PIPE CLIP (H)	1-47479-693-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (H)	1-47479-693-0	01	1	0512-		●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	02	1	0512-		●	●
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	01	1	0512-		●	●
16	BRACKET; PIPE CLIP (K)	1-47479-722-1	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (K)	1-47479-722-1	01	1	0512-		●	●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0512-			●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	0512-		●	●
22	BRACKET; CLIP (A)	1-47479-381-2	13	1	0512-			●
22	BRACKET; CLIP (B)	1-47479-693-0	02	1	0512-			●
22	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	01	1	0407-0511	●
22	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	02	1	0512-		●	●
22	BRACKET; CLIP (C) L=60 H=30	1-47477-716-1	01	1	0407-0511	●
22	BRACKET; CLIP (C) L=60 H=30	1-47477-716-1	01	1	0512-		●	●
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	0407-0511	●
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	0512-		●	●
22	BRACKET; CLIP (A)	1-47479-381-2	13	1	0407-0511	●
22	BRACKET; CLIP (A)	1-47479-381-2	07	1	0512-		●
22	BRACKET; CLIP (G)	1-47479-554-0	01	1	0407-0511	●
22	BRACKET; CLIP (G)	1-47479-554-0	01	1	0512-		●	●
22	BRACKET; CLIP (B)	1-47479-693-0	02	1	0407-0511	●
22	BRACKET; CLIP (B)	1-47479-693-0	01	1	0512-		●
22	BRACKET; CLIP (D)	1-47479-800-0	01	1	0407-0511	●
22	BRACKET; CLIP (D)	1-47479-800-0	01	1	0512-			●
47	BRACKET; PIPE CLIP	1-47479-325-0	01	1	0407-0511	●
47	BRACKET; PIPE CLIP	1-47479-325-0	01	1	0512-		●	●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28680-830-0	02	1	0407-0511	●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●	●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	0601-		●	●
71	NUT; BRKT M8 FLANGE	0-91150-108-0	10	1	0407-0511	●
71	NUT; BRKT M8 FLANGE	0-91150-108-0	10	1	0512-0602		●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	10	1	0603-		●	●
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0407-0511	●
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0512-		●	●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	03	1	0407-0511	●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	03	1	0512-		●	●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0407-0511	●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0512-		●	●
81	BRACKET; CLIP (E)	1-47479-562-0	02	1	0407-0410	●
81	BRACKET; CLIP (E) W/STUD M8X20	1-47471-209-0	02	1	0411-0511	●
81	BRACKET; CLIP (E) W/STUD M8X20	1-47471-209-0	02	1	0512-		●	●
81	BRACKET; CLIP (D) L=130	1-47479-575-0	02	1	0407-0511	●
81	BRACKET; CLIP (D) L=130	1-47479-575-0	02	1	0512-		●	●
85	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
85	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
106	BRACKET; TUBE CLIP (H)	1-47471-060-0	01	1	0512-		●
106	BRACKET; TUBE CLIP (I)	8-97609-025-0	01	1	0512-		●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0512-		●	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	0407-0511	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	0512-		●	●
106	BRACKET; TUBE CLIP (C)	1-47479-381-2	03	1	0407-0511	●
106	BRACKET; TUBE CLIP (C)	1-47479-381-2	03	1	0512-		●	●
106	BRACKET; TUBE CLIP (G)	1-47479-553-0	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (G)	1-47479-553-0	01	1	0512-		●	●
106	BRACKET; TUBE CLIP (B)	1-47479-562-0	02	1	0407-0410	●
106	BRACKET; TUBE CLIP (B) W/STUD M8X20	1-47471-209-0	02	1	0411-0511	●
106	BRACKET; TUBE CLIP (B) W/STUD M8X20	1-47471-209-0	02	1	0512-		●	●
106	BRACKET; TUBE CLIP (F)	1-47479-754-0	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (F)	1-47479-754-0	01	1	0512-		●	●
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0512-0905		●	●
106	BRACKET; TUBE CLIP (D)	1-82698-358-0	01	1	0906-		●	●
107	CLIP; NYLON TUBE (C) ID=24 L=27	1-09700-809-0	01	1	0512-		●	●
107	CLIP; NYLON TUBE (C) ID=25 L=50	1-09701-019-0	01	1	0512-		●	●
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	03	1	0407-0511	●
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0512-		●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	0407-0511	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	0512-		●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	04	1	0512-0512			●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-			●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0407-0511	●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0512-0512		●	●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0512-0512			●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-		●	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-			●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0511	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0512-0512		●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-		●	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0407-0511	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0512-0512		●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-		●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	07	1	0512-0512		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0601-		●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	06	1	0407-0511	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-		●	●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-		●	●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-0511	●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0512-		●	●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-0511	●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0512-		●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0407-0511	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0512-		●	●
309	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
367	BRACKET ASM	1-47479-701-1	01	1	0407-0511	●

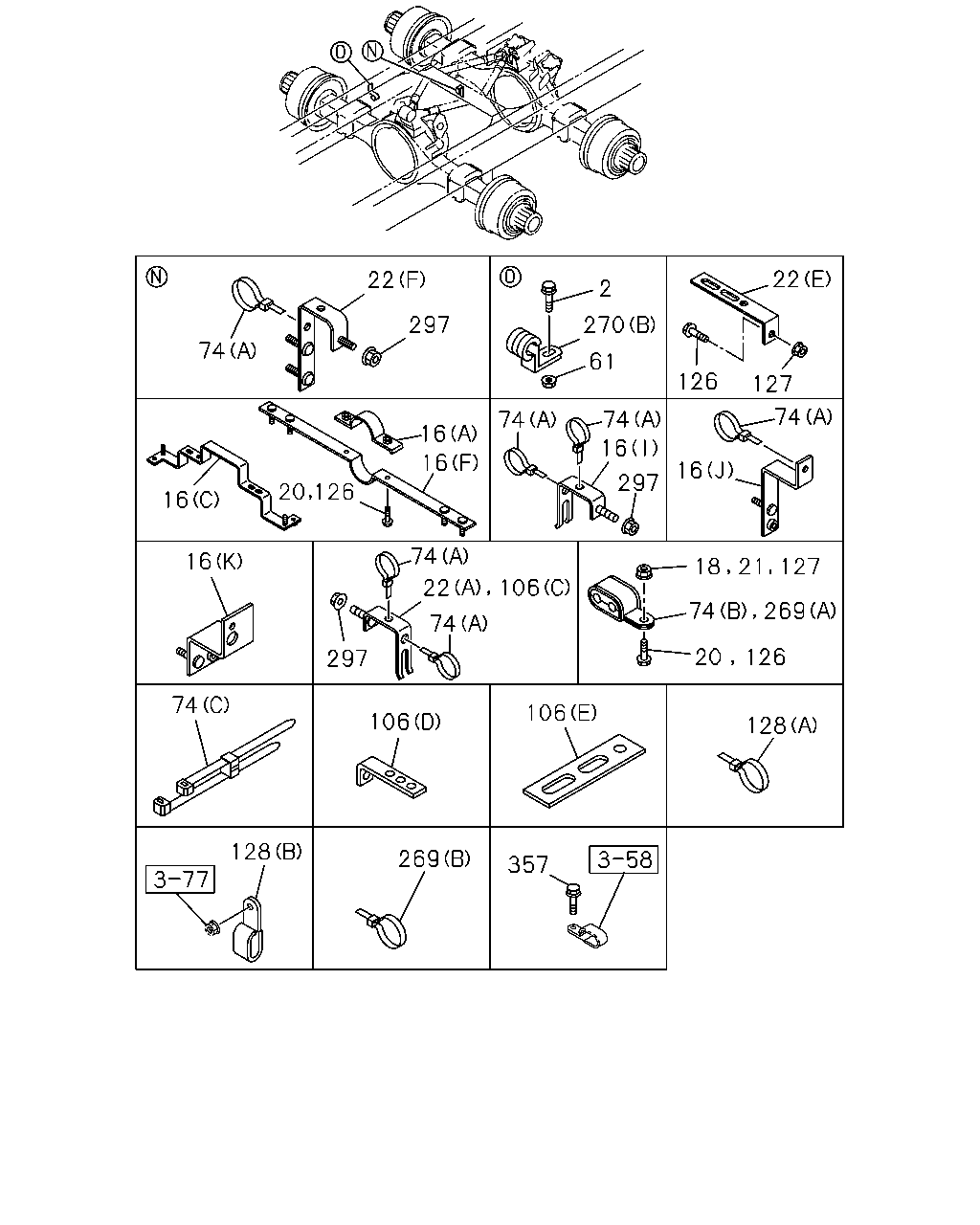

22 22 2 297 270 74 61 126 127 74 74 74 16 16 16 16 297 16 74 16 127 22 106 74 20 126 297 74 106 106 128 128 269 357 20 126 18 21 74 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●	●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	08	1	0512-			●
16	BRACKET; PIPE CLIP SMOOTHER-G(C1W) (I)	1-47479-381-2	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	04	1	0512-		●
16	BRACKET; PIPE CLIP (D)	1-47479-329-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (D)	1-47479-329-0	01	1	0512-		●	●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	08	1	0407-0511	●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	02	1	0512-			●
16	BRACKET; PIPE CLIP (G) L=30	1-47479-481-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (G) L=30	1-47479-481-0	02	1	0512-		●	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	02	1	0512-		●	●
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	0512-		●	●
16	BRACKET; PIPE CLIP (H)	1-47479-693-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (H)	1-47479-693-0	01	1	0512-		●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	02	1	0512-		●	●
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	01	1	0512-		●	●
16	BRACKET; PIPE CLIP (K)	1-47479-722-1	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (K)	1-47479-722-1	01	1	0512-		●	●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0512-			●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	0512-		●	●
18	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
18	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0512-0602		●	●
18	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0512-0602			●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-		●	●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-			●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512			●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	06	1	0512-0602		●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0512-0602		●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-		●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0512-0602		●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	0603-		●	●
22	BRACKET; CLIP (A)	1-47479-381-2	13	1	0512-			●
22	BRACKET; CLIP (B)	1-47479-693-0	02	1	0512-			●
22	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	01	1	0407-0511	●
22	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	02	1	0512-		●	●
22	BRACKET; CLIP (C) L=60 H=30	1-47477-716-1	01	1	0407-0511	●
22	BRACKET; CLIP (C) L=60 H=30	1-47477-716-1	01	1	0512-		●	●
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	0407-0511	●
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	0512-		●	●
22	BRACKET; CLIP (A)	1-47479-381-2	13	1	0407-0511	●
22	BRACKET; CLIP (A)	1-47479-381-2	07	1	0512-		●
22	BRACKET; CLIP (G)	1-47479-554-0	01	1	0407-0511	●
22	BRACKET; CLIP (G)	1-47479-554-0	01	1	0512-		●	●
22	BRACKET; CLIP (B)	1-47479-693-0	02	1	0407-0511	●
22	BRACKET; CLIP (B)	1-47479-693-0	01	1	0512-		●
22	BRACKET; CLIP (D)	1-47479-800-0	01	1	0407-0511	●
22	BRACKET; CLIP (D)	1-47479-800-0	01	1	0512-			●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0512-0602		●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	23	1	0512-0704			●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	22	1	0705-			●
74	CLIP; NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	03	1	0407-0511	●
74	CLIP; NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	03	1	0512-		●	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	23	1	0407-0511	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	15	1	0512-0608		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	16	1	0609-0704		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	15	1	0705-		●
74	CLIP; NYLON TUBE (C) L=256	1-09707-189-0	02	1	0407-0511	●
74	CLIP; NYLON TUBE (C) L=256	1-09707-189-0	02	1	0512-		●	●
106	BRACKET; TUBE CLIP (H)	1-47471-060-0	01	1	0512-		●
106	BRACKET; TUBE CLIP (I)	8-97609-025-0	01	1	0512-		●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0512-		●	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	0407-0511	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	0512-		●	●
106	BRACKET; TUBE CLIP (C)	1-47479-381-2	03	1	0407-0511	●
106	BRACKET; TUBE CLIP (C)	1-47479-381-2	03	1	0512-		●	●
106	BRACKET; TUBE CLIP (G)	1-47479-553-0	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (G)	1-47479-553-0	01	1	0512-		●	●
106	BRACKET; TUBE CLIP (B)	1-47479-562-0	02	1	0407-0410	●
106	BRACKET; TUBE CLIP (B) W/STUD M8X20	1-47471-209-0	02	1	0411-0511	●
106	BRACKET; TUBE CLIP (B) W/STUD M8X20	1-47471-209-0	02	1	0512-		●	●
106	BRACKET; TUBE CLIP (F)	1-47479-754-0	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (F)	1-47479-754-0	01	1	0512-		●	●
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0512-0905		●	●
106	BRACKET; TUBE CLIP (D)	1-82698-358-0	01	1	0906-		●	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28080-812-0	04	1	0407-0511	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28080-812-0	04	1	0512-0512		●	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-		●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0511	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0512-0512		●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0512-0512		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-		●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0407-0511	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	0512-0512			●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-			●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0511	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0511	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0512-0512		●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0512-0512		●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-		●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-		●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	14	1	0512-0602			●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
127	NUT; CLIP BRKT SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	09	1	0512-0602		●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	09	1	0603-		●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	14	1	0407-0511	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602			●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	14	1	0603-			●
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	18	1	0512-			●
128	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	01	1	0407-0511	●
128	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	01	1	0512-			●
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	18	1	0407-0511	●
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	10	1	0512-0608		●
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	11	1	0609-		●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	0512-		●	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	09	1	0407-0511	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	0512-		●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	01	1	0407-0511	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	01	1	0512-		●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	05	1	0407-0511	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	05	1	0512-		●	●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-0511	●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0512-		●	●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-0511	●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0512-		●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0407-0511	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0512-		●	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	20	1	0512-0602			●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	20	1	0603-			●
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91150-212-0	01	1	0407-0511	●
297	NUT; BRKT M12 FLANGE	0-91150-212-0	01	1	0512-0602		●	●
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0603-		●	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	13	1	0512-0602		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	13	1	0603-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	22	1	0407-0511	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28080-810-0	02	1	0407-0511	●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28080-810-0	02	1	0512-0512		●	●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	0601-		●	●

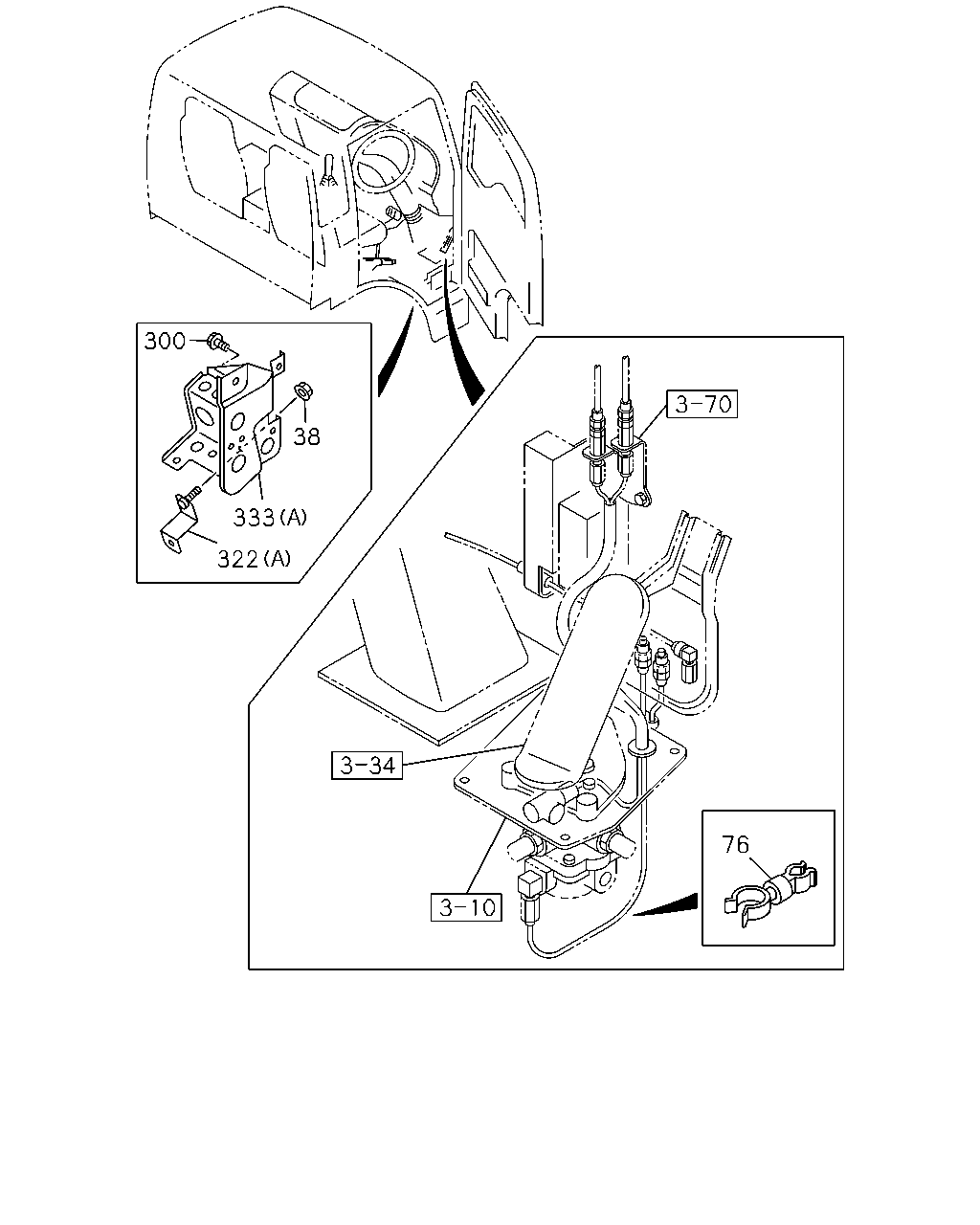

300 38 333 322 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602		●	●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0702		●	●
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	02	1	0407-0511	●
76	CLIP; NYLON TUBE 6WF1 TC-C(1B8) ID=6 & 8.3	8-94167-742-0	02	1	0512-		●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0407-0511	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0512-0904		●	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-		●	●
322	BRACKET; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=120 H=35	1-82699-970-0	01	1	0407-0511	●
322	BRACKET; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=120 H=35	1-82699-970-0	01	1	0512-0905		●
322	BRACKET; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-82698-358-0	01	1	0906-		●
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	0407-0511	●
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	0512-0601		●	●
322	BRACKET; CLIP (A)	1-79996-659-1	01	1	0602-0702		●	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0407-0511	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0512-		●	●
333	BRACKET; BRK AIR PIPE (A)	1-79997-339-6	01	1	0407-0511	●
333	BRACKET; BRK AIR PIPE (A)	1-79997-339-6	01	1	0512-0702		●	●
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801		●	●
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-		●	●

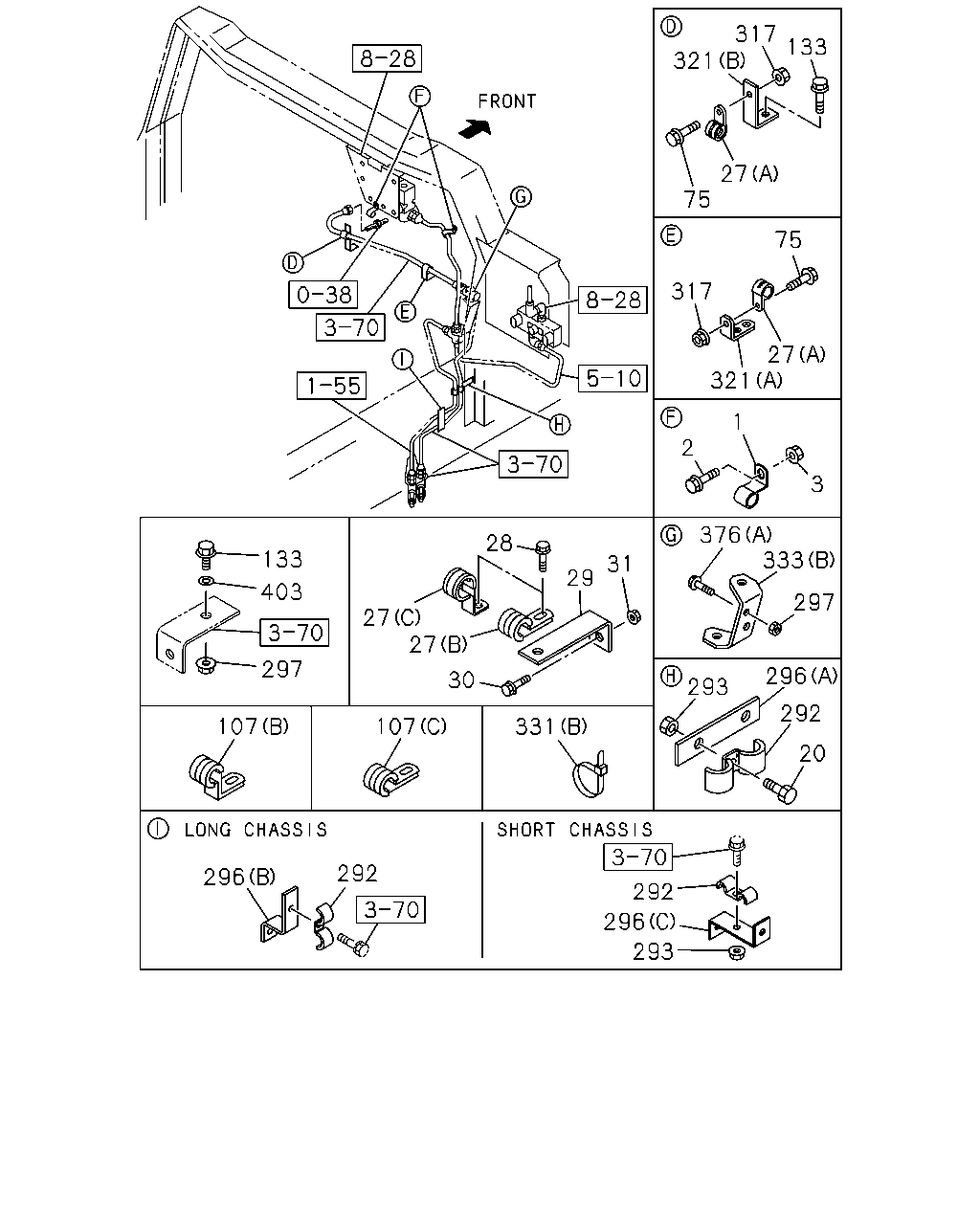

317 321 133 27 75 75 317 27 321 1 2 3 376 333 28 133 31 29 403 297 27 27 297 296 30 293 292 107 107 331 20 292 296 292 296 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0407-0511	●
1	CLIP; AIR PIPE 6WF1 TC-C(1B8) ID=6 H=20 L=20	1-09700-603-0	01	1	0512-		●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●	●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
3	NUT; CLIP,AIR PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
3	NUT; CLIP,AIR PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	01	1	0603-		●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512			●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
27	CLIP; FLEX HOSE (C) ID=25 H=30 L=35	1-09700-875-0	02	1	0512-		●
27	CLIP; FLEX HOSE (B) ID=26 L=27	1-09701-006-0	01	1	0407-0511	●
27	CLIP; FLEX HOSE (B) ID=26 L=27	1-09701-006-0	01	1	0512-			●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	0407-0511	●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	0512-		●	●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	01	1	0512-0512			●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	01	1	0601-			●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
29	BRACKET; CLIP,AIR PIPE L=95	1-82699-085-0	01	1	0407-0511	●
29	BRACKET; CLIP,AIR PIPE L=95	1-82699-085-0	01	1	0512-			●
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0512-0512			●
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-			●
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602			●
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-			●
75	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
75	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●	●
75	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512			●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
107	CLIP; NYLON TUBE (C) ID=24 L=27	1-09700-809-0	01	1	0512-		●	●
107	CLIP; NYLON TUBE (C) ID=25 L=50	1-09701-019-0	01	1	0512-		●	●
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	03	1	0407-0511	●
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0512-		●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	0407-0511	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	0512-		●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	04	1	0512-0512			●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-			●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0407-0511	●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0512-0512		●	●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0512-0512			●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-		●	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-			●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0511	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0512-0512		●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-		●	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0407-0511	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0512-0512		●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-		●	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	07	1	0512-0512		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0601-		●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	06	1	0407-0511	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-		●	●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-		●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0512-			●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0407-0511	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0512-		●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0512-0602		●	●
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
296	BRACKET; CLIP (C)	1-47479-698-0	01	1	0512-		●
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	0407-0511	●
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	0512-			●
296	BRACKET; CLIP (B) L=85 H=40	1-47476-676-0	01	1	0407-0511	●
296	BRACKET; CLIP (B) L=85 H=40	1-47476-676-0	01	1	0512-			●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	20	1	0512-0602			●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	20	1	0603-			●
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91150-212-0	01	1	0407-0511	●
297	NUT; BRKT M12 FLANGE	0-91150-212-0	01	1	0512-0602		●	●
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0603-		●	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	13	1	0512-0602		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	13	1	0603-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	22	1	0407-0511	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
317	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
317	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	0407-0511	●
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	0512-		●	●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	0407-0511	●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	0512-		●	●
331	CLIP; NYLON TUBE (A) ID=13 H=75 L=25	1-09700-601-0	01	1	0407-0511	●
331	CLIP; NYLON TUBE (A) ID=13 H=75 L=25	1-09700-601-0	01	1	0512-			●
331	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	02	1	0407-0511	●
331	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	02	1	0512-			●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0407-0511	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0512-		●	●
333	BRACKET; BRK AIR PIPE (A)	1-79997-339-6	01	1	0407-0511	●
333	BRACKET; BRK AIR PIPE (A)	1-79997-339-6	01	1	0512-0702		●	●
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801		●	●
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-		●	●
376	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
376	BOLT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●
376	BOLT; BRKT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●	●
403	WASHER; PL SMOOTHER-G(C1W) ID=12.5 OD=26	9-09164-612-0	01	1	0407-0511	●
403	WASHER; PL ID=12.5 OD=26	9-09164-612-0	01	1	0512-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
