3-75 — BRAKE PIPING; AIR,FRONT (#29877) — 97 parça

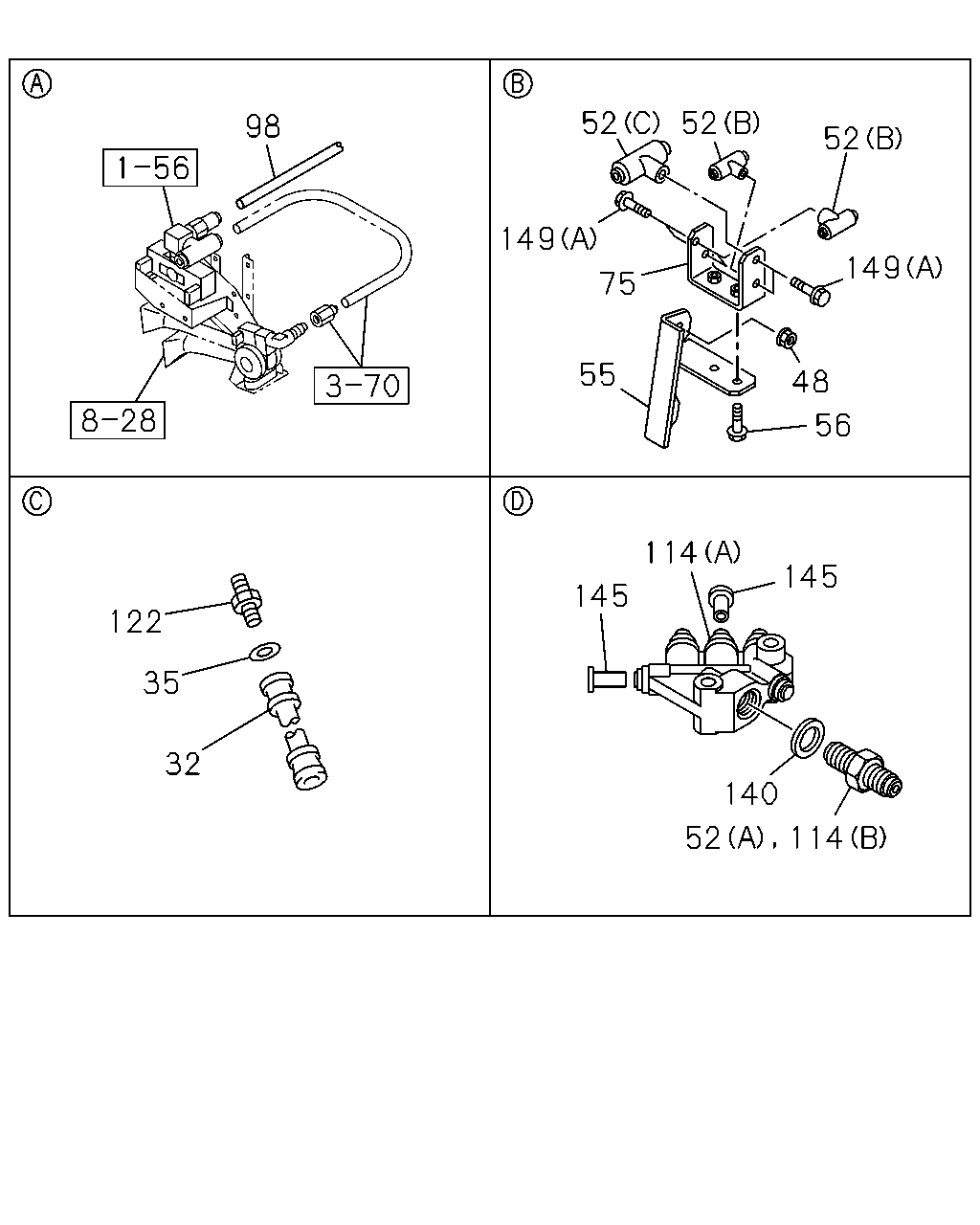

çizim 87103
98 52 52 52 149 149 75 55 56 48 122 35 32 52 140 114 114 145 145
BalonParca AdiParca NoAdetTipApplied Date A B C
32 HOSE; FLEX,FRT
L=430 		0-07847-430-1 02 1 0407-0511 ●
32 HOSE; FLEX,FRT
L=430 		0-07847-430-1 02 1 0512-0605 ● ●
32 HOSE; FLEX,FRT
L=430 		0-57847-430-1 02 1 0606- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0407-0511 ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0512- ● ●
48 NUT; UNION BRKT
M12 FLANGE 		0-91150-212-0 02 1 0407-0511 ●
48 NUT; UNION BRKT
M12 FLANGE 		0-91150-212-0 02 1 0512-0602 ● ●
48 NUT; UNION BRKT
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
52 CONNECTOR; NYLON TUBE
(A) 		1-09654-416-1 01 1 0407-0511 ●
52 CONNECTOR; NYLON TUBE
(A) 		1-09654-416-1 01 1 0512-0610 ● ●
52 CONNECTOR; NYLON TUBE
(A) 		8-97618-539-0 01 1 0611-0803 ● ●
52 CONNECTOR; NYLON TUBE
(C) 		1-09661-128-0 01 1 0407-0511 ●
52 CONNECTOR; NYLON TUBE
(C) 		1-09661-128-0 01 1 0512- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 0407-0511 ●
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 0512- ● ●
55 BRACKET; TUBE UNION 1-47478-381-1 01 1 0407-0511 ●
55 BRACKET; TUBE UNION 1-47478-381-1 01 1 0512- ● ●
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ● ●
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
75 BRACKET; UNION 1-47478-382-0 01 1 0407-0511 ●
75 BRACKET; UNION 1-47478-382-0 01 1 0512- ● ●
98 TUBE; NYLON
L=950 OD=12 		1-49219-159-0 01 1 0512- ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0407- ● ● ●
114 UNION; NYLON TUBE
(B) DIN12 M22 STRAIGHT 		8-98107-103-0 01 1 0804- ● ●
114 UNION; NYLON TUBE
(A) 		1-09661-611-0 01 1 0407-0511 ●
114 UNION; NYLON TUBE
(A) 		1-09661-611-0 01 1 0512- ● ●
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-0 02 1 0407-0511 ●
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 0512- ● ●
140 GASKET; CONNECTOR 9-09572-022-0 01 1 0407-0511 ●
140 GASKET; CONNECTOR 9-09572-022-0 01 1 0512-0803 ● ●
145 PLUG
OD=12 		1-09661-617-0 01 1 0407-0511 ●
145 PLUG
OD=12 		1-09661-617-0 01 1 0512- ● ●
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0511 ●
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0512-0512 ● ●
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ●
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28080-845-0 02 1 0407-0511 ●
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28080-845-0 02 1 0512-0512 ● ●
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28050-845-0 02 1 0601- ● ●

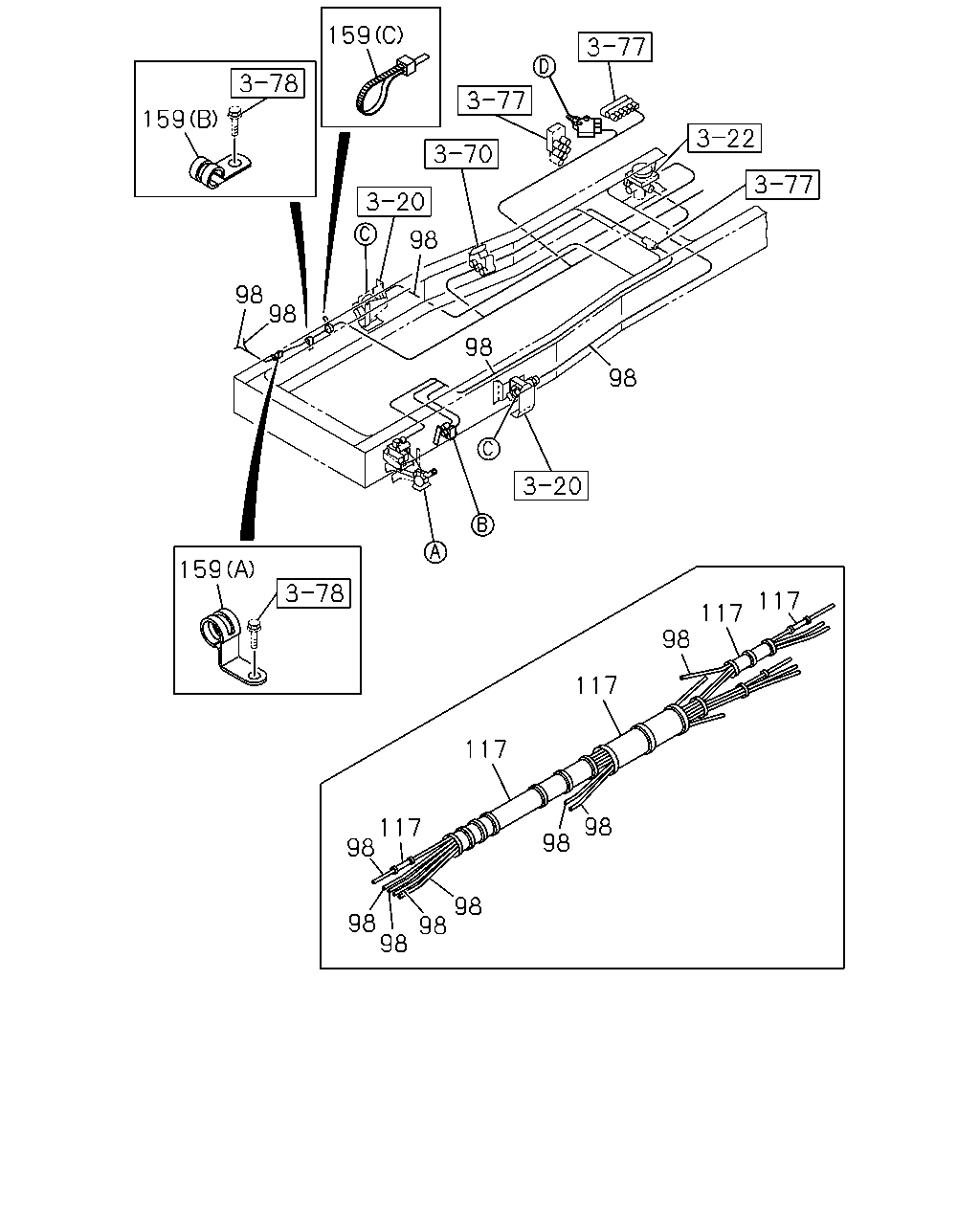

çizim 87328
159 159 98 98 98 98 98 159 117 117 98 117 117 98 117 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B C
98 TUBE; NYLON
L=950 OD=12 		1-49219-159-0 01 1 0512- ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0407- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0407- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0407- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0407- ● ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0407- ● ● ●
159 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO149 18(Y4C) (C) L=350 		1-09707-183-0 01 1 0609- ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 09 1 0512- ●
159 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 0407-0511 ●
159 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09700-947-0 01 1 0512- ● ●
159 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0407-0511 ●
159 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0512- ●
159 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0512- ●
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 0407-0511 ●
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 0512- ● ●
159 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0407-0511 ●
159 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=28 L=40 		1-09701-261-0 03 1 0512- ●
159 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0512- ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 09 1 0407-0511 ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 10 1 0512- ●

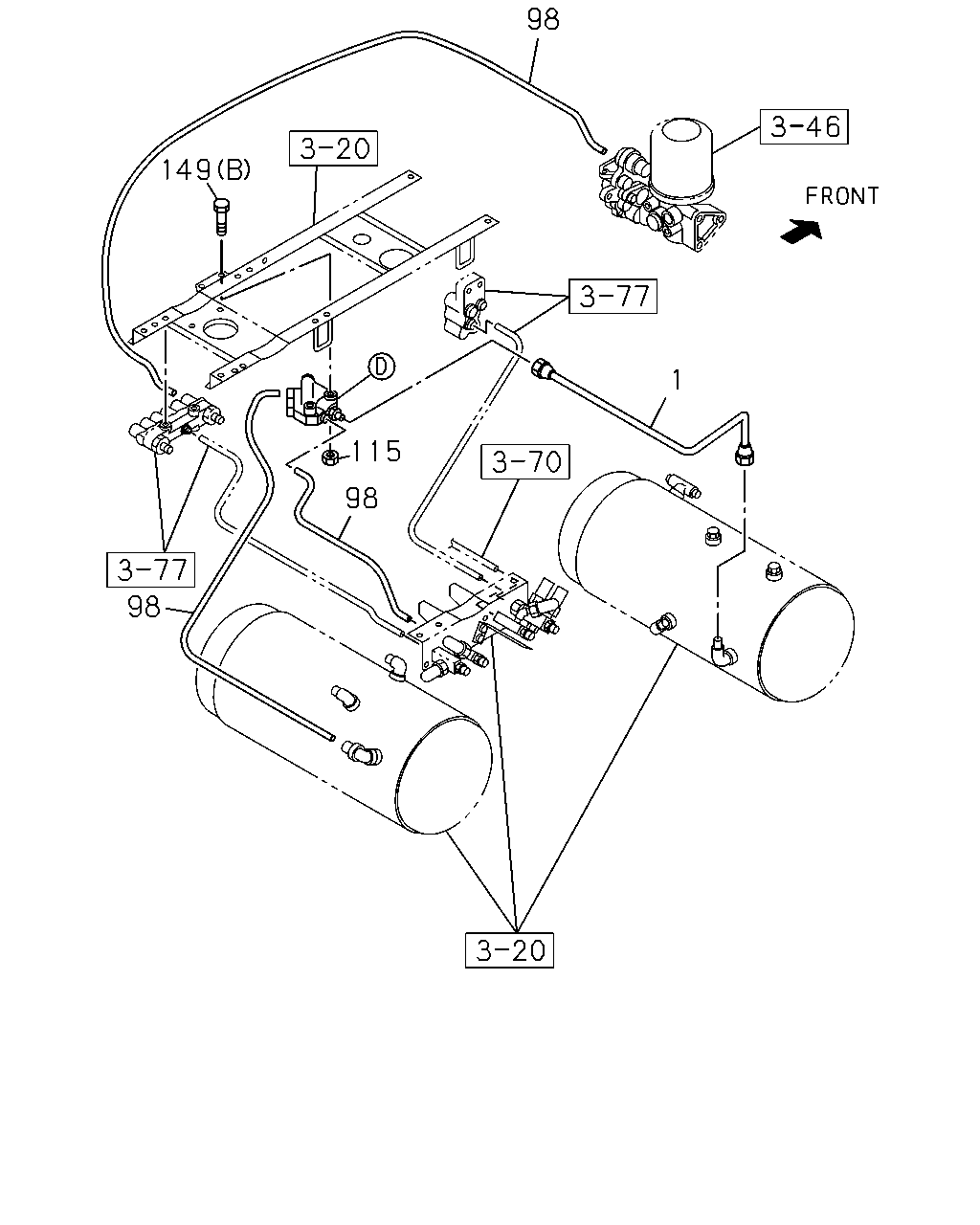

çizim 87737
98 149 1 115 98 98
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; AIR,AIR TANK TO UNION 1-49123-983-0 01 1 0407-0511 ●
1 PIPE; AIR,AIR TANK TO UNION 1-49123-983-0 01 1 0512- ● ●
98 TUBE; NYLON
L=950 OD=12 		1-49219-159-0 01 1 0512- ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0407- ● ● ●
98 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0407- ● ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0511 ●
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0512-0512 ● ●
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ●
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28080-845-0 02 1 0407-0511 ●
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28080-845-0 02 1 0512-0512 ● ●
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28050-845-0 02 1 0601- ● ●
