◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#29876) — 367 parça

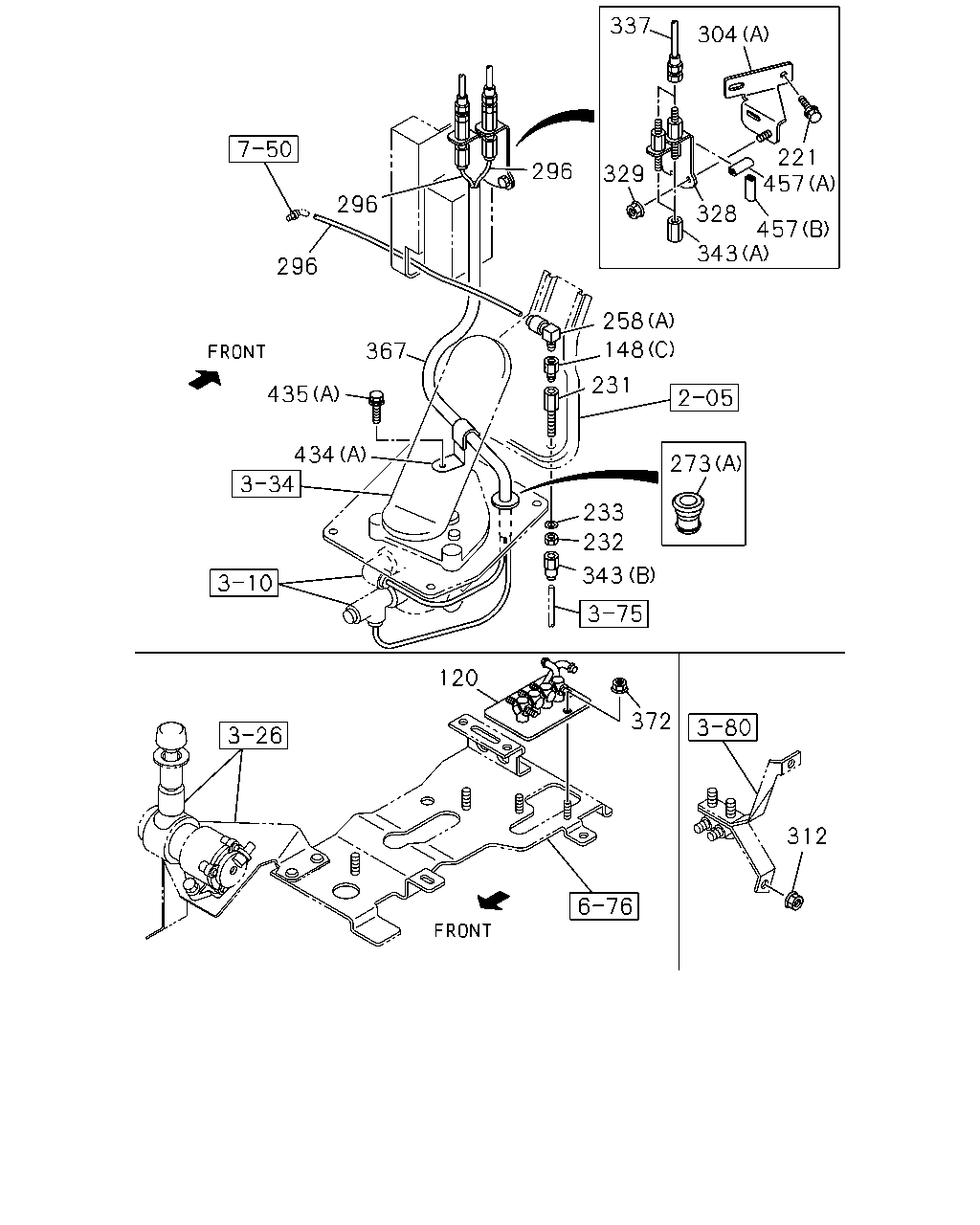

çizim 87050
337 304 221 457 296 329 296 328 457 343 296 258 148 367 231 435 434 273 233 232 343 120 372 312
BalonParca AdiParca NoAdetTipApplied Date A B C
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 0407-0511 ●
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 0512- ● ●
148 CONNECTOR; UNION
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0512- ● ●
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		8-94338-417-0 01 1 0407-0511 ●
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		8-94338-417-0 01 1 0512- ●
148 CONNECTOR; UNION
(A) 		1-09660-012-0 01 1 0407-0511 ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0407-0511 ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0512- ● ●
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-0511 ●
221 BOLT; BRKT
6WF1 TC-C(1B8) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ●
231 UNION; AIR PIPE 1-09656-713-2 01 1 0407-0511 ●
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09656-713-2 01 1 0512- ●
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0512- ●
231 UNION; AIR PIPE
TRANSMISSION-FULLER RTLO149 18(Y4C) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0512- ●
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) 		1-09656-713-2 01 1 0512- ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 0407-0511 ●
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10 H=8 		1-09400-029-0 01 1 0512- ●
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0512- ●
232 NUT; UNION,AIR PIPE
TRANSMISSION-FULLER RTLO149 18(Y4C) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0512- ●
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) M10 H=8 		1-09400-029-0 01 1 0512- ●
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 01 1 0407-0511 ●
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.2 		9-09150-510-0 01 1 0512-0603 ●
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0512-0603 ●
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-FULLER RTLO149 18(Y4C) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0512-0603 ●
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) ID=10.2 		9-09150-510-0 01 1 0512-0603 ●
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.2 		0-91510-510-0 01 1 0604- ●
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604- ●
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-FULLER RTLO149 18(Y4C) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604- ●
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) ID=10.2 		0-91510-510-0 01 1 0604- ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0512- ●
273 GROMMET
(A) 		1-09332-135-0 01 1 0407-0511 ●
273 GROMMET
6WF1 TC-C(1B8) (A) 		1-09332-135-0 01 1 0512- ●
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0407-0511 ●
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0512- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0407-0511 ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0512- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0512- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0512- ● ● ●
296 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0512- ● ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0512- ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0512- ● ● ●
304 BRACKET; UNION
(C) 		1-47478-359-0 01 1 0407-0511 ●
304 BRACKET; UNION
(C) 		1-47478-359-0 01 1 0512- ● ●
304 BRACKET; UNION
(B) 		1-47479-636-1 01 1 0407-0507 ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0508-0511 ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0512- ● ●
304 BRACKET; UNION
(A) 		1-71117-247-0 01 1 0407-0511 ●
304 BRACKET; UNION
6WF1 TC-C(1B8) (A) 		1-71117-247-0 01 1 0512- ●
312 NUT; UNION
M8 		9-09110-408-0 01 1 0407-0511 ●
312 NUT; UNION
M8 		9-09110-408-0 01 1 0512-0512 ● ●
312 NUT; UNION
M8 		0-91110-508-0 01 1 0601- ● ●
328 UNION; AIR PIPE 1-47470-442-0 01 1 0407-0511 ●
328 UNION; AIR PIPE
6WF1 TC-C(1B8) 		1-47470-442-0 01 1 0512- ●
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
329 NUT; UNION,AIR PIPE
6WF1 TC-C(1B8) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ●
329 NUT; UNION,AIR PIPE
6WF1 TC-C(1B8) M6 FLANGE 		0-91180-106-0 01 1 0603- ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=440 		0-07210-440-0 02 1 0407-0511 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
6WF1 TC-C(1B8) L=440 		0-07210-440-0 02 1 0512-0605 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
6WF1 TC-C(1B8) L=440 		0-57210-440-0 02 1 0606- ●
343 UNION; NYLON TUBE
(B) 		1-09661-382-0 01 1 0407-0511 ●
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-09661-382-0 01 1 0512- ●
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0512- ●
343 UNION; NYLON TUBE
TRANSMISSION-FULLER RTLO149 18(Y4C) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0512- ●
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) (B) 		1-09661-382-0 01 1 0512- ●
343 UNION; NYLON TUBE
(A) 		1-09660-796-1 02 1 0407-0511 ●
343 UNION; NYLON TUBE
6WF1 TC-C(1B8) (A) 		1-09660-796-1 02 1 0512- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0407- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0407- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0407- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0512- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0512- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=25 		1-87411-032-0 AR 1 0512- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0512- ● ● ●
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0407-0511 ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0512- ● ●
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0407-0511 ●
434 CLIP
6WF1 TC-C(1B8) (A) ID=17 		8-94449-734-1 01 1 0512- ●
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-0511 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0512-0904 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
457 FINISHER; UNION
(A) L=50 		8-94270-377-1 01 1 0407-0511 ●
457 FINISHER; UNION
6WF1 TC-C(1B8) (A) L=50 		8-94270-377-1 01 1 0512- ●
457 FINISHER; UNION
(B) L=50 		8-94270-377-1 01 1 0407-0511 ●
457 FINISHER; UNION
6WF1 TC-C(1B8) (B) L=50 		8-94270-377-1 01 1 0512- ●

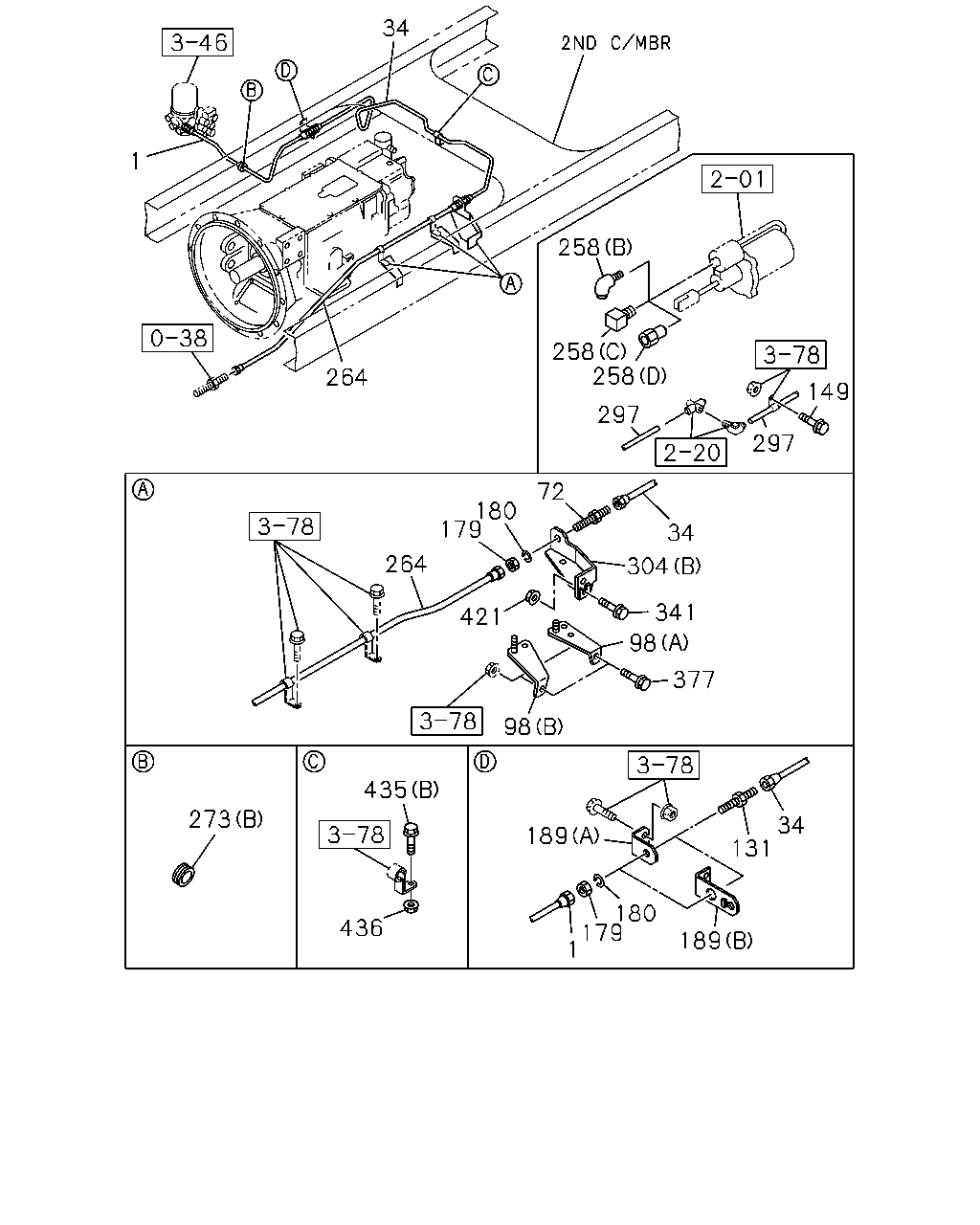

çizim 87152
34 1 258 258 258 264 149 297 297 72 180 179 34 264 304 341 421 98 377 98 435 273 34 131 189 180 179 1 436 189
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK 1-09363-915-0 01 1 0512-0610 ●
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 0611- ●
1 HOSE; FLEX,AIR TANK
L=660 		1-09363-766-0 01 1 0407-0511 ●
1 HOSE; FLEX,AIR TANK
L=660 		1-09363-766-0 01 1 0512- ●
34 PIPE; AIR
6WF1 TC-C(1B8) L=1188 		1-49124-867-0 01 1 0602- ●
34 PIPE; AIR
L=1138 		1-49123-913-0 01 1 0407-0511 ●
34 PIPE; AIR
6WG1 TC-C(72L) L=1131 		1-49124-915-0 01 1 0512- ● ●
72 UNION; AIR PIPE 1-48320-042-1 01 1 0407-0410 ●
72 UNION; AIR PIPE 1-48320-057-0 01 1 0411-0511 ●
72 UNION; AIR PIPE
M22 		9-09233-315-1 01 1 0512-0607 ● ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0608- ● ●
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0407-0511 ●
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0512-0603 ● ●
98 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) (B) 		1-47479-639-0 01 1 0604- ● ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0407-0511 ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0512-0603 ● ●
98 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) (A) 		1-47479-723-0 01 1 0604- ● ●
131 UNION; AIR PIPE
M22 		9-09233-315-1 01 1 0407-0511 ●
131 UNION; AIR PIPE
M22 		9-09233-315-1 01 1 0512-0607 ● ●
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0608- ● ●
149 BOLT; TUBE CLIP
TRANSMISSION-FULLER RTLO149 18(Y4C) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
149 BOLT; TUBE CLIP
TRANSMISSION-FULLER RTLO149 18(Y4C) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
149 BOLT; TUBE CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
179 NUT; UNION
M22 		9-09111-422-0 02 1 0407-0511 ●
179 NUT; UNION
M22 		9-09111-422-0 02 1 0512-0512 ● ●
179 NUT; UNION
M22 		0-91111-522-0 02 1 0601- ● ●
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0407-0511 ●
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0512-0603 ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0604- ● ●
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-47471-236-0 01 1 0512- ● ●
189 BRACKET; FLEX HOSE
(A) 		1-47479-473-0 01 1 0407-0511 ●
189 BRACKET; FLEX HOSE
6WF1 TC-C(1B8) (A) 		1-47479-473-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0512- ●
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0407-0511 ●
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0512- ● ●
273 GROMMET
(A) 		1-09332-135-0 01 1 0407-0511 ●
273 GROMMET
6WF1 TC-C(1B8) (A) 		1-09332-135-0 01 1 0512- ●
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0407-0511 ●
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0512- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0512- ● ● ●
304 BRACKET; UNION
(C) 		1-47478-359-0 01 1 0407-0511 ●
304 BRACKET; UNION
(C) 		1-47478-359-0 01 1 0512- ● ●
304 BRACKET; UNION
(B) 		1-47479-636-1 01 1 0407-0507 ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0508-0511 ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0512- ● ●
304 BRACKET; UNION
(A) 		1-71117-247-0 01 1 0407-0511 ●
304 BRACKET; UNION
6WF1 TC-C(1B8) (A) 		1-71117-247-0 01 1 0512- ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0507 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0508-0511 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511 ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ● ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0601-0603 ● ●
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 02 1 0604- ● ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-0511 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0512-0904 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●

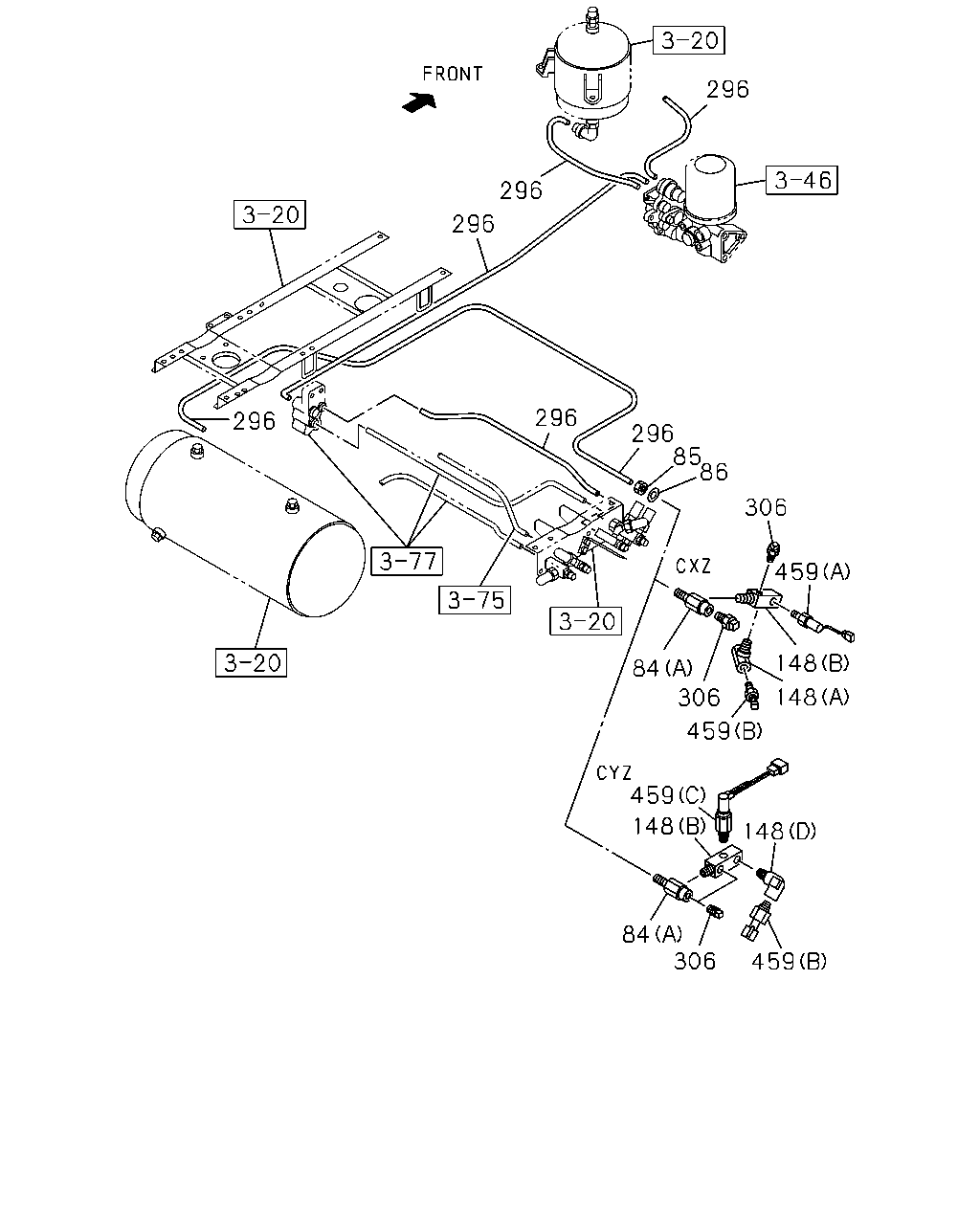

çizim 87699
296 296 296 296 296 296 85 86 306 459 148 84 148 306 459 459 148 148 84 306 459
BalonParca AdiParca NoAdetTipApplied Date A B C
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0407-0511 ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0512- ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0407-0511 ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0512- ● ●
85 NUT; UNION
M18 		9-99110-518-0 01 1 0407-0511 ●
85 NUT; UNION
M18 		9-99110-518-0 01 1 0512-0512 ● ●
85 NUT; UNION
M18 		0-91110-518-0 01 1 0601- ● ●
86 WASHER; LK,TUBE UNION
ID=18.2 		9-09150-518-0 01 1 0407-0511 ●
86 WASHER; LK,TUBE UNION
ID=18.2 		9-09150-518-0 01 1 0512-0603 ● ●
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0604- ● ●
148 CONNECTOR; UNION
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0512- ● ●
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		8-94338-417-0 01 1 0407-0511 ●
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		8-94338-417-0 01 1 0512- ●
148 CONNECTOR; UNION
(A) 		1-09660-012-0 01 1 0407-0511 ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0407-0511 ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0512- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0407-0511 ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0512- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0512- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0512- ● ● ●
296 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0512- ● ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0512- ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0512- ● ● ●
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0407-0511 ●
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0512- ● ●
459 SWITCH; PRESS
(A) 		1-48340-066-0 01 1 0407-0511 ●
459 SWITCH; PRESS
(C) 		1-48340-065-0 01 1 0512- ● ●
459 SWITCH; PRESS
(B) 		1-80220-015-0 01 1 0407-0511 ●
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0512-0512 ●
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0512- ● ●

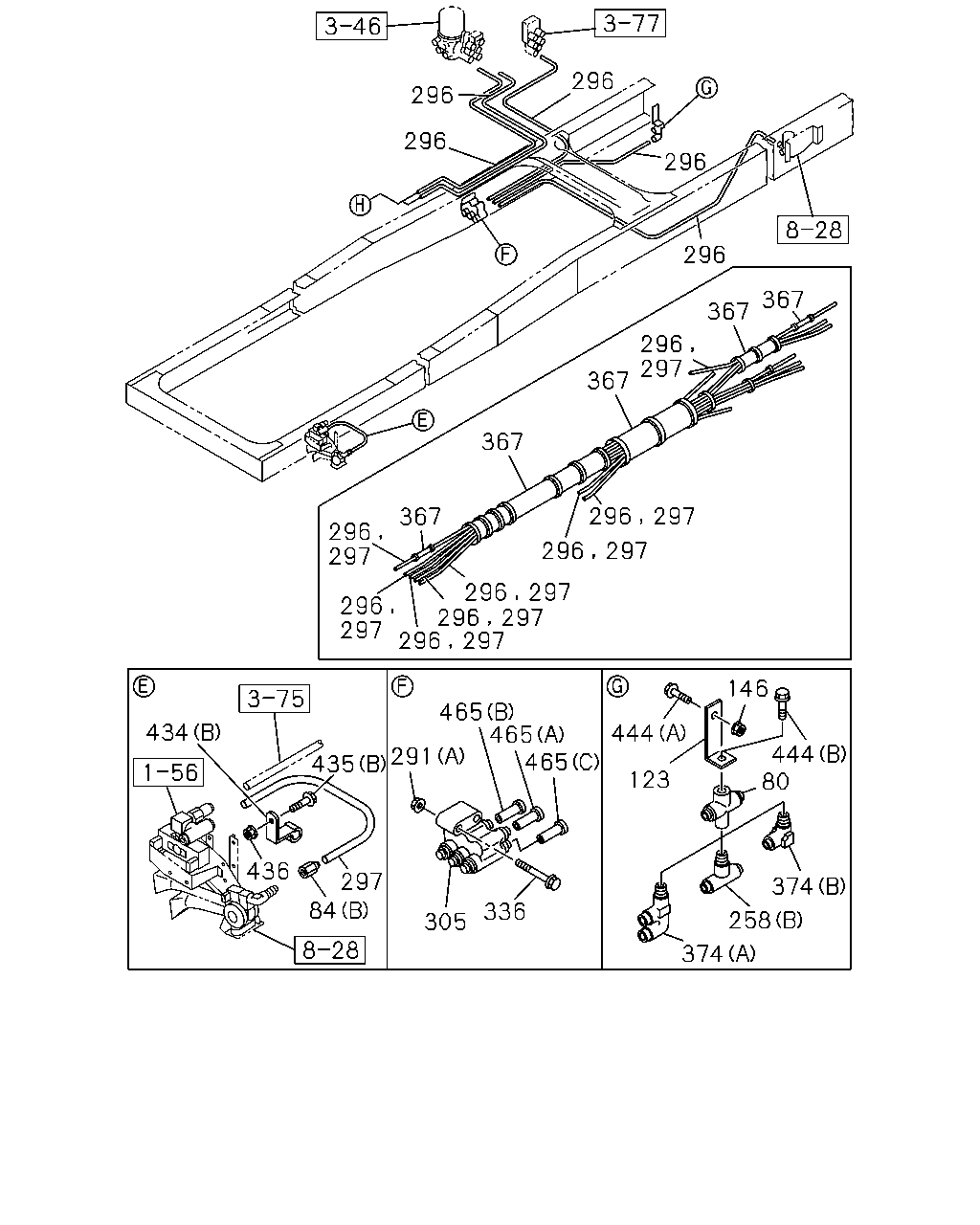

çizim 104261
296 296 296 296 296 367 367 296 297 367 367 367 296 297 296 297 146 465 465 465 434 444 444 80 291 435 123 436 297 84 374 336 258 305 374 296 297 296 297 296 297 296 297 296 297
BalonParca AdiParca NoAdetTipApplied Date A B C
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0407-0511 ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0407-0511 ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0512- ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0407-0511 ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0512- ● ●
123 BRACKET; UNION
L=50 		1-47475-663-1 01 1 0407-0511 ●
146 NUT; UNION
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0407-0511 ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0512- ●
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0512- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
291 NUT; UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0407-0511 ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0512- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0407-0511 ●
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0512- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0512- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0512- ● ● ●
296 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0512- ● ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0512- ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0512- ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0407- ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0512- ● ● ●
305 UNION ASM; NYLON TUBE 1-09661-613-0 01 1 0407-0511 ●
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0512- ● ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28080-870-0 02 1 0407-0511 ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28080-870-0 02 1 0512-0512 ● ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0601- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0407- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0407- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0407- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0512- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0512- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=25 		1-87411-032-0 AR 1 0512- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0512- ● ● ●
374 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0407-0511 ●
374 CONNECTOR
SMOOTHER-G(C1W) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-0511 ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0407-0511 ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0512- ● ●
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0407-0511 ●
434 CLIP
6WF1 TC-C(1B8) (A) ID=17 		8-94449-734-1 01 1 0512- ●
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-0511 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0512-0904 ●
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
444 BOLT; UNION
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0407-0511 ●
444 BOLT; UNION
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511 ●
465 PLUG
SMOOTHER-G(C1W) (C) OD=12 		1-09661-617-0 01 1 0407-0511 ●
465 PLUG
TRANSMISSION-FULLER RTLO149 18(Y4C) (C) OD=12 		1-09661-617-0 01 1 0512- ●
465 PLUG
SMOOTHER-G(C1W) (C) OD=12 		1-09661-617-0 01 1 0512- ●
465 PLUG
(C) OD=12 		1-09661-617-0 01 1 0512- ●
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0407-0511 ●
465 PLUG
SMOOTHER-G(C1W) (B) OD=8 		1-09661-616-0 01 1 0407-0511 ●
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0512-0609 ● ●
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) OD=8 		1-09661-616-0 01 1 0512-0609 ● ●
465 PLUG
SMOOTHER-G(C1W) (B) OD=8 		1-09661-616-0 01 1 0512-0609 ●
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0512-0609 ●
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0610- ● ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0407-0511 ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) OD=6 L=27 		1-09661-615-0 01 1 0407-0511 ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0512-0609 ● ●
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) OD=6 L=27 		1-09661-615-0 01 1 0512-0609 ● ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0610- ● ●
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) OD=6 L=27 		1-09661-615-0 01 1 0610- ● ●

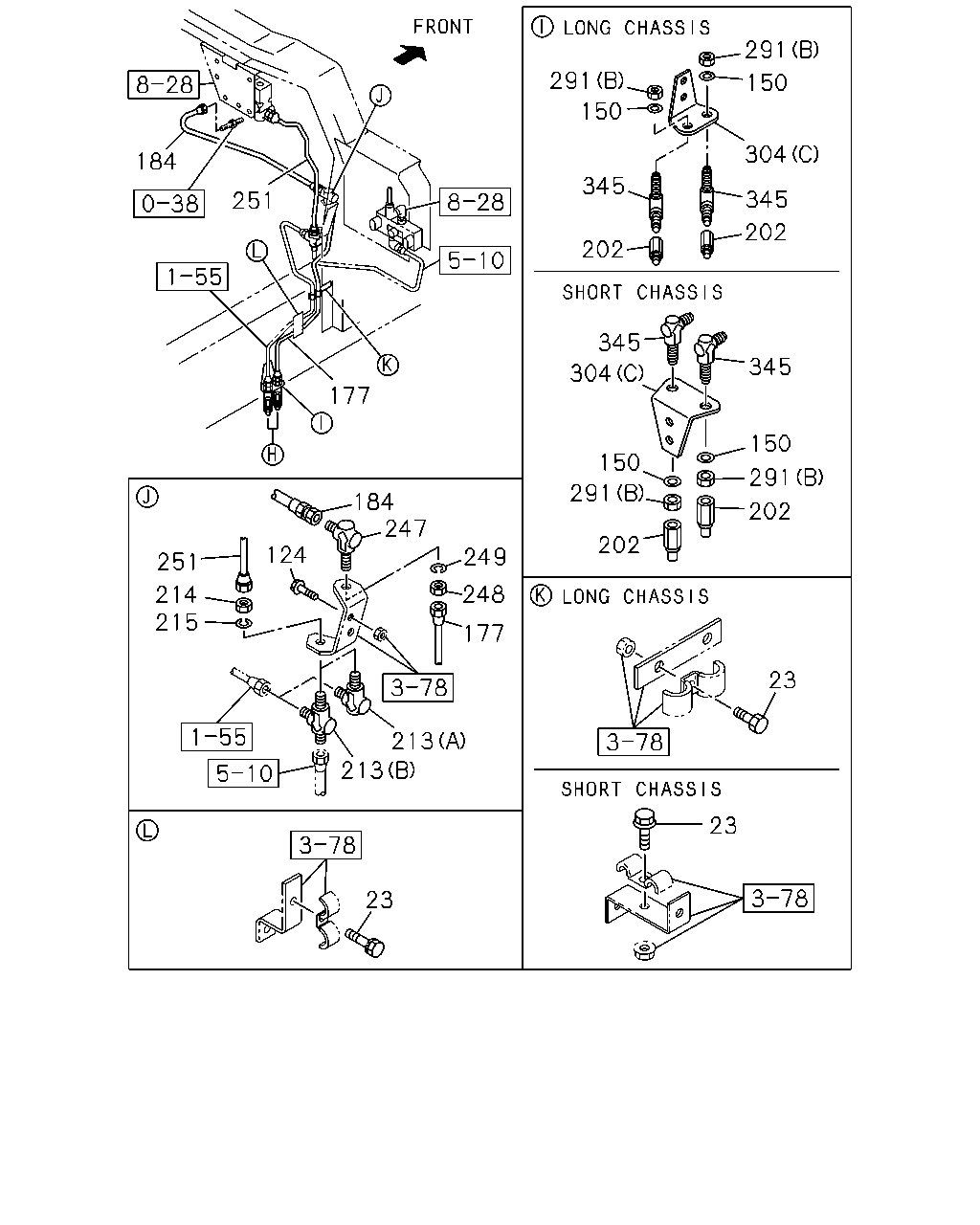

çizim 104267
291 291 150 150 304 184 345 345 251 202 202 345 345 304 177 150 150 291 291 184 247 202 202 124 249 251 248 214 215 177 23 213 213 23 23
BalonParca AdiParca NoAdetTipApplied Date A B C
23 BOLT; BRKT,AIR PIPE
M8X12 FLANGE 		0-28080-812-0 01 1 0512-0512 ●
23 BOLT; BRKT,AIR PIPE
M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511 ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511 ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ● ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0407-0511 ●
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0512-0603 ● ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604- ● ●
177 PIPE; AIR,UNION TO UNION
L=650 SERVICED BY L=650 		1-47428-810-0 01 1 0512- ●
177 PIPE; AIR,UNION TO UNION
L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0407-0511 ●
177 PIPE; AIR,UNION TO UNION
L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0512- ●
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0407-0511 ●
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0512- ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0407-0511 ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0512- ● ●
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) (A) M12 ELBOW 		9-09225-206-1 01 1 0512-0607 ●
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) (A) M12 ELBOW 		0-92125-206-0 01 1 0608- ●
213 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0407-0511 ●
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) (B) M12 3WAY 		9-09228-906-1 01 1 0512-0607 ●
213 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0512-0607 ●
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) (B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
213 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0608- ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0407-0511 ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0512- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0407-0511 ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0512-0603 ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
247 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0407-0511 ●
247 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0512-0607 ● ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608- ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0407-0511 ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0512- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0407-0511 ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0512-0603 ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
251 PIPE; AIR,UNION TO MAG VLV
6WG1 TC-C(72L) L=375 		1-49124-511-0 01 1 0512- ● ●
251 PIPE; AIR,UNION TO MAG VLV 1-49121-779-0 01 1 0407-0511 ●
251 PIPE; AIR,UNION TO MAG VLV
6WF1 TC-C(1B8) 		1-49121-779-0 01 1 0512- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
291 NUT; UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0407-0511 ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0512- ● ●
304 BRACKET; UNION
(C) 		1-47478-359-0 01 1 0407-0511 ●
304 BRACKET; UNION
(C) 		1-47478-359-0 01 1 0512- ● ●
304 BRACKET; UNION
(B) 		1-47479-636-1 01 1 0407-0507 ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0508-0511 ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0512- ● ●
304 BRACKET; UNION
(A) 		1-71117-247-0 01 1 0407-0511 ●
304 BRACKET; UNION
6WF1 TC-C(1B8) (A) 		1-71117-247-0 01 1 0512- ●
345 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 02 1 0407-0511 ●
345 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 02 1 0512-0607 ● ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0608- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
