3-58 — FIXING PARTS; OIL PIPING
(#29875) — 28 parça
Tümü
A - CXZ5MF
B - CYZ5MC
C - CYZ5MF
◀

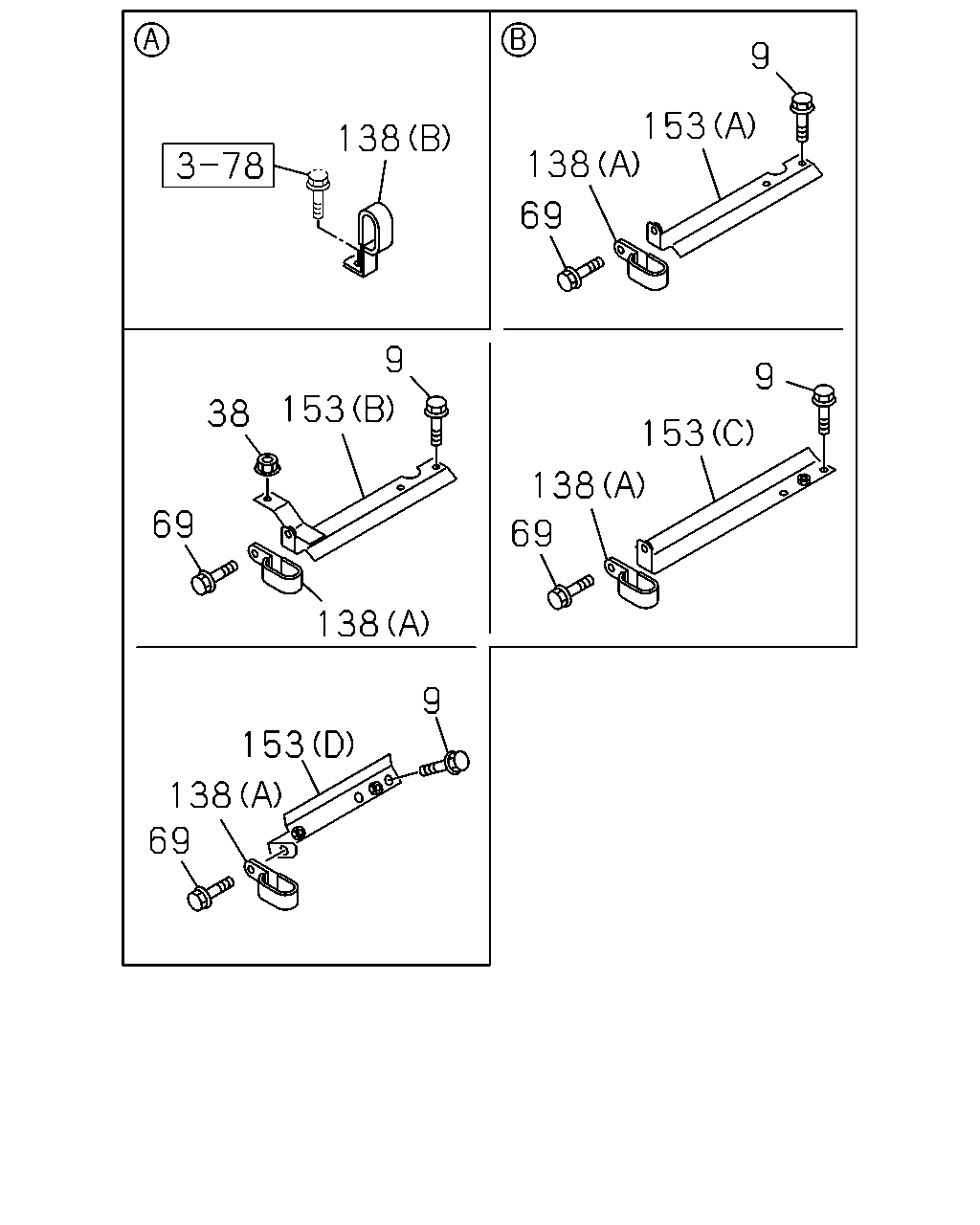

[358A] NO.2 (26 parça)

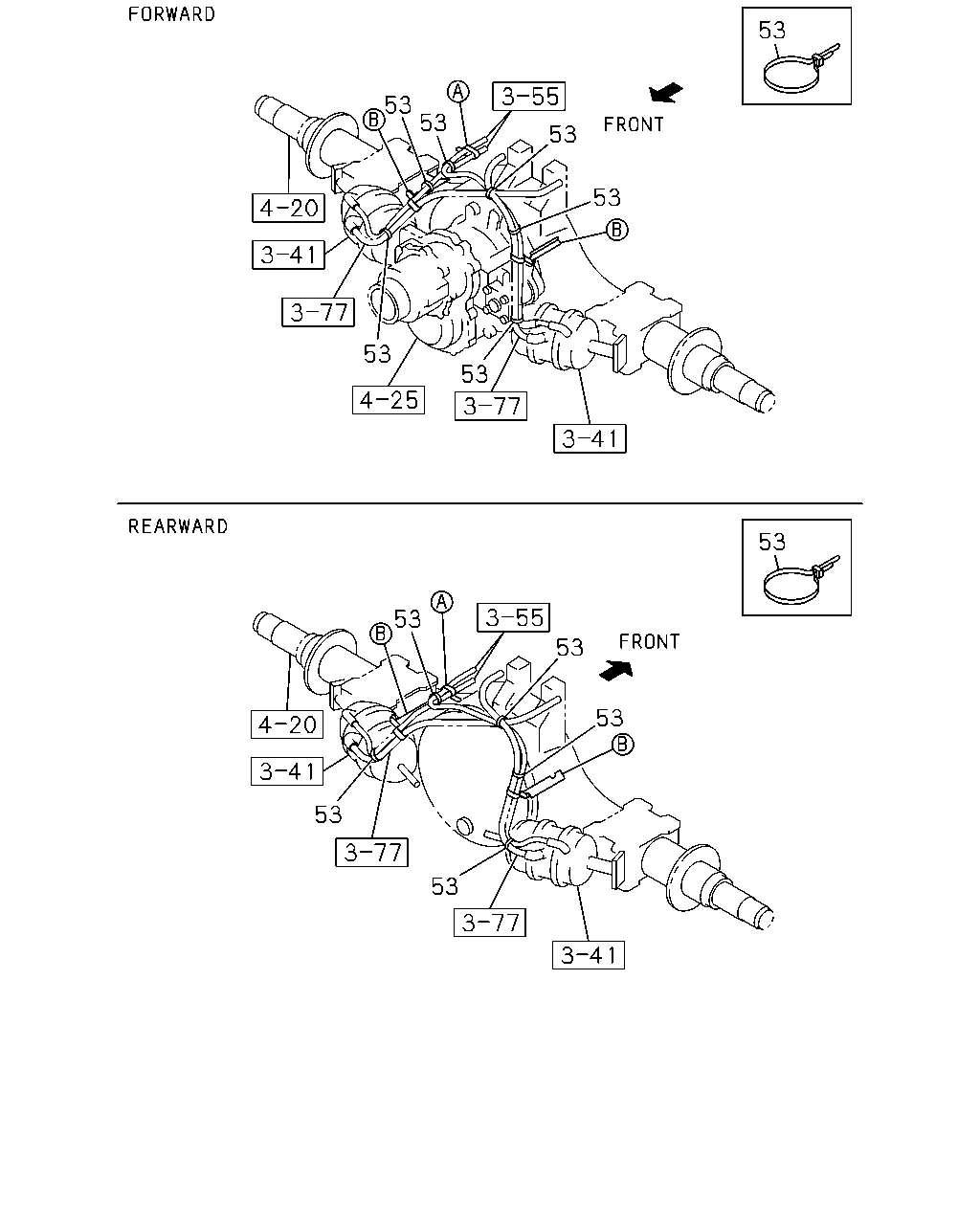

[358A] NO.1 (2 parça)
▶
9
153
138
138
69
9
9
153
38
153
138
69
69
138
9
153
138
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
9
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
08
1
0407-0511
●
9
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
08
1
0512-0512
●
●
9
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
08
1
0601-
●
●
38
NUT; CLIP FIX
M8 FLANGE
0-91150-108-0
01
1
0407-0511
●
38
NUT; CLIP FIX
M8 FLANGE
0-91150-108-0
01
1
0512-0602
●
●
38
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
69
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
05
1
0407-0511
●
69
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
05
1
0512-0512
●
●
69
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
05
1
0601-
●
●
138
CLIP; TUBE
(B) ID=11X2 H=35 L=20
1-09700-847-0
01
1
0508-0511
●
138
CLIP; TUBE
(B) ID=11X2 H=35 L=20
1-09700-847-0
01
1
0512-
●
●
138
CLIP; TUBE
(A) ID=35 L=33
1-09700-945-0
05
1
0407-0511
●
138
CLIP; TUBE
(A) ID=35 L=33
1-09700-945-0
05
1
0512-
●
●
138
CLIP; TUBE
(B) ID=11X2 L=20
9-09535-035-0
02
1
0407-0507
●
138
CLIP; TUBE
(B) ID=11X2 L=20
9-09535-035-0
01
1
0508-0511
●
138
CLIP; TUBE
(B) ID=11X2 L=20
9-09535-035-0
01
1
0512-0606
●
●
138
CLIP; TUBE
(B) ID=11X2 L=20
0-95325-035-0
01
1
0607-
●
●
153
BRACKET; NYLON TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) FORWARD
1-42129-494-0
01
1
0512-
●
●
153
BRACKET; NYLON TUBE
(B) FORWARD
1-42129-487-1
01
1
0407-0511
●
153
BRACKET; NYLON TUBE
(B) REARWARD
1-42129-487-1
01
1
0512-
●
●
153
BRACKET; NYLON TUBE
(A) REARWARD
1-42129-500-0
01
1
0407-0511
●
153
BRACKET; NYLON TUBE
(A) FORWARD
1-42129-500-0
01
1
0512-
●
●
153
BRACKET; NYLON TUBE
(C) FORWARD RH,REARWARD LH
1-42129-486-1
01
1
0407-0511
●
153
BRACKET; NYLON TUBE
(C) FORWARD RH,REARWARD LH
1-42129-486-1
01
1
0407-0511
●
153
BRACKET; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) FORWARD
1-42129-486-1
01
1
0512-
●
●
153
BRACKET; NYLON TUBE
(C) REARWARD
1-42129-486-1
01
1
0512-
●
●
53
53
53
53
53
53
53
53
53
53
53
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
53
CLIP; UNION
L=250
1-09707-126-0
12
1
0407-0511
●
53
CLIP; UNION
L=250
1-09707-126-0
12
1
0512-
●
●
