3-46 — AIR DRYER (#29873) — 195 parça

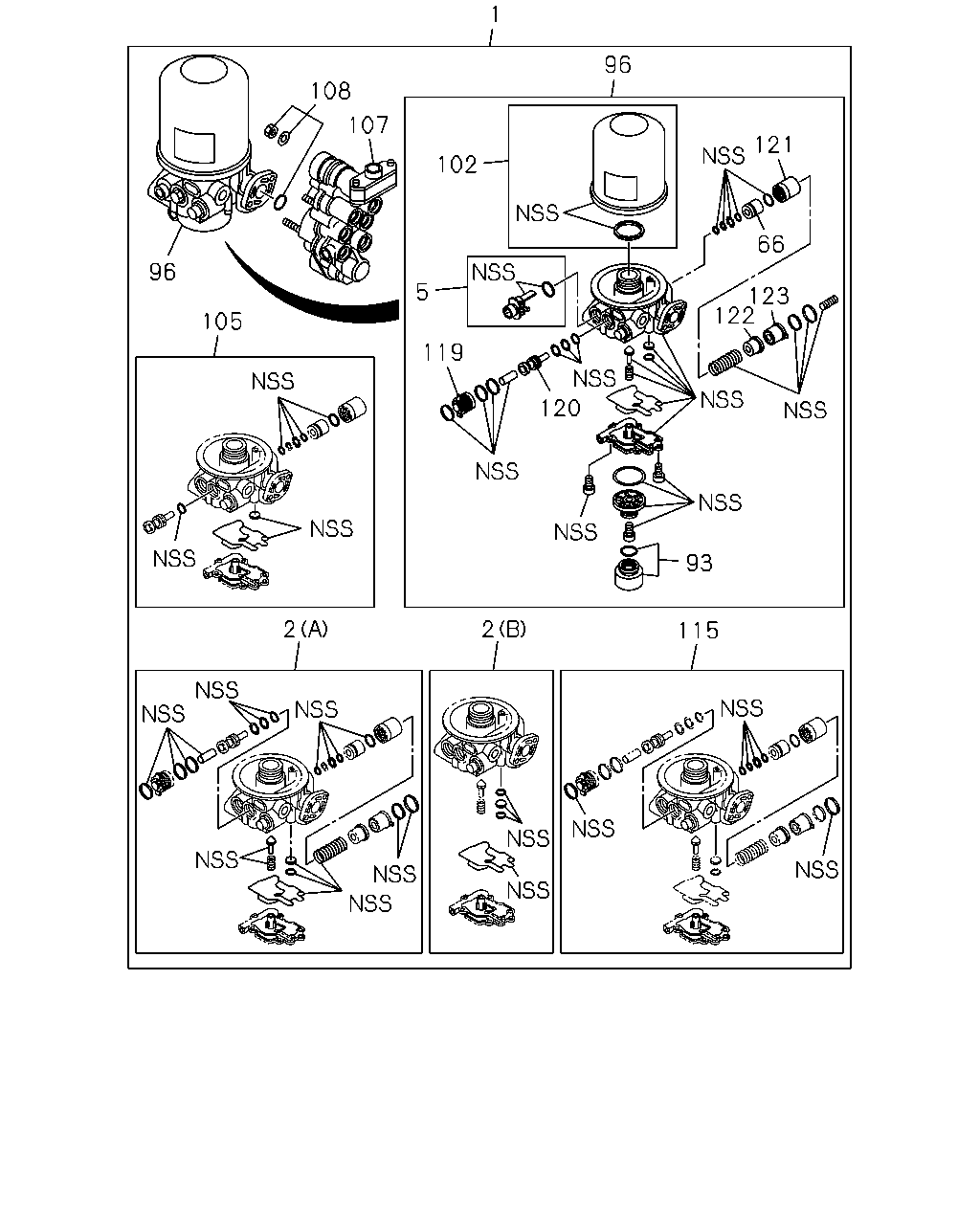

1 96 108 96 105 107 102 5 119 120 93 122 123 66 121 2 2 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRYER; AIR	1-48190-335-2	01	1	0512-0612	●	●
1	DRYER; AIR	1-48190-368-4	01	1	0701-1102	●	●
1	DRYER; AIR	8-98180-492-1	01	1	1103-	●	●
1	DRYER; AIR	1-85576-370-0	01	1	0407-0502			●
1	DRYER; AIR	1-85576-399-0	01	1	0503-0511			●
2	REPAIR KIT; AIR DRYER (B)	8-98302-391-0	01	1	1412-	●	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-367-0	01	1	0407-0502			●
2	REPAIR KIT; AIR DRYER (A)	1-85576-398-0	01	1	0503-0511			●
2	REPAIR KIT; AIR DRYER (A)	1-85576-398-0	01	1	0512-1102	●	●
2	REPAIR KIT; AIR DRYER (A)	8-98185-664-0	01	1	1103-	●	●
5	HEATER ASM; AIR DRYER	1-85576-363-0	01	1	0407-0511			●
5	HEATER ASM; AIR DRYER	1-85576-363-0	01	1	0512-	●	●
66	PISTON; AIR DRYER	1-85576-475-0	01	1	0701-	●	●
93	SILENCER; AIR DRYER	1-85576-362-0	01	1	0407-0511			●
93	SILENCER; AIR DRYER	1-85576-362-0	01	1	0512-	●	●
96	DRYER KIT; AIR	1-85576-399-0	01	1	0512-0612	●	●
96	DRYER KIT; AIR	1-85576-455-1	01	1	0701-1102	●	●
96	DRYER KIT; AIR	8-98185-663-1	01	1	1103-	●	●
102	CARTRIDGE; AIR DRYER	1-85576-365-0	01	1	0407-0511			●
102	CARTRIDGE; AIR DRYER	1-85576-365-0	01	1	0512-0612	●	●
102	CARTRIDGE; AIR DRYER	1-85576-450-2	01	1	0701-	●	●
105	SEAL KIT; AIR DRYER	1-85576-366-0	01	1	0407-0502			●
105	SEAL KIT; AIR DRYER	1-85576-397-0	01	1	0503-0511			●
105	SEAL KIT; AIR DRYER	1-85576-397-0	01	1	0512-1102	●	●
105	SEAL KIT; AIR DRYER	8-98185-665-0	01	1	1103-	●	●
107	VALVE ASM; PROTECTION,AIR DRYER	1-85576-369-0	01	1	0407-0511			●
107	VALVE ASM; PROTECTION,AIR DRYER	1-85576-369-3	01	1	0512-	●	●
108	FIXING KIT; PROTECTION,AIR DRYER	1-85576-371-0	01	1	0407-0511			●
108	FIXING KIT; PROTECTION,AIR DRYER	1-85576-371-0	01	1	0512-	●	●
115	REPAIR KIT; GOVERNOR,AIR DRYER	1-85576-400-0	01	1	0503-0511			●
115	REPAIR KIT; GOVERNOR,AIR DRYER	1-85576-400-0	01	1	0512-	●	●
119	COVER; PURGE VALVE	1-85576-473-0	01	1	0701-	●	●
120	TAPPET	1-87411-310-0	01	1	0512-0512	●	●
120	TAPPET	1-87411-310-0	01	1	0601-0612	●	●
120	TAPPET	1-85576-474-0	01	1	0701-1102	●	●
120	TAPPET	8-98185-666-0	01	1	1103-	●	●
121	HOLDER; SPRING	1-85576-476-0	01	1	0701-	●	●
122	SEAT; SPRING	1-85576-477-0	01	1	0701-	●	●
123	COVER; GOVERNER	1-85576-478-0	01	1	0701-	●	●

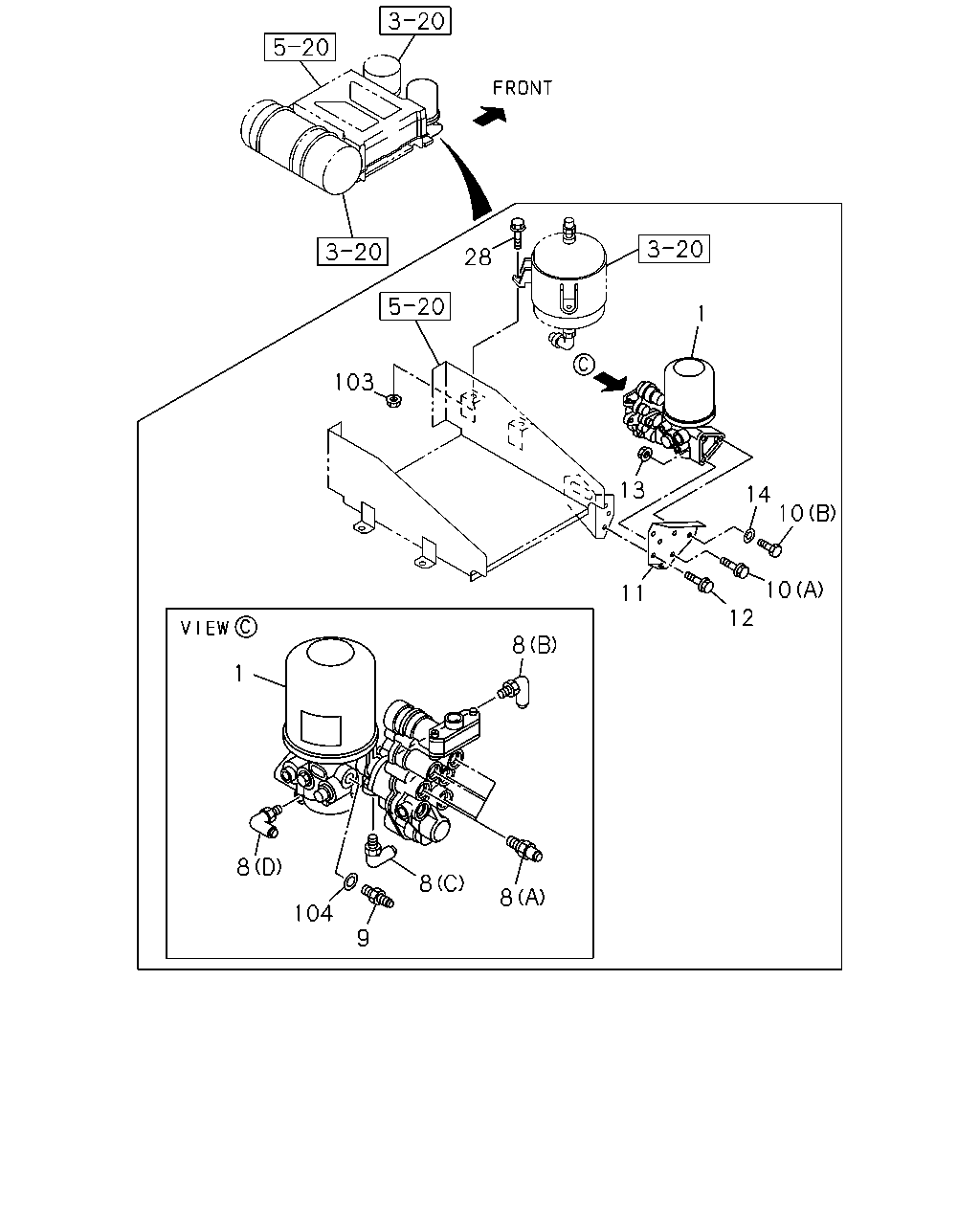

28 1 103 13 14 10 10 11 12 8 1 8 8 8 104 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRYER; AIR	1-48190-335-2	01	1	0512-0612	●	●
1	DRYER; AIR	1-48190-368-4	01	1	0701-1102	●	●
1	DRYER; AIR	8-98180-492-1	01	1	1103-	●	●
1	DRYER; AIR	1-85576-370-0	01	1	0407-0502			●
1	DRYER; AIR	1-85576-399-0	01	1	0503-0511			●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	05	1	0512-		●
8	CONNECTOR; OUT,AIR DRYER (C) DIN12 & M22 ELBOW	1-09661-521-0	01	1	0512-		●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	0407-0511			●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	0512-	●
8	CONNECTOR; OUT,AIR DRYER (B) DIN8 & M16 ELBOW	1-09661-520-0	01	1	0407-0511			●
8	CONNECTOR; OUT,AIR DRYER (B) DIN8 & M16 ELBOW	1-09661-520-0	01	1	0512-	●	●
8	CONNECTOR; OUT,AIR DRYER (C) DIN12 & M22 ELBOW	1-09661-521-0	03	1	0407-0511			●
8	CONNECTOR; OUT,AIR DRYER (C) DIN12 & M22 ELBOW	1-09661-521-0	03	1	0512-	●
8	CONNECTOR; OUT,AIR DRYER (D) DIN6 & M10 ELBOW	1-09661-574-0	01	1	0407-0511			●
8	CONNECTOR; OUT,AIR DRYER (D) DIN6 & M10 ELBOW	1-09661-574-0	01	1	0512-	●	●
9	CONNECTOR; PIPE,AIR DRYER	1-09654-416-1	01	1	0407-0511			●
9	CONNECTOR; PIPE,AIR DRYER	1-09654-416-1	01	1	0512-0610	●	●
9	CONNECTOR; PIPE,AIR DRYER	8-97618-539-0	01	1	0611-0803	●	●
9	CONNECTOR; PIPE,AIR DRYER DIN12 M22 STRAIGHT	8-98107-103-0	01	1	0804-	●	●
10	BOLT; AIR DRYER (A) M12X50 FLANGE	0-28081-250-0	01	1	0407-0511			●
10	BOLT; AIR DRYER (A) M12X50 FLANGE	0-28081-250-0	01	1	0512-0512	●	●
10	BOLT; AIR DRYER (A) M12X50 FLANGE	0-28051-250-0	01	1	0601-	●	●
10	BOLT; AIR DRYER (B) M12X25	1-09009-081-0	02	1	0407-0511			●
10	BOLT; AIR DRYER (B) M12X25	1-09009-081-0	02	1	0512-	●	●
11	BRACKET; AIR DRYER	1-48316-019-0	01	1	0407-0511			●
11	BRACKET; AIR DRYER	1-48316-019-0	01	1	0512-	●	●
12	BOLT; BRKT M12X30 FLANGE	0-28681-230-0	03	1	0407-0511			●
12	BOLT; BRKT M12X30 FLANGE	0-28681-230-0	03	1	0512-0512	●	●
12	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	03	1	0601-	●	●
13	NUT; AIR DRYER M12 FLANGE	0-91150-212-0	01	1	0407-0511			●
13	NUT; AIR DRYER M12 FLANGE	0-91150-212-0	01	1	0512-0602	●	●
13	NUT; AIR DRYER M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
14	WASHER; PL,AIR DRYER ID=12.5	9-09160-512-0	02	1	0407-0511			●
14	WASHER; PL,AIR DRYER ID=12.5	9-09160-512-0	02	1	0512-0605	●	●
14	WASHER; PL,AIR DRYER ID=12.5 OD=22	0-91610-512-0	02	1	0606-	●	●
28	BOLT; PURGE TANK M10X25 FLANGE	0-28681-025-0	02	1	0407-0511			●
28	BOLT; PURGE TANK M10X25 FLANGE	0-28681-025-0	02	1	0512-0512	●	●
28	BOLT; PURGE TANK M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
103	NUT; PURGE TANK M10 FLANGE	0-91150-210-0	02	1	0407-0511			●
103	NUT; PURGE TANK M10 FLANGE	0-91150-210-0	02	1	0512-0602	●	●
103	NUT; PURGE TANK M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
104	GASKET	9-09572-022-0	01	1	0407-0511			●
104	GASKET	9-09572-022-0	01	1	0512-0803	●	●

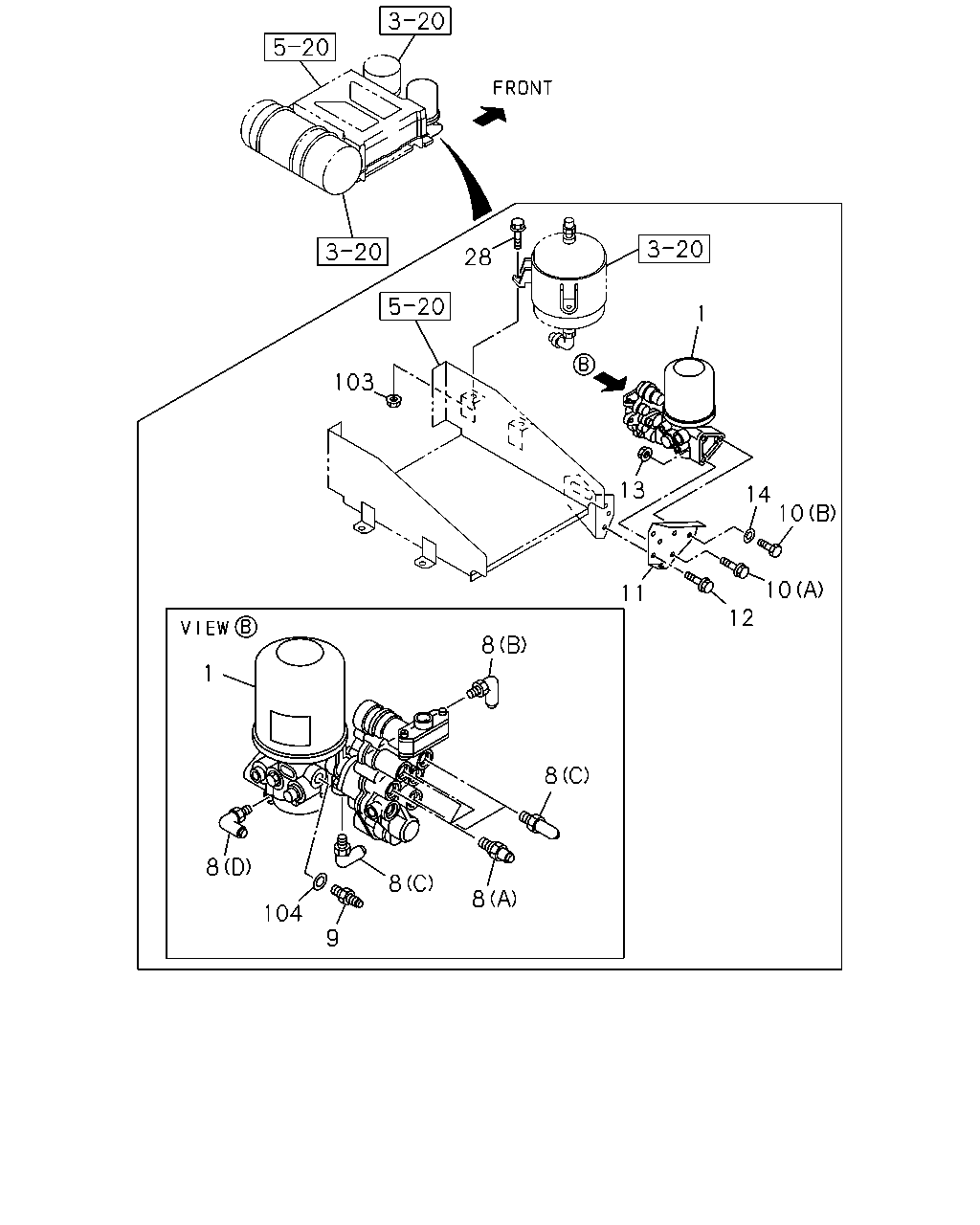

28 1 103 13 14 10 10 11 12 8 1 8 8 8 8 104 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRYER; AIR	1-48190-335-2	01	1	0512-0612	●	●
1	DRYER; AIR	1-48190-368-4	01	1	0701-1102	●	●
1	DRYER; AIR	8-98180-492-1	01	1	1103-	●	●
1	DRYER; AIR	1-85576-370-0	01	1	0407-0502			●
1	DRYER; AIR	1-85576-399-0	01	1	0503-0511			●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	05	1	0512-		●
8	CONNECTOR; OUT,AIR DRYER (C) DIN12 & M22 ELBOW	1-09661-521-0	01	1	0512-		●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	0407-0511			●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	0512-	●
8	CONNECTOR; OUT,AIR DRYER (B) DIN8 & M16 ELBOW	1-09661-520-0	01	1	0407-0511			●
8	CONNECTOR; OUT,AIR DRYER (B) DIN8 & M16 ELBOW	1-09661-520-0	01	1	0512-	●	●
8	CONNECTOR; OUT,AIR DRYER (C) DIN12 & M22 ELBOW	1-09661-521-0	03	1	0407-0511			●
8	CONNECTOR; OUT,AIR DRYER (C) DIN12 & M22 ELBOW	1-09661-521-0	03	1	0512-	●
8	CONNECTOR; OUT,AIR DRYER (D) DIN6 & M10 ELBOW	1-09661-574-0	01	1	0407-0511			●
8	CONNECTOR; OUT,AIR DRYER (D) DIN6 & M10 ELBOW	1-09661-574-0	01	1	0512-	●	●
9	CONNECTOR; PIPE,AIR DRYER	1-09654-416-1	01	1	0407-0511			●
9	CONNECTOR; PIPE,AIR DRYER	1-09654-416-1	01	1	0512-0610	●	●
9	CONNECTOR; PIPE,AIR DRYER	8-97618-539-0	01	1	0611-0803	●	●
9	CONNECTOR; PIPE,AIR DRYER DIN12 M22 STRAIGHT	8-98107-103-0	01	1	0804-	●	●
10	BOLT; AIR DRYER (A) M12X50 FLANGE	0-28081-250-0	01	1	0407-0511			●
10	BOLT; AIR DRYER (A) M12X50 FLANGE	0-28081-250-0	01	1	0512-0512	●	●
10	BOLT; AIR DRYER (A) M12X50 FLANGE	0-28051-250-0	01	1	0601-	●	●
10	BOLT; AIR DRYER (B) M12X25	1-09009-081-0	02	1	0407-0511			●
10	BOLT; AIR DRYER (B) M12X25	1-09009-081-0	02	1	0512-	●	●
11	BRACKET; AIR DRYER	1-48316-019-0	01	1	0407-0511			●
11	BRACKET; AIR DRYER	1-48316-019-0	01	1	0512-	●	●
12	BOLT; BRKT M12X30 FLANGE	0-28681-230-0	03	1	0407-0511			●
12	BOLT; BRKT M12X30 FLANGE	0-28681-230-0	03	1	0512-0512	●	●
12	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	03	1	0601-	●	●
13	NUT; AIR DRYER M12 FLANGE	0-91150-212-0	01	1	0407-0511			●
13	NUT; AIR DRYER M12 FLANGE	0-91150-212-0	01	1	0512-0602	●	●
13	NUT; AIR DRYER M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
14	WASHER; PL,AIR DRYER ID=12.5	9-09160-512-0	02	1	0407-0511			●
14	WASHER; PL,AIR DRYER ID=12.5	9-09160-512-0	02	1	0512-0605	●	●
14	WASHER; PL,AIR DRYER ID=12.5 OD=22	0-91610-512-0	02	1	0606-	●	●
28	BOLT; PURGE TANK M10X25 FLANGE	0-28681-025-0	02	1	0407-0511			●
28	BOLT; PURGE TANK M10X25 FLANGE	0-28681-025-0	02	1	0512-0512	●	●
28	BOLT; PURGE TANK M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
103	NUT; PURGE TANK M10 FLANGE	0-91150-210-0	02	1	0407-0511			●
103	NUT; PURGE TANK M10 FLANGE	0-91150-210-0	02	1	0512-0602	●	●
103	NUT; PURGE TANK M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
104	GASKET	9-09572-022-0	01	1	0407-0511			●
104	GASKET	9-09572-022-0	01	1	0512-0803	●	●

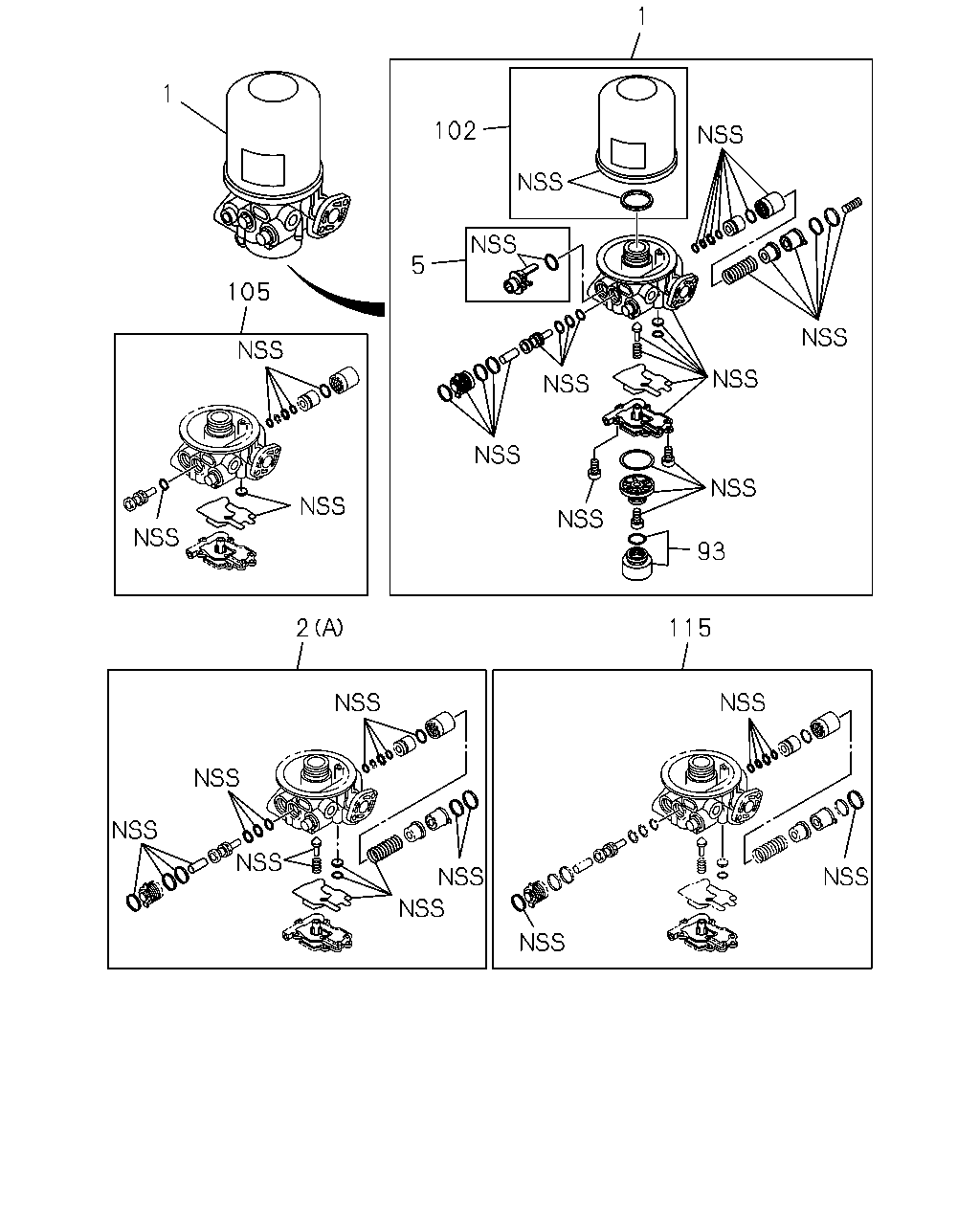

102 1 105 5 1 93 115 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRYER; AIR	1-48190-335-2	01	1	0512-0612	●	●
1	DRYER; AIR	1-48190-368-4	01	1	0701-1102	●	●
1	DRYER; AIR	8-98180-492-1	01	1	1103-	●	●
1	DRYER; AIR	1-85576-370-0	01	1	0407-0502			●
1	DRYER; AIR	1-85576-399-0	01	1	0503-0511			●
2	REPAIR KIT; AIR DRYER (B)	8-98302-391-0	01	1	1412-	●	●
2	REPAIR KIT; AIR DRYER (A)	1-85576-367-0	01	1	0407-0502			●
2	REPAIR KIT; AIR DRYER (A)	1-85576-398-0	01	1	0503-0511			●
2	REPAIR KIT; AIR DRYER (A)	1-85576-398-0	01	1	0512-1102	●	●
2	REPAIR KIT; AIR DRYER (A)	8-98185-664-0	01	1	1103-	●	●
5	HEATER ASM; AIR DRYER	1-85576-363-0	01	1	0407-0511			●
5	HEATER ASM; AIR DRYER	1-85576-363-0	01	1	0512-	●	●
93	SILENCER; AIR DRYER	1-85576-362-0	01	1	0407-0511			●
93	SILENCER; AIR DRYER	1-85576-362-0	01	1	0512-	●	●
102	CARTRIDGE; AIR DRYER	1-85576-365-0	01	1	0407-0511			●
102	CARTRIDGE; AIR DRYER	1-85576-365-0	01	1	0512-0612	●	●
102	CARTRIDGE; AIR DRYER	1-85576-450-2	01	1	0701-	●	●
105	SEAL KIT; AIR DRYER	1-85576-366-0	01	1	0407-0502			●
105	SEAL KIT; AIR DRYER	1-85576-397-0	01	1	0503-0511			●
105	SEAL KIT; AIR DRYER	1-85576-397-0	01	1	0512-1102	●	●
105	SEAL KIT; AIR DRYER	8-98185-665-0	01	1	1103-	●	●
115	REPAIR KIT; GOVERNOR,AIR DRYER	1-85576-400-0	01	1	0503-0511			●
115	REPAIR KIT; GOVERNOR,AIR DRYER	1-85576-400-0	01	1	0512-	●	●

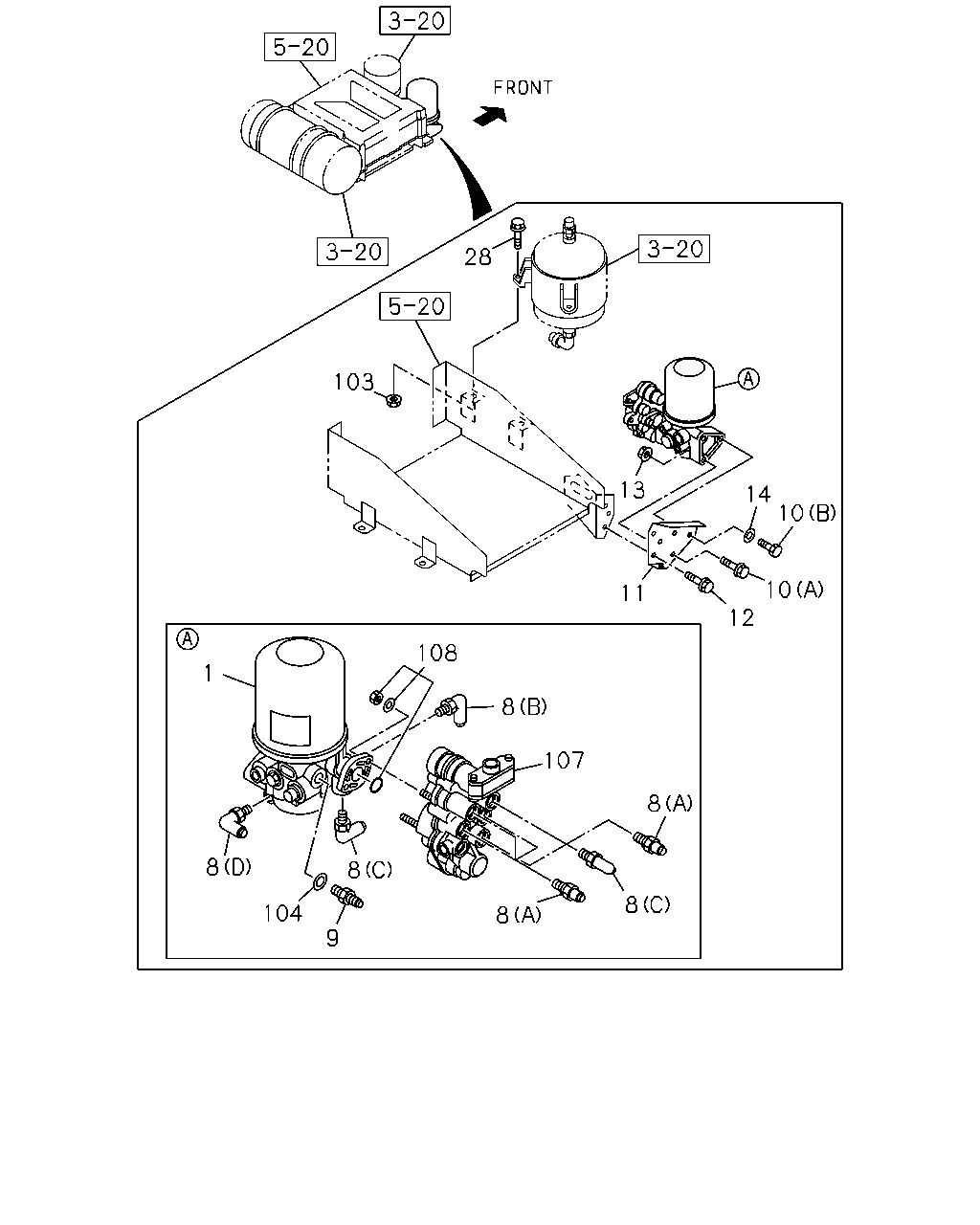

28 103 13 14 10 10 11 12 108 1 8 107 8 8 8 8 104 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRYER; AIR	1-48190-335-2	01	1	0512-0612	●	●
1	DRYER; AIR	1-48190-368-4	01	1	0701-1102	●	●
1	DRYER; AIR	8-98180-492-1	01	1	1103-	●	●
1	DRYER; AIR	1-85576-370-0	01	1	0407-0502			●
1	DRYER; AIR	1-85576-399-0	01	1	0503-0511			●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	05	1	0512-		●
8	CONNECTOR; OUT,AIR DRYER (C) DIN12 & M22 ELBOW	1-09661-521-0	01	1	0512-		●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	0407-0511			●
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	0512-	●
8	CONNECTOR; OUT,AIR DRYER (B) DIN8 & M16 ELBOW	1-09661-520-0	01	1	0407-0511			●
8	CONNECTOR; OUT,AIR DRYER (B) DIN8 & M16 ELBOW	1-09661-520-0	01	1	0512-	●	●
8	CONNECTOR; OUT,AIR DRYER (C) DIN12 & M22 ELBOW	1-09661-521-0	03	1	0407-0511			●
8	CONNECTOR; OUT,AIR DRYER (C) DIN12 & M22 ELBOW	1-09661-521-0	03	1	0512-	●
8	CONNECTOR; OUT,AIR DRYER (D) DIN6 & M10 ELBOW	1-09661-574-0	01	1	0407-0511			●
8	CONNECTOR; OUT,AIR DRYER (D) DIN6 & M10 ELBOW	1-09661-574-0	01	1	0512-	●	●
9	CONNECTOR; PIPE,AIR DRYER	1-09654-416-1	01	1	0407-0511			●
9	CONNECTOR; PIPE,AIR DRYER	1-09654-416-1	01	1	0512-0610	●	●
9	CONNECTOR; PIPE,AIR DRYER	8-97618-539-0	01	1	0611-0803	●	●
9	CONNECTOR; PIPE,AIR DRYER DIN12 M22 STRAIGHT	8-98107-103-0	01	1	0804-	●	●
10	BOLT; AIR DRYER (A) M12X50 FLANGE	0-28081-250-0	01	1	0407-0511			●
10	BOLT; AIR DRYER (A) M12X50 FLANGE	0-28081-250-0	01	1	0512-0512	●	●
10	BOLT; AIR DRYER (A) M12X50 FLANGE	0-28051-250-0	01	1	0601-	●	●
10	BOLT; AIR DRYER (B) M12X25	1-09009-081-0	02	1	0407-0511			●
10	BOLT; AIR DRYER (B) M12X25	1-09009-081-0	02	1	0512-	●	●
11	BRACKET; AIR DRYER	1-48316-019-0	01	1	0407-0511			●
11	BRACKET; AIR DRYER	1-48316-019-0	01	1	0512-	●	●
12	BOLT; BRKT M12X30 FLANGE	0-28681-230-0	03	1	0407-0511			●
12	BOLT; BRKT M12X30 FLANGE	0-28681-230-0	03	1	0512-0512	●	●
12	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	03	1	0601-	●	●
13	NUT; AIR DRYER M12 FLANGE	0-91150-212-0	01	1	0407-0511			●
13	NUT; AIR DRYER M12 FLANGE	0-91150-212-0	01	1	0512-0602	●	●
13	NUT; AIR DRYER M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
14	WASHER; PL,AIR DRYER ID=12.5	9-09160-512-0	02	1	0407-0511			●
14	WASHER; PL,AIR DRYER ID=12.5	9-09160-512-0	02	1	0512-0605	●	●
14	WASHER; PL,AIR DRYER ID=12.5 OD=22	0-91610-512-0	02	1	0606-	●	●
28	BOLT; PURGE TANK M10X25 FLANGE	0-28681-025-0	02	1	0407-0511			●
28	BOLT; PURGE TANK M10X25 FLANGE	0-28681-025-0	02	1	0512-0512	●	●
28	BOLT; PURGE TANK M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
103	NUT; PURGE TANK M10 FLANGE	0-91150-210-0	02	1	0407-0511			●
103	NUT; PURGE TANK M10 FLANGE	0-91150-210-0	02	1	0512-0602	●	●
103	NUT; PURGE TANK M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
104	GASKET	9-09572-022-0	01	1	0407-0511			●
104	GASKET	9-09572-022-0	01	1	0512-0803	●	●
107	VALVE ASM; PROTECTION,AIR DRYER	1-85576-369-0	01	1	0407-0511			●
107	VALVE ASM; PROTECTION,AIR DRYER	1-85576-369-3	01	1	0512-	●	●
108	FIXING KIT; PROTECTION,AIR DRYER	1-85576-371-0	01	1	0407-0511			●
108	FIXING KIT; PROTECTION,AIR DRYER	1-85576-371-0	01	1	0512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
