9-01 — TOOLS (#29871) — 82 parça
çizim 24297
57 62 61 52 70 77 72 71 85 88 82 87 91
BalonParca AdiParca NoAdetTipApplied Date A B
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 0407- ● ●
57 TOOL; SETTING CRANK GEAR
ID=144.5 		1-85221-072-0 01 1 0407- ● ●
57 TOOL; SETTING CRANK GEAR
6SD1 TCS ENG<83L> ID=165.8 		1-85221-075-0 01 1 0411- ●
61 PULLER ASM; PILOT BRG
6SD1 TCS ENG<83L> 		1-85220-028-0 01 1 0411- ●
62 TOOL ASM; SETTING WEAR RING
6SD1 TCS ENG<83L> 		1-85221-079-0 01 1 0411- ●
70 TOOL; SETTING,OIL SEAL 1-85220-025-1 01 1 0407- ●
70 TOOL; SETTING,OIL SEAL
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> 		1-85220-025-1 01 1 0407- ●
71 TOOL; SETTING,OIL SEAL,FRT
6SD1 TCS ENG<83L> 		1-85220-029-0 01 1 0411- ●
72 TOOL; SETTING,OIL SEAL,RR
6SD1 TCS ENG<83L> 		1-85220-030-0 01 1 0411- ●
77 TOOL; SETTING,CYL LINER 1-85221-073-0 01 1 0407- ● ●
82 PULLER ASM; CR/SHF GEAR
6SD1 TCS ENG<83L> 		1-85210-051-0 01 1 0411- ●
85 REPLACER ASM; VALVE SPR 1-85235-007-0 01 1 0407- ● ●
87 TOOL; PISTON 1-85221-082-0 01 1 0407- ● ●
88 TOOL; CONNROD BUSHING 1-85220-037-0 01 1 0407- ● ●
91 REPLACER ASM; CYL LINER 1-85231-021-0 01 1 0407- ● ●
çizim 81755
146 140 146 151 160 153 158 154 174 162 162
BalonParca AdiParca NoAdetTipApplied Date A B
140 REMOVER; WEAR RING
6SD1 TCS ENG<83L> 		1-85210-053-0 01 1 0411- ●
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-016-0 01 1 0407- ● ●
146 REPLACER KIT; LEAF SPR
(A) 		9-85231-556-0 01 1 0407- ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR 1-85237-002-0 01 1 0407- ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0407- ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0407- ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0407- ● ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0407- ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=181 		1-85238-008-0 01 1 0407- ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=213 		1-85238-009-0 01 1 0407- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0407- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0407- ●
çizim 81756
192 180 178 193 227 208 230 237 274 268 209 271
BalonParca AdiParca NoAdetTipApplied Date A B
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0407- ● ●
180 PULLER; FRT & RR HUB 1-85210-002-0 02 1 0407- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0407- ● ●
193 JACK ASM
10TON THA 		1-85510-013-1 01 1 0407-0411 ● ●
193 JACK ASM
10TON THA 		8-97607-599-0 01 1 0412- ● ●
208 HANDLE; JACK
L=600 THA 		1-85515-009-0 01 1 0407- ● ●
209 CLIP; JACK HANDLE
THA 		1-73638-011-1 02 1 0407-0708 ● ●
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0407- ● ●
230 PUMP; GREASE 1-85556-007-4 01 1 0407- ● ●
237 BAG; TOOL
THA 		8-97917-409-1 01 1 0407- ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0407-0604 ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ●
271 CLIP; TIRE HANGER
THA 		1-73638-012-1 02 1 0407-0708 ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709- ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0407-0604 ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ●
çizim 82117
10 5 1 9 23 22 13 17 21 20 29 29 29 39 40 38 37 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-019-0 01 1 0407- ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-019-0 01 1 0407- ●
5 WRENCH ASM; NUT,MAINSHAFT
MAL6V M/T<Y2U> 		1-85110-010-0 01 1 0407- ●
9 WRENCH; WHEEL PIN
B=41X21 L=440 THA 		1-85113-015-1 01 1 0407- ● ●
9 WRENCH; WHEEL PIN
B=41X21 L=445 THA 		8-97118-906-0 01 1 0407- ● ●
10 WRENCH KIT; BRK ADJ 9-85110-013-0 01 1 0407- ● ●
13 WRENCH; MONKEY
L=255 THA 		1-85117-002-1 01 1 0407- ● ●
17 HAMMER
THA 		9-85121-406-0 01 1 0407- ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0407-0607 ● ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0608- ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0407-0607 ● ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0608- ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0407-0607 ● ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0608- ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0407-0607 ● ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0608- ● ●
29 DRIVER; SCREW
(B) <-> L=285 THA 		1-85151-004-0 01 1 0407-0611 ● ●
29 DRIVER; SCREW
(B) <-> L=275 		8-98061-105-0 01 1 0612- ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 THA 		8-94242-798-1 01 1 0407- ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 0407- ● ●
36 WRENCH; 24 9-85111-377-0 01 1 0407- ● ●
37 WRENCH; 27 9-85111-375-0 01 1 0407- ● ●
38 WRENCH; 32 9-85111-358-0 01 1 0407- ● ●
39 WRENCH; 36 9-85111-374-0 01 1 0407- ● ●
40 WRENCH; 41 9-85111-356-0 01 1 0407- ● ●

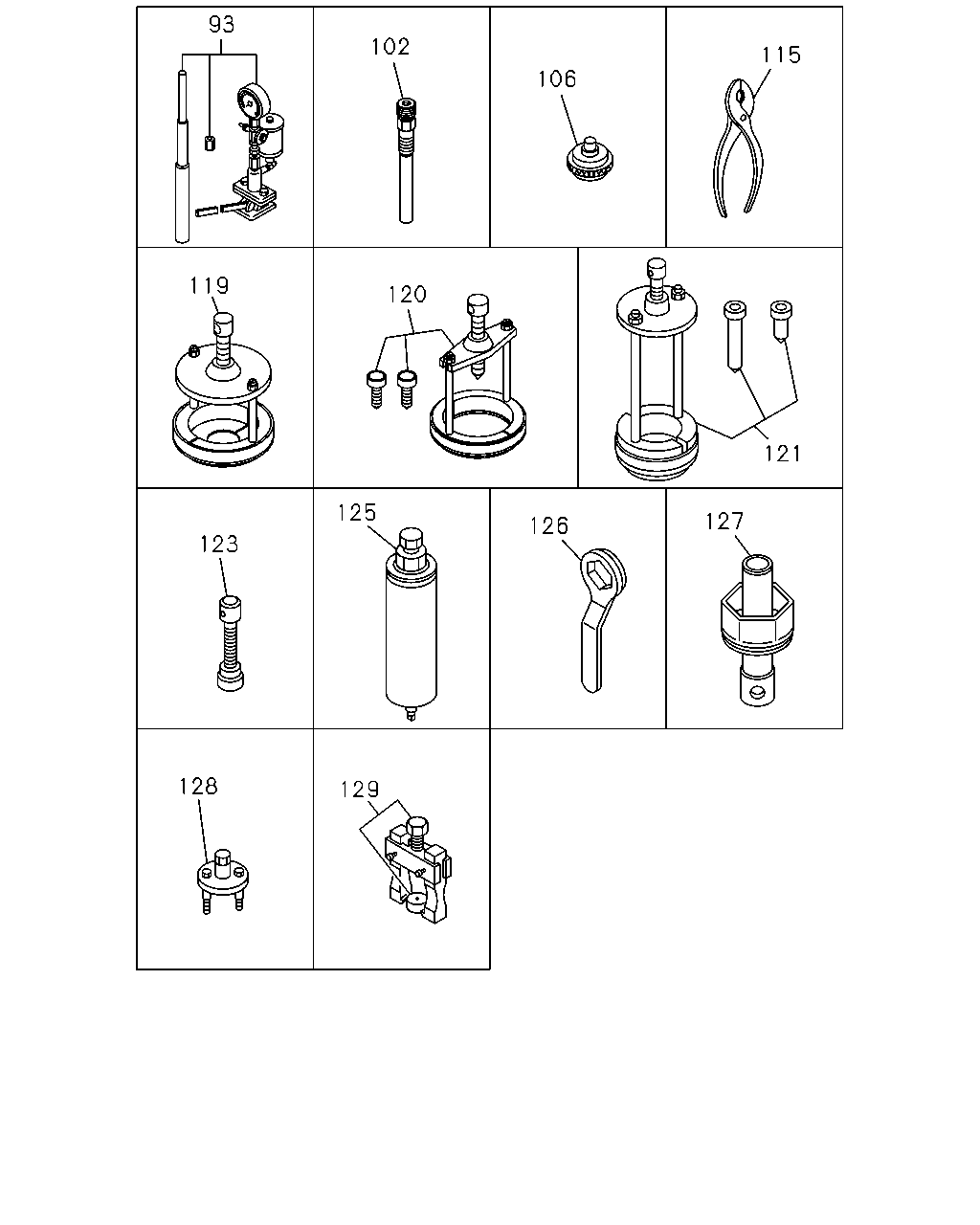

çizim 83499
93 102 115 106 119 120 121 125 127 126 123 128 129
BalonParca AdiParca NoAdetTipApplied Date A B
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 0407- ● ●
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 0407- ● ●
106 TOOL; SETTING PILOT BRG
6SD1 TCS ENG<83L> 		1-85221-080-0 01 1 0411- ●
115 PLIER
THA 		5-85171-002-0 01 1 0407- ● ●
119 PULLER ASM; TOP GEAR BRG
MAL6V M/T<Y2U> L=235 		9-85210-190-0 01 1 0407- ●
120 PULLER ASM; MAIN REAR BRG
MAL6V M/T<Y2U> L=285 		9-85210-184-0 01 1 0407- ●
121 PULLER ASM; COUNTER REAR
MAL6V M/T<Y2U> L=285 		9-85210-184-0 01 1 0407- ●
123 PULLER; SPEEDOMETER BUSHING
MAL6V M/T<Y2U> 		9-85210-091-0 01 1 0407- ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0407- ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-0 01 1 0407- ● ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=105 		9-85113-509-0 01 1 0407- ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0407- ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0407- ● ●
