2-08A — CLUTCH MASTER CYLINDER (#2987) — 23 parça

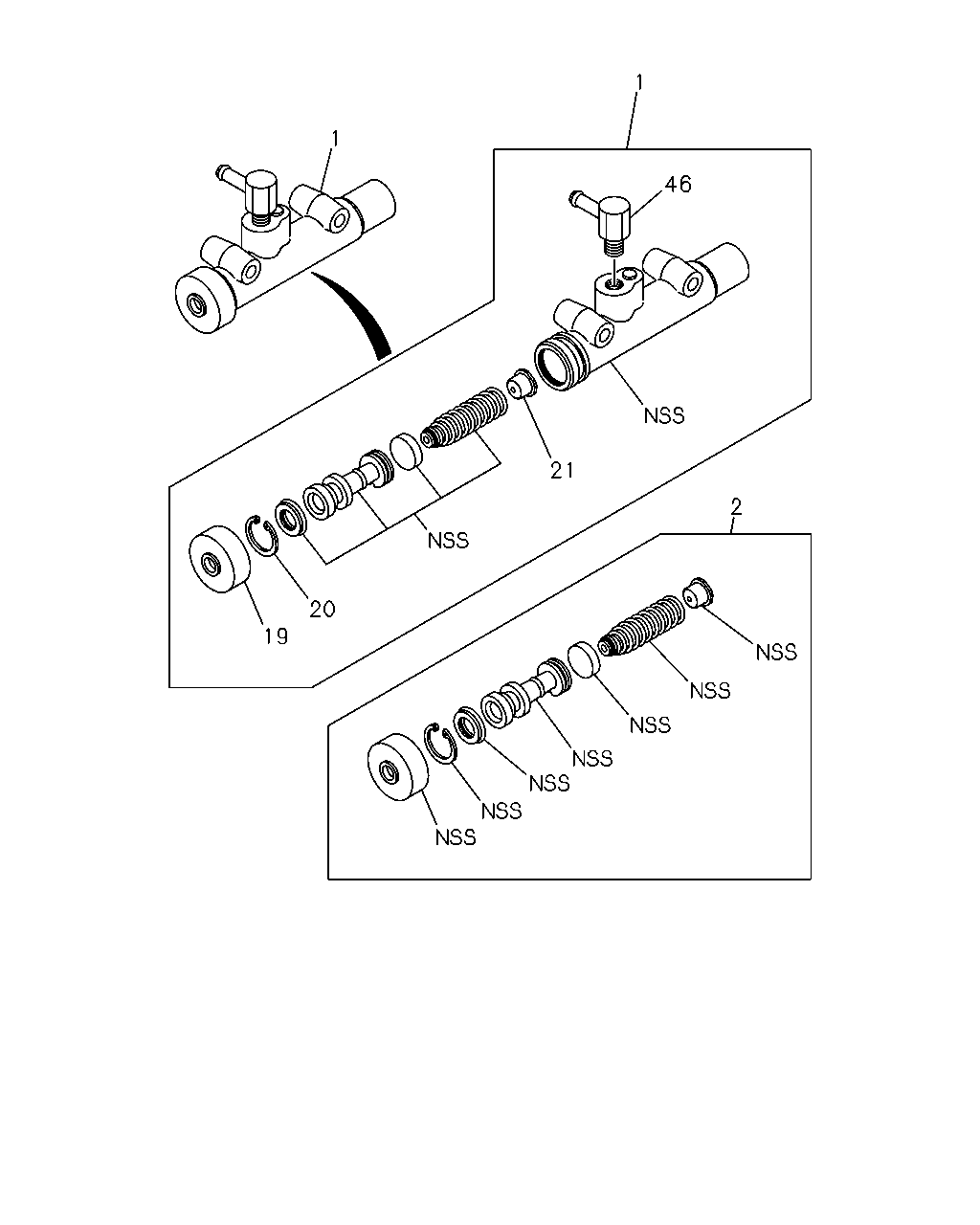

çizim 37828
2 21 20 19 1 1 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 CYLINDER ASM; CLUTCH MASTER
CVR&RHD(CVR5M*) 		1-47500-222-0 01 1 9002-9306 ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-222-0 01 1 9002-9306 ●
1 CYLINDER ASM; CLUTCH MASTER
CVR&RHD(CVR5M*) 		1-47500-222-0 01 1 9307- ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-222-0 01 1 9307- ●
1 CYLINDER ASM; CLUTCH MASTER
CVR&LHD(CVR6M*) 		1-47500-206-1 01 1 9002-9006 ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
CVR&LHD(CVR6M*) 		1-47500-231-0 01 1 9007-9306 ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
CVR&LHD(CVR6M*) 		1-47500-231-0 01 1 9307- ● ●
2 REPAIR KIT; CLU M/CYL
CVR&RHD(CVR5M*) 		1-87830-370-1 01 1 9002-9006 ● ● ● ●
2 REPAIR KIT; CLU M/CYL 1-87830-370-1 01 1 9002-9006 ●
2 REPAIR KIT; CLU M/CYL
CVR&LHD(CVR6M*) 		1-85576-114-0 01 1 9002-9006 ● ● ● ●
2 REPAIR KIT; CLU M/CYL 1-87830-370-1 01 1 9007-9306 ● ● ● ● ●
2 REPAIR KIT; CLU M/CYL 1-87830-370-1 01 1 9007- ● ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9002-9306 ● ● ● ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9307- ● ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9002-9306 ● ● ● ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9307- ● ● ●
21 VALVE; CHECK
CVR&RHD(CVR5M*) 		1-47565-004-0 01 1 9002-9006 ● ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9002-9006 ●
21 VALVE; CHECK
CVR&LHD(CVR6M*) 		9-47565-041-0 01 1 9002-9006 ● ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9007-9306 ● ● ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9307- ● ● ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9002-9306 ● ● ● ● ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9307- ● ● ●
