Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#29863) — 71 parça

377 1 31 180 15 58 59 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

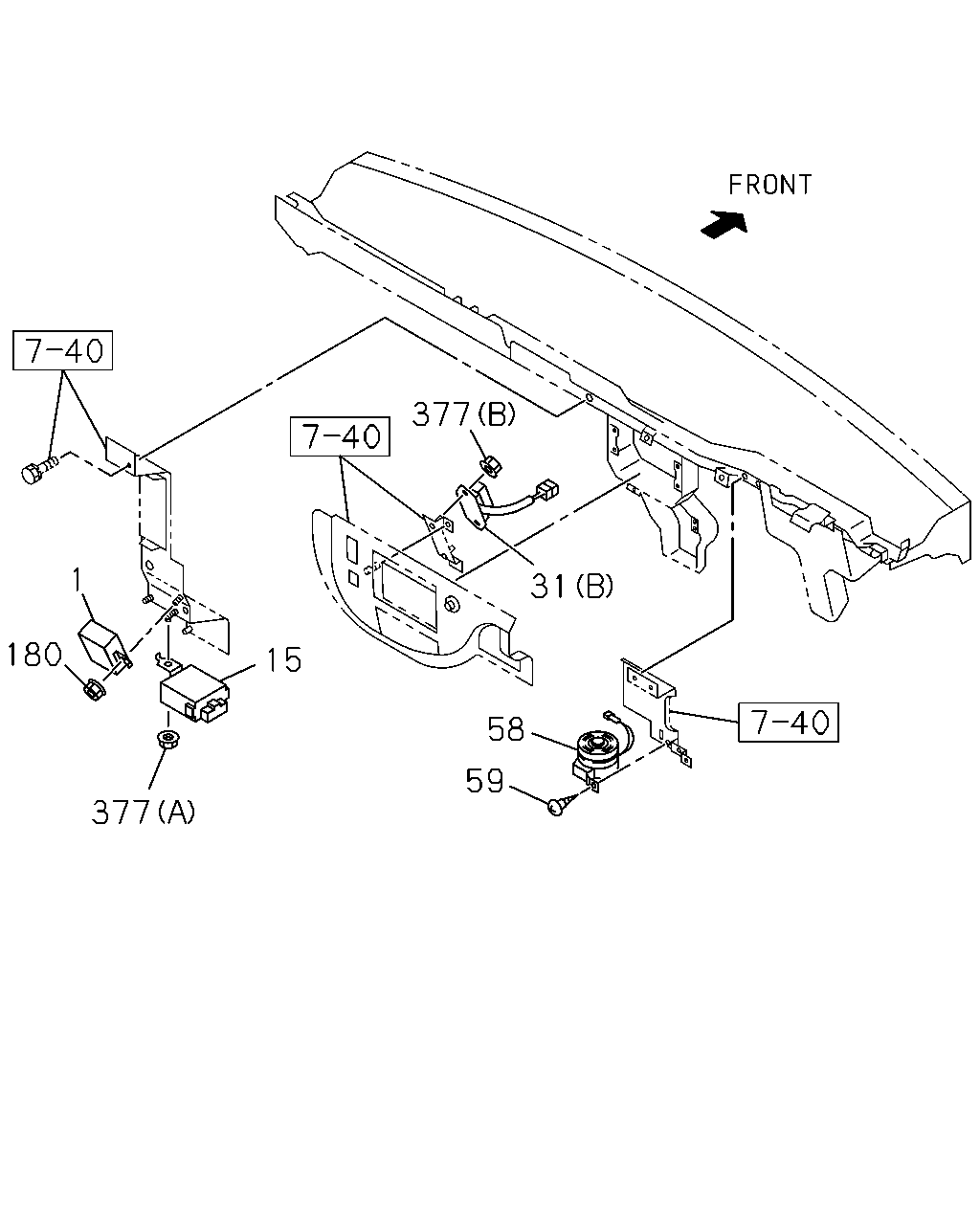

1	UNIT; FLASHER	1-83470-060-1	01	1	0407-	●	●
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0407-	●	●
31	RELAY; PTO CONT (B) 24V	1-82550-187-1	01	1	0407-		●
31	RELAY; PTO CONT (A) 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0407-		●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	0407-	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO	1-83460-074-1	01	1	0407-0612	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO	8-98069-865-0	01	1	0701-	●	●
59	SCREW; BUZZER M5X14 THA	8-94279-325-0	01	1	0407-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0407-0605	●	●
180	NUT; FLASHER UNIT M6 FLANGE THA	0-91180-106-0	01	1	0606-	●	●
377	NUT; RELAY (A) M6 FLANGE	0-91150-106-0	01	1	0407-0605	●	●
377	NUT; RELAY (A) M6 FLANGE THA	0-91180-106-0	01	1	0606-	●	●
377	NUT; RELAY (B) M6 FLANGE	0-91150-106-0	02	1	0407-0605		●
377	NUT; RELAY (B) M6 FLANGE THA	0-91180-106-0	02	1	0606-		●

40 89 88 89 88 36 210 285 284 210 89 261 602 88 90 39 89 33 261 261 34 34 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

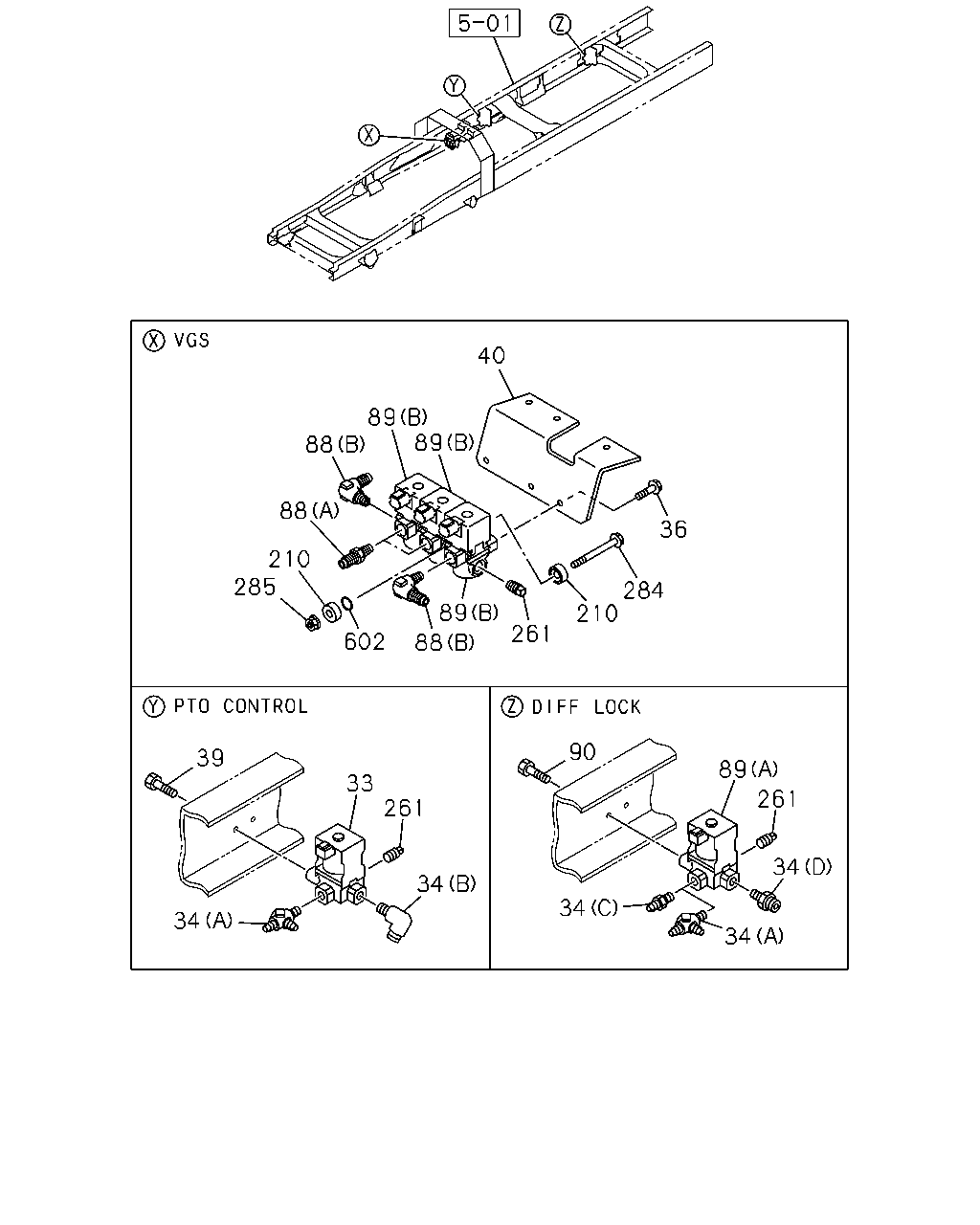

33	VALVE; MAG,PTO CONT	1-82563-600-5	01	1	0407-		●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0407-0410	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG<31L> (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0411-	●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0411-		●
34	CONNECTOR; MAG VLV,INL PORT (D) M20 & PT1/4	9-09902-386-0	01	1	0407-0410	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG<31L> (D) M20 & PT1/4	9-09902-386-0	01	1	0411-	●
34	CONNECTOR; MAG VLV,INL PORT (D) M20 & PT1/4	9-09902-386-0	01	1	0411-		●
34	CONNECTOR; MAG VLV,INL PORT (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0407-0407		●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	0407-		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0407-0410		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0411-		●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCS ENG<83L> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0411-		●
36	BOLT; MAG VLV,PTO CONT 6SD1 TCS ENG<83L> M8X20 FLANGE	0-28680-820-0	03	1	0411-0512		●
36	BOLT; MAG VLV,PTO CONT 6SD1 TCS ENG<83L> M8X20 FLANGE THA	0-28650-820-0	03	1	0601-		●
39	BOLT; BRKT,MAG VLV M8X25 FLANGE	0-28080-825-0	02	1	0407-0701		●
39	BOLT; BRKT,MAG VLV M8X25 FLANGE THA	0-28050-825-0	02	1	0702-		●
40	BRACKET; MAG VLV 6SD1 TCS ENG<83L>	1-82569-340-0	01	1	0411-		●
88	CONNECTOR; MAG VLV 6SD1 TCS ENG<83L> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0411-		●
88	CONNECTOR; MAG VLV 6SD1 TCS ENG<83L> (B) M12 & PT1/4 ELBOW THA	1-09650-430-0	02	1	0411-		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-5	01	1	0407-0410	●	●
89	VALVE; MAG,DIFF LOCK 6SD1 TCN ENG<31L> (A)	1-82563-600-5	01	1	0411-	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-5	01	1	0411-		●
89	VALVE; MAG,DIFF LOCK 6SD1 TCS ENG<83L> (B)	1-82563-871-2	03	1	0411-		●
90	BOLT; MAG VLV M8X30 FLANGE	0-28080-830-0	02	1	0407-0512	●	●
90	BOLT; MAG VLV M8X30 FLANGE THA	0-28050-830-0	02	1	0601-	●	●
210	WASHER; PL,BRKT 6SD1 TCS ENG<83L>	1-82569-266-0	04	1	0411-		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0407-0410	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0407-0410		●
261	PLUG; MAG VLV 6SD1 TCN ENG<31L> PT1/4	9-99204-513-0	01	1	0411-	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0411-		●
261	PLUG; MAG VLV 6SD1 TCS ENG<83L> PT1/4	9-99204-513-0	01	1	0411-		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0411-		●
284	BOLT; MAG VLV 6SD1 TCS ENG<83L> M8X25 FLANGE	0-28680-825-0	03	1	0411-0611		●
284	BOLT; MAG VLV 6SD1 TCS ENG<83L> M8X25 FLANGE THA	0-28650-825-0	03	1	0612-		●
285	NUT; MAG VLV 6SD1 TCS ENG<83L> M8 FLANGE	0-91150-108-0	03	1	0411-		●
602	GASKET; MAG VLV 6SD1 TCS ENG<83L> ID=16.8	9-09565-117-0	02	1	0411-		●

123 24 24 29 25 22 226 349 430 429 243 31 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

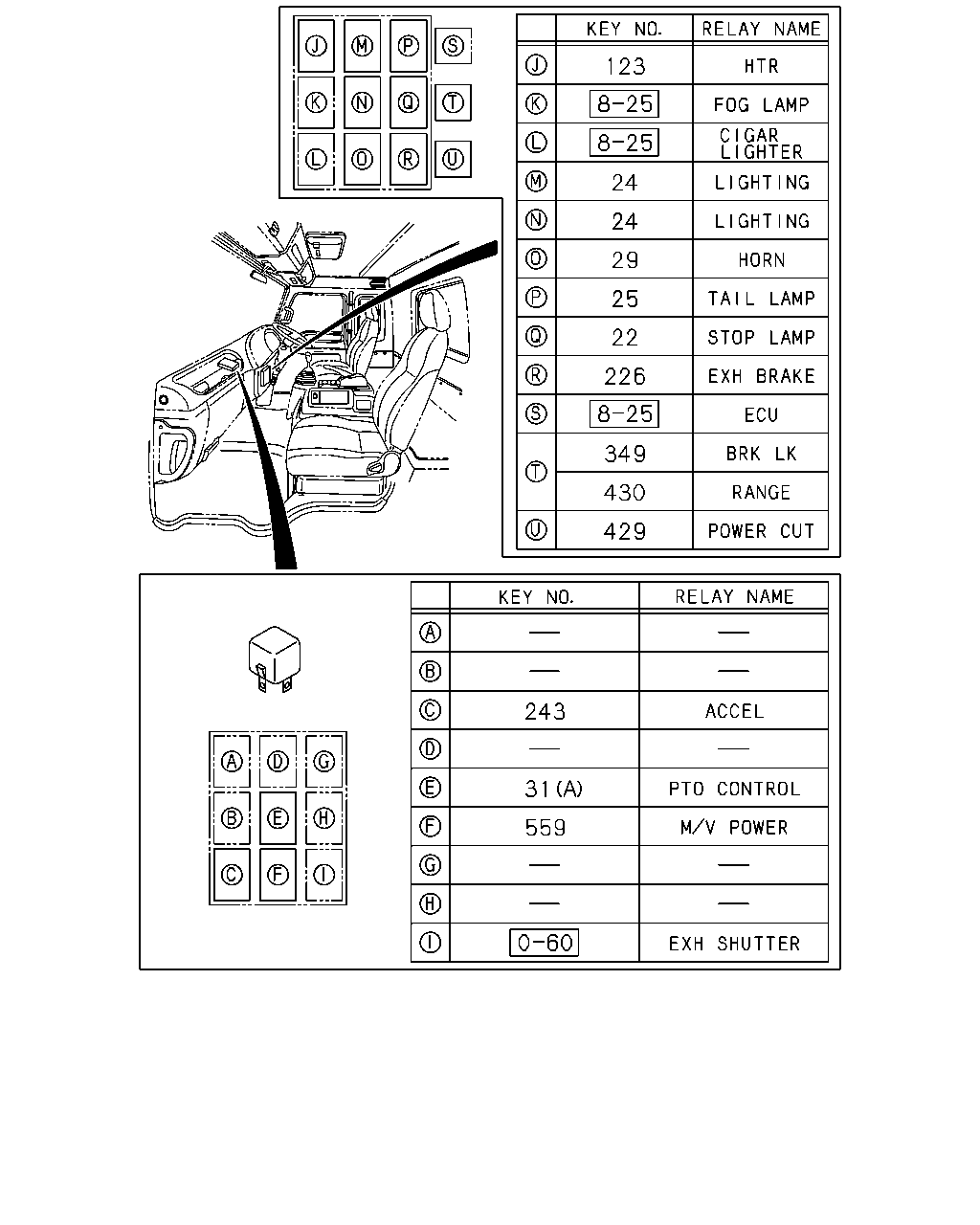

22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0407-	●	●
24	RELAY; LIGHTING 24V 12.5A MATSUSHITA THA	8-97262-933-0	02	1	0407-	●	●
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0407-	●	●
29	RELAY; HORN 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0407-	●	●
31	RELAY; PTO CONT (B) 24V	1-82550-187-1	01	1	0407-		●
31	RELAY; PTO CONT (A) 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0407-		●
123	RELAY; HTR 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0407-	●	●
226	RELAY; EXH BRK 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0407-	●	●
243	RELAY; ACCEL CONT 6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0411-		●
349	RELAY; BRK LK 24V 12.5A MATSUSHITA THA	8-97262-933-0	02	1	0407-	●
429	RELAY; POWER CUT 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0407-	●	●
430	RELAY; RANGE ZF 9S109 OD M/T<Y2L> 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0407-		●
559	RELAY; MAG VLV 6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0411-		●

49 46 46 44 49 283 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

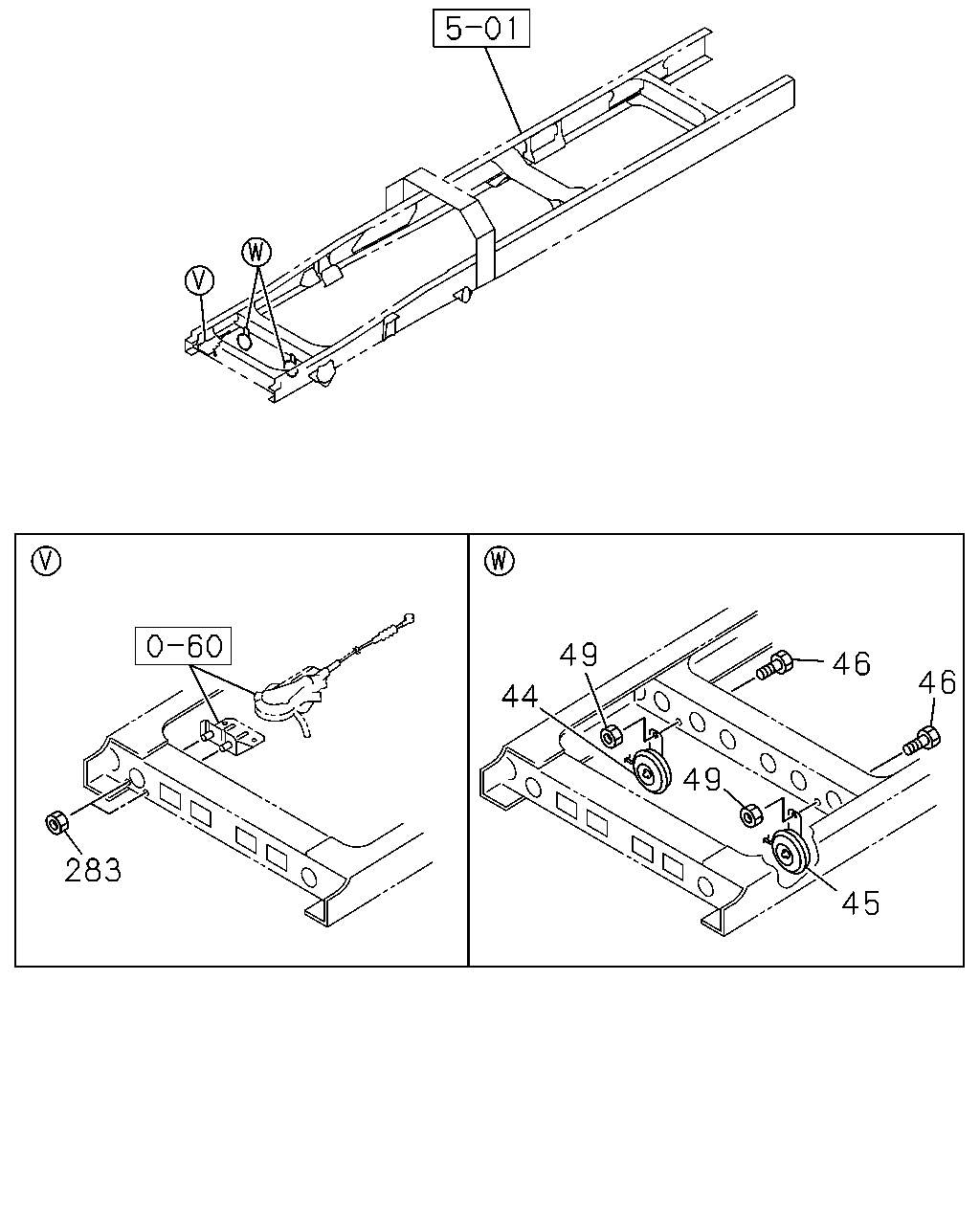

44	HORN; HIGH NOTE THA	8-97915-997-2	01	1	0407-	●	●
45	HORN; LOW NOTE THA	8-97915-998-2	01	1	0407-	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0407-0611	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0407-	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0410	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0411-	●
283	NUT; BRKT EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE	0-91150-108-0	02	1	0411-		●
