8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#29861) — 21 parça

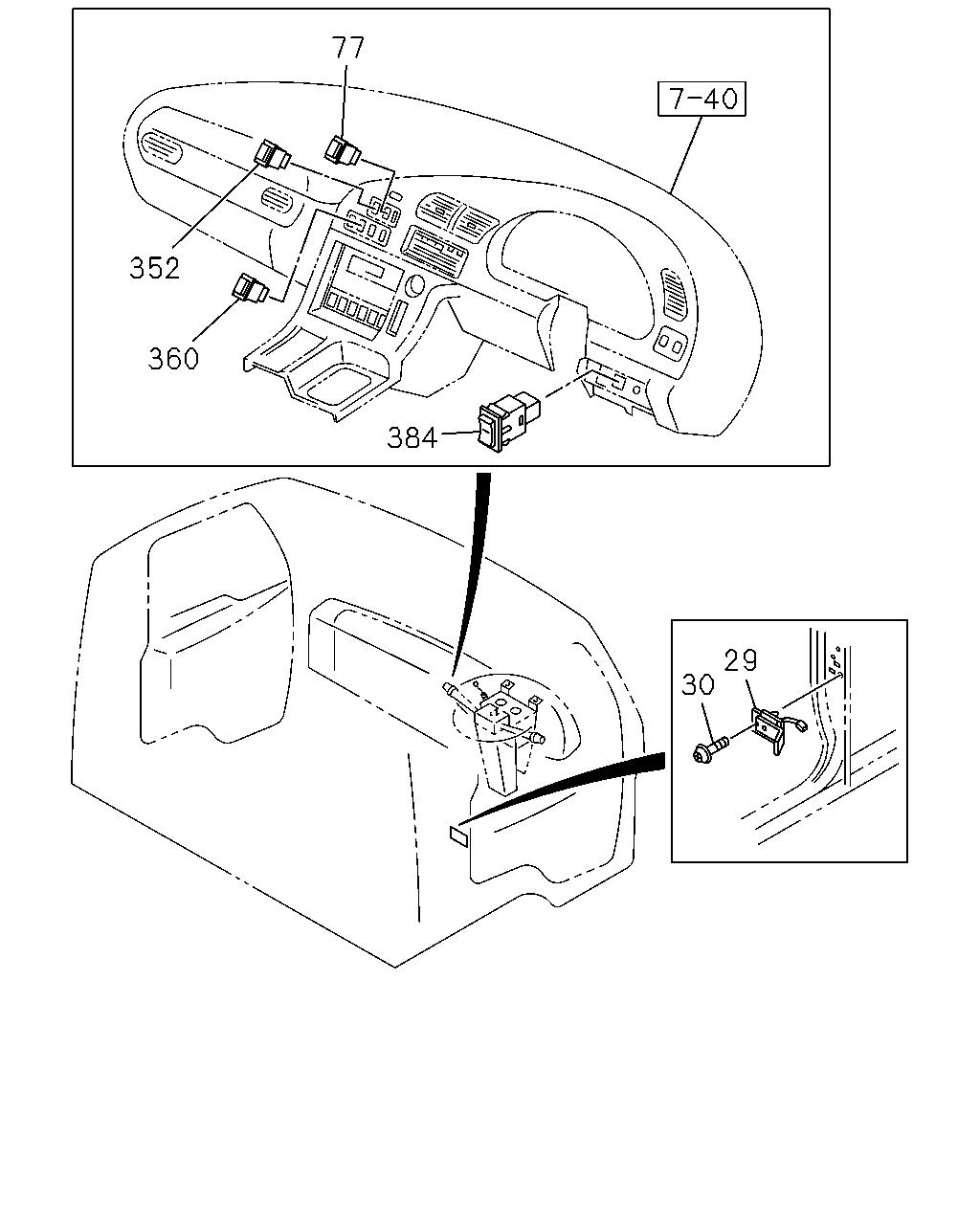

77 352 360 384 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	SWITCH; DOOR	8-97855-032-3	01	1	0407-	●	●
30	SCREW; DOOR SW M5X11	1-09981-536-1	01	1	0407-	●	●
77	SWITCH; PTO	1-82340-403-0	01	1	0407-		●
352	SWITCH ASM; BRK LK	1-82340-425-0	01	1	0407-	●
360	SWITCH ASM; DIFF LK	1-82340-404-0	01	1	0407-	●	●
384	SWITCH; IDLING CONT,ELEC 6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F>	1-82350-213-1	01	1	0411-		●

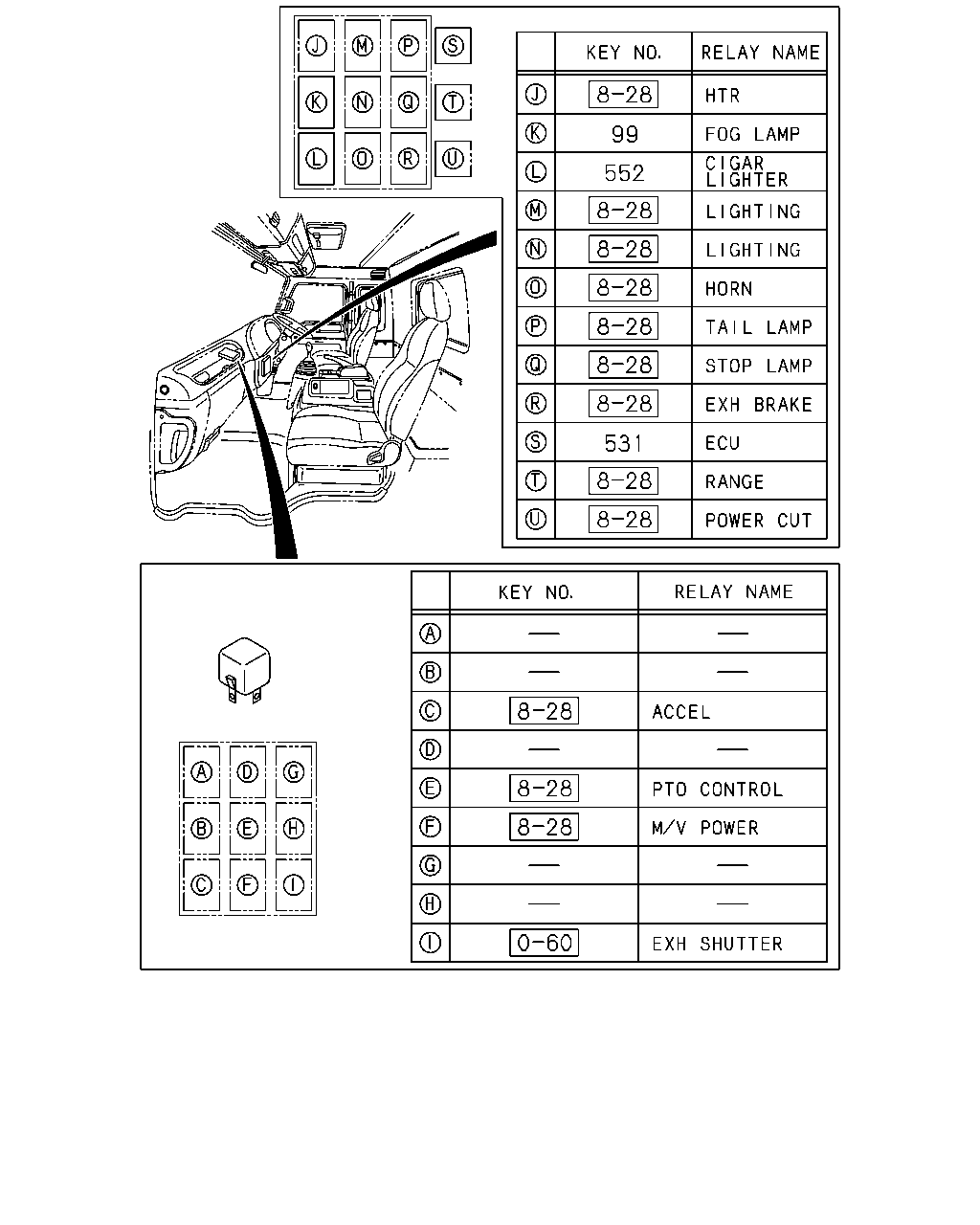

99 552 531

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
99	RELAY; FOG LAMP 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0407-	●	●
531	RELAY; ECU 6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> 24V	1-82550-308-1	01	1	0411-		●
552	RELAY; CIGAR LIGHTER 24V 12.5A MATSUSHITA THA	8-97262-933-0	01	1	0407-	●	●

1 10 257 3 10 257 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB	1-82360-715-0	01	1	0407-	●	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	0407-0604	●	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74165-512-0	04	1	0605-	●	●
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0407-0604	●	●
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-	●	●
21	SWITCH; CLU	1-82380-114-2	01	1	0407-0410	●	●
21	SWITCH; CLU	1-82380-114-3	01	1	0411-	●
21	SWITCH; CLU EXC. ELECTRONIC GOV RED4<Q4F>	1-82380-114-3	01	1	0411-		●
21	SWITCH; CLU 6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F>	1-82440-116-1	01	1	0411-0608		●
21	SWITCH; CLU 6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F>	1-82440-126-1	01	1	0609-		●
257	COVER; HOLE,SW	1-82389-011-2	01	1	0407-	●	●
257	COVER; HOLE,SW	1-82389-012-2	01	1	0407-	●	●
