8-15 — FIXING PARTS; WIRING HARNESS (#29858) — 266 parça

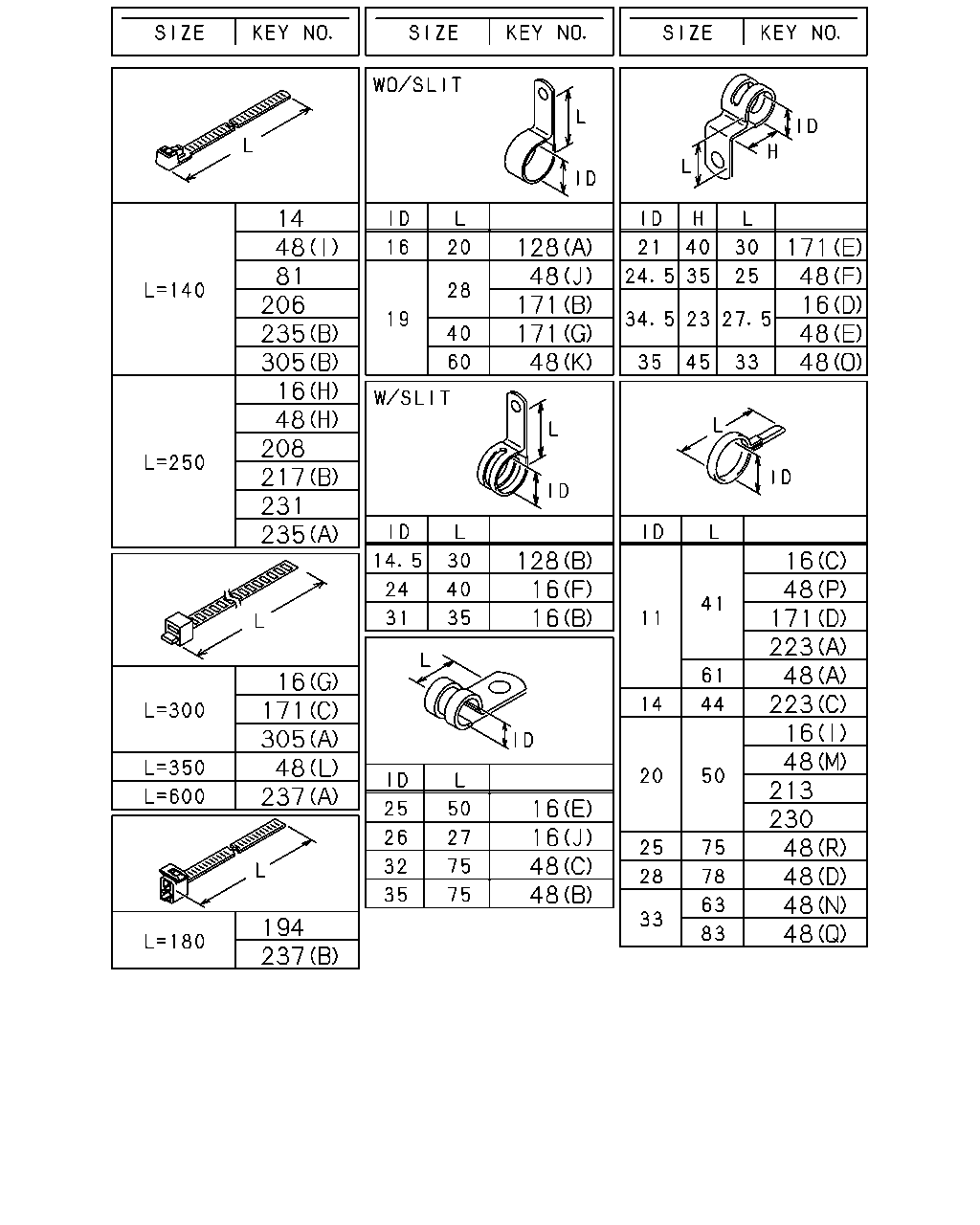

çizim 22913
14 48 81 206 235 305 16 48 208 217 231 235 128 48 171 171 48 171 48 16 48 48 128 16 16 16 48 171 223 48 223 16 48 213 230 48 48 48 48 16 171 305 48 237 16 16 48 48 194 237
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 01 1 0407-0410 ● ●
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 01 1 0411- ●
14 CLIP; BAND,HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> L=140 		5-09707-031-1 01 1 0411- ●
16 CLIP; HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0407- ●
16 CLIP; HARNESS
(C) ID=11 L=41 THA 		1-09700-403-0 03 1 0407- ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407- ● ●
16 CLIP; HARNESS
(E) ID=25 L=50 		1-09701-019-0 01 1 0407-0410 ● ●
16 CLIP; HARNESS
(E) ID=25 L=50 		1-09701-019-0 01 1 0411- ●
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (E) ID=25 L=50 		1-09701-019-0 01 1 0411- ●
16 CLIP; HARNESS
(F) ID=24 L=40 		1-09701-139-0 01 1 0407-0410 ● ●
16 CLIP; HARNESS
(F) ID=24 L=40 		1-09701-139-0 01 1 0411- ●
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (F) ID=24 L=40 		1-09701-139-0 01 1 0411- ●
16 CLIP; HARNESS
(G) L=300 THA 		1-09707-001-1 01 1 0407- ● ●
16 CLIP; HARNESS
(H) L=250 		5-09707-030-1 01 1 0407- ● ●
16 CLIP; HARNESS
(I) ID=20 L=50 THA 		9-09917-430-0 03 1 0407- ● ●
16 CLIP; HARNESS
(I) ID=20 L=50 THA 		9-09917-430-0 03 1 0407- ●
16 CLIP; HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (B) ID=31 L=35 		1-09700-329-1 01 1 0411- ●
16 CLIP; HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (J) ID=26 L=27 		1-09701-006-0 01 1 0411- ●
16 CLIP; HARNESS
6SD1 TCS ENG<83L> WHEEL BASE 5400MM<54W> ELECTRONIC GOV RED4<Q4F> (C) ID=11 L=41 THA 		1-09700-403-0 01 1 0411-0502 ●
16 CLIP; HARNESS
(C) ID=11 L=41 THA 		1-09700-403-0 01 1 0503- ● ●
48 CLIP; FRAME HARNESS
(G) L=175 		1-09707-178-0 02 1 0807- ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (G) L=175 		1-09707-178-0 02 1 0807- ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L> (L) L=350 		1-09707-183-0 01 1 0603-0806 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (L) L=350 		1-09707-183-0 01 1 0603-0806 ●
48 CLIP; FRAME HARNESS
(L) L=350 		1-09707-183-0 03 1 0807- ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (L) L=350 		1-09707-183-0 03 1 0807- ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		8-97916-115-0 11 1 0407- ●
48 CLIP; FRAME HARNESS
(B) ID=35 L=75 		1-09700-608-2 01 1 0407-0410 ● ●
48 CLIP; FRAME HARNESS
(B) ID=35 L=75 		1-09700-608-2 01 1 0411- ●
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (B) ID=35 L=75 		1-09700-608-2 01 1 0411- ●
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 THA 		1-09700-858-0 08 1 0407-0410 ● ●
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 THA 		1-09700-858-0 08 1 0411- ●
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 08 1 0411- ●
48 CLIP; FRAME HARNESS
(F) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0407-0410 ● ●
48 CLIP; FRAME HARNESS
(F) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0411- ●
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (F) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0411- ●
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 01 1 0407-0410 ● ●
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 01 1 0411- ●
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (H) L=250 		5-09707-030-1 01 1 0411- ●
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		8-97916-115-0 02 1 0407- ● ●
48 CLIP; FRAME HARNESS
(J) ID=19 L=28 		9-09525-856-0 01 1 0407-0606 ● ●
48 CLIP; FRAME HARNESS
(J) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(K) ID=19 L=60 		9-09525-896-0 01 1 0407-0606 ● ●
48 CLIP; FRAME HARNESS
(K) ID=19 L=60 		0-95235-896-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(C) ID=32 L=75 		1-09700-704-1 02 1 0407- ● ●
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=61 THA 		1-09700-484-0 01 1 0407-0501 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (A) ID=11 L=61 THA 		1-09700-484-0 01 1 0502- ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		8-97916-115-0 19 1 0407-0407 ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		8-97916-115-0 16 1 0407- ●
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (P) ID=11 L=41 THA 		1-09700-403-0 04 1 0411- ●
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (N) ID=33 L=63 		1-09700-807-0 01 1 0411-0412 ●
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (Q) ID=33 L=83 		1-09701-291-0 01 1 0501- ●
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 04 1 0411- ●
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (O) ID=35 H=45 L=33 		1-09701-047-0 01 1 0411- ●
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (R) ID=25 L=75 		1-09701-275-0 05 1 0411- ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0407- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0407-0606 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0407- ● ●
171 CLIP; STARTER HARNESS
MAL6V M/T<Y2U> (D) ID=11 L=41 THA 		1-09700-403-0 01 1 0407- ●
171 CLIP; STARTER HARNESS
MAL6V M/T<Y2U> (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0407- ●
171 CLIP; STARTER HARNESS
MAL6V M/T<Y2U> (F) OD=9 H=6 THA 		1-09709-178-0 02 1 0407- ●
171 CLIP; STARTER HARNESS
MAL6V M/T<Y2U> (B) ID=19 L=28 		9-09525-856-0 01 1 0407-0606 ●
171 CLIP; STARTER HARNESS
MAL6V M/T<Y2U> (B) ID=19 L=28 		0-95235-856-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
MAL6V M/T<Y2U> (G) ID=19 L=40 		9-09525-876-0 01 1 0407-0606 ●
171 CLIP; STARTER HARNESS
(G) ID=19 L=40 		0-95235-876-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
(A) L=63 		1-09700-418-1 01 1 0407- ● ●
171 CLIP; STARTER HARNESS
ZF 9S109 OD M/T<Y2L> (B) ID=19 L=28 		9-09525-856-0 03 1 0407-0606 ●
171 CLIP; STARTER HARNESS
ZF 9S109 OD M/T<Y2L> (B) ID=19 L=28 		0-95235-856-0 03 1 0607- ●
171 CLIP; STARTER HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (C) L=300 THA 		1-09707-001-1 01 1 0411- ●
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0407- ● ●
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0407- ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0407- ● ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 0407-0410 ●
208 CLIP; HARNESS,MAG VLV
EXC. ELECTRONIC GOV RED4<Q4F> L=250 		5-09707-030-1 01 1 0411-0411 ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 THA 		8-97916-115-0 03 1 0407- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0407- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0407- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 02 1 0407- ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 07 1 0407-0410 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 07 1 0411- ●
223 CLIP; AIR TANK HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (A) ID=11 L=41 THA 		1-09700-403-0 07 1 0411- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 01 1 0407- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0407-0410 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0411- ●
223 CLIP; AIR TANK HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (C) ID=14 L=44 THA 		9-09917-427-0 02 1 0411- ●
223 CLIP; AIR TANK HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (A) ID=11 L=41 THA 		1-09700-403-0 08 1 0411- ●
223 CLIP; AIR TANK HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (C) ID=14 L=44 THA 		9-09917-427-0 01 1 0411- ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 THA 		9-09917-430-0 02 1 0407- ● ●
231 CLIP; BAND,OIL PRESS
L=250 		5-09707-030-1 01 1 0407- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MAL6V M/T<Y2U> (C) ID=6 H=25 L=21 THA 		1-09700-432-0 01 1 0407- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-1 01 1 0407- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ZF 9S109 OD M/T<Y2L> (B) L=140 		5-09707-031-1 01 1 0407- ●
237 CLIP; BAND,ACL
(A) L=600 		1-09707-107-1 01 1 0407- ● ●
237 CLIP; BAND,ACL
(B) L=180 THA 		1-09707-162-1 01 1 0407- ● ●
305 CLIP; ENG HARNESS
6SD1 TCN ENG<31L> (B) L=140 THA 		8-97920-656-0 02 1 0407- ● ●
305 CLIP; ENG HARNESS
(A) L=300 THA 		1-09707-001-1 01 1 0407- ● ●
çizim 81803
48 217 148 148 168 171 223 470 16 171 116 235 121
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0407- ●
16 CLIP; HARNESS
(C) ID=11 L=41 THA 		1-09700-403-0 03 1 0407- ● ●
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407- ● ●
16 CLIP; HARNESS
(E) ID=25 L=50 		1-09701-019-0 01 1 0407-0410 ● ●
16 CLIP; HARNESS
(E) ID=25 L=50 		1-09701-019-0 01 1 0411- ●
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (E) ID=25 L=50 		1-09701-019-0 01 1 0411- ●
16 CLIP; HARNESS
(F) ID=24 L=40 		1-09701-139-0 01 1 0407-0410 ● ●
16 CLIP; HARNESS
(F) ID=24 L=40 		1-09701-139-0 01 1 0411- ●
16 CLIP; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (F) ID=24 L=40 		1-09701-139-0 01 1 0411- ●
16 CLIP; HARNESS
(G) L=300 THA 		1-09707-001-1 01 1 0407- ● ●
16 CLIP; HARNESS
(H) L=250 		5-09707-030-1 01 1 0407- ● ●
16 CLIP; HARNESS
(I) ID=20 L=50 THA 		9-09917-430-0 03 1 0407- ● ●
16 CLIP; HARNESS
(I) ID=20 L=50 THA 		9-09917-430-0 03 1 0407- ●
16 CLIP; HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (B) ID=31 L=35 		1-09700-329-1 01 1 0411- ●
16 CLIP; HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (J) ID=26 L=27 		1-09701-006-0 01 1 0411- ●
16 CLIP; HARNESS
6SD1 TCS ENG<83L> WHEEL BASE 5400MM<54W> ELECTRONIC GOV RED4<Q4F> (C) ID=11 L=41 THA 		1-09700-403-0 01 1 0411-0502 ●
16 CLIP; HARNESS
(C) ID=11 L=41 THA 		1-09700-403-0 01 1 0503- ● ●
48 CLIP; FRAME HARNESS
(G) L=175 		1-09707-178-0 02 1 0807- ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (G) L=175 		1-09707-178-0 02 1 0807- ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L> (L) L=350 		1-09707-183-0 01 1 0603-0806 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (L) L=350 		1-09707-183-0 01 1 0603-0806 ●
48 CLIP; FRAME HARNESS
(L) L=350 		1-09707-183-0 03 1 0807- ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (L) L=350 		1-09707-183-0 03 1 0807- ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		8-97916-115-0 11 1 0407- ●
48 CLIP; FRAME HARNESS
(B) ID=35 L=75 		1-09700-608-2 01 1 0407-0410 ● ●
48 CLIP; FRAME HARNESS
(B) ID=35 L=75 		1-09700-608-2 01 1 0411- ●
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (B) ID=35 L=75 		1-09700-608-2 01 1 0411- ●
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 THA 		1-09700-858-0 08 1 0407-0410 ● ●
48 CLIP; FRAME HARNESS
(D) ID=28 L=78 THA 		1-09700-858-0 08 1 0411- ●
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 08 1 0411- ●
48 CLIP; FRAME HARNESS
(F) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0407-0410 ● ●
48 CLIP; FRAME HARNESS
(F) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0411- ●
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (F) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0411- ●
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 01 1 0407-0410 ● ●
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 01 1 0411- ●
48 CLIP; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (H) L=250 		5-09707-030-1 01 1 0411- ●
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		8-97916-115-0 02 1 0407- ● ●
48 CLIP; FRAME HARNESS
(J) ID=19 L=28 		9-09525-856-0 01 1 0407-0606 ● ●
48 CLIP; FRAME HARNESS
(J) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(K) ID=19 L=60 		9-09525-896-0 01 1 0407-0606 ● ●
48 CLIP; FRAME HARNESS
(K) ID=19 L=60 		0-95235-896-0 01 1 0607- ● ●
48 CLIP; FRAME HARNESS
(C) ID=32 L=75 		1-09700-704-1 02 1 0407- ● ●
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0407- ● ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=61 THA 		1-09700-484-0 01 1 0407-0501 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (A) ID=11 L=61 THA 		1-09700-484-0 01 1 0502- ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		8-97916-115-0 19 1 0407-0407 ●
48 CLIP; FRAME HARNESS
(M) ID=20 L=50 THA 		8-97916-115-0 16 1 0407- ●
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (P) ID=11 L=41 THA 		1-09700-403-0 04 1 0411- ●
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (N) ID=33 L=63 		1-09700-807-0 01 1 0411-0412 ●
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (Q) ID=33 L=83 		1-09701-291-0 01 1 0501- ●
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (D) ID=28 L=78 THA 		1-09700-858-0 04 1 0411- ●
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (O) ID=35 H=45 L=33 		1-09701-047-0 01 1 0411- ●
48 CLIP; FRAME HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (R) ID=25 L=75 		1-09701-275-0 05 1 0411- ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0407- ● ●
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 0407- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 THA 		8-94232-611-0 01 1 0407- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 THA 		8-97069-515-0 01 1 0407- ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 THA 		8-97069-515-0 05 1 0407- ● ●
171 CLIP; STARTER HARNESS
MAL6V M/T<Y2U> (D) ID=11 L=41 THA 		1-09700-403-0 01 1 0407- ●
171 CLIP; STARTER HARNESS
MAL6V M/T<Y2U> (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0407- ●
171 CLIP; STARTER HARNESS
MAL6V M/T<Y2U> (F) OD=9 H=6 THA 		1-09709-178-0 02 1 0407- ●
171 CLIP; STARTER HARNESS
MAL6V M/T<Y2U> (B) ID=19 L=28 		9-09525-856-0 01 1 0407-0606 ●
171 CLIP; STARTER HARNESS
MAL6V M/T<Y2U> (B) ID=19 L=28 		0-95235-856-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
MAL6V M/T<Y2U> (G) ID=19 L=40 		9-09525-876-0 01 1 0407-0606 ●
171 CLIP; STARTER HARNESS
(G) ID=19 L=40 		0-95235-876-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
(A) L=63 		1-09700-418-1 01 1 0407- ● ●
171 CLIP; STARTER HARNESS
ZF 9S109 OD M/T<Y2L> (B) ID=19 L=28 		9-09525-856-0 03 1 0407-0606 ●
171 CLIP; STARTER HARNESS
ZF 9S109 OD M/T<Y2L> (B) ID=19 L=28 		0-95235-856-0 03 1 0607- ●
171 CLIP; STARTER HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (C) L=300 THA 		1-09707-001-1 01 1 0411- ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0407- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0407- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 02 1 0407- ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 07 1 0407-0410 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 THA 		1-09700-403-0 07 1 0411- ●
223 CLIP; AIR TANK HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (A) ID=11 L=41 THA 		1-09700-403-0 07 1 0411- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 THA 		1-09709-178-0 01 1 0407- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0407-0410 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0411- ●
223 CLIP; AIR TANK HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (C) ID=14 L=44 THA 		9-09917-427-0 02 1 0411- ●
223 CLIP; AIR TANK HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (A) ID=11 L=41 THA 		1-09700-403-0 08 1 0411- ●
223 CLIP; AIR TANK HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (C) ID=14 L=44 THA 		9-09917-427-0 01 1 0411- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MAL6V M/T<Y2U> (C) ID=6 H=25 L=21 THA 		1-09700-432-0 01 1 0407- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-1 01 1 0407- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ZF 9S109 OD M/T<Y2L> (B) L=140 		5-09707-031-1 01 1 0407- ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 THA 		1-09709-178-0 01 1 0407- ● ●
çizim 82104
239 524 219 294 294 38 38 38 139 38 139 516 210 520 184 239 239 88 173 38 209 133
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
MAL6V M/T<Y2U> (A) M8X20 FLANGE 		0-28680-820-0 05 1 0407-0611 ●
38 BOLT; CLIP,HARNESS
MAL6V M/T<Y2U> (A) M8X20 FLANGE THA 		0-28650-820-0 05 1 0612- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0611 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 0612- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0611 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 0612- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0407-0410 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0411-0611 ●
38 BOLT; CLIP,HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (B) M8X25 FLANGE 		0-28680-825-0 03 1 0411-0611 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 0612- ●
38 BOLT; CLIP,HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (B) M8X25 FLANGE THA 		0-28650-825-0 03 1 0612- ●
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0407-0611 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE THA 		0-28650-830-0 02 1 0612- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 04 1 0407-0611 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE THA 		0-28650-830-0 04 1 0612- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0407-0701 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0702- ● ●
38 BOLT; CLIP,HARNESS
ZF 9S109 OD M/T<Y2L> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0611 ●
38 BOLT; CLIP,HARNESS
ZF 9S109 OD M/T<Y2L> (A) M8X20 FLANGE THA 		0-28650-820-0 03 1 0612- ●
38 BOLT; CLIP,HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (D) M8X20 FLANGE 		0-28080-820-0 02 1 0411-0611 ●
38 BOLT; CLIP,HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (D) M8X20 FLANGE THA 		0-28050-820-0 02 1 0612- ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0407- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0407- ● ●
139 BOLT; BRKT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0411-0512 ●
139 BOLT; BRKT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE THA 		0-28650-825-0 01 1 0601- ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0407-0512 ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0407-0512 ●
139 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 0601- ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 0601- ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0407- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 0407- ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0407-0603 ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604- ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0407- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0410 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0411-0602 ●
219 NUT
EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE 		0-91150-108-0 01 1 0411-0602 ●
219 NUT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> M8 FLANGE 		0-91150-108-0 01 1 0411-0602 ●
219 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0603- ●
219 NUT
EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE THA 		0-91180-108-0 01 1 0603- ●
219 NUT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> M8 FLANGE THA 		0-91180-108-0 01 1 0603- ●
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0410 ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0411-0602 ●
219 NUT
EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE 		0-91150-108-0 03 1 0411-0602 ●
219 NUT
M8 FLANGE THA 		0-91180-108-0 03 1 0603- ●
219 NUT
EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE THA 		0-91180-108-0 03 1 0603- ●
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0407-0602 ● ●
219 NUT
M8 FLANGE THA 		0-91180-108-0 05 1 0603- ● ●
219 NUT
ZF 9S109 OD M/T<Y2L> M8 FLANGE 		0-91150-108-0 02 1 0407-0602 ●
219 NUT
ZF 9S109 OD M/T<Y2L> M8 FLANGE THA 		0-91180-108-0 02 1 0603- ●
239 BOLT; GRAND
(A) M5X8 THA 		0-20800-508-0 01 1 0407- ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0407- ● ●
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0407- ● ●
294 NUT
(A) M10 FLANGE 		0-91150-210-0 04 1 0407-0602 ●
294 NUT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 0603- ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0407-0602 ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0407-0602 ●
294 NUT
(B) M8 FLANGE THA 		0-91180-108-0 01 1 0603- ● ●
294 NUT
(B) M8 FLANGE THA 		0-91180-108-0 01 1 0603- ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0407- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0407- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0407-0602 ● ●
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 01 1 0603- ● ●
çizim 82105
178 1 178 178 334 334 530 1 53 334 59 334 335
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(A) L=250 SERVICED BY L=1300 		1-09360-677-1 01 1 0807- ●
1 SLEEVE; RUBBER
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (A) L=250 SERVICED BY L=1300 		1-09360-677-1 01 1 0807- ●
1 SLEEVE; RUBBER
(B) 		8-98125-584-0 01 1 0807- ●
1 SLEEVE; RUBBER
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B) 		8-98125-584-0 01 1 0807- ●
53 BRACKET; HARNESS 1-47476-200-0 01 1 0407-0410 ● ●
53 BRACKET; HARNESS 1-47476-200-0 01 1 0411- ●
53 BRACKET; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> 		1-47476-200-0 01 1 0411- ●
59 BRACKET; FRAME HARNESS
L=95 THA 		1-82699-085-0 01 1 0407- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0407- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0407- ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0407- ● ●
178 GROMMET; HARNESS
ELECTRONIC GOV RED4<Q4F> (C) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0411- ●
334 BRACKET
MAL6V M/T<Y2U> (A) 		1-47477-840-0 02 1 0407- ●
334 BRACKET
MAL6V M/T<Y2U> (B) 		1-82699-639-1 02 1 0407- ●
334 BRACKET
MAL6V M/T<Y2U> (C) L=60 		1-82699-875-0 01 1 0407- ●
334 BRACKET
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (D) 		1-47477-571-3 01 1 0411- ●
335 BRACKET; CONNECTOR
THA 		1-82698-167-0 01 1 0407- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
