◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10946 - FXZ(THAI)EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#29857) — 171 parça

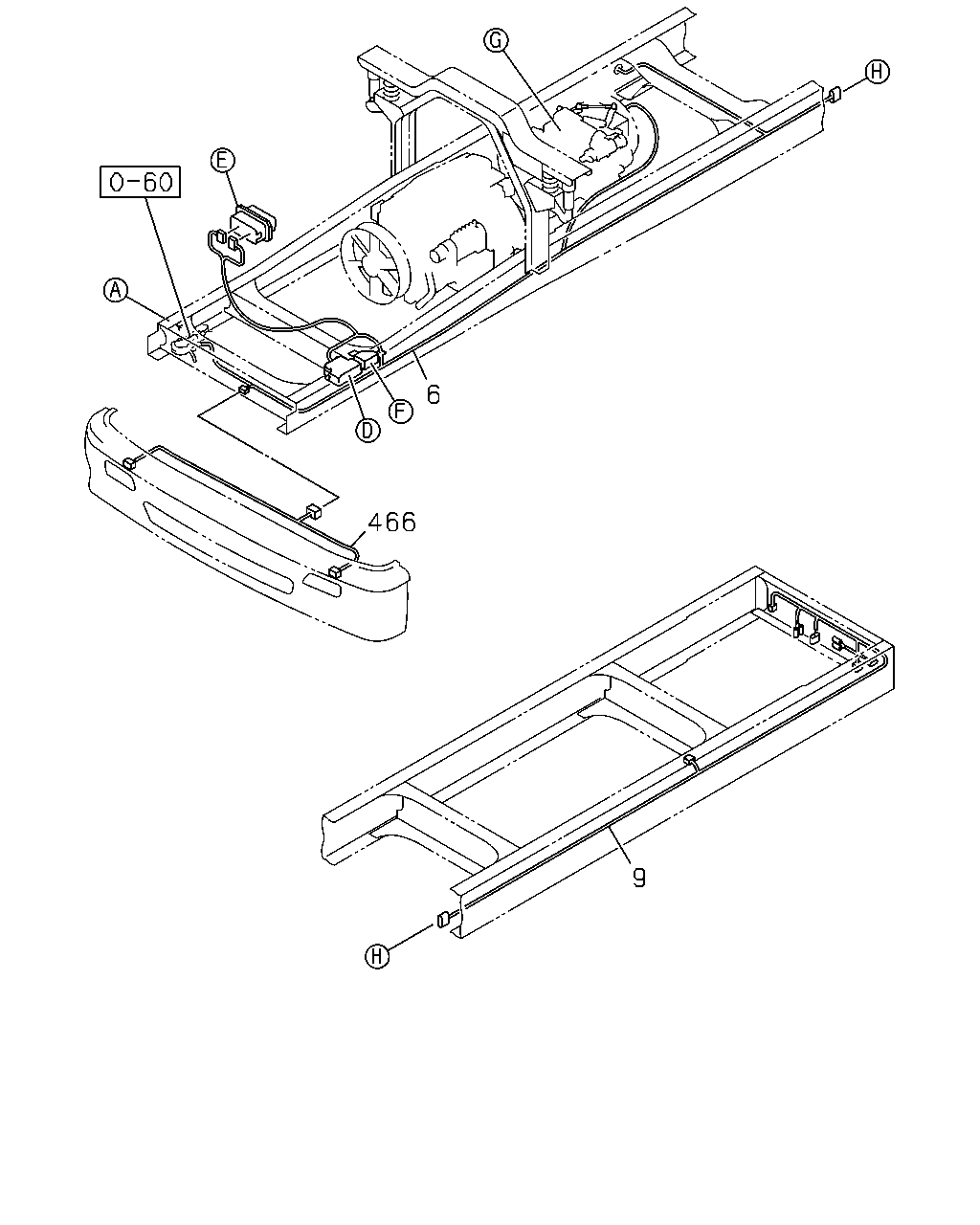

çizim 21973
6 466 9
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
THA 		8-97917-541-2 01 1 0407- ●
6 HARNESS; FRAME
THA 		8-97915-008-1 01 1 0407-0410 ●
6 HARNESS; FRAME
EXC. ELECTRONIC GOV RED4<Q4F> THA 		8-97915-008-1 01 1 0411- ●
6 HARNESS; FRAME
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> THA 		8-97922-741-0 01 1 0411- ●
9 HARNESS; FRAME,RR
THA 		8-97916-640-0 01 1 0407- ●
466 HARNESS; BUMPER
THA 		8-97916-311-0 01 1 0407- ● ●

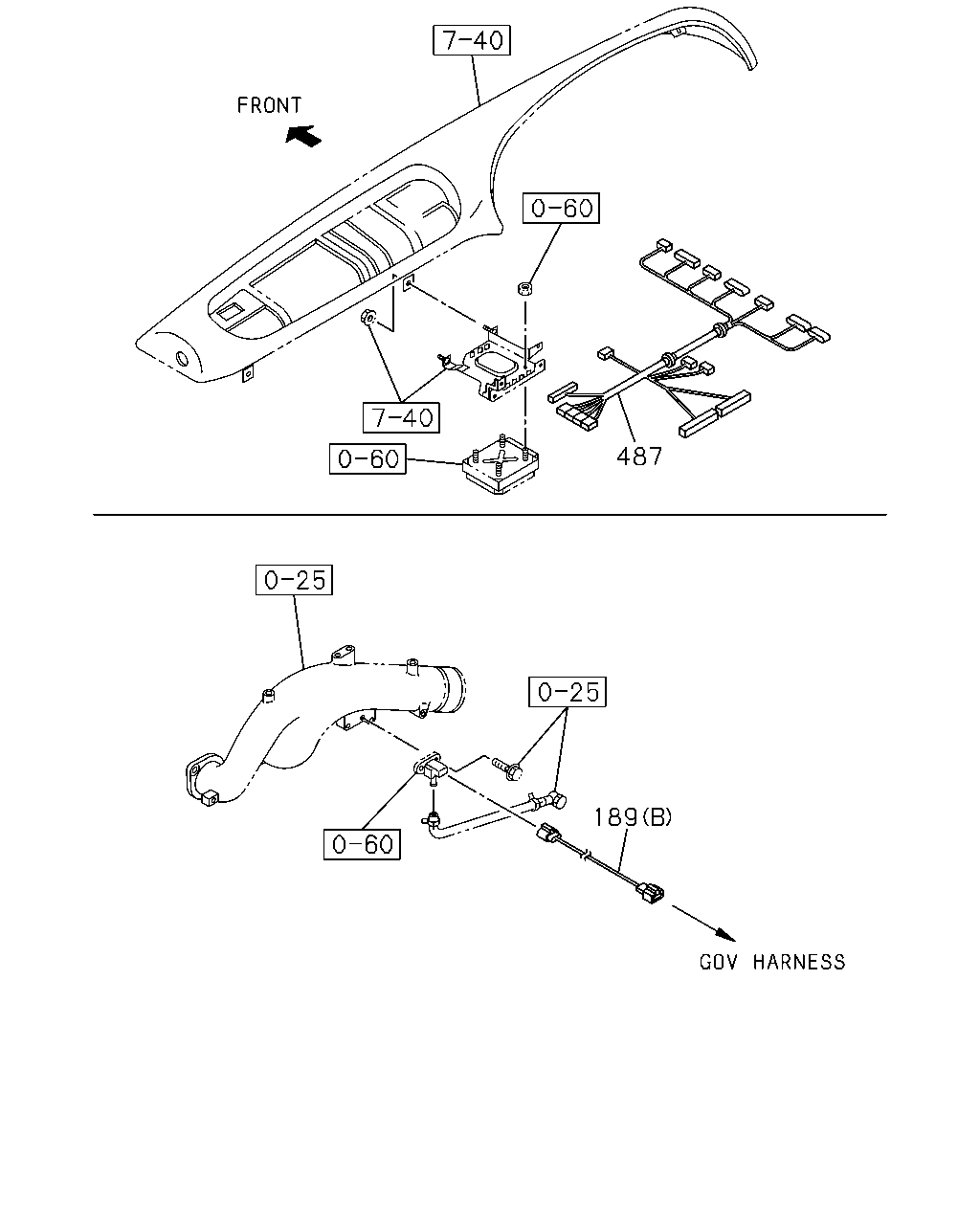

çizim 25782
487 189
BalonParca AdiParca NoAdetTipApplied Date A B
189 HARNESS; EXT
(A) THA 		8-97916-648-0 02 1 0407- ● ●
189 HARNESS; EXT
6SD1 TCS ENG<83L> (B) 		1-82641-202-0 01 1 0411- ●
487 HARNESS; GOV
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> THA 		8-97922-159-0 01 1 0411- ●

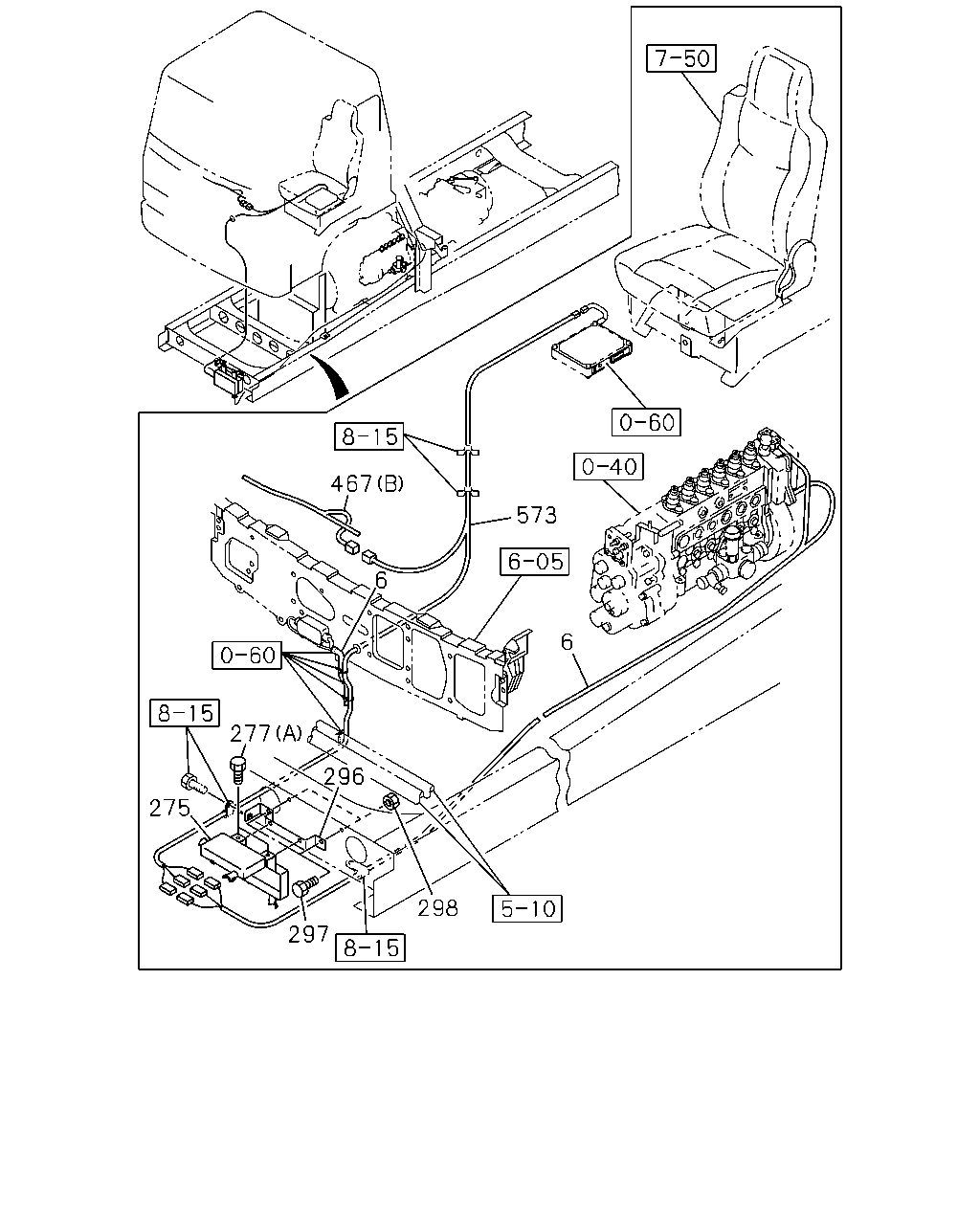

çizim 82236
467 573 6 6 277 296 275 298 297
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
THA 		8-97917-541-2 01 1 0407- ●
6 HARNESS; FRAME
THA 		8-97915-008-1 01 1 0407-0410 ●
6 HARNESS; FRAME
EXC. ELECTRONIC GOV RED4<Q4F> THA 		8-97915-008-1 01 1 0411- ●
6 HARNESS; FRAME
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> THA 		8-97922-741-0 01 1 0411- ●
275 BOX ASM; FRAME HARNESS 1-82699-378-0 01 1 0407-0410 ● ●
275 BOX ASM; FRAME HARNESS 1-82699-378-0 01 1 0411- ●
275 BOX ASM; FRAME HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> 		1-82699-378-0 01 1 0411- ●
277 BOLT; BOX ASM FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0410 ● ●
277 BOLT; BOX ASM FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0411-0611 ●
277 BOLT; BOX ASM FIX
EXC. ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0411-0611 ●
277 BOLT; BOX ASM FIX
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ●
277 BOLT; BOX ASM FIX
EXC. ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ●
277 BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0407-0704 ● ●
277 BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0705- ● ●
277 BOLT; BOX ASM FIX
ELECTRONIC GOV RED4<Q4F> (C) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0411- ●
296 BRACKET; HARNESS BOX 1-82699-923-0 01 1 0407-0410 ● ●
296 BRACKET; HARNESS BOX 1-82699-923-0 01 1 0411- ●
296 BRACKET; HARNESS BOX
EXC. ELECTRONIC GOV RED4<Q4F> 		1-82699-923-0 01 1 0411- ●
297 BOLT; BOX BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0410 ● ●
297 BOLT; BOX BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0411-0611 ●
297 BOLT; BOX BRKT
EXC. ELECTRONIC GOV RED4<Q4F> M8X25 FLANGE 		0-28680-825-0 02 1 0411-0611 ●
297 BOLT; BOX BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ●
297 BOLT; BOX BRKT
EXC. ELECTRONIC GOV RED4<Q4F> M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ●
298 NUT; BOX BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0410 ● ●
298 NUT; BOX BRKT
M8 FLANGE 		0-91150-108-0 02 1 0411- ●
298 NUT; BOX BRKT
EXC. ELECTRONIC GOV RED4<Q4F> M8 FLANGE 		0-91150-108-0 02 1 0411- ●
467 HARNESS; FACIA
(B) THA 		8-97922-664-0 01 1 0407- ●
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407- ● ●
467 HARNESS; FACIA
(B) THA 		8-97922-663-0 01 1 0407-0410 ●
467 HARNESS; FACIA
EXC. ELECTRONIC GOV RED4<Q4F> (B) THA 		8-97922-663-0 01 1 0411- ●
467 HARNESS; FACIA
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (B) THA 		8-97922-740-0 01 1 0411- ●
573 HARNESS; CONTROL UNIT
THA 		8-97915-004-0 01 1 0407-0410 ● ●
573 HARNESS; CONTROL UNIT
THA 		8-97915-004-0 01 1 0411- ●
573 HARNESS; CONTROL UNIT
EXC. ELECTRONIC GOV RED4<Q4F> THA 		8-97915-004-0 01 1 0411- ●
çizim 82602
467 41 5 4 467 62 62 62 431 2 6 10 27 27
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> GRAY 2P-1.3A THA 		1-81514-015-0 01 1 0411- ●
4 BOX ASM; FUSE,HARNESS
THA 		1-82510-635-0 01 1 0407-0410 ● ●
4 BOX ASM; FUSE,HARNESS
THA 		1-82510-635-0 01 1 0411- ●
4 BOX ASM; FUSE,HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> THA 		1-82510-635-0 01 1 0411- ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> 7.5AX17 THA 		1-82510-393-0 01 1 0411- ●
4 BOX ASM; FUSE,HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> 15AX12 THA 		1-82510-432-0 01 1 0411- ●
5 FUSE; FACIA HARNESS
7.5A BROWN THA 		8-94159-007-0 14 1 0407-0410 ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN THA 		8-94159-007-0 14 1 0411- ●
5 FUSE; FACIA HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> 7.5A BROWN THA 		8-94159-007-0 14 1 0411- ●
5 FUSE; FACIA HARNESS
15A BLUE THA 		5-82516-003-0 12 1 0407-0410 ● ●
5 FUSE; FACIA HARNESS
15A BLUE THA 		5-82516-003-0 12 1 0411-0411 ● ●
5 FUSE; FACIA HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> 15A BLUE THA 		5-82516-003-0 12 1 0411-0411 ●
5 FUSE; FACIA HARNESS
15A BLUE THA 		5-82516-003-0 12 1 0411- ●
5 FUSE; FACIA HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> 15A BLUE THA 		5-82516-003-0 12 1 0411- ●
5 FUSE; FACIA HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> 15A BLUE THA 		5-82516-003-0 12 1 0411- ●
5 FUSE; FACIA HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> 7.5A BROWN THA 		8-94159-007-0 17 1 0411- ●
6 HARNESS; FRAME
THA 		8-97917-541-2 01 1 0407- ●
6 HARNESS; FRAME
THA 		8-97915-008-1 01 1 0407-0410 ●
6 HARNESS; FRAME
EXC. ELECTRONIC GOV RED4<Q4F> THA 		8-97915-008-1 01 1 0411- ●
6 HARNESS; FRAME
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> THA 		8-97922-741-0 01 1 0411- ●
10 BOX; FUSE,HARNESS
THA 		1-82510-409-0 01 1 0407-0410 ● ●
10 BOX; FUSE,HARNESS
THA 		1-82510-409-0 01 1 0411-0411 ● ●
10 BOX; FUSE,HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> THA 		1-82510-409-0 01 1 0411-0411 ●
10 BOX; FUSE,HARNESS
THA 		1-82510-409-0 01 1 0411- ●
10 BOX; FUSE,HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> THA 		1-82510-409-0 01 1 0411- ●
10 BOX; FUSE,HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> THA 		1-82510-409-0 01 1 0411- ●
27 FUSE UNIT
(B) 60A YELLOW THA 		8-94468-669-0 01 1 0407-0410 ● ●
27 FUSE UNIT
(B) 60A YELLOW THA 		8-94468-669-0 01 1 0411-0411 ● ●
27 FUSE UNIT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (B) 60A YELLOW THA 		8-94468-669-0 01 1 0411-0411 ●
27 FUSE UNIT
(B) 60A YELLOW THA 		8-94468-669-0 01 1 0411- ●
27 FUSE UNIT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (B) 60A YELLOW THA 		8-94468-669-0 01 1 0411- ●
27 FUSE UNIT
EXC. ELECTRONIC GOV RED4<Q4F> (B) 60A YELLOW THA 		8-94468-669-0 01 1 0411- ●
27 FUSE UNIT
(A) 40A GREEN THA 		8-94468-662-0 03 1 0407-0410 ● ●
27 FUSE UNIT
(A) 40A GREEN THA 		8-94468-662-0 03 1 0411-0411 ● ●
27 FUSE UNIT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (A) 40A GREEN THA 		8-94468-662-0 03 1 0411-0411 ●
27 FUSE UNIT
(A) 40A GREEN THA 		8-94468-662-0 03 1 0411- ●
27 FUSE UNIT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (A) 40A GREEN THA 		8-94468-662-0 03 1 0411- ●
27 FUSE UNIT
EXC. ELECTRONIC GOV RED4<Q4F> (A) 40A GREEN THA 		8-94468-662-0 03 1 0411- ●
41 PULLER; FUSE
L=25.3 B=11.5 THA 		8-94121-482-0 01 1 0407-0410 ● ●
41 PULLER; FUSE
L=25.3 B=11.5 THA 		8-94121-482-0 01 1 0411-0411 ● ●
41 PULLER; FUSE
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> L=25.3 B=11.5 THA 		8-94121-482-0 01 1 0411-0411 ●
41 PULLER; FUSE
L=25.3 B=11.5 THA 		8-94121-482-0 01 1 0411- ●
41 PULLER; FUSE
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> L=25.3 B=11.5 THA 		8-94121-482-0 01 1 0411- ●
41 PULLER; FUSE
EXC. ELECTRONIC GOV RED4<Q4F> L=25.3 B=11.5 THA 		8-94121-482-0 01 1 0411- ●
62 DIODE; HARNESS
(A) BLACK 10P THA 		1-82699-703-0 02 1 0407-0410 ● ●
62 DIODE; HARNESS
(A) BLACK 10P THA 		1-82699-703-0 02 1 0411-0411 ● ●
62 DIODE; HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (A) BLACK 10P THA 		1-82699-703-0 02 1 0411-0411 ●
62 DIODE; HARNESS
(A) BLACK 10P THA 		1-82699-703-0 02 1 0411- ●
62 DIODE; HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (A) BLACK 10P THA 		1-82699-703-0 02 1 0411- ●
62 DIODE; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (A) BLACK 10P THA 		1-82699-703-0 02 1 0411- ●
62 DIODE; HARNESS
(B) BLACK 3P-1.5A THA 		8-94416-438-1 01 1 0407-0410 ● ●
62 DIODE; HARNESS
(B) BLACK 3P-1.5A THA 		8-94416-438-1 01 1 0411-0411 ● ●
62 DIODE; HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (B) BLACK 3P-1.5A THA 		8-94416-438-1 01 1 0411-0411 ●
62 DIODE; HARNESS
(B) BLACK 3P-1.5A THA 		8-94416-438-1 01 1 0411- ●
62 DIODE; HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (B) BLACK 3P-1.5A THA 		8-94416-438-1 01 1 0411- ●
62 DIODE; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (B) BLACK 3P-1.5A THA 		8-94416-438-1 01 1 0411- ●
62 DIODE; HARNESS
(C) BLACK 2P-1.5A THA 		8-94422-639-1 01 1 0407-0410 ● ●
62 DIODE; HARNESS
(C) BLACK 2P-1.5A THA 		8-94422-639-1 01 1 0411- ●
62 DIODE; HARNESS
EXC. ELECTRONIC GOV RED4<Q4F> (C) BLACK 2P-1.5A THA 		8-94422-639-1 01 1 0411- ●
62 DIODE; HARNESS
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (C) BLACK 2P-1.5A THA 		8-94422-639-1 05 1 0411- ●
431 CONNECTOR; JOINT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> BROWN 10P THA 		1-82699-601-0 03 1 0411- ●
431 CONNECTOR; JOINT
BROWN 10P THA 		1-82699-601-0 01 1 0407- ● ●
431 CONNECTOR; JOINT
BROWN 10P THA 		1-82699-601-0 02 1 0407-0410 ● ●
431 CONNECTOR; JOINT
BROWN 10P THA 		1-82699-601-0 02 1 0411- ●
431 CONNECTOR; JOINT
EXC. ELECTRONIC GOV RED4<Q4F> BROWN 10P THA 		1-82699-601-0 02 1 0411- ●
467 HARNESS; FACIA
(B) THA 		8-97922-664-0 01 1 0407- ●
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407- ● ●
467 HARNESS; FACIA
(B) THA 		8-97922-663-0 01 1 0407-0410 ●
467 HARNESS; FACIA
EXC. ELECTRONIC GOV RED4<Q4F> (B) THA 		8-97922-663-0 01 1 0411- ●
467 HARNESS; FACIA
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (B) THA 		8-97922-740-0 01 1 0411- ●

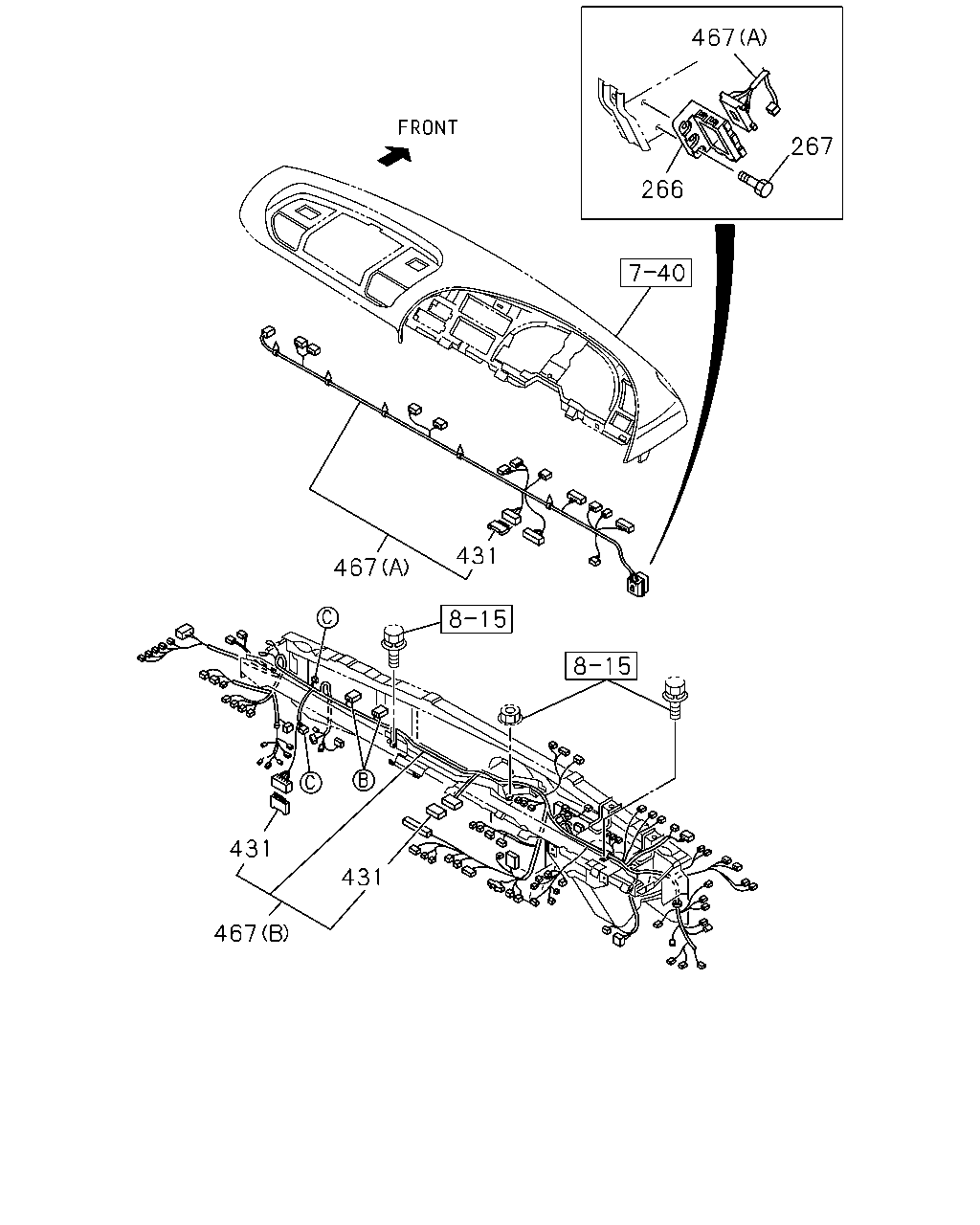

çizim 83595
467 267 266 431 467 431 431 467
BalonParca AdiParca NoAdetTipApplied Date A B
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0407- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER THA 		1-09981-438-0 02 1 0407- ● ●
431 CONNECTOR; JOINT
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> BROWN 10P THA 		1-82699-601-0 03 1 0411- ●
431 CONNECTOR; JOINT
BROWN 10P THA 		1-82699-601-0 01 1 0407- ● ●
431 CONNECTOR; JOINT
BROWN 10P THA 		1-82699-601-0 02 1 0407-0410 ● ●
431 CONNECTOR; JOINT
BROWN 10P THA 		1-82699-601-0 02 1 0411- ●
431 CONNECTOR; JOINT
EXC. ELECTRONIC GOV RED4<Q4F> BROWN 10P THA 		1-82699-601-0 02 1 0411- ●
467 HARNESS; FACIA
(B) THA 		8-97922-664-0 01 1 0407- ●
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407- ● ●
467 HARNESS; FACIA
(B) THA 		8-97922-663-0 01 1 0407-0410 ●
467 HARNESS; FACIA
EXC. ELECTRONIC GOV RED4<Q4F> (B) THA 		8-97922-663-0 01 1 0411- ●
467 HARNESS; FACIA
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (B) THA 		8-97922-740-0 01 1 0411- ●

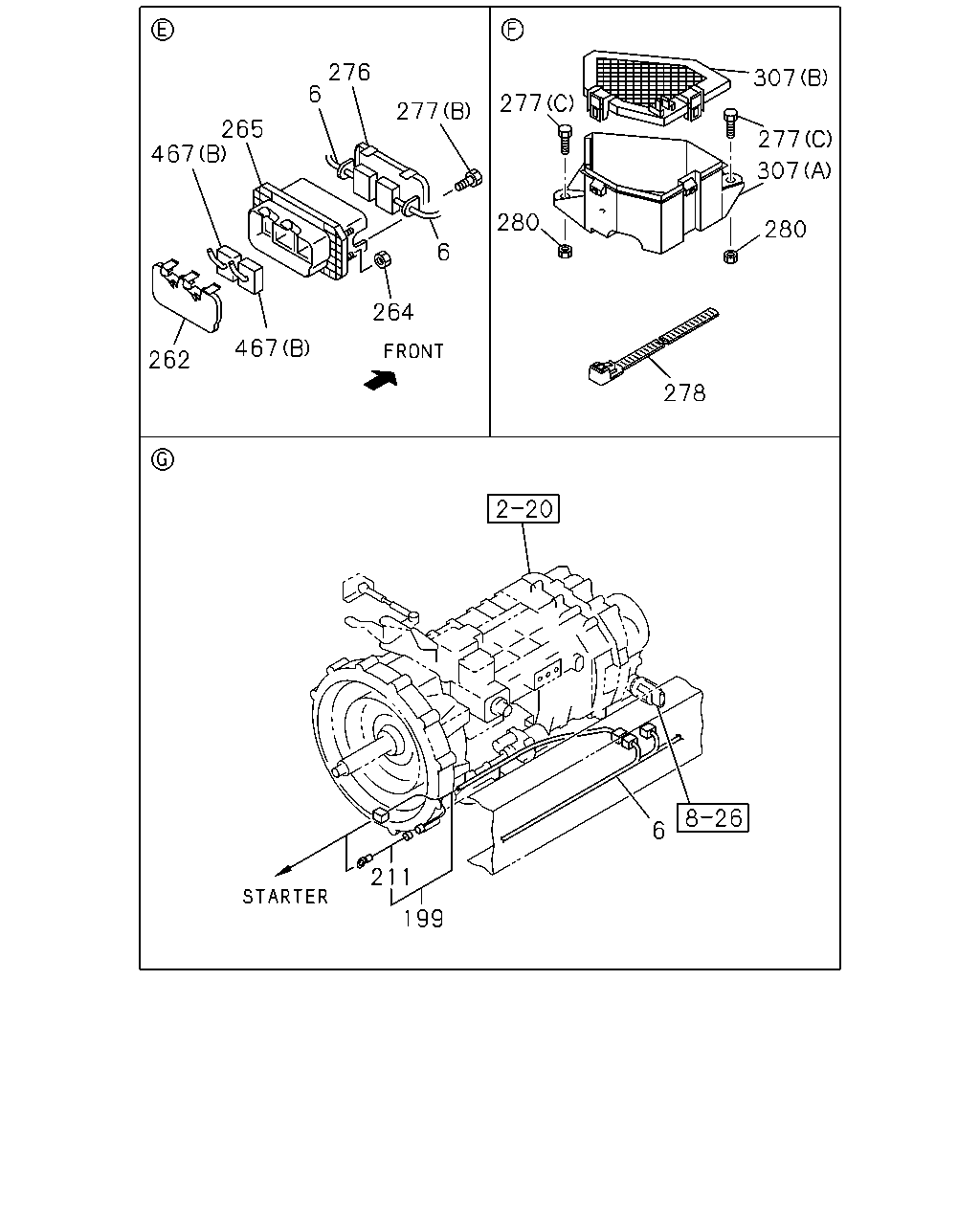

çizim 83729
276 6 307 277 277 265 467 277 307 280 280 6 264 467 262 278 6 211 199
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
THA 		8-97917-541-2 01 1 0407- ●
6 HARNESS; FRAME
THA 		8-97915-008-1 01 1 0407-0410 ●
6 HARNESS; FRAME
EXC. ELECTRONIC GOV RED4<Q4F> THA 		8-97915-008-1 01 1 0411- ●
6 HARNESS; FRAME
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> THA 		8-97922-741-0 01 1 0411- ●
199 HARNESS; STARTER
MAL6V M/T<Y2U> THA 		8-97913-065-0 01 1 0407- ●
199 HARNESS; STARTER
ZF 9S109 OD M/T<Y2L> THA 		8-97916-313-0 01 1 0407- ●
211 WIRE; FUSIBLE LINK,STARTER
MAL6V M/T<Y2U> WHITE THA 		1-82659-124-0 01 1 0407- ●
211 WIRE; FUSIBLE LINK,STARTER
ZF 9S109 OD M/T<Y2L> WHITE THA 		1-82659-124-0 01 1 0407- ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0407- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0407- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0407- ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-558-3 01 1 0407- ● ●
277 BOLT; BOX ASM FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0410 ● ●
277 BOLT; BOX ASM FIX
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0411-0611 ●
277 BOLT; BOX ASM FIX
EXC. ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0411-0611 ●
277 BOLT; BOX ASM FIX
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ●
277 BOLT; BOX ASM FIX
EXC. ELECTRONIC GOV RED4<Q4F> (A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ●
277 BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0407-0704 ● ●
277 BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0705- ● ●
277 BOLT; BOX ASM FIX
ELECTRONIC GOV RED4<Q4F> (C) M8X30 W/LK&PL WASHER 		8-94279-144-0 02 1 0411- ●
278 CLIP; BOX
ELECTRONIC GOV RED4<Q4F> L=140 		5-09707-031-1 02 1 0411- ●
280 NUT; BOX ASM FIX
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> M8 FLANGE 		0-91150-108-0 02 1 0411- ●
307 BOX; ENG HARNESS
ELECTRONIC GOV RED4<Q4F> (A) 		1-82698-119-0 01 1 0411- ●
307 BOX; ENG HARNESS
ELECTRONIC GOV RED4<Q4F> (B) 		1-82698-138-0 01 1 0411- ●
467 HARNESS; FACIA
(B) THA 		8-97922-664-0 01 1 0407- ●
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407- ● ●
467 HARNESS; FACIA
(B) THA 		8-97922-663-0 01 1 0407-0410 ●
467 HARNESS; FACIA
EXC. ELECTRONIC GOV RED4<Q4F> (B) THA 		8-97922-663-0 01 1 0411- ●
467 HARNESS; FACIA
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (B) THA 		8-97922-740-0 01 1 0411- ●

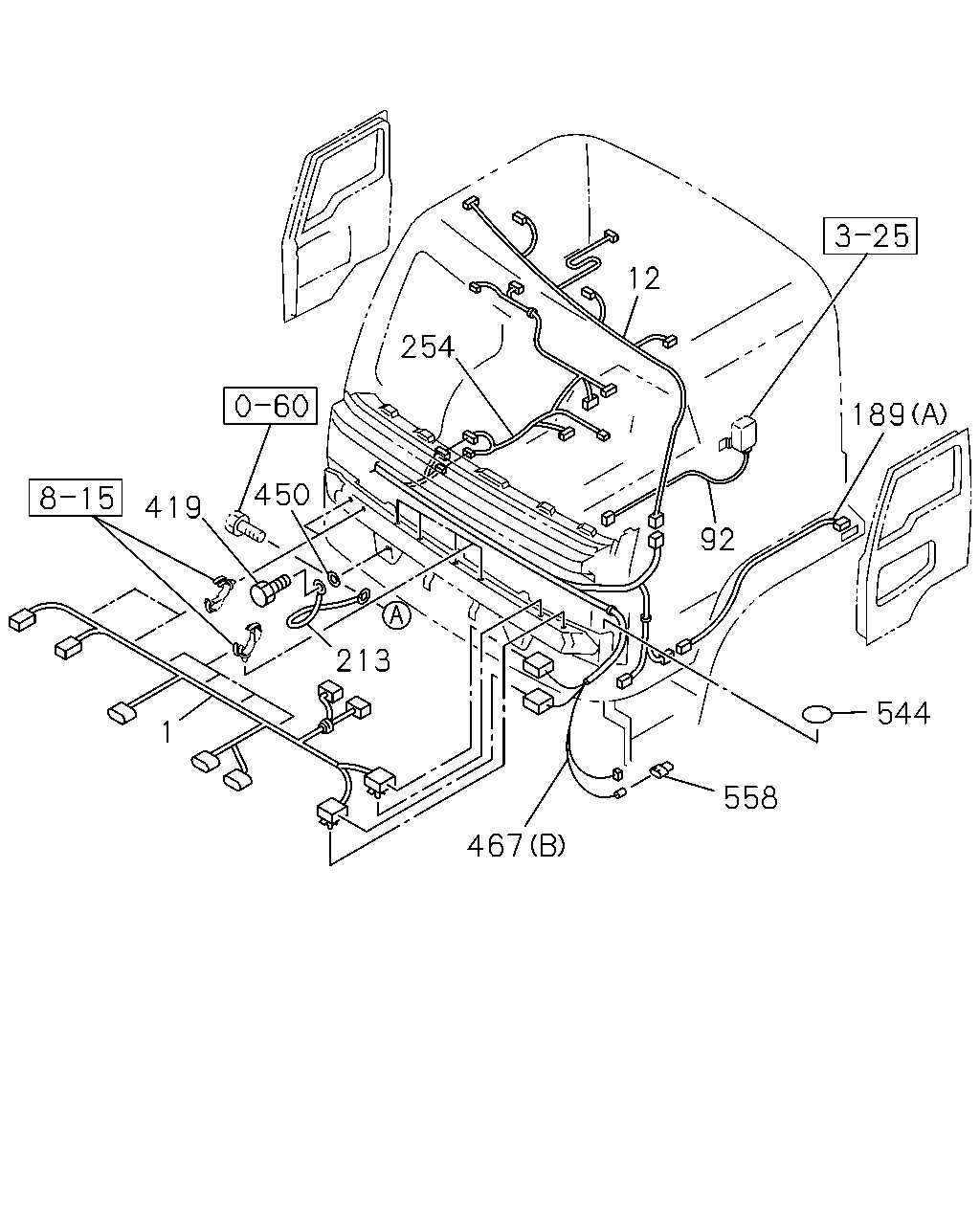

çizim 84125
12 254 189 450 419 92 213 544 1 558 467
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
THA 		1-82625-717-1 01 1 0407- ● ●
12 HARNESS; ROOF
THA 		8-97917-543-0 01 1 0407- ● ●
92 HARNESS; FLOOR
THA 		8-97915-875-0 01 1 0407- ●
189 HARNESS; EXT
(A) THA 		8-97916-648-0 02 1 0407- ● ●
189 HARNESS; EXT
6SD1 TCS ENG<83L> (B) 		1-82641-202-0 01 1 0411- ●
213 CABLE; EARTH,CAB TO FRAME
THA 		8-97916-647-0 01 1 0407- ● ●
254 HARNESS; CAB FLOOR
THA 		8-97922-669-0 01 1 0407- ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0407- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		9-09164-608-0 01 1 0407-0605 ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ●
467 HARNESS; FACIA
(B) THA 		8-97922-664-0 01 1 0407- ●
467 HARNESS; FACIA
(A) THA 		8-97915-002-0 01 1 0407- ● ●
467 HARNESS; FACIA
(B) THA 		8-97922-663-0 01 1 0407-0410 ●
467 HARNESS; FACIA
EXC. ELECTRONIC GOV RED4<Q4F> (B) THA 		8-97922-663-0 01 1 0411- ●
467 HARNESS; FACIA
6SD1 TCS ENG<83L> ELECTRONIC GOV RED4<Q4F> (B) THA 		8-97922-740-0 01 1 0411- ●
544 SEAL; FRT MTG RAIL
OD=25 BLACK THA 		1-76798-019-0 01 1 0407- ● ●
558 CONNECTOR; HARNESS 1-82690-666-0 02 1 0407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
