◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10946 - FXZ(THAI)EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#29845) — 23 parça

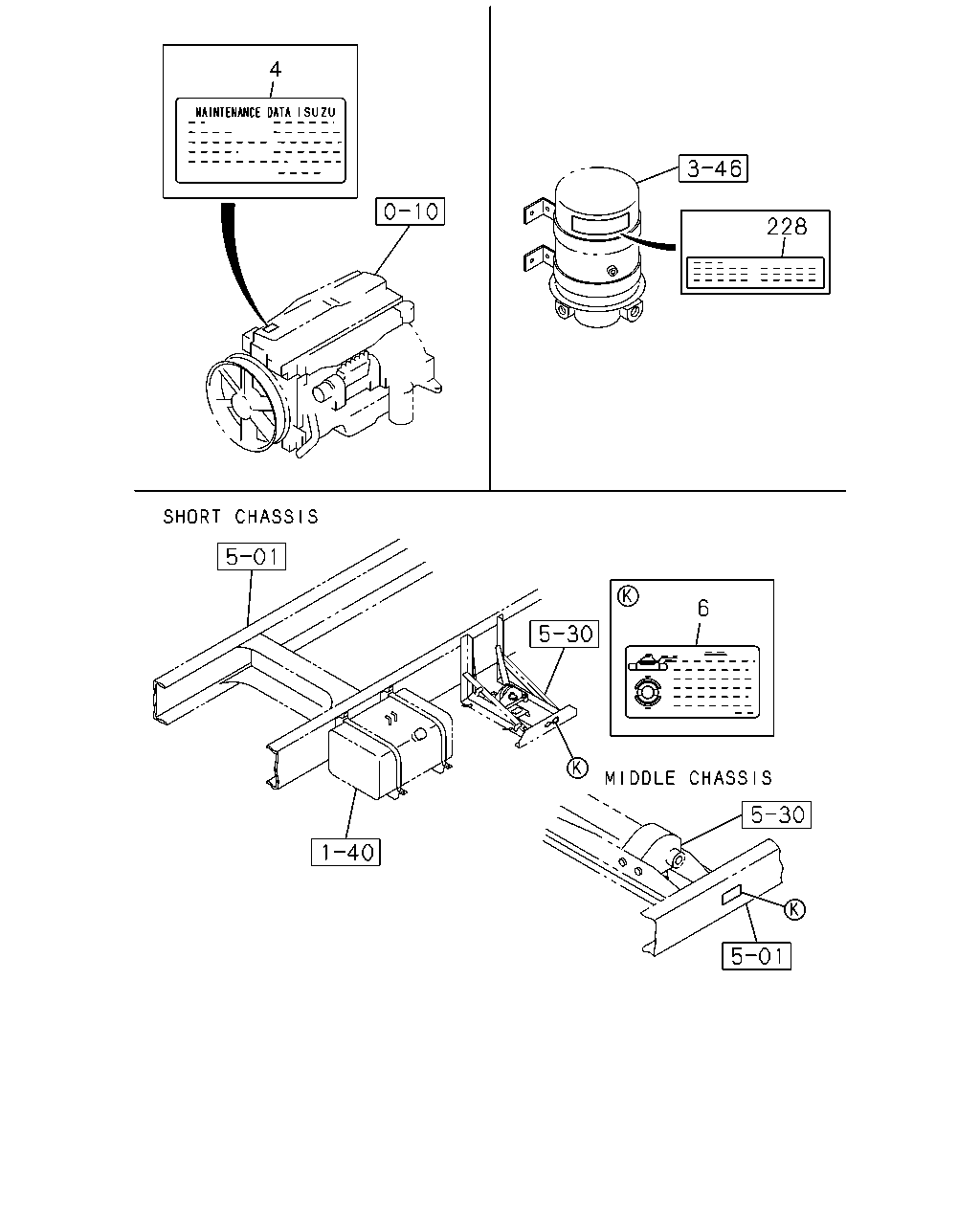

çizim 82630
4 228 6
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
6SD1 TCN ENG<31L> 		1-85886-841-0 01 1 0407- ● ●
4 LABEL; ENG MAINTENANCE
6SD1 TCS ENG<83L> 		1-85889-082-0 01 1 0411- ●
4 LABEL; ENG MAINTENANCE
6SD1 TCR ENG<98L> 		1-85886-885-0 01 1 0407- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> THA 		8-97918-788-0 01 1 0407- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> THA 		8-97918-788-0 01 1 0407- ●
228 PLATE; CAUTION,AIR DRYER
THA 		8-97922-507-0 01 1 0407-0412 ● ●

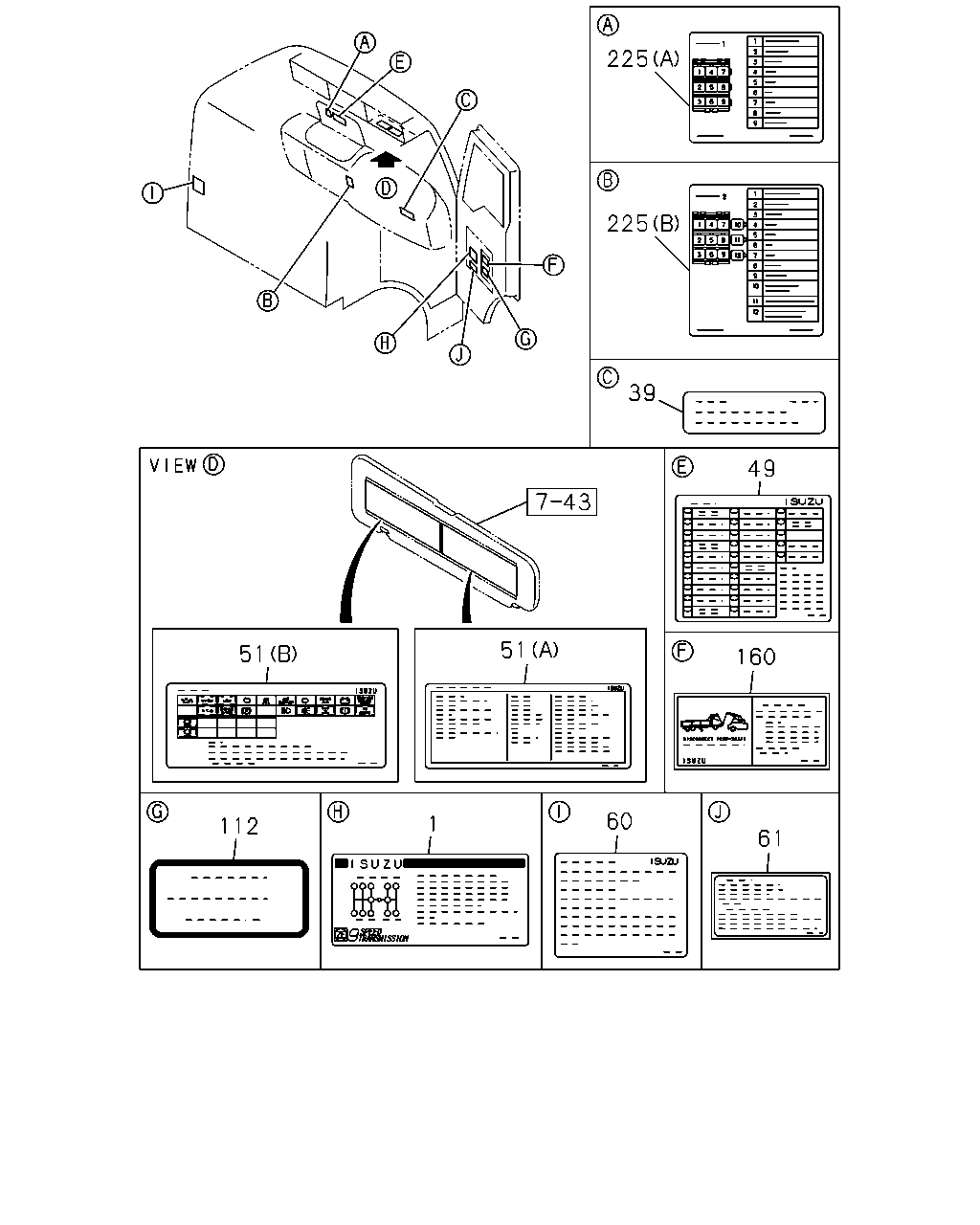

çizim 86348
225 225 39 49 51 51 160 60 1 112 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 PLATE; CAUTION,SHIFT PATTERN
ZF 9S109 OD M/T<Y2L> THA 		8-97918-792-0 01 1 0407- ●
39 PLATE; CAUTION,ENG STOP
6SD1 TCS ENG<83L> THA 		8-97922-505-0 01 1 0411- ●
49 PLATE; CAUTION,FUSE BOX
THA 		8-97922-094-2 01 1 0407-0410 ● ●
49 PLATE; CAUTION,FUSE BOX
THA 		8-97922-094-3 01 1 0411- ●
49 PLATE; CAUTION,FUSE BOX
EXC. ELECTRONIC GOV RED4<Q4F> THA 		8-97922-094-3 01 1 0411- ●
49 PLATE; CAUTION,FUSE BOX
ELECTRONIC GOV RED4<Q4F> THA 		8-97922-160-2 01 1 0411- ●
51 PLATE; CAUTION,WARNING
(A) THA 		8-97910-543-0 01 1 0407- ● ●
51 PLATE; CAUTION,WARNING
(B) THA 		8-97917-701-0 01 1 0407- ● ●
60 PLATE; CAUTION,CAB TILT
THA 		8-97918-787-0 01 1 0407- ● ●
61 PLATE; CAUTION,BRAKE LOCK
THA 		8-97915-620-0 01 1 0407- ●
112 PLATE; CAUTION,T/M
THA 		8-97918-789-0 01 1 0407- ●
112 PLATE; CAUTION,T/M
ZF 9S109 OD M/T<Y2L> THA 		8-97918-790-0 01 1 0407- ●
160 PLATE; CAUTION,TOWING
ZF 9S109 OD M/T<Y2L> THA 		8-97918-791-1 01 1 0407- ●
225 PLATE; CAUTION,RELAY POSITION
(A) THA 		8-97922-504-0 01 1 0407-0410 ●
225 PLATE; CAUTION,RELAY POSITION
(A) THA 		8-97922-504-1 01 1 0411- ●
225 PLATE; CAUTION,RELAY POSITION
6SD1 TCS ENG<83L> (A) THA 		8-97922-504-1 01 1 0411- ●
225 PLATE; CAUTION,RELAY POSITION
(B) THA 		8-97922-506-0 01 1 0407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
