◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10946 - FXZ(THAI)EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶

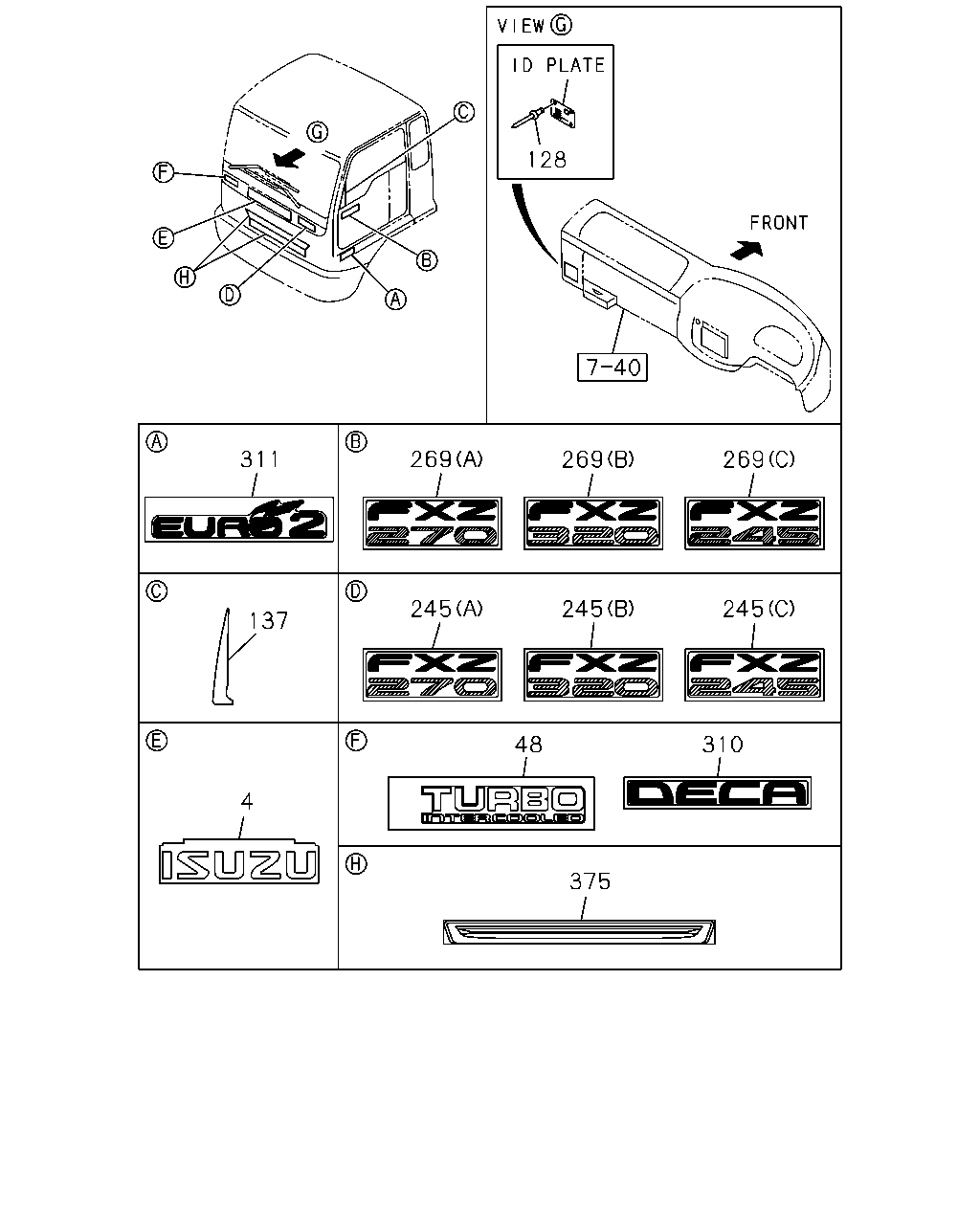

7-01 — EMBLEM AND NAME PLATE (#29844) — 16 parça
çizim 81815
128 311 269 269 269 245 245 245 137 48 310 4 375
BalonParca AdiParca NoAdetTipApplied Date A B
4 EMBLEM; RAD GRILLE 1-76210-668-3 01 1 0407- ● ●
48 DECAL; TURBOCHARGER
THA 		1-76218-114-0 01 1 0407- ● ●
128 RIVET; POP,NAME PLATE
THA 		8-97916-562-0 04 1 0407- ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 0407- ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 0407- ● ●
245 DECAL; MODEL
6SD1 TCN ENG<31L> (A) THA 		8-97922-193-0 01 1 0407- ● ●
245 DECAL; MODEL
6SD1 TCS ENG<83L> (B) THA 		8-97922-747-1 01 1 0411- ●
245 DECAL; MODEL
6SD1 TCR ENG<98L> (C) THA 		8-97922-194-0 01 1 0407- ●
269 DECAL; SIDE DOOR
6SD1 TCN ENG<31L> (A) THA 		8-97922-193-0 02 1 0407- ● ●
269 DECAL; SIDE DOOR
6SD1 TCS ENG<83L> (B) THA 		8-97922-747-1 02 1 0411- ●
269 DECAL; SIDE DOOR
6SD1 TCR ENG<98L> (C) THA 		8-97922-194-0 02 1 0407- ●
310 DECAL; "DECA"
THA 		8-97922-190-0 01 1 0407- ● ●
311 DECAL; "EURO 2"
THA 		8-97922-693-0 01 1 0407- ● ●
311 DECAL; "EURO 2"
THA 		8-97922-694-0 01 1 0407- ● ●
375 DECAL; CTR GRILLE
UPPER THA 		8-97922-691-0 01 1 0407- ● ●
375 DECAL; CTR GRILLE
LOWER THA 		8-97922-692-0 01 1 0407- ● ●
