2-05B — CLUTCH PIPING (#2984) — 117 parça

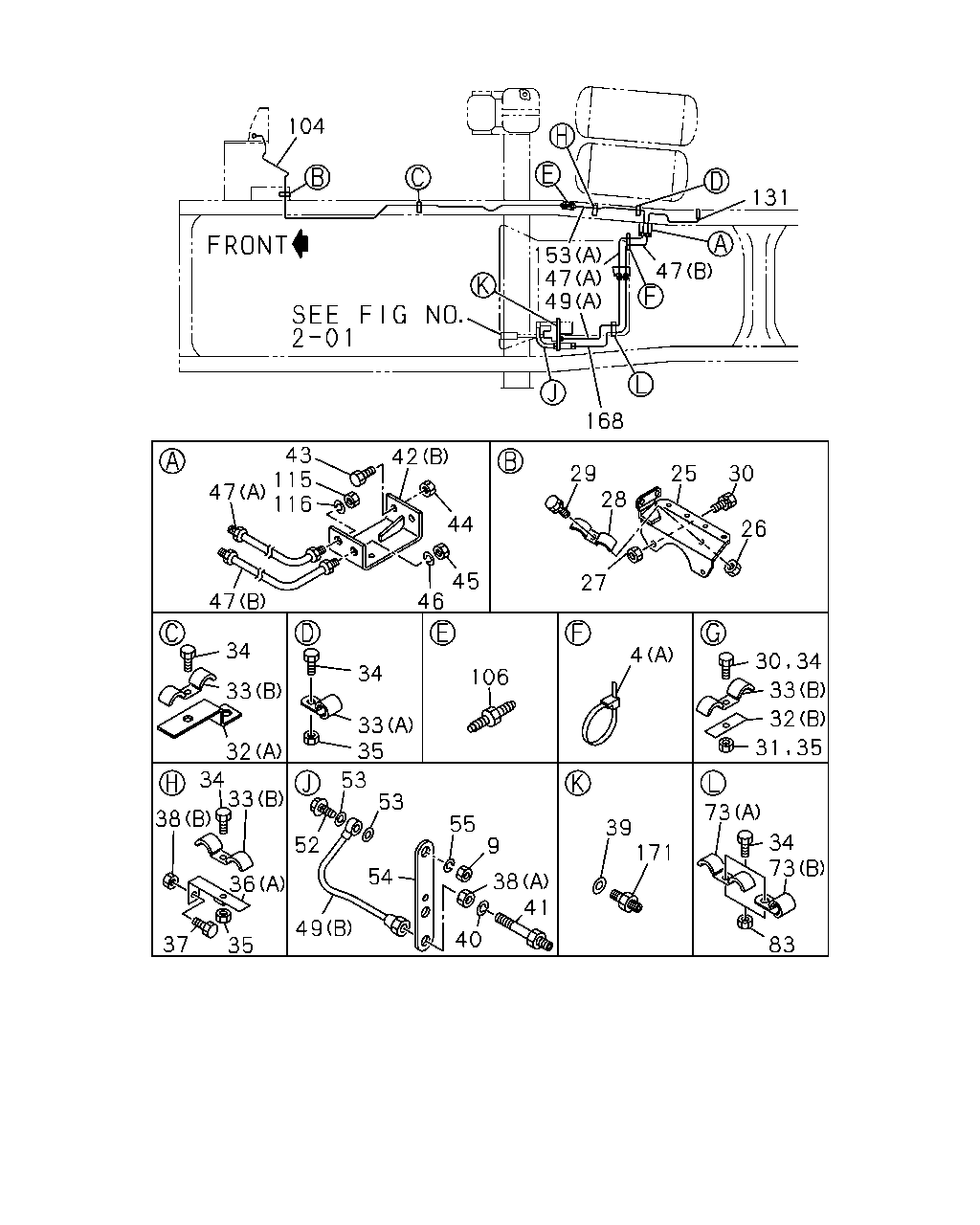

83 73 34 73 171 39 41 38 9 55 40 54 49 52 53 53 33 34 38 36 35 37 35 33 34 34 33 32 106 4 30 34 33 32 31 35 26 30 25 28 29 27 45 46 44 42 43 115 116 47 47 168 47 131 53 47 49 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-0	01	1	9002-9306
4	CLIP; FLEX HOSE,CLU CONT (A) L=140	5-09707-031-0	01	1	9002-9306
9	NUT; BRKT,FLEX HOSE M8	9-09110-508-0	02	1	9002-9306
25	BRACKET; OIL PIPE	1-47475-894-0	01	1	9002-9306
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-9306
27	NUT; BRKT M8	9-09110-408-0	02	1	9002-9306
28	CLIP; OIL PIPE ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-9306
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
30	BOLT; BRKT CVR&LHD(CVR6M*) FRONT AXLE TOE IN "0"(PQ6) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204
30	BOLT; BRKT CVR&LHD(CVR6M*) FRONT AXLE TOE IN "0"(PQ6) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302
30	BOLT; BRKT CVR&LHD(CVR6M*) FRONT AXLE TOE IN "0"(PQ6) M8X16 FLANGE	0-28080-816-0	02	1	9303-9306
30	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204
30	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-9306
30	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
30	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
30	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
31	NUT; BRKT CVR&LHD(CVR6M*) FRONT AXLE TOE IN "0"(PQ6) M8	9-09110-408-0	02	1	9002-9306
32	BRACKET; CLIP OIL PIPE CVR&LHD(CVR6M*) (B) L=50	1-47475-299-2	02	1	9002-9306
32	BRACKET; CLIP OIL PIPE (A)	1-47475-774-0	01	1	9002-9306
33	CLIP; OIL PIPE CVR&LHD(CVR6M*) (B) ID=9&7	1-09700-653-0	02	1	9002-9306
33	CLIP; OIL PIPE CVR&LHD(CVR6M*) (C) ID=9 L=16	9-09524-822-0	01	1	9002-9306
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 FLANGE	0-28080-616-0	01	1	9302-9306
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9307
36	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	9002-9306
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-9306
38	NUT; CLIP BRKT (B) M8	9-09110-408-0	01	1	9002-9306
38	NUT; CLIP BRKT (A) M12	9-09840-280-0	01	1	9002-9306
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-9306
40	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9002-9306
41	UNION; AIR PIPE M12 L=62.5	9-09223-206-1	01	1	9002-9306
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-592-2	01	1	9002-9306
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9303-9306
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9002-9306
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	9002-9306
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	02	1	9002-9306
47	HOSE; FLEX,CLU CONT (A) OIL L=320	0-07030-320-0	01	1	9002-9306
47	HOSE; FLEX,CLU CONT (B) AIR L=320	1-09364-477-0	01	1	9002-9306
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=615 SERVICED BY L=660	1-47437-954-0	01	1	9002-9306
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=206	1-47439-426-1	01	1	9002-9306
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9002-9306
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-9306
54	BRACKET; AIR,FLEX HOSE	1-47465-890-0	01	1	9002-9306
55	WASHER; LK,BRKT,FLEX HOSE ID=8.2	9-09150-508-0	02	1	9002-9306
73	CLIP; OIL PIPE (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-9306
73	CLIP; OIL PIPE (B) ID=35 L=35	1-09700-684-0	01	1	9002-9208
73	CLIP; OIL PIPE (B) ID=35 H=45 L=33	1-09700-947-0	01	1	9209-9306
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-9306
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1978 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9002-9306
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-9306
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-9306
131	PIPE; AIR,UNION TO FLEX HOSE L=306 SERVICED BY L=350	9-47415-348-0	01	1	9002-9306
168	PIPE; AIR,FLEX HOSE TO UNION L=693 SERVICED BY L=700	1-47434-466-0	01	1	9002-9306
171	CONNECTOR; CLU BOOSTER	1-09650-256-1	01	1	9002-9306

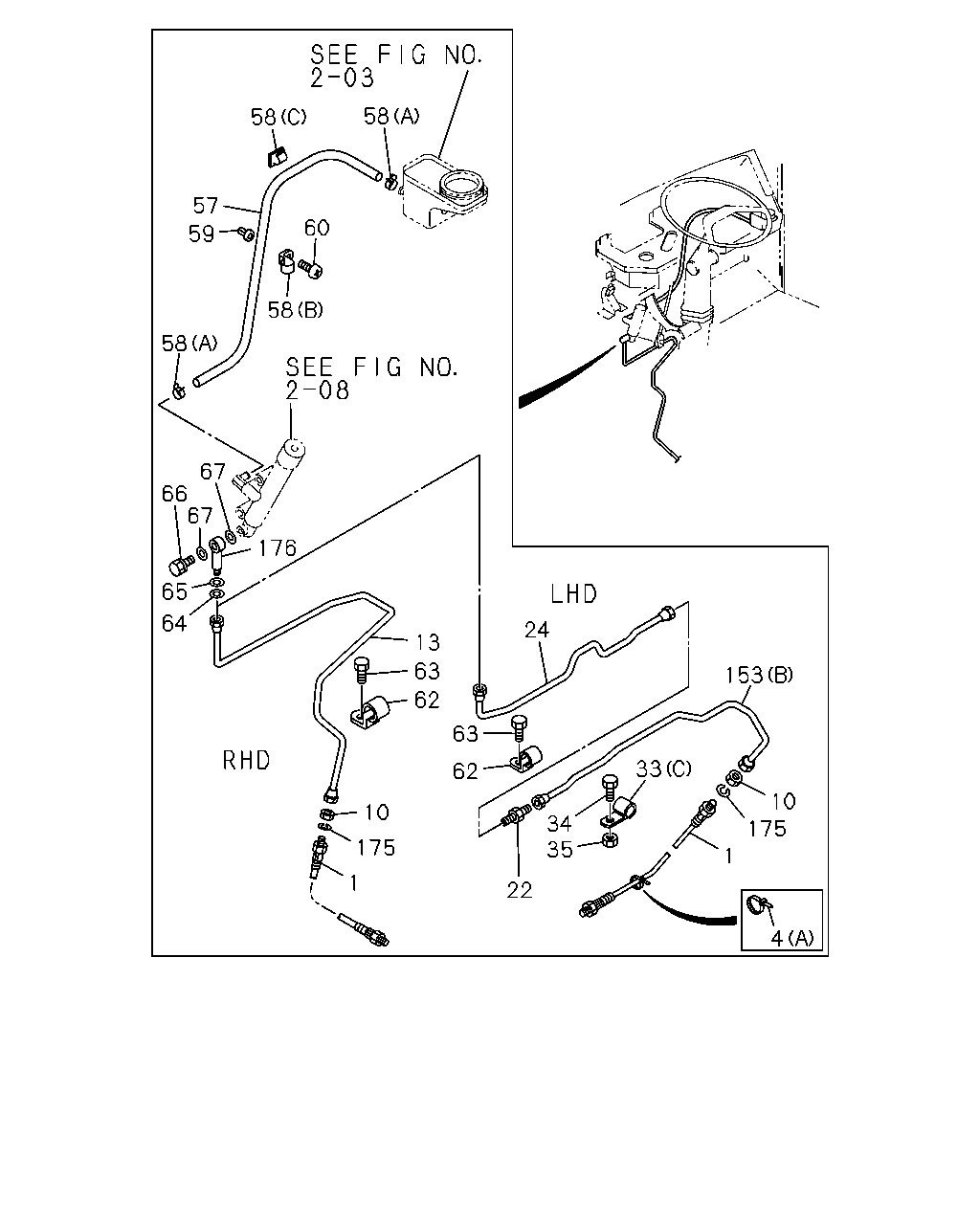

4 1 175 10 153 33 34 35 22 1 175 10 62 63 24 62 63 13 64 65 176 67 66 67 58 58 60 59 57 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=840	1-09364-466-0	01	1	9002-9306
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-0	01	1	9002-9306
4	CLIP; FLEX HOSE,CLU CONT (A) L=140	5-09707-031-0	01	1	9002-9306
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-9306
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL CVR&RHD(CVR5M*) EXC. CAB SUSPENSION RIGID<W71> L=716	1-47416-575-1	01	1	9002-9306
22	UNION; CLU PIPE CVR&LHD(CVR6M*) M14 STRAIGHT	9-09223-008-1	01	1	9002-9306
24	PIPE ASM; CLU,M/CYL TO UNION CVR&LHD(CVR6M*) L=933	1-47416-511-2	01	1	9002-9306
33	CLIP; OIL PIPE CVR&LHD(CVR6M*) (B) ID=9&7	1-09700-653-0	02	1	9002-9306
33	CLIP; OIL PIPE CVR&LHD(CVR6M*) (C) ID=9 L=16	9-09524-822-0	01	1	9002-9306
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 FLANGE	0-28080-616-0	01	1	9302-9306
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9307
57	HOSE; CLU M/CYL TO OIL TANK CVR&RHD(CVR5M*) L=1800	1-09360-320-0	01	1	9002-9306
57	HOSE; CLU M/CYL TO OIL TANK CVR&LHD(CVR6M*) L=1800	1-09360-320-0	01	1	9002-9306
58	CLIP; RUBBER HOSE TO M/CYL CVR&RHD(CVR5M*) (B) ID=16 H=24 L=20	9-09527-015-0	01	1	9002-9306
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=15	1-09704-018-1	02	1	9002-9006
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=16	1-09707-171-0	02	1	9007-9306
58	CLIP; RUBBER HOSE TO M/CYL (C) ID=15	1-09987-115-0	01	1	9002-9306
62	CLIP; CLU PIPE CVR&RHD(CVR5M*) ID=8 H=30 L=20	8-94220-978-0	01	1	9002-9306
62	CLIP; CLU PIPE CVR&LHD(CVR6M*) ID=9 H=20 L=20	9-09527-008-0	01	1	9002-9306
63	BOLT; CLIP,PIPE M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-9306
64	SEAL; EYE JOINT,CLU M/CYL	1-73998-453-0	01	1	9002-9306
65	WASHER; PL,SEAL,CLU M/CYL ID=15 OD=30	9-09160-614-0	01	1	9002-9306
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9002-9306
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9002-9306
153	PIPE ASM; CLU,UNION TO FLEX CVR&LHD(CVR6M*) (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1023 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-9306
176	JOINT; EYE,CLU M/CYL FLUID	1-09674-088-0	01	1	9002-9306
