◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10946 - FXZ(THAI)EURO2 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#29833) — 68 parça
çizim 23848
114 71 138
BalonParca AdiParca NoAdetTipApplied Date A B
71 RUBBER; SEAL 1-21593-087-0 01 1 0407- ● ●
71 RUBBER; SEAL 1-21593-113-0 01 1 0407- ● ●
114 BOLT
M8X25 FLANGE 		0-28680-825-0 06 1 0407-0611 ● ●
114 BOLT
M8X25 FLANGE THA 		0-28650-825-0 06 1 0612- ● ●
138 NUT
M8 FLANGE 		0-91150-108-0 06 1 0407- ● ●

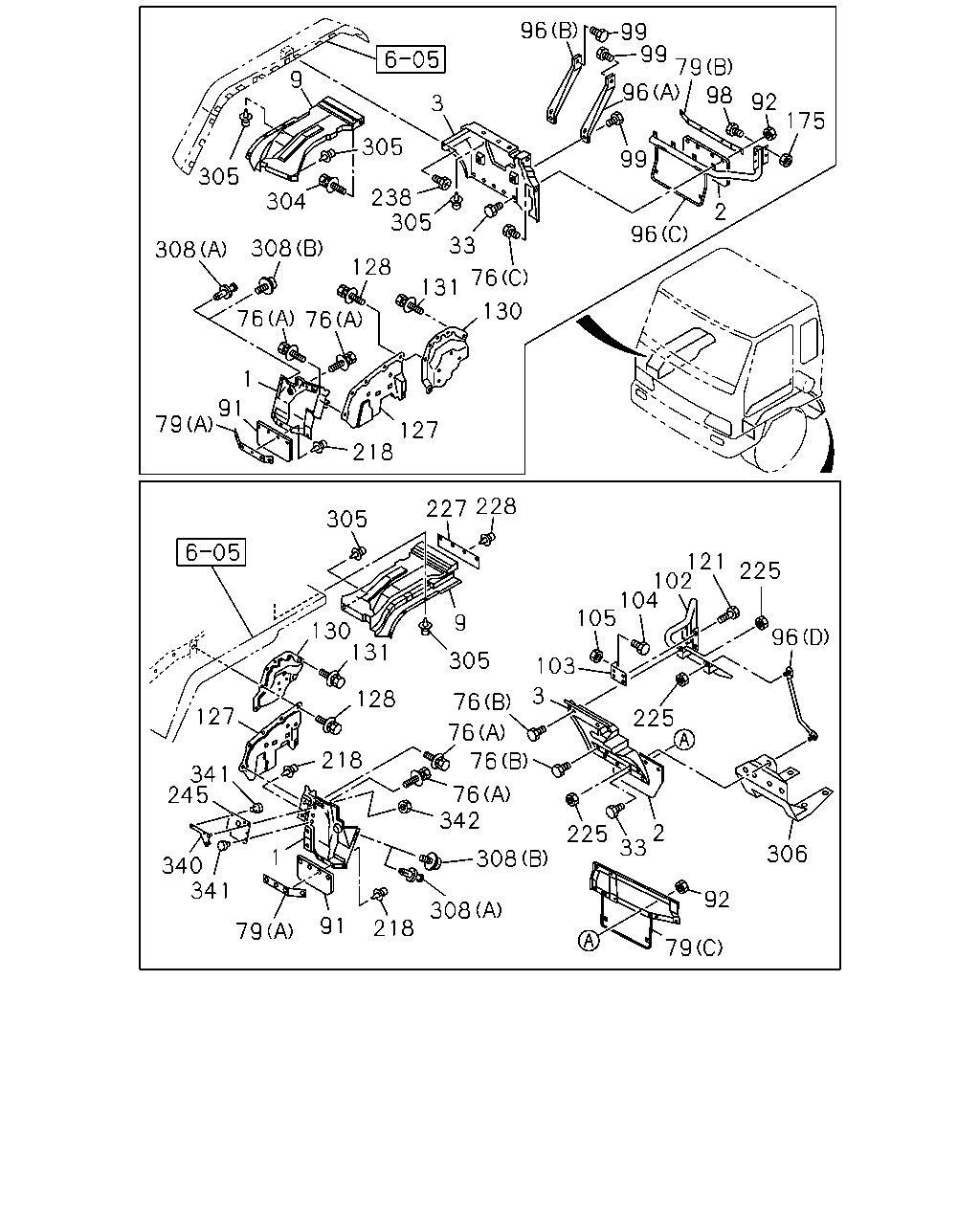

çizim 25116
96 99 99 79 9 96 98 92 3 175 305 99 305 238 305 304 2 96 33 308 308 128 76 131 130 76 76 1 91 79 127 218 227 228 305 121 102 104 105 225 9 96 130 131 305 103 3 128 76 127 225 76 218 76 341 245 76 342 2 33 225 306 1 308 340 341 92 308 91 218 79 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT
THA 		1-79938-810-8 01 1 0407- ● ●
1 GUARD; MUD,FRT 1-79938-995-1 01 1 0407- ● ●
2 COVER; MUD,TIRE RR 1-79931-270-0 01 1 0407- ● ●
2 COVER; MUD,TIRE RR 1-79938-972-2 01 1 0407- ● ●
3 GUARD; MUD,RR
6SD1 TCN ENG<31L> THA 		1-79938-962-2 01 1 0407- ●
3 GUARD; MUD,RR
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> THA 		1-79938-962-2 01 1 0407- ●
3 GUARD; MUD,RR
THA 		1-79938-971-1 01 1 0407- ● ●
3 GUARD; MUD,RR
6SD1 TCS ENG<83L> 		1-79936-029-0 01 1 0411- ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79936-007-2 01 1 0407- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79938-955-3 01 1 0407- ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 13 1 0407- ● ●
76 BOLT; MUD GUARD
(C) M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0407- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER THA 		8-94331-747-1 08 1 0407- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 02 1 0407-0805 ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 0806- ● ●
79 RETAINER; MUD COVER
(A) THA 		1-79931-044-0 02 1 0407- ● ●
79 RETAINER; MUD COVER
(B) 		1-79931-269-0 01 1 0407- ● ●
79 RETAINER; MUD COVER
(C) 		1-79931-288-0 01 1 0407- ● ●
91 COVER; MUD,FRT
THA 		1-79931-214-1 02 1 0407- ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 03 1 0407-0605 ● ●
92 NUT; MUD COVER
M6 FLANGE THA 		0-91180-106-0 03 1 0606- ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91150-106-0 04 1 0407-0605 ● ●
92 NUT; MUD COVER
M6 FLANGE THA 		0-91180-106-0 04 1 0606- ● ●
96 STAY; MUD GUARD
(C) 		1-53497-577-2 01 1 0407- ● ●
96 STAY; MUD GUARD
(D) THA 		8-97913-963-2 01 1 0407- ● ●
96 STAY; MUD GUARD
(A) 		1-79938-737-0 01 1 0407- ● ●
96 STAY; MUD GUARD
(B) 		1-79938-738-1 01 1 0407- ● ●
98 BOLT; STAY TO BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0407-0611 ● ●
98 BOLT; STAY TO BRKT
M8X30 FLANGE THA 		0-28650-830-0 04 1 0612- ● ●
99 BOLT; STAY TO MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0407- ● ●
102 STAY; LWR,MUD GUARD 1-53497-535-0 01 1 0407- ● ●
103 BRACKET ASM; RR MUD FLAP 1-53497-486-2 01 1 0407- ● ●
104 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611 ● ●
104 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
105 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407- ● ●
121 BOLT
M10X30 FLANGE 		0-28681-030-0 04 1 0407-0611 ● ●
121 BOLT
M10X30 FLANGE THA 		0-28651-030-0 04 1 0612- ● ●
127 APRON; FRT 1-53192-302-2 01 1 0407- ● ●
127 APRON; FRT 1-53193-222-1 01 1 0407- ● ●
128 BOLT; APRON,FRT
M8X25 W/LK&PL WASHER THA 		8-94331-747-1 10 1 0407- ● ●
130 PANEL; SHUTTER NOISE 1-53192-307-4 01 1 0407-0410 ● ●
130 PANEL; SHUTTER NOISE 1-53192-307-4 01 1 0411- ●
130 PANEL; SHUTTER NOISE
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> 		1-53192-307-4 01 1 0411- ●
130 PANEL; SHUTTER NOISE 1-53192-306-1 01 1 0407- ● ●
130 PANEL; SHUTTER NOISE
6SD1 TCS ENG<83L> 		1-53194-098-0 01 1 0411- ●
131 BOLT; PANEL
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0407- ● ●
175 NUT; STAY FIX
M8 FLANGE 		0-91150-108-0 04 1 0407- ● ●
218 FASTENER; RUBBER
THA 		1-09470-001-0 08 1 0407- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 03 1 0407- ● ●
227 SEAL; MUD GUARD
THA 		8-97913-540-1 01 1 0407- ● ●
228 FASTENER; MUD GUARD SEAL
D8X13.5 		1-09987-248-1 04 1 0407- ● ●
238 SCREW; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0407- ● ●
245 RUBBER; SHUTTER,RAD 1-79936-044-0 01 1 0407- ● ●
304 BOLT; SPLASH GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0407- ● ●
305 FASTENER; SPLASH GUARD
D8X13.5 		1-09987-248-1 05 1 0407- ● ●
306 BRACKET; MUD GUARD
THA 		8-97912-890-1 01 1 0407- ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 02 1 0407-0601 ● ●
308 FASTENER; MUD GUARD
(B) M6X22 		1-65481-386-0 02 1 0407-0601 ● ●
308 FASTENER; MUD GUARD
(B) M6X22 		1-65481-386-0 04 1 0602- ● ●
340 BRACKET; RUBBER,SHUTTER 1-79936-024-1 01 1 0407- ● ●
341 CLIP; RUBBER
D8X13.5 		1-09987-248-1 03 1 0407- ● ●
342 NUT; BRKT,RUBBER
M8 FLANGE 		8-97046-127-0 02 1 0407-0805 ● ●
342 NUT; BRKT,RUBBER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806- ● ●
