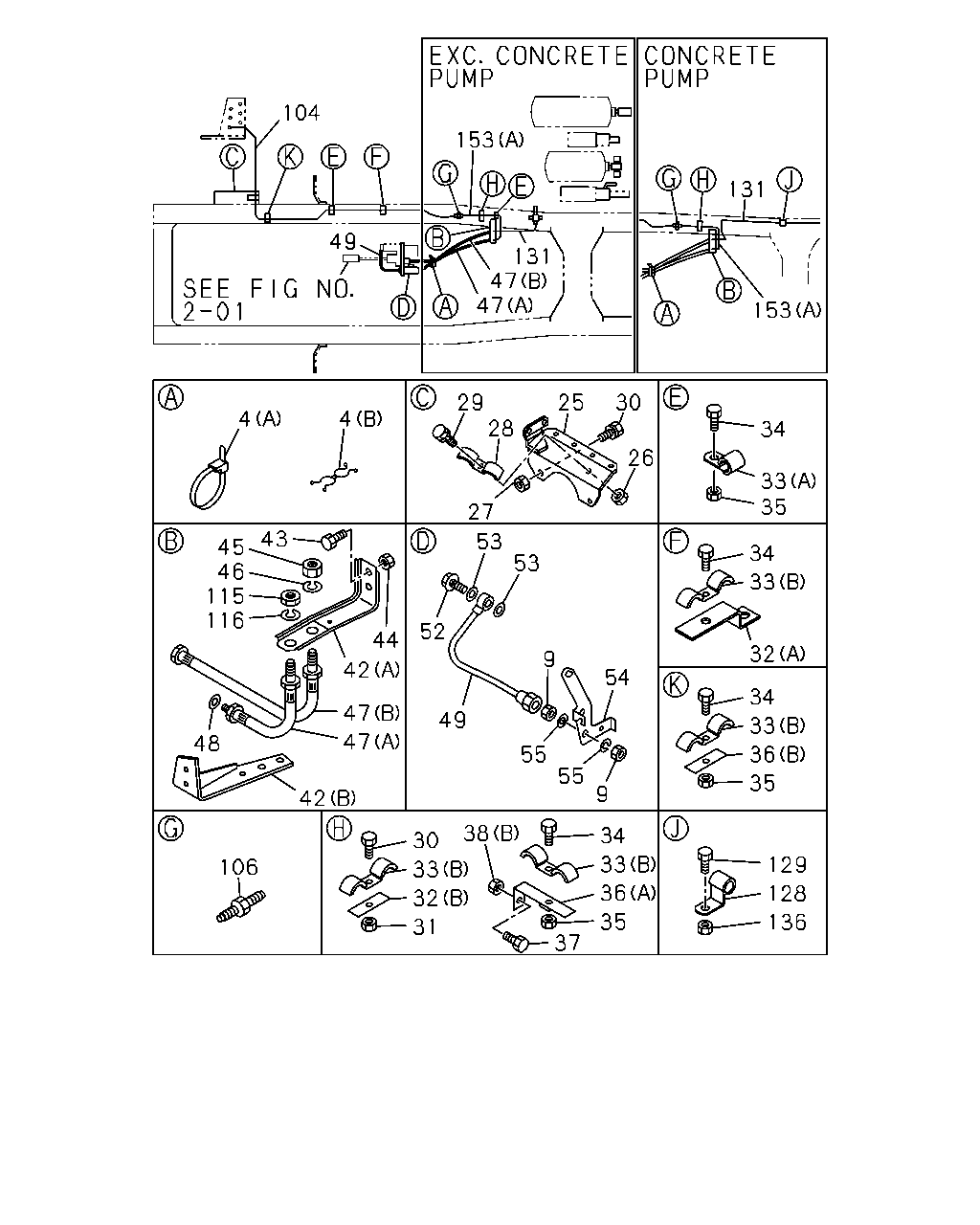

2-05A — CLUTCH PIPING (#2983) — 309 parça

136 128 129 35 36 33 34 37 38 30 33 32 31 106 42 48 47 47 42 44 52 49 55 55 9 54 9 35 36 33 34 32 33 34 35 33 34 26 30 25 28 29 27 4 4 49 47 47 131 153 131 153 104 43 45 46 115 116 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-0	01	1	9002-9306	●	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-1	01	1	9307-	●	●	●
4	CLIP; FLEX HOSE,CLU CONT CONCRETE PUMP<RA5> (B) ID=15 & 15	8-94121-153-0	01	1	9002-			●
9	NUT; BRKT,FLEX HOSE M10	9-09110-410-0	02	1	9002-9205	●	●	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●	●	●
25	BRACKET; OIL PIPE	1-47475-894-0	01	1	9002-9306	●	●	●	●	●
25	BRACKET; OIL PIPE	1-47476-835-0	01	1	9307-	●	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-9306	●	●	●	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9307-	●	●	●
27	NUT; BRKT M8	9-09110-408-0	02	1	9002-9306	●	●	●	●	●
27	NUT; BRKT M8	9-09110-408-0	01	1	9307-	●	●	●
28	CLIP; OIL PIPE ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-9306	●	●	●	●	●
28	CLIP; OIL PIPE ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9307-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●	●
30	BOLT; BRKT CVR&LHD(CVR6M*) EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●		●	●	●
30	BOLT; BRKT CVR&LHD(CVR6M*) FRONT AXLE TOE IN "0"(PQ6) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●		●	●	●
30	BOLT; BRKT CVR&LHD(CVR6M*) EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302	●		●	●	●
30	BOLT; BRKT CVR&LHD(CVR6M*) FRONT AXLE TOE IN "0"(PQ6) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302	●		●	●	●
30	BOLT; BRKT CVR&LHD(CVR6M*) EXC. CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	02	1	9303-9306	●		●	●	●
30	BOLT; BRKT CVR&LHD(CVR6M*) FRONT AXLE TOE IN "0"(PQ6) M8X16 FLANGE	0-28080-816-0	02	1	9303-9306	●		●	●	●
30	BOLT; BRKT CVR&LHD(CVR6M*) EXC. CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	02	1	9307-	●		●
30	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●		●	●
30	BOLT; BRKT EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204			●
30	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●		●	●
30	BOLT; BRKT EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302			●
30	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●	●		●	●
30	BOLT; BRKT EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9303-9306			●
30	BOLT; BRKT EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9307-			●
30	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
31	NUT; BRKT CVR&LHD(CVR6M*) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-9306	●		●	●	●
31	NUT; BRKT CVR&LHD(CVR6M*) FRONT AXLE TOE IN "0"(PQ6) M8	9-09110-408-0	02	1	9002-9306	●		●	●	●
31	NUT; BRKT CVR&LHD(CVR6M*) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9307-	●		●
32	BRACKET; CLIP OIL PIPE CVR&LHD(CVR6M*) (B) L=50	1-47475-299-2	02	1	9002-9306	●		●	●	●
32	BRACKET; CLIP OIL PIPE CVR&LHD(CVR6M*) (B) L=50	1-47475-299-2	02	1	9307-	●		●
32	BRACKET; CLIP OIL PIPE (A)	1-47475-774-0	01	1	9002-9306	●	●		●	●
32	BRACKET; CLIP OIL PIPE EXC. CONCRETE PUMP<RA5> (A)	1-47475-774-0	01	1	9002-9306			●
32	BRACKET; CLIP OIL PIPE EXC. CONCRETE PUMP<RA5> (A)	1-47475-774-0	01	1	9307-			●
32	BRACKET; CLIP OIL PIPE (A)	1-47475-774-0	01	1	9307-	●	●
33	CLIP; OIL PIPE CVR&LHD(CVR6M*) (B) ID=9&7	1-09700-653-0	02	1	9002-9306	●		●	●	●
33	CLIP; OIL PIPE CONCRETE PUMP<RA5> (B) ID=9&7	1-09700-653-0	02	1	9002-9306			●
33	CLIP; OIL PIPE CVR&LHD(CVR6M*) (C) ID=9 L=16	9-09524-822-0	01	1	9002-9306	●		●	●	●
33	CLIP; OIL PIPE CVR&LHD(CVR6M*) (C) ID=9 L=16	9-09524-822-0	01	1	9307-	●		●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306	●	●	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9307-9307	●	●	●
33	CLIP; OIL PIPE CVR LONG CHASSIS&RHD(CVR5MF) EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9308-	●	●	●
33	CLIP; OIL PIPE CONCRETE PUMP<RA5> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9308-			●
33	CLIP; OIL PIPE EXC. CONCRETE PUMP<RA5> (B) ID=9&7	1-09700-653-0	01	1	9002-			●
33	CLIP; OIL PIPE (B) ID=9&7	1-09700-653-0	01	1	9002-	●	●
33	CLIP; OIL PIPE (B) ID=11&9	1-09700-713-0	01	1	9002-	●	●	●
33	CLIP; OIL PIPE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B) ID=9&7	1-09700-653-0	02	1	9308-	●	●	●
33	CLIP; OIL PIPE CVR LONG CHASSIS&LHD(CVR6MF) (B) ID=9&7	1-09700-653-0	02	1	9308-	●		●
33	CLIP; OIL PIPE CONCRETE PUMP<RA5> (B) ID=9&7	1-09700-653-0	02	1	9308-			●
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●		●	●	●
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●		●	●	●
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 FLANGE	0-28080-616-0	01	1	9302-9306	●		●	●	●
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-	●		●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●		●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204			●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●		●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302			●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●	●		●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9303-9306			●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9307-			●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●		●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204			●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●		●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9205-9306			●
34	BOLT; PIPE CLIP CVR LONG CHASSIS&RHD(CVR5MF) EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	01	1	9307-	●	●	●
34	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 FLANGE	0-28010-816-0	01	1	9002-9204			●
34	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	01	1	9205-			●
34	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204			●
34	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302			●
34	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	02	1	9303-			●
34	BOLT; PIPE CLIP AIR SUSP DRIVER SEAT W/ARM REST(SGP) M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●	●	●
34	BOLT; PIPE CLIP CVR LONG CHASSIS&LHD(CVR6MF) M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●		●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9307	●	●		●	●
35	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-9307			●
35	NUT; PIPE CLIP AIR SUSP DRIVER SEAT W/ARM REST(SGP) M8	9-09110-408-0	02	1	9308-	●	●	●
35	NUT; PIPE CLIP CVR LONG CHASSIS&LHD(CVR6MF) M8	9-09110-408-0	02	1	9308-	●		●
35	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9308-			●
35	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-9307			●
35	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5>,AIR SUSP DRIVER SEAT W/ARM REST(SGP) M8	9-09110-408-0	01	1	9308-	●	●	●
35	NUT; PIPE CLIP CVR LONG CHASSIS&RHD(CVR5MF) M8	9-09110-408-0	01	1	9308-	●	●	●
36	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	9002-9306	●	●		●	●
36	BRACKET; CLIP EXC. CONCRETE PUMP<RA5> (A) L=55	1-47475-304-0	01	1	9002-9306			●
36	BRACKET; CLIP EXC. CONCRETE PUMP<RA5> (A) L=55	1-47475-304-0	01	1	9307-			●
36	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	9307-	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B) L=50	1-47475-299-2	02	1	9308-	●	●	●
36	BRACKET; CLIP CVR LONG CHASSIS&LHD(CVR6MF) (B) L=50	1-47475-299-2	02	1	9308-	●		●
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●		●	●
37	BOLT; CLIP BRKT EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204			●
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●		●	●
37	BOLT; CLIP BRKT EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-9306	●	●		●	●
37	BOLT; CLIP BRKT EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9303-9306			●
37	BOLT; CLIP BRKT EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9307-			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	01	1	9307-	●	●
38	NUT; CLIP BRKT (B) M8	9-09110-408-0	01	1	9002-9306	●	●		●	●
38	NUT; CLIP BRKT EXC. CONCRETE PUMP<RA5> (B) M8	9-09110-408-0	01	1	9002-9306			●
38	NUT; CLIP BRKT EXC. CONCRETE PUMP<RA5> (B) M8	9-09110-408-0	01	1	9307-			●
38	NUT; CLIP BRKT (B) M8	9-09110-408-0	01	1	9307-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47475-815-3	01	1	9002-	●	●		●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-47475-815-3	01	1	9002-			●
42	BRACKET; FLEX HOSE,CLU CONT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> (A)	1-47475-815-3	01	1	9002-			●
42	BRACKET; FLEX HOSE,CLU CONT PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (B)	1-47475-883-2	01	1	9002-			●
42	BRACKET; FLEX HOSE,CLU CONT FIRE TRUCK<RA9> (B)	1-47475-883-2	01	1	9002-			●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204			●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302			●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●	●		●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	02	1	9303-9306			●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	02	1	9307-			●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CONCRETE PUMP<RA5> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204			●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CONCRETE PUMP<RA5> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302			●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CONCRETE PUMP<RA5> M8X30 FLANGE	0-28080-830-0	02	1	9303-			●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9002-9306	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9307-	●	●	●
45	NUT; FLEX HOSE,CLU CONT M16	9-99111-416-0	02	1	9002-	●	●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=16.2	9-09150-516-0	02	1	9002-	●	●	●	●	●
47	HOSE; FLEX,CLU CONT (A) AIR L=460	0-07424-460-0	01	1	9002-	●	●		●	●
47	HOSE; FLEX,CLU CONT (B) OIL L=390	1-09364-475-0	01	1	9002-	●	●		●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A) AIR L=530	0-07424-530-0	01	1	9002-			●
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> (A) AIR L=370	0-07424-370-0	01	1	9002-			●
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> (B) OIL L=320	1-09364-450-0	01	1	9002-			●
47	HOSE; FLEX,CLU CONT EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> (B) OIL L=500	1-09364-329-0	01	1	9002-			●
47	HOSE; FLEX,CLU CONT PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) AIR L=590	0-07424-590-0	01	1	9002-			●
47	HOSE; FLEX,CLU CONT FIRE TRUCK<RA9> (A) AIR L=590	0-07424-590-0	01	1	9002-			●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-	●	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=254	1-47487-082-0	01	1	9002-9212	●	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=254	1-47498-136-0	01	1	9301-9306	●	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=254	1-47496-282-0	01	1	9307-	●	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9002-9306	●	●	●	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9307-	●	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-9306	●	●	●	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9307-	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-304-0	01	1	9002-9306				●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-331-1	01	1	9002-9306	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-801-0	01	1	9307-	●	●	●
55	WASHER; LK,BRKT,FLEX HOSE ID=10.2	9-09150-510-0	02	1	9002-9205	●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1978 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306	●	●		●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. CONCRETE PUMP<RA5> L=1978 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. CONCRETE PUMP<RA5> L=1986 SERVICED BY L=2150	1-47426-394-0	01	1	9307-			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1986 SERVICED BY L=2150	1-47426-394-0	01	1	9307-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR CONCRETE PUMP<RA5> L=2600 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306			●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR CONCRETE PUMP<RA5> L=2599 SERVICED BY L=2700	1-47426-396-0	01	1	9307-			●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9002-9306	●	●	●	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9307-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9002-	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9002-	●	●	●	●	●
128	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=11 H=20 L=20	5-09700-351-0	01	1	9002-			●
129	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204			●
129	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9205-			●
131	PIPE; AIR,UNION TO FLEX HOSE L=561 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306	●	●		●	●
131	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=561 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306			●
131	PIPE; AIR,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=561 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306			●
131	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=561 SERVICED BY L=600	1-47426-408-0	01	1	9307-			●
131	PIPE; AIR,UNION TO FLEX HOSE L=561 SERVICED BY L=600	1-47426-408-0	01	1	9307-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE CONCRETE PUMP<RA5> L=1025 SERVICED BY L=1100	1-47437-967-0	01	1	9002-9306			●
131	PIPE; AIR,UNION TO FLEX HOSE CONCRETE PUMP<RA5> L=1025 SERVICED BY L=1100	1-47426-415-0	01	1	9307-			●
131	PIPE; AIR,UNION TO FLEX HOSE CVR&RHD(CVR5M*) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> L=324 SERVICED BY L=350	1-47437-961-0	01	1	9002-9306			●
131	PIPE; AIR,UNION TO FLEX HOSE CVR&RHD(CVR5M*) FIRE TRUCK<RA9> L=324 SERVICED BY L=350	1-47437-961-0	01	1	9002-9306			●
131	PIPE; AIR,UNION TO FLEX HOSE CVR&RHD(CVR5M*) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=323 SERVICED BY L=350	1-47426-403-0	01	1	9307-			●
136	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-			●
153	PIPE ASM; CLU,UNION TO FLEX CVR&LHD(CVR6M*) (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306	●		●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CVR LONG CHASSIS&LHD(CVR6MF) (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-	●		●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1252 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●			●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (A) L=1252 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306			●
153	PIPE ASM; CLU,UNION TO FLEX PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1362 SERVICED BY L=1400	1-47426-389-0	01	1	9307-			●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●		●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306			●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306			●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1252 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●
153	PIPE ASM; CLU,UNION TO FLEX CONCRETE PUMP<RA5> (A) L=491	1-47417-450-0	01	1	9002-9212			●
153	PIPE ASM; CLU,UNION TO FLEX CONCRETE PUMP<RA5> (A) L=491	1-47425-406-0	01	1	9301-			●
153	PIPE ASM; CLU,UNION TO FLEX PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) L=1362 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306			●
153	PIPE ASM; CLU,UNION TO FLEX FIRE TRUCK<RA9> (A) L=1362 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306			●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1255 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●	●

4 1 175 10 153 33 35 34 22 1 175 10 62 63 62 63 13 24 64 65 176 67 66 67 58 58 60 59 57 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HOSE; FLEX,CLU CONT L=840	1-09364-466-0	01	1	9002-9306	●	●	●	●	●
1	HOSE; FLEX,CLU CONT L=840	1-09364-466-0	01	1	9307-	●	●	●
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-0	01	1	9002-9306	●	●	●	●	●
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-1	01	1	9307-	●	●	●
4	CLIP; FLEX HOSE,CLU CONT CONCRETE PUMP<RA5> (B) ID=15 & 15	8-94121-153-0	01	1	9002-			●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-9306	●	●	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9307-	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL CVR&RHD(CVR5M*) EXC. CAB SUSPENSION RIGID<W71> L=716	1-47416-575-1	01	1	9002-9306	●		●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL L=716	1-47416-575-1	01	1	9002-9306		●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL CVR LONG CHASSIS&RHD(CVR5MF) CAB SUSPENSION RIGID<W71> L=696 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306			●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL CVR LONG CHASSIS&RHD(CVR5MF) L=716	1-47425-253-1	01	1	9307-	●	●	●
22	UNION; CLU PIPE CVR&LHD(CVR6M*) M14 STRAIGHT	9-09223-008-1	01	1	9002-9306	●		●	●	●
22	UNION; CLU PIPE CVR&LHD(CVR6M*) M14 STRAIGHT	9-09223-008-1	01	1	9307-	●		●
24	PIPE ASM; CLU,M/CYL TO UNION CVR&LHD(CVR6M*) L=933	1-47416-511-2	01	1	9002-9306	●		●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION CVR&LHD(CVR6M*) L=933	1-47425-256-0	01	1	9307-	●		●
33	CLIP; OIL PIPE CVR&LHD(CVR6M*) (B) ID=9&7	1-09700-653-0	02	1	9002-9306	●		●	●	●
33	CLIP; OIL PIPE CONCRETE PUMP<RA5> (B) ID=9&7	1-09700-653-0	02	1	9002-9306			●
33	CLIP; OIL PIPE CVR&LHD(CVR6M*) (C) ID=9 L=16	9-09524-822-0	01	1	9002-9306	●		●	●	●
33	CLIP; OIL PIPE CVR&LHD(CVR6M*) (C) ID=9 L=16	9-09524-822-0	01	1	9307-	●		●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306	●	●	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9307-9307	●	●	●
33	CLIP; OIL PIPE CVR LONG CHASSIS&RHD(CVR5MF) EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9308-	●	●	●
33	CLIP; OIL PIPE CONCRETE PUMP<RA5> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9308-			●
33	CLIP; OIL PIPE EXC. CONCRETE PUMP<RA5> (B) ID=9&7	1-09700-653-0	01	1	9002-			●
33	CLIP; OIL PIPE (B) ID=9&7	1-09700-653-0	01	1	9002-	●	●
33	CLIP; OIL PIPE (B) ID=11&9	1-09700-713-0	01	1	9002-	●	●	●
33	CLIP; OIL PIPE AIR SUSP DRIVER SEAT W/ARM REST(SGP) (B) ID=9&7	1-09700-653-0	02	1	9308-	●	●	●
33	CLIP; OIL PIPE CVR LONG CHASSIS&LHD(CVR6MF) (B) ID=9&7	1-09700-653-0	02	1	9308-	●		●
33	CLIP; OIL PIPE CONCRETE PUMP<RA5> (B) ID=9&7	1-09700-653-0	02	1	9308-			●
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●		●	●	●
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●		●	●	●
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 FLANGE	0-28080-616-0	01	1	9302-9306	●		●	●	●
34	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M6X16 W/LK WASHER	0-50040-616-0	01	1	9307-	●		●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●		●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204			●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●		●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302			●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●	●	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●	●		●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9303-9306			●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9307-			●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●		●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204			●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●	●		●	●
34	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9205-9306			●
34	BOLT; PIPE CLIP CVR LONG CHASSIS&RHD(CVR5MF) EXC. AIR SUSP DRIVER SEAT W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	01	1	9307-	●	●	●
34	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 FLANGE	0-28010-816-0	01	1	9002-9204			●
34	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	01	1	9205-			●
34	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204			●
34	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302			●
34	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	02	1	9303-			●
34	BOLT; PIPE CLIP AIR SUSP DRIVER SEAT W/ARM REST(SGP) M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●	●	●
34	BOLT; PIPE CLIP CVR LONG CHASSIS&LHD(CVR6MF) M8X16 W/LK WASHER	0-50040-816-0	02	1	9308-	●		●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9307	●	●		●	●
35	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-9307			●
35	NUT; PIPE CLIP AIR SUSP DRIVER SEAT W/ARM REST(SGP) M8	9-09110-408-0	02	1	9308-	●	●	●
35	NUT; PIPE CLIP CVR LONG CHASSIS&LHD(CVR6MF) M8	9-09110-408-0	02	1	9308-	●		●
35	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9308-			●
35	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-9307			●
35	NUT; PIPE CLIP EXC. CONCRETE PUMP<RA5>,AIR SUSP DRIVER SEAT W/ARM REST(SGP) M8	9-09110-408-0	01	1	9308-	●	●	●
35	NUT; PIPE CLIP CVR LONG CHASSIS&RHD(CVR5MF) M8	9-09110-408-0	01	1	9308-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK CVR&RHD(CVR5M*) L=1800	1-09360-320-0	01	1	9002-9306	●		●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=1800	1-09360-320-0	01	1	9002-9306		●
57	HOSE; CLU M/CYL TO OIL TANK CVR&RHD(CVR5M*) L=1800	1-09360-320-0	01	1	9002-	●		●
57	HOSE; CLU M/CYL TO OIL TANK L=1800	1-09360-320-0	01	1	9002-		●
57	HOSE; CLU M/CYL TO OIL TANK CVR&LHD(CVR6M*) L=1800	1-09360-320-0	01	1	9002-9306	●		●	●	●
57	HOSE; CLU M/CYL TO OIL TANK CVR&LHD(CVR6M*) L=1800	1-09360-320-0	01	1	9002-	●		●
58	CLIP; RUBBER HOSE TO M/CYL CVR&RHD(CVR5M*) (B) ID=16 H=24 L=20	9-09527-015-0	01	1	9002-9306	●		●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (B) ID=16 H=24 L=20	9-09527-015-0	01	1	9002-9306		●
58	CLIP; RUBBER HOSE TO M/CYL CVR&RHD(CVR5M*) (B) ID=16 H=24 L=20	9-09527-015-0	01	1	9307-	●		●
58	CLIP; RUBBER HOSE TO M/CYL (B) ID=16 H=24 L=20	9-09527-015-0	01	1	9307-		●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=15	1-09704-018-1	02	1	9002-9006	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=16	1-09707-171-0	02	1	9007-9306	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=16	1-09707-171-0	02	1	9307-	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (C) ID=15	1-09987-115-0	01	1	9002-9306	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (C) ID=15	1-09987-115-0	01	1	9307-	●	●	●
59	GROMMET; SCREW,RUBBER HOSE CLIP,CLU CVR&RHD(CVR5M*)	5-09983-012-0	01	1	9002-	●		●
59	GROMMET; SCREW,RUBBER HOSE CLIP,CLU	5-09983-012-0	01	1	9002-		●
60	SCREW; RUBBER HOSE CLIP,CLU CONT CVR&RHD(CVR5M*) M5X16 TAPPING W/PL WASHER	0-74100-516-0	01	1	9002-	●		●
60	SCREW; RUBBER HOSE CLIP,CLU CONT M5X16 TAPPING W/PL WASHER	0-74100-516-0	01	1	9002-		●
62	CLIP; CLU PIPE CVR&RHD(CVR5M*) ID=8 H=30 L=20	8-94220-978-0	01	1	9002-9306	●		●	●	●
62	CLIP; CLU PIPE ID=8 H=30 L=20	8-94220-978-0	01	1	9002-9306		●
62	CLIP; CLU PIPE CVR&RHD(CVR5M*) ID=8 H=30 L=20	8-94220-978-0	01	1	9307-	●		●
62	CLIP; CLU PIPE ID=8 H=30 L=20	8-94220-978-0	01	1	9307-		●
62	CLIP; CLU PIPE CVR&LHD(CVR6M*) ID=9 H=20 L=20	9-09527-008-0	01	1	9002-9306	●		●	●	●
62	CLIP; CLU PIPE CVR&LHD(CVR6M*) ID=9 H=20 L=20	9-09527-008-0	01	1	9307-	●		●
63	BOLT; CLIP,PIPE M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-9306	●	●	●	●	●
63	BOLT; CLIP,PIPE M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9307-	●	●	●
64	SEAL; EYE JOINT,CLU M/CYL	1-73998-453-0	01	1	9002-9306	●	●	●	●	●
64	SEAL; EYE JOINT,CLU M/CYL	1-73998-453-0	01	1	9307-	●	●	●
65	WASHER; PL,SEAL,CLU M/CYL ID=15 OD=30	9-09160-614-0	01	1	9002-9306	●	●	●	●	●
65	WASHER; PL,SEAL,CLU M/CYL ID=15 OD=30	9-09160-614-0	01	1	9307-	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9002-9306	●	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9307-	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9002-9306	●	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9307-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CVR&LHD(CVR6M*) (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306	●		●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CVR LONG CHASSIS&LHD(CVR6MF) (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-	●		●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1252 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●			●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> (A) L=1252 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306			●
153	PIPE ASM; CLU,UNION TO FLEX PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1362 SERVICED BY L=1400	1-47426-389-0	01	1	9307-			●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●		●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306			●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306			●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1252 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●
153	PIPE ASM; CLU,UNION TO FLEX CONCRETE PUMP<RA5> (A) L=491	1-47417-450-0	01	1	9002-9212			●
153	PIPE ASM; CLU,UNION TO FLEX CONCRETE PUMP<RA5> (A) L=491	1-47425-406-0	01	1	9301-			●
153	PIPE ASM; CLU,UNION TO FLEX PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) L=1362 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306			●
153	PIPE ASM; CLU,UNION TO FLEX FIRE TRUCK<RA9> (A) L=1362 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306			●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1255 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-9306	●	●	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9307-	●	●	●
176	JOINT; EYE,CLU M/CYL FLUID	1-09674-088-0	01	1	9002-9306	●	●	●	●	●
176	JOINT; EYE,CLU M/CYL FLUID	1-09674-088-0	01	1	9307-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
