◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10946 - FXZ(THAI)EURO2 ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#29821) — 39 parça

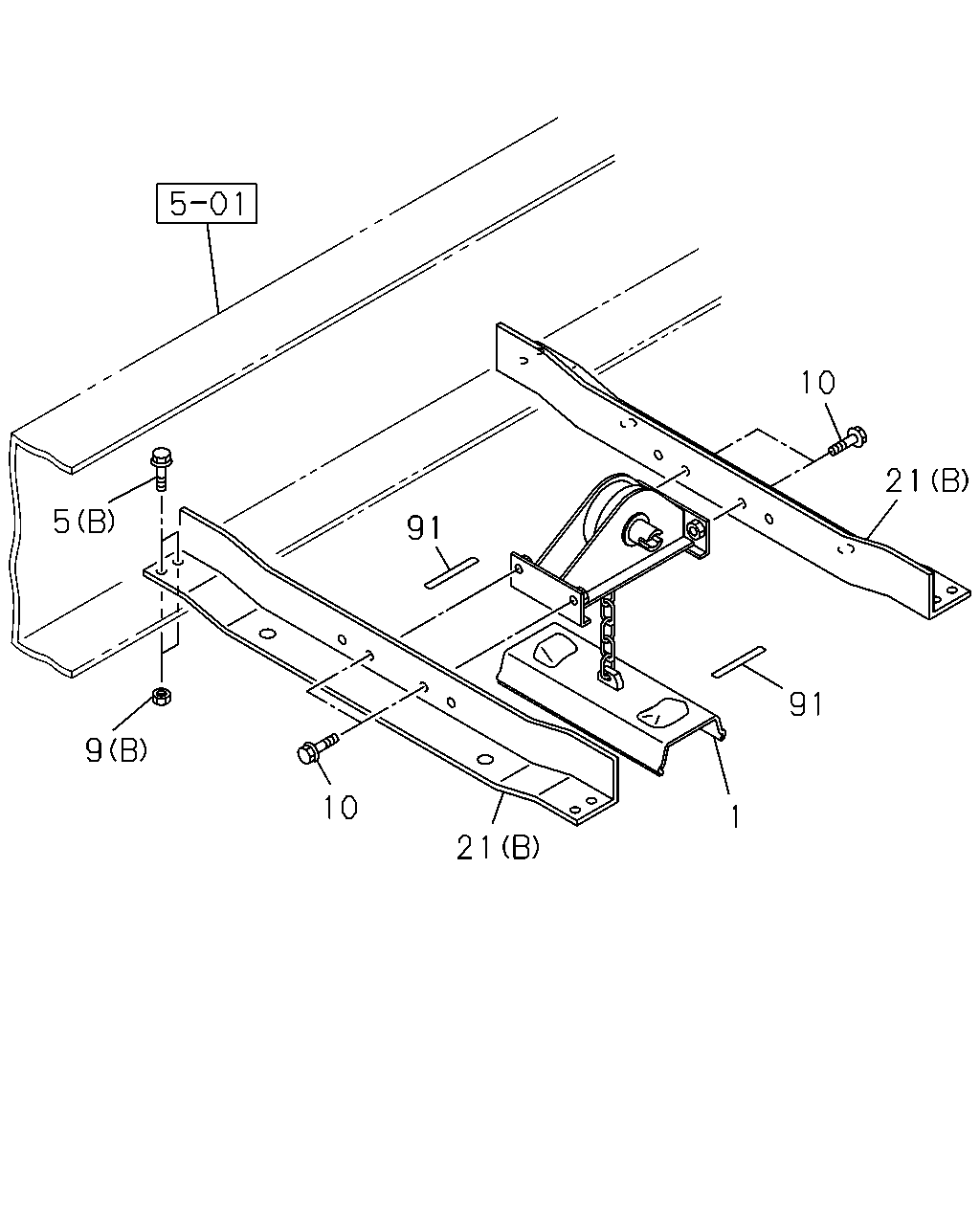

çizim 23857
10 21 91 91 9 10 1 21 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> THA 		1-53630-208-1 01 1 0407- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> THA 		1-53630-208-1 01 1 0407- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) M12X40 FLANGE 		0-28681-240-0 06 1 0407-0512 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) M12X40 FLANGE 		0-28651-240-0 06 1 0601- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> (B) M10X35 FLANGE 		0-28081-035-0 08 1 0407-0611 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> (B) M10X35 FLANGE THA 		0-28051-035-0 08 1 0612- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) M12 		9-99110-512-0 06 1 0407-0512 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) M12 		0-91110-512-0 06 1 0601- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> (B) M10 		9-09110-410-0 08 1 0407-0512 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> (B) M10 THA 		0-91110-510-0 08 1 0601- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 04 1 0407-0512 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X25 FLANGE 		0-28081-225-0 04 1 0407-0512 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE THA 		0-28051-225-0 04 1 0601- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X25 FLANGE THA 		0-28051-225-0 04 1 0601- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-128-1 01 1 0407- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> (B) THA 		8-97913-545-1 02 1 0407- ●
91 PAD; TIRE CARRIER
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> THA 		8-97923-389-0 02 1 0605-0606 ● ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> THA 		8-97923-389-0 02 1 0607- ● ●

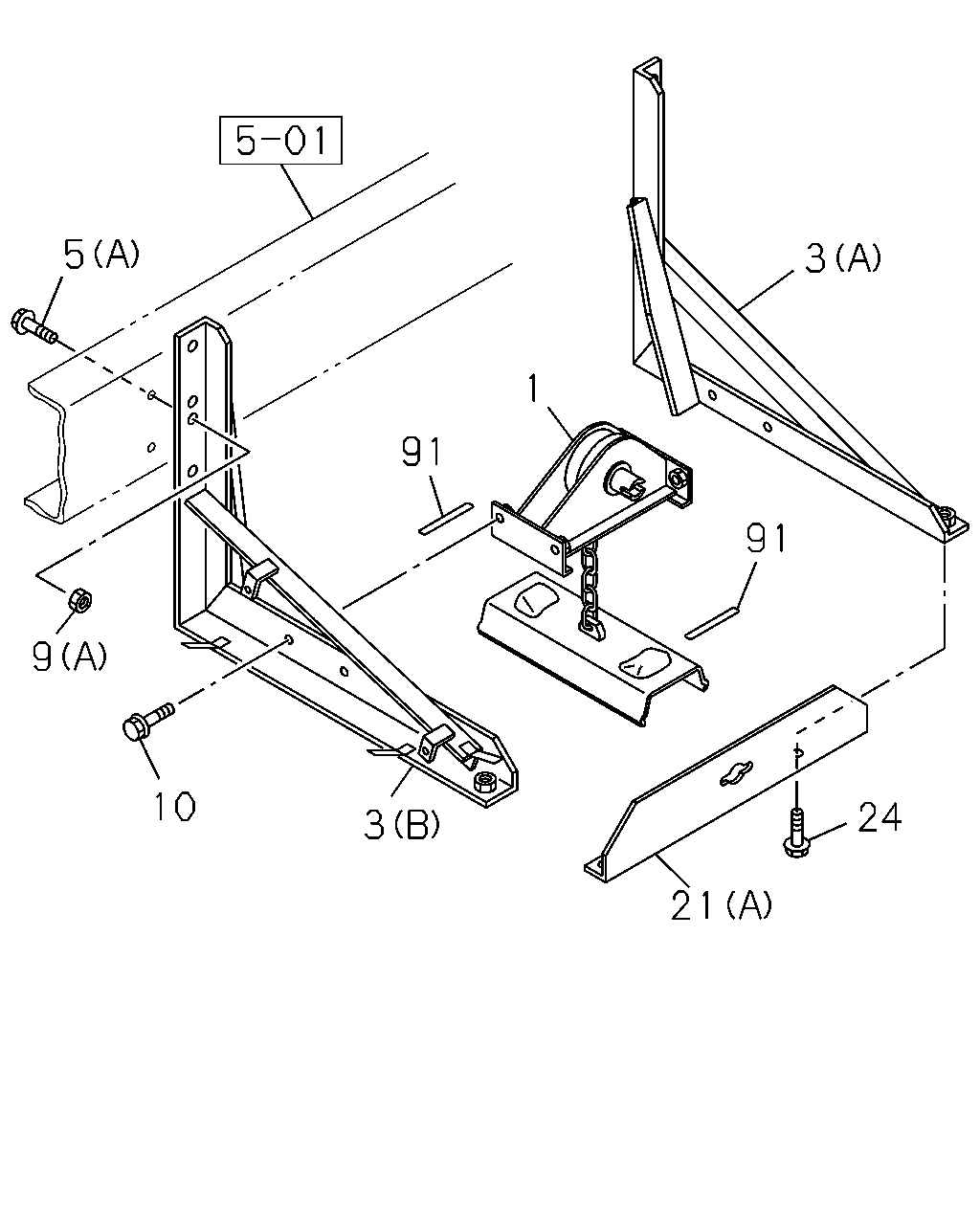

çizim 86504
5 3 1 91 91 9 10 24 3 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> THA 		1-53630-208-1 01 1 0407- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> THA 		1-53630-208-1 01 1 0407- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-389-0 01 1 0407- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-393-0 01 1 0407- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) M12X40 FLANGE 		0-28681-240-0 06 1 0407-0512 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) M12X40 FLANGE 		0-28651-240-0 06 1 0601- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> (B) M10X35 FLANGE 		0-28081-035-0 08 1 0407-0611 ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> (B) M10X35 FLANGE THA 		0-28051-035-0 08 1 0612- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) M12 		9-99110-512-0 06 1 0407-0512 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) M12 		0-91110-512-0 06 1 0601- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> (B) M10 		9-09110-410-0 08 1 0407-0512 ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> (B) M10 THA 		0-91110-510-0 08 1 0601- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 04 1 0407-0512 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X25 FLANGE 		0-28081-225-0 04 1 0407-0512 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE THA 		0-28051-225-0 04 1 0601- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X25 FLANGE THA 		0-28051-225-0 04 1 0601- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-128-1 01 1 0407- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> (B) THA 		8-97913-545-1 02 1 0407- ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 02 1 0407- ●
91 PAD; TIRE CARRIER
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> THA 		8-97923-389-0 02 1 0605-0606 ● ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> THA 		8-97923-389-0 02 1 0607- ● ●
