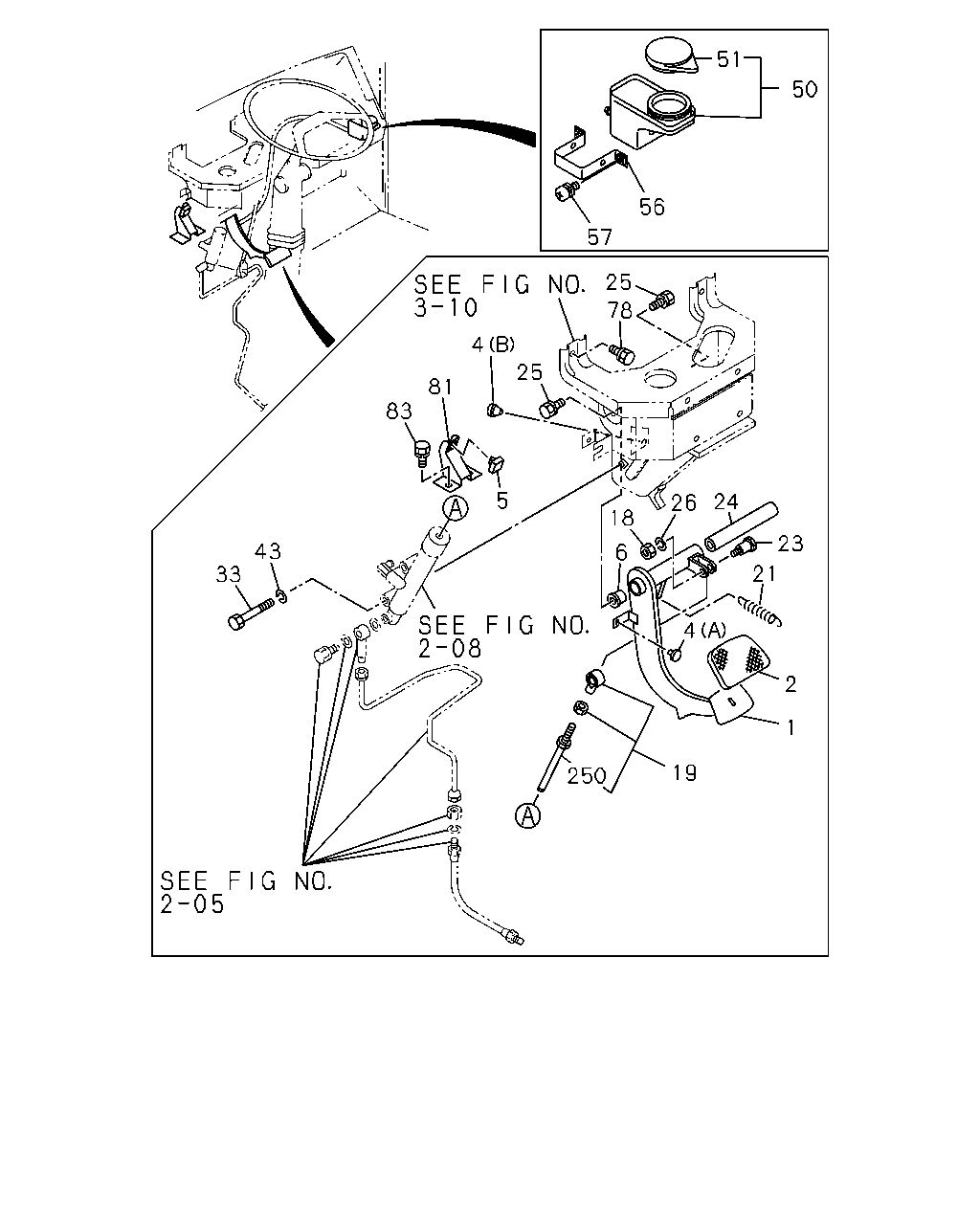

2-03 — CLUTCH PEDAL AND CONTROL (#2982) — 70 parça

19 250 1 2 4 21 23 24 26 18 6 5 43 33 83 81 4 25 78 25 57 56 51 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PEDAL; CLU	1-31411-157-0	01	1	9002-	●	●
1	PEDAL; CLU	1-31411-161-0	01	1	9002-			●	●
2	COVER; CLU PEDAL	8-94204-810-0	01	1	9002-	●	●	●	●
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	01	1	9002-	●	●	●	●
4	STOPPER; CLU PEDAL (B)	5-31419-003-0	01	1	9002-	●	●	●	●
5	STOPPER; PEDAL SHAFT	1-09983-074-0	01	1	9002-	●	●	●	●
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	9002-	●	●	●	●
18	NUT; PUSH ROD M8	9-09110-408-0	01	1	9009-	●	●	●	●
18	NUT; PUSH ROD M8	9-09110-408-0	01	1	9002-9008			●	●
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	9002-	●	●	●	●
19	ROD ASM; PUSH,CLU	1-73907-178-1	01	1	9002-	●	●
19	ROD ASM; PUSH,CLU	1-31422-009-2	01	1	9002-			●	●
21	SPRING; RETURN,CLU PEDAL	1-73998-820-0	01	1	9002-	●	●	●	●
23	BOLT; PUSH ROD M10X23.7 & M8X16	1-09009-150-0	01	1	9009-	●	●
23	BOLT; PUSH ROD M8X35	9-01060-835-0	01	1	9002-	●	●	●	●
24	SHAFT; CLU PEDAL	1-31415-007-0	01	1	9002-	●	●	●	●
25	BOLT; PEDAL M10X25 W/LK WASHER	9-01931-025-0	02	1	9002-	●	●	●	●
26	WASHER; LK,PUSH ROD ID=8.2	9-09150-608-0	01	1	9002-	●	●	●	●
33	BOLT; CLU M/CYL TO BRKT M10X65	9-01046-065-0	02	1	9002-9204	●	●	●	●
33	BOLT; CLU M/CYL TO BRKT M10X65	0-10806-065-0	02	1	9205-9301	●	●	●	●
33	BOLT; CLU M/CYL TO BRKT M10X65	5-09030-024-1	02	1	9302-	●	●	●	●
43	WASHER; LK,CLU M/CYL ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●
50	TANK; OIL,CLU	1-47530-140-1	01	1	9002-	●	●	●	●
51	CAP; OIL TANK,CLU	1-47525-023-0	01	1	9002-	●	●	●	●
56	BRACKET; OIL TANK,CLU CONT	1-73997-915-0	01	1	9002-	●	●	●	●
57	BOLT; OIL TANK BRKT,CLU M5X16 W/LK&PL WASHER	9-03920-516-0	02	1	9002-	●	●	●	●
57	BOLT; OIL TANK BRKT,CLU M5X12 TAPPING	9-07066-512-0	01	1	9002-	●	●	●	●
78	BOLT; BRKT TO CAB M8X20	1-09980-529-0	04	1	9002-	●	●
78	BOLT; BRKT TO CAB M8X20	9-01970-820-0	04	1	9002-9005			●	●
78	BOLT; BRKT TO CAB M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9006-			●	●
81	BRACKET; STOPPER,CLU PEDAL	1-73997-635-2	01	1	9002-	●	●
81	BRACKET; STOPPER,CLU PEDAL	1-73997-773-2	01	1	9002-			●	●
83	BOLT; STOPPER BRKT,CLU PEDAL M6X16 W/LK&PL WASHER	1-09980-527-0	02	1	9002-9008	●	●	●	●
83	BOLT; STOPPER BRKT,CLU PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9009-	●	●	●	●
250	ROD; PUSH,CLU M8X31 L=128	1-31422-010-2	01	1	9002-	●	●	●	●

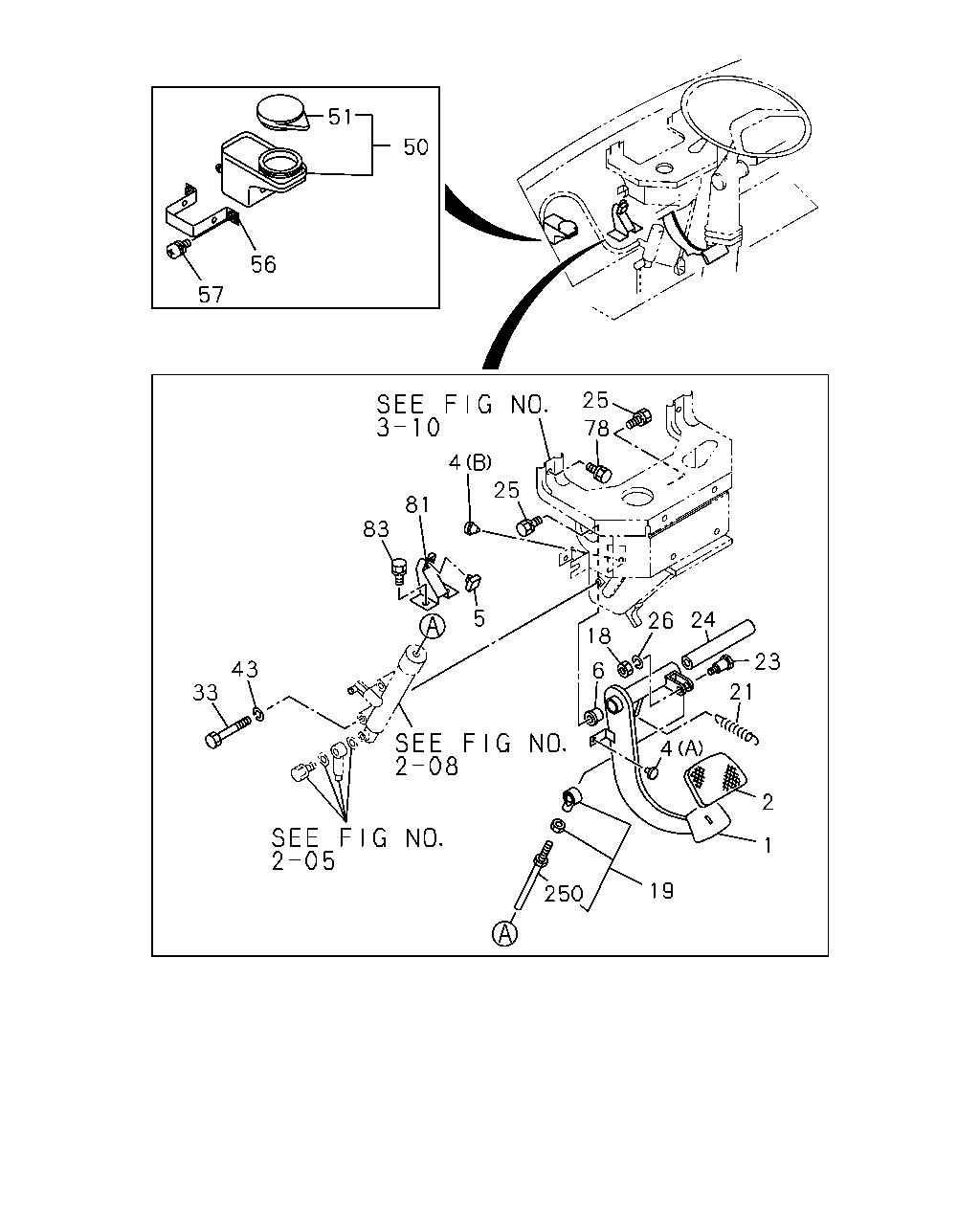

19 250 1 2 4 21 23 24 26 18 6 5 43 33 83 81 4 25 78 25 50 51 56 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PEDAL; CLU	1-31411-157-0	01	1	9002-	●	●
1	PEDAL; CLU	1-31411-161-0	01	1	9002-			●	●
2	COVER; CLU PEDAL	8-94204-810-0	01	1	9002-	●	●	●	●
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	01	1	9002-	●	●	●	●
4	STOPPER; CLU PEDAL (B)	5-31419-003-0	01	1	9002-	●	●	●	●
5	STOPPER; PEDAL SHAFT	1-09983-074-0	01	1	9002-	●	●	●	●
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	9002-	●	●	●	●
18	NUT; PUSH ROD M8	9-09110-408-0	01	1	9009-	●	●	●	●
18	NUT; PUSH ROD M8	9-09110-408-0	01	1	9002-9008			●	●
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	9002-	●	●	●	●
19	ROD ASM; PUSH,CLU	1-73907-178-1	01	1	9002-	●	●
19	ROD ASM; PUSH,CLU	1-31422-009-2	01	1	9002-			●	●
21	SPRING; RETURN,CLU PEDAL	1-73998-820-0	01	1	9002-	●	●	●	●
23	BOLT; PUSH ROD M10X23.7 & M8X16	1-09009-150-0	01	1	9009-	●	●
23	BOLT; PUSH ROD M8X35	9-01060-835-0	01	1	9002-	●	●	●	●
24	SHAFT; CLU PEDAL	1-31415-007-0	01	1	9002-	●	●	●	●
25	BOLT; PEDAL M10X25 W/LK WASHER	9-01931-025-0	02	1	9002-	●	●	●	●
26	WASHER; LK,PUSH ROD ID=8.2	9-09150-608-0	01	1	9002-	●	●	●	●
33	BOLT; CLU M/CYL TO BRKT M10X65	9-01046-065-0	02	1	9002-9204	●	●	●	●
33	BOLT; CLU M/CYL TO BRKT M10X65	0-10806-065-0	02	1	9205-9301	●	●	●	●
33	BOLT; CLU M/CYL TO BRKT M10X65	5-09030-024-1	02	1	9302-	●	●	●	●
43	WASHER; LK,CLU M/CYL ID=10.2	9-09150-510-0	02	1	9002-9301	●	●	●	●
50	TANK; OIL,CLU	1-47530-140-1	01	1	9002-	●	●	●	●
51	CAP; OIL TANK,CLU	1-47525-023-0	01	1	9002-	●	●	●	●
56	BRACKET; OIL TANK,CLU CONT	1-73997-915-0	01	1	9002-	●	●	●	●
57	BOLT; OIL TANK BRKT,CLU M5X16 W/LK&PL WASHER	9-03920-516-0	02	1	9002-	●	●	●	●
57	BOLT; OIL TANK BRKT,CLU M5X12 TAPPING	9-07066-512-0	01	1	9002-	●	●	●	●
78	BOLT; BRKT TO CAB M8X20	1-09980-529-0	04	1	9002-	●	●
78	BOLT; BRKT TO CAB M8X20	9-01970-820-0	04	1	9002-9005			●	●
78	BOLT; BRKT TO CAB M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9006-			●	●
81	BRACKET; STOPPER,CLU PEDAL	1-73997-635-2	01	1	9002-	●	●
81	BRACKET; STOPPER,CLU PEDAL	1-73997-773-2	01	1	9002-			●	●
83	BOLT; STOPPER BRKT,CLU PEDAL M6X16 W/LK&PL WASHER	1-09980-527-0	02	1	9002-9008	●	●	●	●
83	BOLT; STOPPER BRKT,CLU PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9009-	●	●	●	●
250	ROD; PUSH,CLU M8X31 L=128	1-31422-010-2	01	1	9002-	●	●	●	●
