◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10946 - FXZ(THAI)EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#29815) — 19 parça

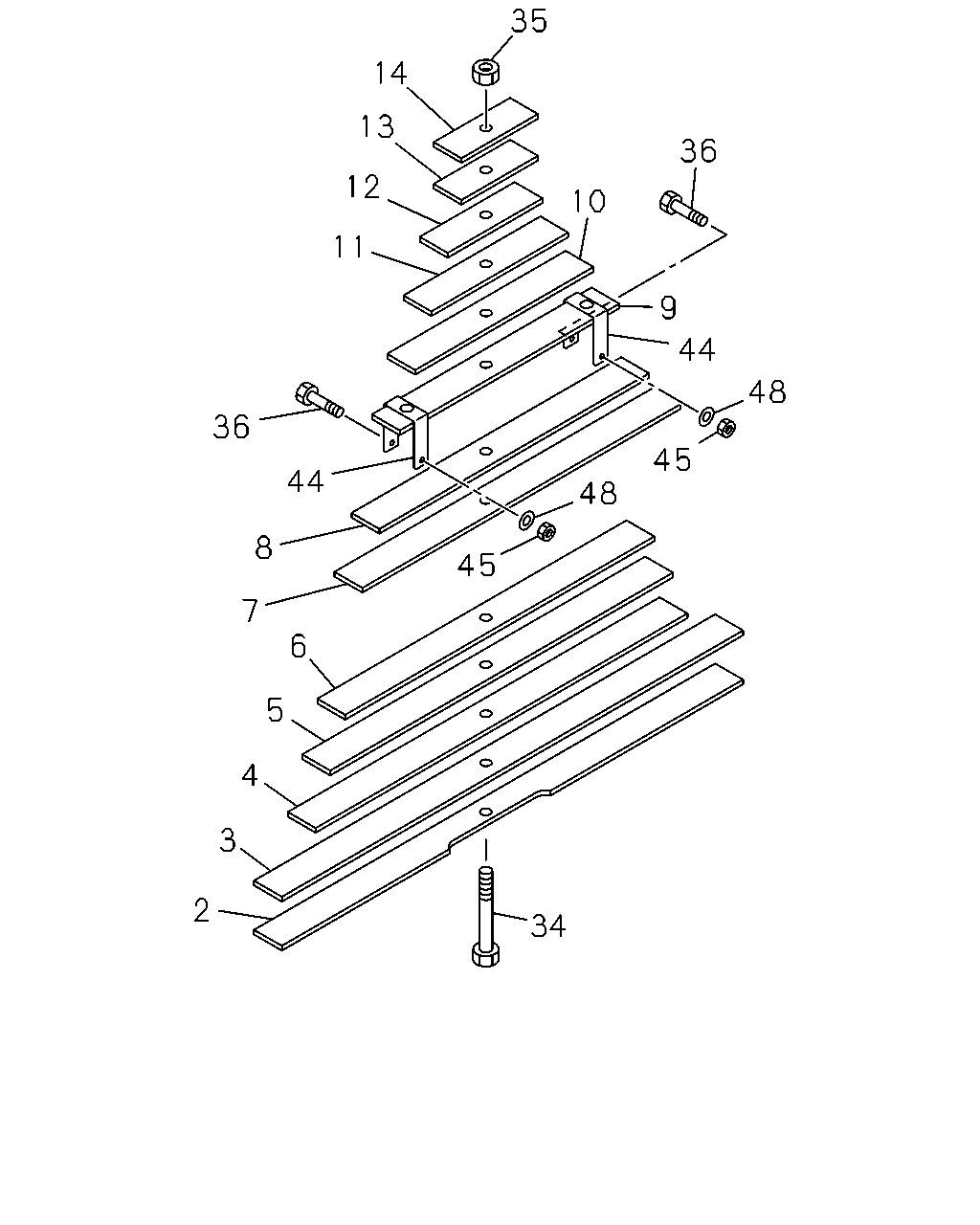

çizim 82246
35 14 13 36 12 10 11 9 44 48 36 45 44 48 8 45 7 6 5 4 3 2 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51311-427-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51312-427-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51313-427-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51314-427-1 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51315-427-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51316-427-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51317-427-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51318-427-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51319-427-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51321-427-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51322-427-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51323-427-0 01 1 -
14 SPRING; LEAF,NO 13,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51324-427-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=245, THA ASM PART: A = 8-97914-842-0 		1-51356-297-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 8-97914-842-0 		9-99110-116-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
THA ASM PART: A = 8-97914-842-0 		1-09000-195-0 02 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
THA ASM PART: A = 8-97914-842-0 		1-51353-001-0 02 1 -
45 NUT; CLIP,LEAF SPR,RR MAIN
M10 ASM PART: A = 8-97914-842-0 		9-09110-010-0 02 1 -
48 WASHER; CLIP,LEAF SPR
ID=10.2 ASM PART: A = 8-97914-842-0 		9-09150-010-0 02 1 -
