◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10946 - FXZ(THAI)EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#29812) — 39 parça

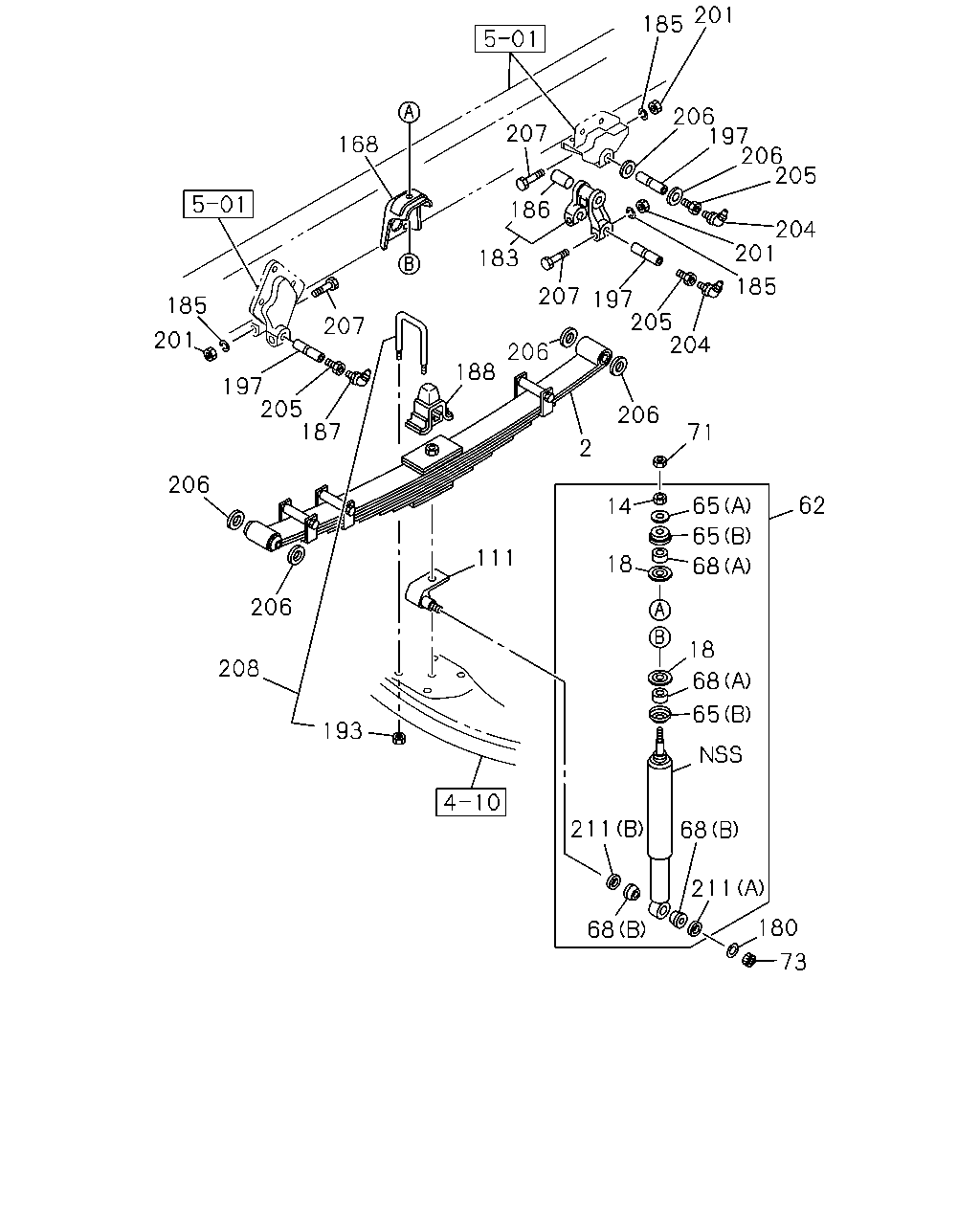

çizim 23361
201 185 206 197 206 205 207 168 186 204 201 183 185 207 197 205 204 185 207 201 206 188 197 205 187 206 71 2 206 62 65 14 65 111 18 68 206 18 208 68 65 193 211 68 211 180 68 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-97913-796-0 01 1 0407- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-97922-659-0 01 1 0407- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0407- ● ●
18 WASHER; CENTERING,S/ABS
THA 		8-97914-928-0 04 1 0407- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97914-855-1 02 1 0407- ● ●
65 WASHER; S/ABS
(B) THA 		8-97914-926-0 04 1 0407- ● ●
65 WASHER; S/ABS
(A) THA 		8-97914-929-0 02 1 0407- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 THA 		1-51631-069-0 04 1 0407- ● ●
68 BUSHING; S/ABS
(B) THA 		8-97914-923-0 04 1 0407- ● ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 0407-0512 ● ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0407-0512 ● ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-722-1 01 1 0407- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-723-1 01 1 0407- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0407- ● ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0407-0605 ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0407- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0407-0603 ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=38 THA 		1-51351-009-0 02 1 0407- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0407-0512 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		8-97916-008-0 02 1 0407- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0407-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0407- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0407-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 04 1 0407-0512 ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 04 1 0601- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0407- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0407- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0407-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0407- ● ●
211 WASHER; BRKT,SHOCK
(B) THA 		8-97914-924-0 02 1 0407- ● ●
211 WASHER; BRKT,SHOCK
(A) THA 		8-97914-925-0 02 1 0407- ● ●
