4-36 — POWER STEERING CONTROL; ENGINE SIDE (#29809) — 35 parça

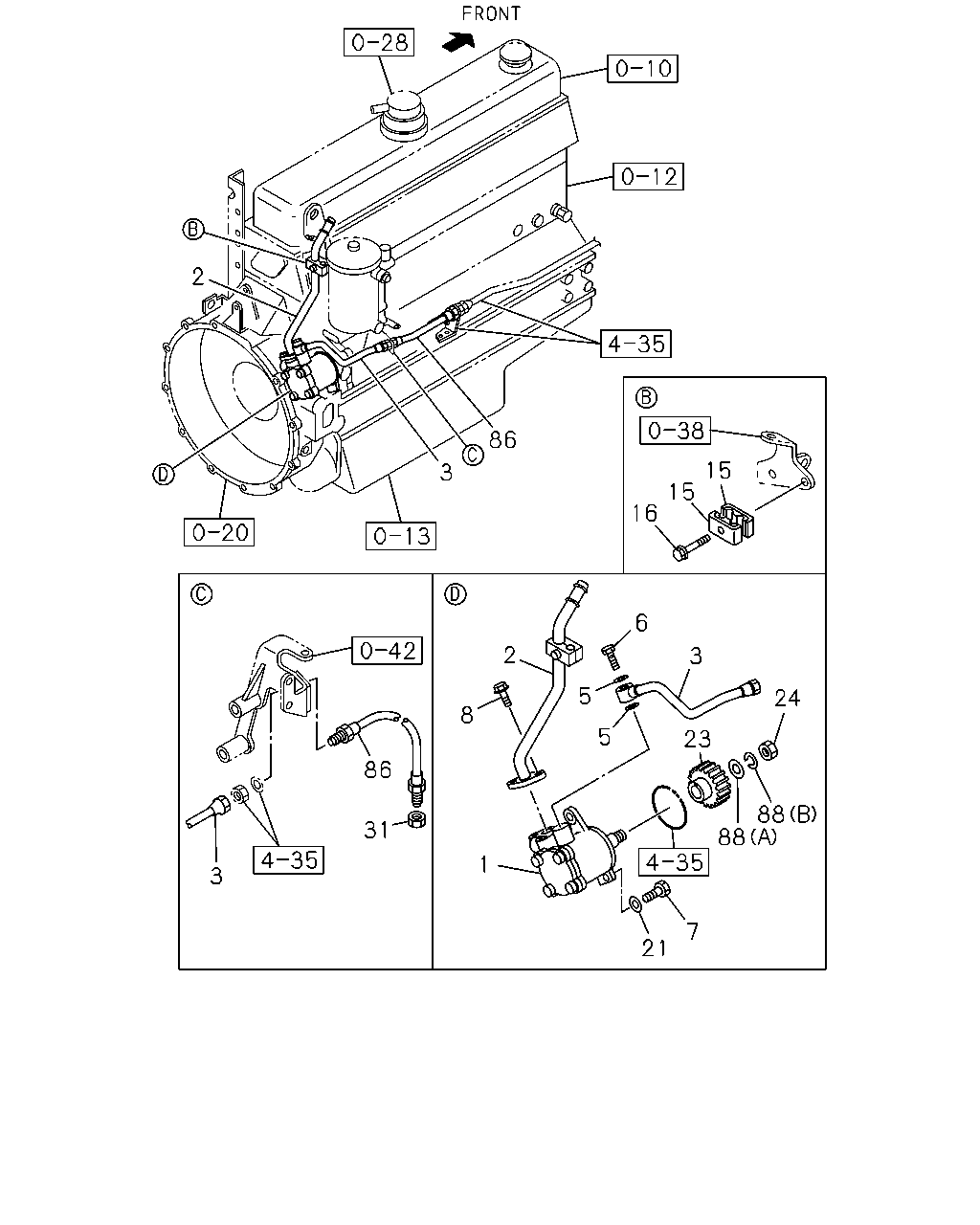

çizim 84310
2 86 15 3 15 16 6 2 3 5 24 8 5 23 86 88 88 31 1 3 7 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-2 01 1 0407- ● ●
2 PIPE ASM; OIL,SUCTION
6SD1 TCS ENG<83L> 		1-13313-963-0 01 1 0411- ●
3 PIPE; OIL,CHARGE,P/S
6SD1 TCS ENG<83L> 		1-13313-987-0 01 1 0411- ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 6SD1 TCS ENG<83L> ID=18.2 OD=24.4 		1-09630-087-0 02 1 0411- ●
6 BOLT; EYE,P/S PIPE
6SD1 TCS ENG<83L> M18X36 		1-09675-205-0 01 1 0411- ●
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 0407- ● ●
8 BOLT; OIL PIPE
6SD1 TCS ENG<83L> M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 0411- ●
15 CLIP; OIL PIPE SUCTION
6SD1 TCS ENG<83L> 		1-09701-210-0 02 1 0411- ●
16 BOLT; STAY,P/S OIL PUMP
6SD1 TCS ENG<83L> M6X45 FLANGE 		0-28080-645-0 01 1 0411-0512 ●
16 BOLT; STAY,P/S OIL PUMP
6SD1 TCS ENG<83L> M6X45 FLANGE THA 		0-28050-645-0 01 1 0601- ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 0407-0605 ● ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ●
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 0407- ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0407- ● ●
31 NUT; FLEX HOSE
M20 		9-99111-420-0 01 1 0407-0512 ● ●
31 NUT; FLEX HOSE
M20 		0-91111-520-0 01 1 0601- ● ●
86 HOSE; FLEX,P/S
6SD1 TCS ENG<83L> 		0-09536-500-0 01 1 0411-0606 ●
86 HOSE; FLEX,P/S
6SD1 TCS ENG<83L> 		0-99536-300-0 01 1 0607- ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 0407- ● ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 0407- ● ●

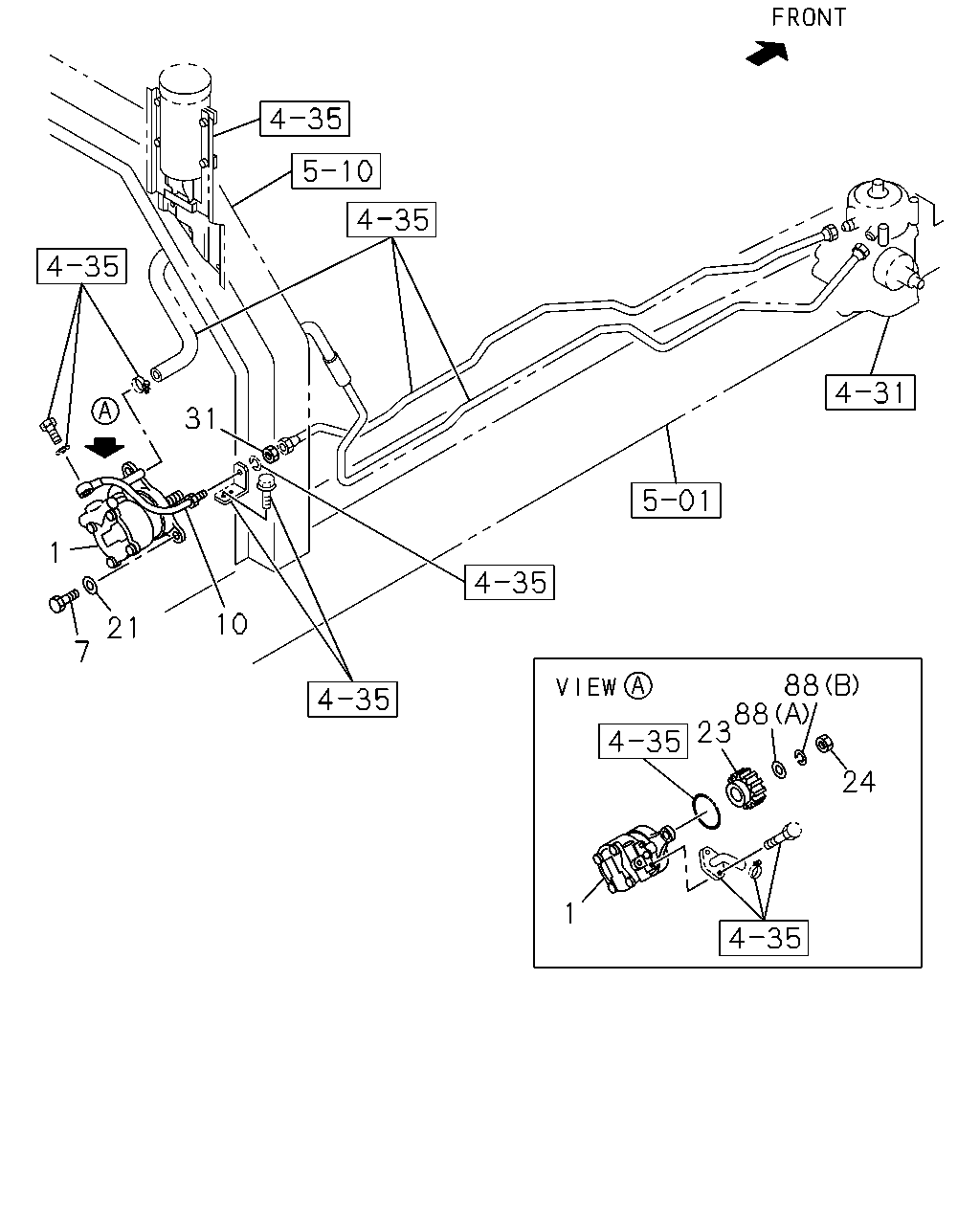

çizim 84743
31 1 10 21 7 88 88 23 24 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-2 01 1 0407- ● ●
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 0407- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 0-09539-520-0 01 1 0407-0410 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL 0-09539-520-0 01 1 0411-0606 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> 		0-09539-520-0 01 1 0411-0606 ●
10 HOSE; FLEX,P/S OIL PUMP,INL 0-89539-520-0 01 1 0607- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> 		0-89539-520-0 01 1 0607- ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 0407-0605 ● ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ●
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 0407- ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0407- ● ●
31 NUT; FLEX HOSE
M20 		9-99111-420-0 01 1 0407-0512 ● ●
31 NUT; FLEX HOSE
M20 		0-91111-520-0 01 1 0601- ● ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 0407- ● ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 0407- ● ●
