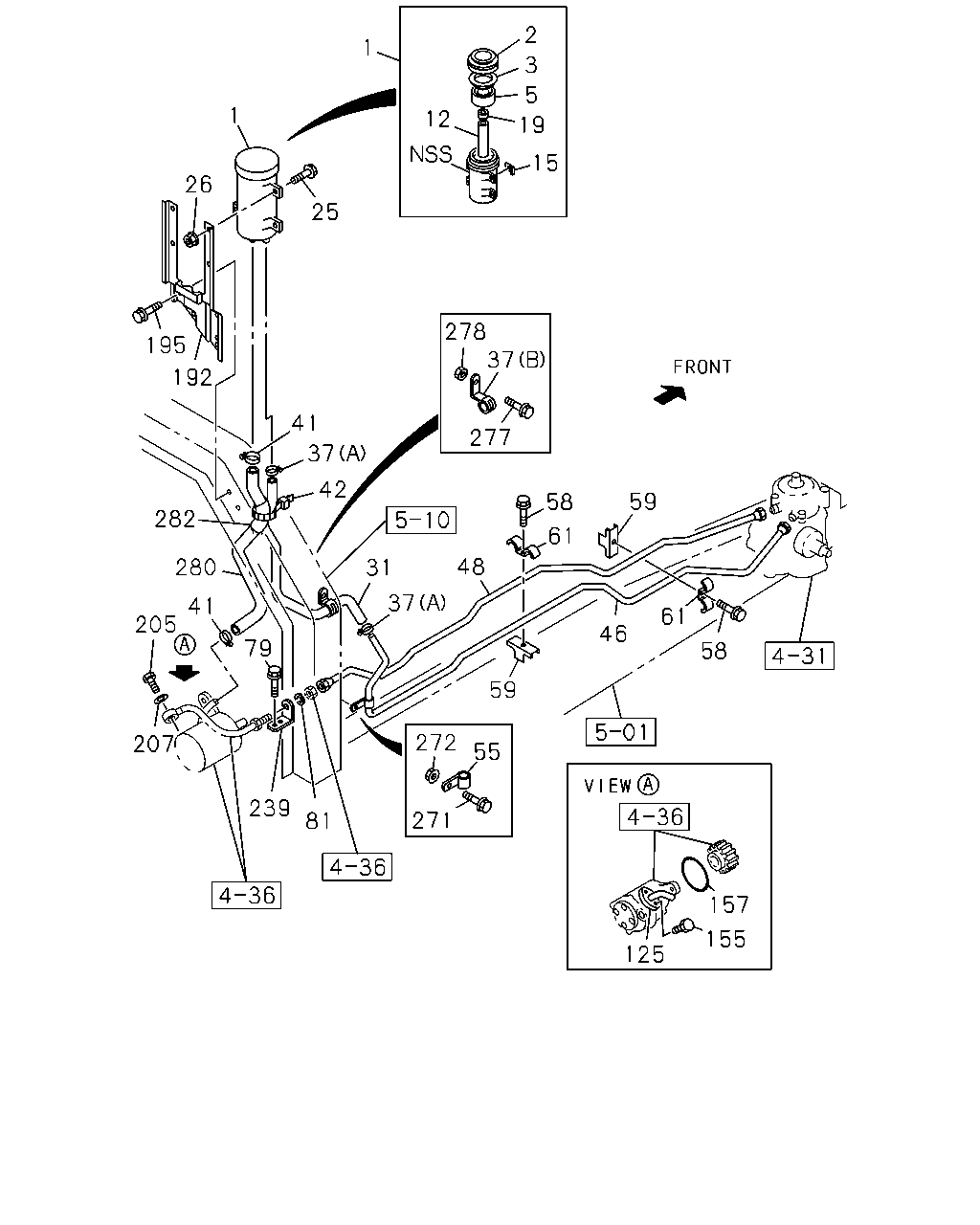

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#29808) — 150 parça

2 1 3 5 1 12 19 15 26 25 278 37 195 192 41 277 37 42 59 58 282 61 48 280 31 37 41 61 205 46 79 58 59 207 272 55 239 271 81 157 155 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	0407-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-237-2	01	1	0509-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0407-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0407-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0407-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0407-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0407-0508	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0407-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	0407-0611	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	0612-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	0407-	●	●
31	HOSE; P/S OIL TANK,INL	1-21115-465-2	01	1	0407-0410	●	●
31	HOSE; P/S OIL TANK,INL	1-21115-465-2	01	1	0411-	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L>	1-21115-465-2	01	1	0411-		●
31	HOSE; P/S OIL TANK,INL 6SD1 TCS ENG<83L>	1-21116-974-0	01	1	0411-		●
37	CLIP; HOSE,P/S (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0407-0410	●	●
37	CLIP; HOSE,P/S (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0411-	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0411-		●
37	CLIP; HOSE,P/S (A) ID=26 THA	1-09704-082-0	02	1	0407-	●	●
37	CLIP; HOSE,P/S 6SD1 TCS ENG<83L> (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0411-		●
37	CLIP; HOSE,P/S 6SD1 TCS ENG<83L> (D) ID=24 L=24	1-09701-001-1	01	1	0411-		●
41	CLIP; HOSE,P/S ID=32 THA	1-09704-085-0	02	1	0407-	●	●
42	CLIP; HOSE,P/S L=250	1-09707-126-0	01	1	0407-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21115-464-0	01	1	0407-0410	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21115-464-0	01	1	0411-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L>	1-21115-464-0	01	1	0411-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCS ENG<83L>	1-21117-031-0	01	1	0411-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-340-0	01	1	0407-0410	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-340-0	01	1	0411-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L>	1-21115-340-0	01	1	0411-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCS ENG<83L>	1-21117-030-0	01	1	0411-		●
55	CLIP; P/S RUBBER HOSE ID=16 L=40	9-09525-576-0	01	1	0407-0606	●	●
55	CLIP; P/S RUBBER HOSE ID=16 L=40	0-95235-576-0	01	1	0607-	●	●
58	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	02	1	0407-0512	●	●
58	BOLT; CLIP M8X45 FLANGE THA	0-28050-845-0	02	1	0601-	●	●
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0407-	●	●
61	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0407-	●	●
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0611	●	●
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●	●
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0407-0603	●	●
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-	●	●
125	CONNECTOR; P/S PUMP	1-21122-019-2	01	1	0407-	●
125	CONNECTOR; P/S PUMP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L>	1-21122-019-2	01	1	0407-		●
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0407-	●
155	BOLT; CONNECTOR 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0407-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	0407-	●	●
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	0407-	●	●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	03	1	0407-0611	●	●
195	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	03	1	0612-	●	●
205	BOLT; EYE,FLEX HOSE,P/S M18X36	1-09675-205-0	01	1	0407-0410	●	●
205	BOLT; EYE,FLEX HOSE,P/S M18X36	1-09675-205-0	01	1	0411-	●
205	BOLT; EYE,FLEX HOSE,P/S 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M18X36	1-09675-205-0	01	1	0411-		●
207	GASKET; FLEX HOSE,P/S PUMP ID=18	9-09571-418-0	02	1	0407-0410	●	●
207	GASKET; FLEX HOSE,P/S PUMP ID=18	9-09571-418-0	02	1	0411-	●
207	GASKET; FLEX HOSE,P/S PUMP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ID=18	9-09571-418-0	02	1	0411-		●
239	BRACKET; FLEX HOSE	1-47477-639-0	01	1	0407-	●
239	BRACKET; FLEX HOSE	1-47475-805-1	01	1	0407-0410		●
239	BRACKET; FLEX HOSE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L>	1-47475-805-1	01	1	0411-		●
239	BRACKET; FLEX HOSE 6SD1 TCS ENG<83L>	1-47479-256-0	01	1	0411-		●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28680-825-0	01	1	0407-0611	●	●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91150-108-0	01	1	0407-	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0407-0410	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG<31L> M8X25 FLANGE	0-28680-825-0	01	1	0411-0611	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X25 FLANGE	0-28680-825-0	01	1	0411-0611		●
277	BOLT; HOSE CLIP M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
277	BOLT; HOSE CLIP 6SD1 TCS ENG<83L> M8X25 FLANGE	0-28680-825-0	02	1	0411-0611		●
277	BOLT; HOSE CLIP 6SD1 TCS ENG<83L> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-		●
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0410	●	●
278	NUT; HOSE CLIP 6SD1 TCN ENG<31L> M8 FLANGE	0-91150-108-0	01	1	0411-	●
278	NUT; HOSE CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE	0-91150-108-0	01	1	0411-		●
278	NUT; HOSE CLIP 6SD1 TCS ENG<83L> M8 FLANGE	0-91150-108-0	02	1	0411-		●
280	HOSE; P/S OIL PUMP,INL	1-21115-048-1	01	1	0407-0410	●	●
280	HOSE; P/S OIL PUMP,INL	1-21115-048-1	01	1	0411-	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L>	1-21115-048-1	01	1	0411-		●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCS ENG<83L>	1-21116-804-0	01	1	0411-		●
282	SLEEVE; RUBBER,PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0407-	●	●

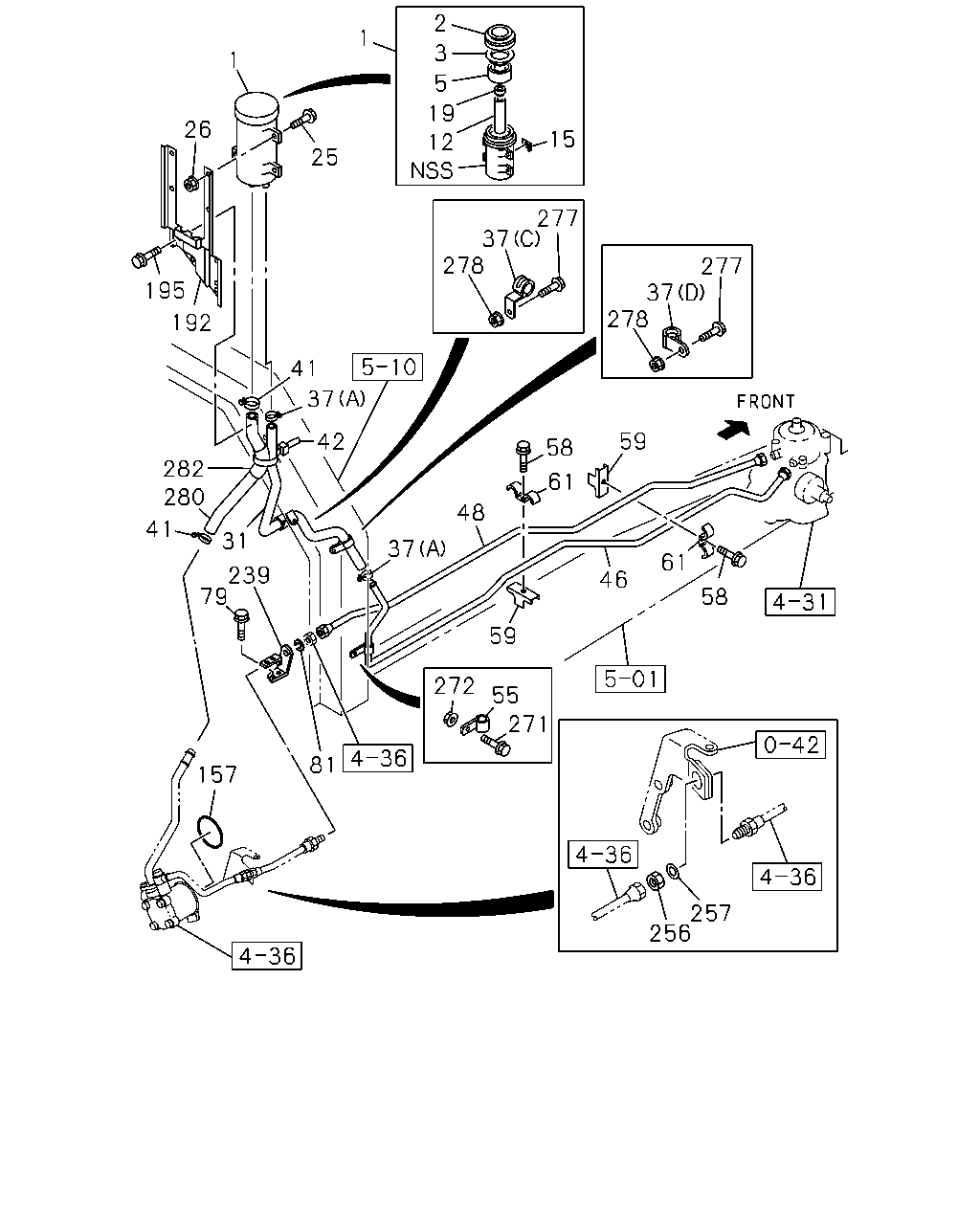

2 1 3 1 5 19 26 15 12 25 277 37 278 277 37 278 195 192 41 37 42 59 58 282 280 61 48 41 31 37 61 239 79 46 58 59 272 55 271 81 157 257 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	0407-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-237-2	01	1	0509-	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0407-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0407-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0407-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0407-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0407-0508	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0407-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	0407-0611	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	0612-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	0407-	●	●
31	HOSE; P/S OIL TANK,INL	1-21115-465-2	01	1	0407-0410	●	●
31	HOSE; P/S OIL TANK,INL	1-21115-465-2	01	1	0411-	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L>	1-21115-465-2	01	1	0411-		●
31	HOSE; P/S OIL TANK,INL 6SD1 TCS ENG<83L>	1-21116-974-0	01	1	0411-		●
37	CLIP; HOSE,P/S (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0407-0410	●	●
37	CLIP; HOSE,P/S (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0411-	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0411-		●
37	CLIP; HOSE,P/S (A) ID=26 THA	1-09704-082-0	02	1	0407-	●	●
37	CLIP; HOSE,P/S 6SD1 TCS ENG<83L> (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0411-		●
37	CLIP; HOSE,P/S 6SD1 TCS ENG<83L> (D) ID=24 L=24	1-09701-001-1	01	1	0411-		●
41	CLIP; HOSE,P/S ID=32 THA	1-09704-085-0	02	1	0407-	●	●
42	CLIP; HOSE,P/S L=250	1-09707-126-0	01	1	0407-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21115-464-0	01	1	0407-0410	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21115-464-0	01	1	0411-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L>	1-21115-464-0	01	1	0411-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCS ENG<83L>	1-21117-031-0	01	1	0411-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-340-0	01	1	0407-0410	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-340-0	01	1	0411-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L>	1-21115-340-0	01	1	0411-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCS ENG<83L>	1-21117-030-0	01	1	0411-		●
55	CLIP; P/S RUBBER HOSE ID=16 L=40	9-09525-576-0	01	1	0407-0606	●	●
55	CLIP; P/S RUBBER HOSE ID=16 L=40	0-95235-576-0	01	1	0607-	●	●
58	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	02	1	0407-0512	●	●
58	BOLT; CLIP M8X45 FLANGE THA	0-28050-845-0	02	1	0601-	●	●
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0407-	●	●
61	CLIP; OIL PIPE ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0407-	●	●
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0611	●	●
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●	●
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0407-0603	●	●
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	0407-	●	●
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	0407-	●	●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	03	1	0407-0611	●	●
195	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	03	1	0612-	●	●
239	BRACKET; FLEX HOSE	1-47477-639-0	01	1	0407-	●
239	BRACKET; FLEX HOSE	1-47475-805-1	01	1	0407-0410		●
239	BRACKET; FLEX HOSE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L>	1-47475-805-1	01	1	0411-		●
239	BRACKET; FLEX HOSE 6SD1 TCS ENG<83L>	1-47479-256-0	01	1	0411-		●
256	NUT; UNION 6SD1 TCS ENG<83L> M20	9-99111-420-0	01	1	0411-0512		●
256	NUT; UNION 6SD1 TCS ENG<83L> M20	0-91111-520-0	01	1	0601-		●
257	WASHER; LK,UNION 6SD1 TCS ENG<83L> ID=20.2	9-09150-520-0	01	1	0411-0603		●
257	WASHER; LK,UNION 6SD1 TCS ENG<83L> ID=20.2	0-91510-520-0	01	1	0604-		●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28680-825-0	01	1	0407-0611	●	●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91150-108-0	01	1	0407-	●	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0407-0410	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG<31L> M8X25 FLANGE	0-28680-825-0	01	1	0411-0611	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X25 FLANGE	0-28680-825-0	01	1	0411-0611		●
277	BOLT; HOSE CLIP M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
277	BOLT; HOSE CLIP 6SD1 TCS ENG<83L> M8X25 FLANGE	0-28680-825-0	02	1	0411-0611		●
277	BOLT; HOSE CLIP 6SD1 TCS ENG<83L> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-		●
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0410	●	●
278	NUT; HOSE CLIP 6SD1 TCN ENG<31L> M8 FLANGE	0-91150-108-0	01	1	0411-	●
278	NUT; HOSE CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE	0-91150-108-0	01	1	0411-		●
278	NUT; HOSE CLIP 6SD1 TCS ENG<83L> M8 FLANGE	0-91150-108-0	02	1	0411-		●
280	HOSE; P/S OIL PUMP,INL	1-21115-048-1	01	1	0407-0410	●	●
280	HOSE; P/S OIL PUMP,INL	1-21115-048-1	01	1	0411-	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L>	1-21115-048-1	01	1	0411-		●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCS ENG<83L>	1-21116-804-0	01	1	0411-		●
282	SLEEVE; RUBBER,PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0407-	●	●
