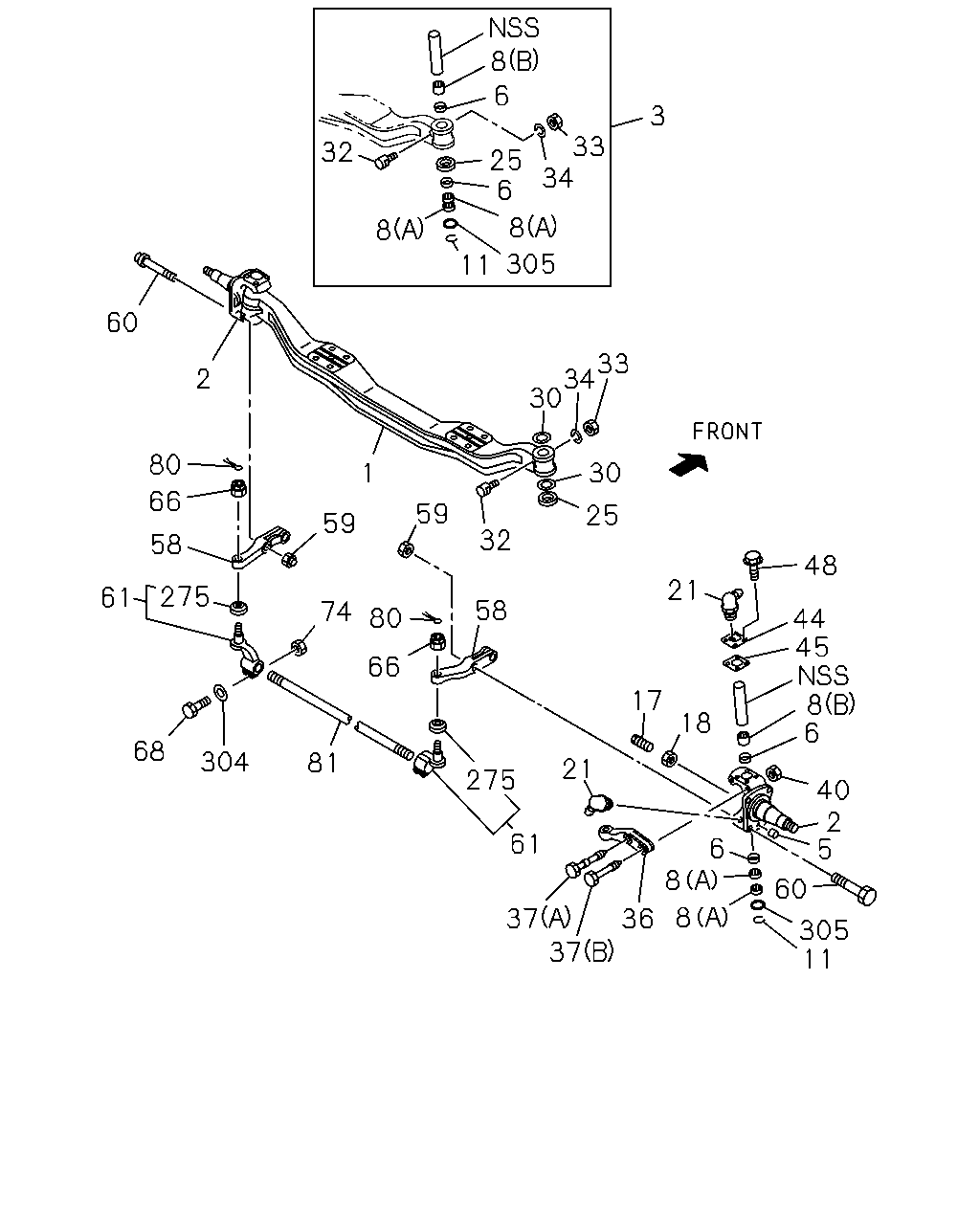

4-10 — FRONT AXLE (#29801) — 68 parça

8 6 3 32 33 34 25 6 8 8 11 305 60 33 34 30 2 80 30 1 66 59 25 59 32 58 48 21 275 61 58 74 80 44 45 8 6 66 17 18 68 304 81 21 275 40 2 5 61 6 8 60 8 37 37 36 305 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-113-2	01	1	0407-	●	●
2	KNUCKLE; FRT AXLE THA	1-43131-079-0	01	1	0407-	●	●
2	KNUCKLE; FRT AXLE THA	1-43132-079-0	01	1	0407-	●	●
3	KING PIN SET	1-87830-738-4	02	1	0407-	●	●
5	PIN; KNUCKLE TO DRUM COVER THA	1-09740-072-0	02	1	0407-	●	●
6	SEAL; KING PIN THA	9-09926-024-0	04	1	0407-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN THA	9-00096-242-0	04	1	0407-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN THA	9-00096-243-0	02	1	0407-	●	●
11	RING; SNAP,KNUCKLE PLUG THA	9-09950-204-0	02	1	0407-	●	●
17	BOLT; STOPPER KNUCKLE M18X43 THA	1-09009-065-0	02	1	0407-0705	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0407-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18 THA	0-91110-518-0	02	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	0407-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5?	0-90301-510-0	04	1	0601-	●	●
25	BEARING; THRUST,KING PIN NSK THA	1-09829-043-2	02	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900 THA	1-43171-185-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925 THA	1-43171-186-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950 THA	1-43171-187-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975 THA	1-43171-188-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000 THA	1-43171-189-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025 THA	1-43171-190-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050 THA	1-43171-191-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075 THA	1-43171-192-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100 THA	1-43171-193-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125 THA	1-43171-194-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150 THA	1-43171-195-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175 THA	1-43171-196-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200 THA	1-43171-197-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225 THA	1-43171-198-0	AR	1	0407-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250 THA	1-43171-199-0	AR	1	0407-	●	●
32	BOLT; KEY,KING PIN THA	1-43116-002-1	02	1	0407-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0407-0512	●	●
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0407-	●	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	0407-	●	●
37	BOLT; KNUCKLE ARM (A) M22X179 THA	1-09000-578-1	01	1	0407-0704	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-0	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM (B) M22X167 THA	9-09806-847-3	01	1	0407-0704	●	●
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-0	01	1	0705-	●	●
40	NUT; KNUCKLE ARM M22 THA	9-09844-670-1	02	1	0407-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
44	COVER; KING PIN THA	1-43175-014-1	02	1	0407-	●	●
45	GASKET; KING PIN COVER THA	1-42319-044-0	02	1	0407-	●	●
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	0407-0512	●	●
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	0601-	●	●
58	ARM; TIE ROD	1-43134-042-3	01	1	0407-	●	●
58	ARM; TIE ROD	1-43135-042-3	01	1	0407-	●	●
59	NUT; TIE ROD ARM M22 THA	9-09844-670-1	04	1	0407-0704	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●	●
60	BOLT; TIE ROD ARM M22X193 THA	1-09000-154-2	04	1	0407-0704	●	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-0	04	1	0705-	●	●
61	ROD END; TIE ROD	1-43150-801-0	01	1	0407-	●	●
61	ROD END; TIE ROD	1-43150-802-0	01	1	0407-	●	●
66	NUT; TIE ROD END M24 SLOTTED THA	1-09442-020-0	02	1	0407-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0407-0704	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0407-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0407-0606	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
81	ROD; TIE THA	1-43151-119-0	01	1	0407-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0407-	●	●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0407-0704	●	●
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0705-	●	●
305	COVER; KNUCKLE THA	1-43175-021-0	02	1	0407-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●
