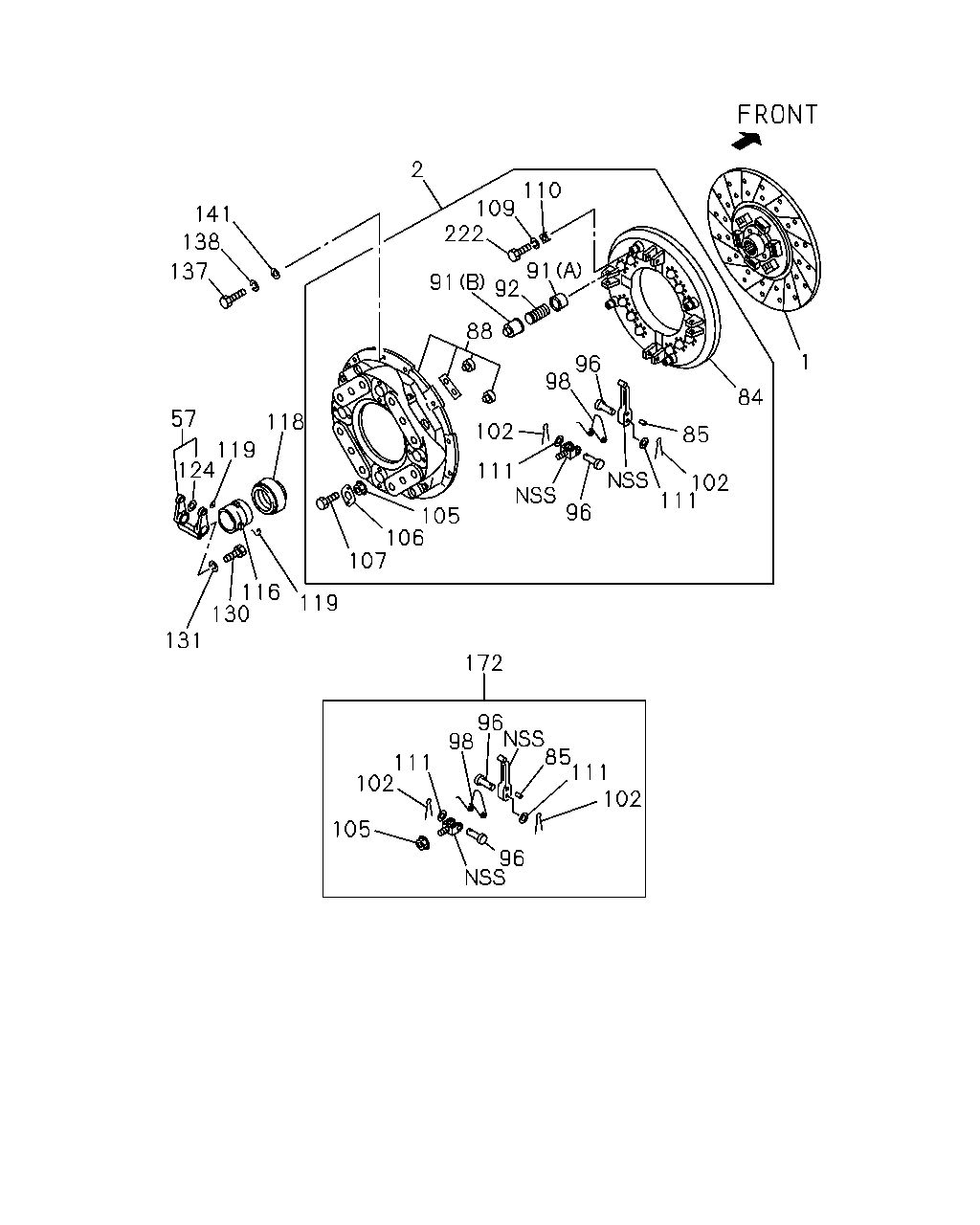

2-01A — CLUTCH (#2980) — 149 parça

102 111 85 96 98 111 102 105 96 172 119 116 130 131 124 57 119 118 107 106 105 111 102 96 111 102 85 84 1 96 98 91 92 88 91 222 109 110 2 141 138 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 17INCH	1-31240-542-0	01	1	9002-9011	●	●
1	DISC; CLUTCH 6RB1 STD ENG(07L) 17INCH	1-31240-542-0	01	1	9002-9011			●	●
1	DISC; CLUTCH 17INCH	1-31240-395-0	01	1	9012-9306	●	●
1	DISC; CLUTCH 6RB1 STD ENG(07L) 17INCH	1-31240-395-0	01	1	9012-9306			●	●
1	DISC; CLUTCH 6QA1 STD ENG(L24) 16INCH	1-31240-532-0	01	1	9002-9306			●	●
1	DISC; CLUTCH 16INCH	1-31240-532-0	01	1	9002-9306					●
1	DISC; CLUTCH 16INCH	1-31240-532-0	01	1	9307-9309			●	●	●
1	DISC; CLUTCH 15.5INCH	1-31240-677-0	01	1	9310-			●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-234-1	01	1	9002-9306	●	●
2	PLATE ASM; PRESSURE,CLU 6RB1 STD ENG(07L)	1-31220-234-1	01	1	9002-9306			●	●
2	PLATE ASM; PRESSURE,CLU 6QA1 STD ENG(L24)	1-31220-212-1	01	1	9002-9306			●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-212-1	01	1	9002-9306					●
2	PLATE ASM; PRESSURE,CLU	1-31220-212-1	01	1	9307-			●	●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9002-	●	●	●	●	●
84	PLATE; PRESSURE	1-31221-041-0	01	1	9002-9306	●	●
84	PLATE; PRESSURE 6RB1 STD ENG(07L)	1-31221-041-0	01	1	9002-9306			●	●
84	PLATE; PRESSURE 6QA1 STD ENG(L24)	1-31221-069-0	01	1	9002-9306			●	●
84	PLATE; PRESSURE	1-31221-069-0	01	1	9002-9306					●
84	PLATE; PRESSURE	1-31221-069-0	01	1	9307-			●	●	●
85	BUSHING; RELEASE LEVER	1-31239-003-0	08	1	9002-9306	●	●
85	BUSHING; RELEASE LEVER 6RB1 STD ENG(07L)	1-31239-003-0	08	1	9002-9306			●	●
85	BUSHING; RELEASE LEVER 6QA1 STD ENG(L24)	9-31239-116-0	08	1	9002-9306			●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9002-9306					●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9307-			●	●	●
88	COVER SUB ASM; CLU	1-31210-009-0	01	1	9307-			●	●	●
91	SEAT; SPR (A)	1-31219-032-0	04	1	9002-9306	●	●
91	SEAT; SPR 6RB1 STD ENG(07L) (A)	1-31219-032-0	04	1	9002-9306			●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	9002-9306	●	●
91	SEAT; SPR 6RB1 STD ENG(07L) (B)	1-31219-033-0	04	1	9002-9306			●	●
92	SPRING; CLU	1-09580-273-0	12	1	9002-9306	●	●
92	SPRING; CLU 6RB1 STD ENG(07L)	1-09580-273-0	12	1	9002-9306			●	●
92	SPRING; CLU 6QA1 STD ENG(L24)	1-31214-004-0	16	1	9002-9306			●	●
92	SPRING; CLU	1-31214-004-0	16	1	9002-9306					●
92	SPRING; CLU	1-31214-004-0	16	1	9307-			●	●	●
96	PIN; RELEASE LEVER 10X77	1-31232-010-0	08	1	9002-9306	●	●
96	PIN; RELEASE LEVER 6RB1 STD ENG(07L) 10X77	1-31232-010-0	08	1	9002-9306			●	●
96	PIN; RELEASE LEVER 6QA1 STD ENG(L24) 10X77	1-31232-001-0	04	1	9002-9306			●	●
96	PIN; RELEASE LEVER 10X77	1-31232-001-0	04	1	9002-9306					●
96	PIN; RELEASE LEVER 6QA1 STD ENG(L24) D10X57	9-31232-019-0	04	1	9002-9306			●	●
96	PIN; RELEASE LEVER D10X57	9-31232-019-0	04	1	9002-9306					●
96	PIN; RELEASE LEVER 10X77	1-31232-001-0	04	1	9307-			●	●	●
96	PIN; RELEASE LEVER D10X57	9-31232-019-0	04	1	9307-			●	●	●
98	SPRING; RETURN	1-31233-001-0	04	1	9002-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9002-9306	●	●
102	PIN; SPLIT,RELEASE LEVER 6RB1 STD ENG(07L) OD=2.7 L=22	9-08113-022-0	08	1	9002-9306			●	●
102	PIN; SPLIT,RELEASE LEVER 6QA1 STD ENG(L24) OD=2.7 L=22	9-08103-022-0	08	1	9002-9306			●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9002-9306					●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9307-			●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9002-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-002-0	04	1	9002-9007	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9008-	●	●	●	●	●
107	BOLT; LK PLATE	1-31239-010-0	08	1	9002-9007	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9008-	●	●	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9002-9306	●	●
109	WASHER; LK,STRAP 6RB1 STD ENG(07L) ID=12.2	9-09150-512-0	04	1	9002-9306			●	●
109	WASHER; LK,STRAP 6QA1 STD ENG(L24) ID=10.2	9-09150-610-0	04	1	9002-9306			●	●
109	WASHER; LK,STRAP ID=10.2	9-09150-610-0	04	1	9002-9306					●
109	WASHER; LK,STRAP ID=10.2	9-09150-610-0	04	1	9307-			●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9002-9306	●	●
110	WASHER; SPECIAL,STRAP 6RB1 STD ENG(07L) ID=12	1-31229-006-0	04	1	9002-9306			●	●
110	WASHER; SPECIAL,STRAP 6QA1 STD ENG(L24)	9-09854-125-0	04	1	9002-9306			●	●
110	WASHER; SPECIAL,STRAP	9-09854-125-0	04	1	9002-9306					●
110	WASHER; SPECIAL,STRAP	9-09854-125-0	04	1	9307-			●	●	●
111	WASHER; PL,STRAP	9-09651-098-0	08	1	9002-9306	●	●
111	WASHER; PL,STRAP 6RB1 STD ENG(07L)	9-09651-098-0	08	1	9002-9306			●	●
111	WASHER; PL,STRAP 6QA1 STD ENG(L24)	9-31239-039-0	08	1	9002-9306			●	●
111	WASHER; PL,STRAP	9-31239-039-0	08	1	9002-9306					●
111	WASHER; PL,STRAP	9-31239-039-0	08	1	9307-			●	●	●
116	BLOCK; SHIFT,CLU	1-31321-067-0	01	1	9002-9003	●	●
116	BLOCK; SHIFT,CLU 6RB1 STD ENG(07L)	1-31321-067-0	01	1	9002-9003			●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9004-9306	●	●
116	BLOCK; SHIFT,CLU 6RB1 STD ENG(07L)	1-31321-073-2	01	1	9004-9306			●	●
116	BLOCK; SHIFT,CLU 6QA1 STD ENG(L24)	1-31321-068-0	01	1	9002-9003			●	●
116	BLOCK; SHIFT,CLU	1-31321-068-0	01	1	9002-9003					●
116	BLOCK; SHIFT,CLU 6QA1 STD ENG(L24)	1-31321-074-2	01	1	9004-9006			●	●
116	BLOCK; SHIFT,CLU	1-31321-074-2	01	1	9004-9006					●
116	BLOCK; SHIFT,CLU 6QA1 STD ENG(L24)	1-31321-076-0	01	1	9007-9306			●	●
116	BLOCK; SHIFT,CLU	1-31321-076-0	01	1	9007-9306					●
116	BLOCK; SHIFT,CLU	1-31321-076-0	01	1	9307-			●	●	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9002-9003	●	●	●	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9004-	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9002-	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9002-	●	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9002-	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9002-	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9002-	●	●	●	●	●
137	BOLT; CLU COVER M10X28	0-23801-028-0	12	1	9002-9106	●	●
137	BOLT; CLU COVER 6RB1 STD ENG(07L) M10X28	0-23801-028-0	12	1	9002-9106			●	●
137	BOLT; CLU COVER M10X25	0-23801-025-0	12	1	9107-9306	●	●
137	BOLT; CLU COVER 6RB1 STD ENG(07L) M10X25	0-23801-025-0	12	1	9107-9306			●	●
137	BOLT; CLU COVER 6QA1 STD ENG(L24) M12X28	9-02351-228-0	08	1	9002-9005			●	●
137	BOLT; CLU COVER M12X28	9-02351-228-0	08	1	9002-9005					●
137	BOLT; CLU COVER 6QA1 STD ENG(L24) M12X28	0-23801-228-0	08	1	9006-			●	●
137	BOLT; CLU COVER M12X28	0-23801-228-0	08	1	9006-					●
137	BOLT; CLU COVER 6QA1 STD ENG(L24) M12X38	9-02351-238-0	04	1	9002-9005			●	●
137	BOLT; CLU COVER M12X38	9-02351-238-0	04	1	9002-9005					●
137	BOLT; CLU COVER 6QA1 STD ENG(L24) M12X38	0-23801-238-0	04	1	9006-			●	●
137	BOLT; CLU COVER M12X38	0-23801-238-0	04	1	9006-					●
138	WASHER; LK,CLU COVER ID=10.2	9-09150-510-0	12	1	9002-9306	●	●
138	WASHER; LK,CLU COVER 6RB1 STD ENG(07L) ID=10.2	9-09150-510-0	12	1	9002-9306			●	●
138	WASHER; LK,CLU COVER 6QA1 STD ENG(L24) ID=12.2	9-09150-612-0	12	1	9002-9306			●	●
138	WASHER; LK,CLU COVER ID=12.2	9-09150-612-0	12	1	9002-9306					●
138	WASHER; LK,CLU COVER ID=12.2	9-09150-612-0	12	1	9307-			●	●	●
141	WASHER; PL,CLU COVER 6QA1 STD ENG(L24) ID=12.5 OD=26	9-09164-612-0	04	1	9002-			●	●
141	WASHER; PL,CLU COVER ID=12.5 OD=26	9-09164-612-0	04	1	9002-					●
172	LEVER KIT; RELEASE,CLU	1-87830-526-1	01	1	9002-9306	●	●
172	LEVER KIT; RELEASE,CLU 6RB1 STD ENG(07L)	1-87830-526-1	01	1	9002-9306			●	●
172	LEVER KIT; RELEASE,CLU 6QA1 STD ENG(L24)	1-87830-502-0	01	1	9002-9306			●	●
172	LEVER KIT; RELEASE,CLU	1-87830-502-0	01	1	9002-9306					●
172	LEVER KIT; RELEASE,CLU	1-87830-502-0	01	1	9307-			●	●	●
222	BOLT; STRAP M12X30	1-09040-016-0	04	1	9002-9306	●	●
222	BOLT; STRAP 6RB1 STD ENG(07L) M12X30	1-09040-016-0	04	1	9002-9306			●	●
222	BOLT; STRAP 6QA1 STD ENG(L24) M10X30	9-09809-126-0	04	1	9002-9306			●	●
222	BOLT; STRAP M10X30	9-09809-126-0	04	1	9002-9306					●
222	BOLT; STRAP M10X30	9-09809-126-0	04	1	9307-			●	●	●

157 171 161 170 155 220 148 149 157 154 169 170 161 171 162 155 127 125 127 122 123 128 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
120	HOSE; FLEX,SHIFT BLOCK,CLU L=500	1-09364-651-0	01	1	9002-	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK	9-09917-576-0	01	1	9002-	●	●	●	●	●
125	SHAFT; CLU W/LEVER L=477	1-31342-240-0	01	1	9002-9306	●	●
125	SHAFT; CLU 6RB1 STD ENG(07L) W/LEVER L=477	1-31342-240-0	01	1	9002-9306			●	●
125	SHAFT; CLU 6QA1 STD ENG(L24) W/LEVER L=477	1-31342-244-0	01	1	9002-9306			●	●
125	SHAFT; CLU W/LEVER L=477	1-31342-244-0	01	1	9002-9306					●
125	SHAFT; CLU W/LEVER L=477	1-31342-244-0	01	1	9307-			●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9002-	●	●	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9002-9306	●	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9002-			●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9002-	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9002-9306			●	●	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9307-9312			●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-			●	●	●
155	BRACKET; MINIPACK (B)	1-31429-288-0	01	1	9002-9306	●	●
155	BRACKET; MINIPACK (A)	1-31429-289-1	01	1	9002-9306	●	●
155	BRACKET; MINIPACK 6QA1 STD ENG(L24) (B)	1-31429-298-0	01	1	9002-			●	●
155	BRACKET; MINIPACK (B)	1-31429-298-0	01	1	9002-					●
155	BRACKET; MINIPACK 6QA1 STD ENG(L24) (A)	1-31429-299-0	01	1	9002-			●	●
155	BRACKET; MINIPACK (A)	1-31429-299-0	01	1	9002-					●
155	BRACKET; MINIPACK 6RB1 STD ENG(07L) (B)	1-31429-290-0	01	1	9002-9306			●	●
155	BRACKET; MINIPACK 6RB1 STD ENG(07L) (A)	1-31429-291-2	01	1	9002-9205			●	●
155	BRACKET; MINIPACK 6RB1 STD ENG(07L) (A)	1-31429-345-0	01	1	9206-9306			●	●
157	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	03	1	9002-9205	●	●	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9206-	●	●	●	●	●
161	NUT; BRKT M10	9-09110-410-0	03	1	9002-9205	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9206-9306	●	●
169	PIN; JOINT,MINIPACK	1-31424-001-1	01	1	9002-9306	●	●
170	NUT; BOOSTER FIX M10	9-09110-410-0	03	1	9002-9205			●	●	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	9206-			●	●	●
171	WASHER; LK,BOOSTER FIX ID=10.2	9-09150-510-0	03	1	9002-9205			●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-344-0	01	1	9002-	●	●	●	●	●
