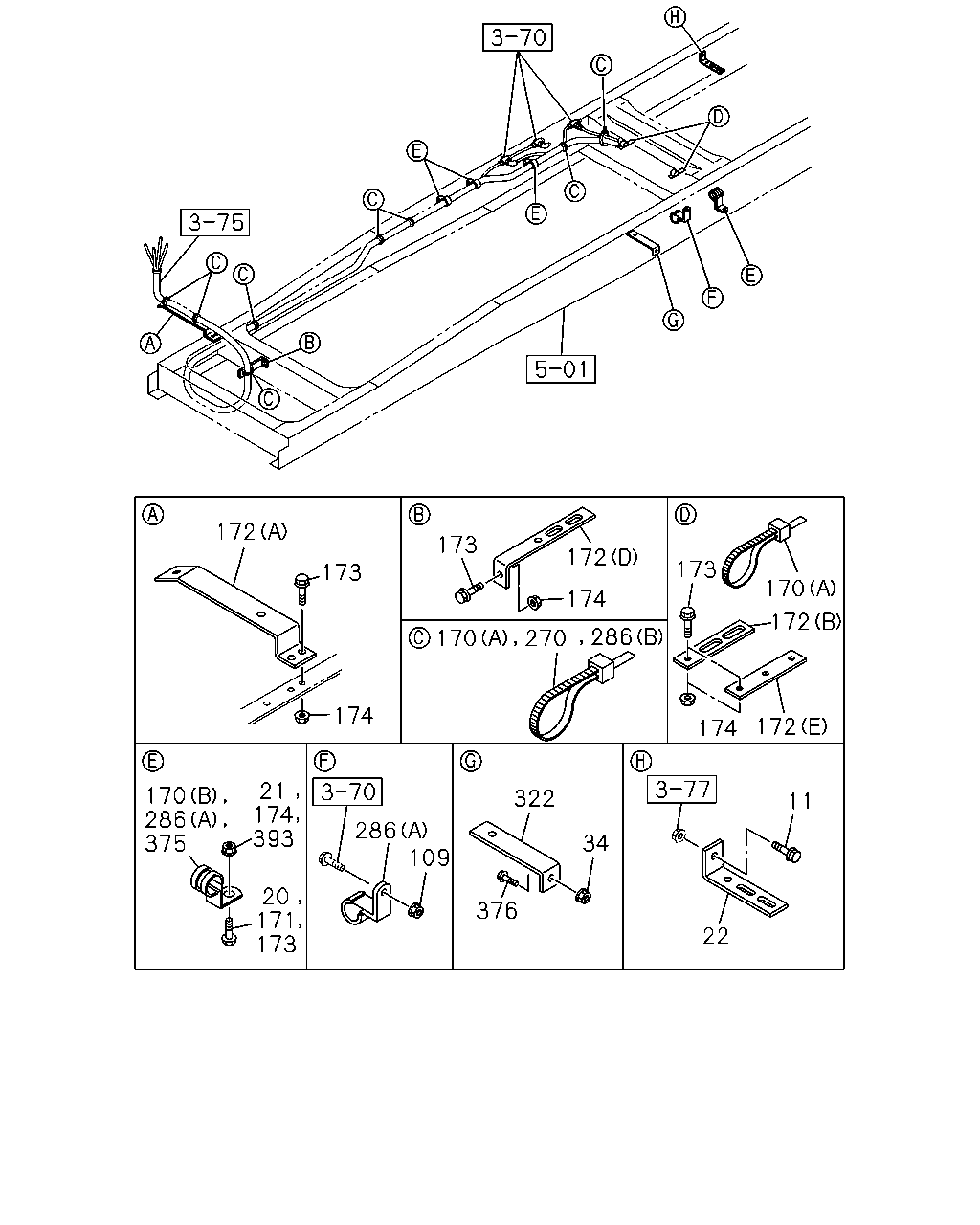

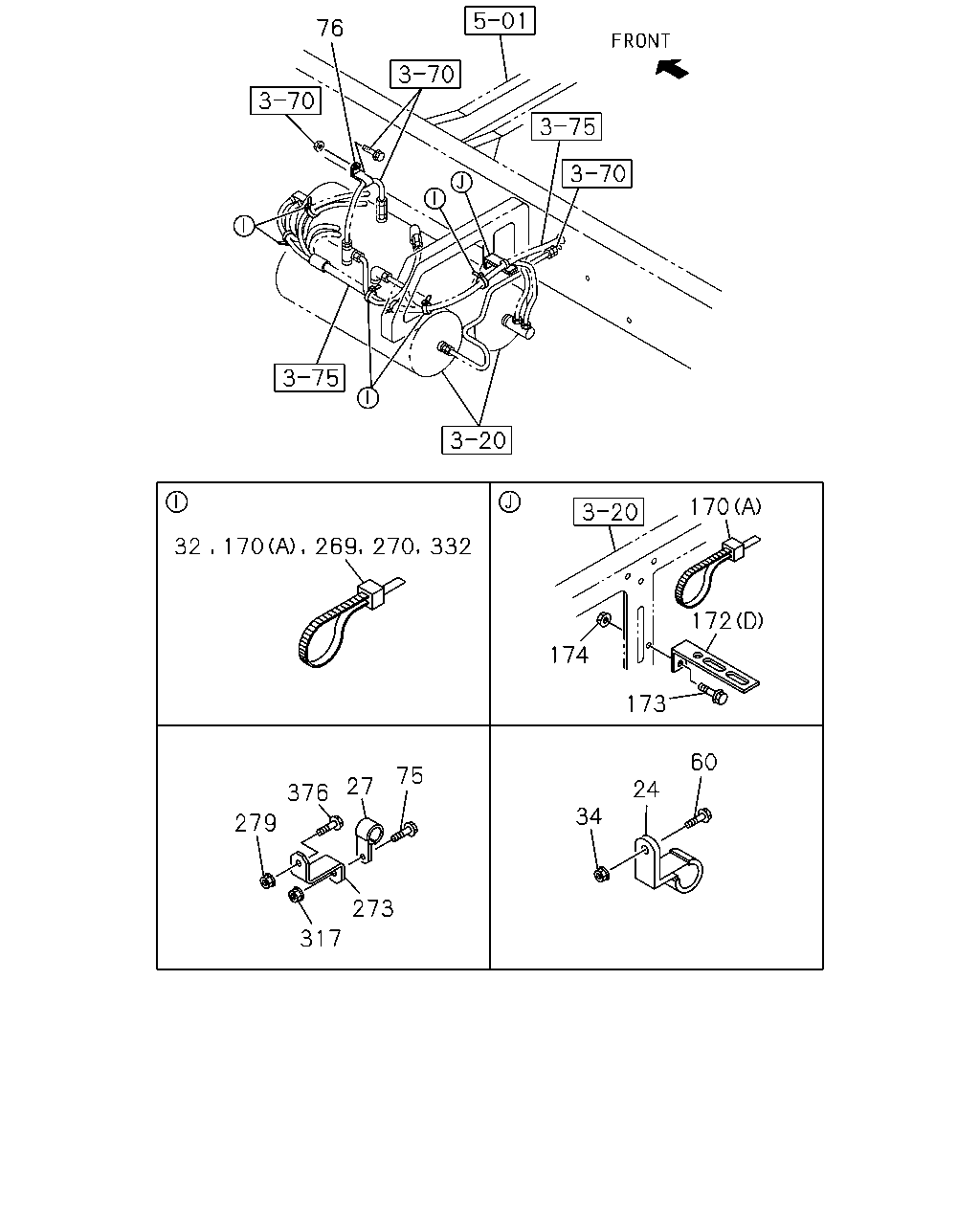

3-78 — FIXING PARTS; AIR PIPING (#29798) — 151 parça

76 170 32 170 172 174 173 60 75 27 24 376 34 279 273 317 269 270 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; PIPE ID=15 H=24 L=20 THA	1-09700-606-0	01	1	0407-0410	●	●
24	CLIP; PIPE ID=15 H=24 L=20 THA	1-09700-606-0	01	1	0411-	●
24	CLIP; PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ID=15 H=24 L=20 THA	1-09700-606-0	01	1	0411-		●
27	CLIP; FLEX HOSE 6SD1 TCS ENG<83L> ID=15 L=28 THA	1-09701-216-0	01	1	0411-		●
32	CLIP; BAND,RUBBER SLEEVE L=250	1-09707-126-0	01	1	0407-0410	●	●
32	CLIP; BAND,RUBBER SLEEVE L=250	1-09707-126-0	01	1	0411-	●
32	CLIP; BAND,RUBBER SLEEVE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> L=250	1-09707-126-0	01	1	0411-		●
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0410	●	●
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0410		●
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0411-		●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28680-830-0	01	1	0407-0410	●	●
60	BOLT; CLIP FIX 6SD1 TCN ENG<31L> M8X30 FLANGE	0-28680-830-0	01	1	0411-0611	●
60	BOLT; CLIP FIX 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE	0-28680-830-0	01	1	0411-0611		●
60	BOLT; CLIP FIX 6SD1 TCN ENG<31L> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-	●
60	BOLT; CLIP FIX 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-		●
75	BOLT; CLIP 6SD1 TCS ENG<83L> M8X20 FLANGE	0-28680-820-0	01	1	0411-0512		●
75	BOLT; CLIP 6SD1 TCS ENG<83L> M8X20 FLANGE THA	0-28650-820-0	01	1	0601-		●
76	CLIP; NYLON TUBE ID=13 H=50 L=25	1-09700-529-0	01	1	0407-	●	●
170	CLIP; NYLON TUBE (B) ID=35 H=45 L=33	1-09700-947-0	03	1	0407-0410	●	●
170	CLIP; NYLON TUBE (B) ID=35 H=45 L=33	1-09700-947-0	03	1	0411-	●
170	CLIP; NYLON TUBE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B) ID=35 H=45 L=33	1-09700-947-0	03	1	0411-		●
170	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	18	1	0407-0410	●	●
170	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	18	1	0411-	●
170	CLIP; NYLON TUBE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (A) L=250	1-09707-126-0	18	1	0411-		●
170	CLIP; NYLON TUBE 6SD1 TCS ENG<83L> (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0411-		●
170	CLIP; NYLON TUBE 6SD1 TCS ENG<83L> (A) L=250	1-09707-126-0	22	1	0411-		●
172	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	0407-0410	●	●
172	BRACKET; TUBE CLIP 6SD1 TCN ENG<31L> (B)	1-47477-514-3	02	1	0411-	●
172	BRACKET; TUBE CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B)	1-47477-514-3	02	1	0411-		●
172	BRACKET; TUBE CLIP (D) L=150	1-47477-629-2	01	1	0407-	●	●
172	BRACKET; TUBE CLIP (D) L=150	1-47477-629-2	01	1	0407-	●	●
172	BRACKET; TUBE CLIP (A)	1-47477-961-0	01	1	0407-	●	●
172	BRACKET; TUBE CLIP 6SD1 TCS ENG<83L> (E) L=100	1-47477-620-1	02	1	0411-		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0611	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0611	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0611	●	●
173	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●	●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	03	1	0407-0410	●	●
173	BOLT; CLIP BRKT 6SD1 TCN ENG<31L> M8X30 FLANGE	0-28680-830-0	03	1	0411-0611	●
173	BOLT; CLIP BRKT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE	0-28680-830-0	03	1	0411-0611		●
173	BOLT; CLIP BRKT 6SD1 TCN ENG<31L> M8X30 FLANGE THA	0-28650-830-0	03	1	0612-	●
173	BOLT; CLIP BRKT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE THA	0-28650-830-0	03	1	0612-		●
173	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0611	●	●
173	BOLT; CLIP BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	0612-	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0410	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0410	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0411-0602	●	●
174	NUT; CLIP BRKT 6SD1 TCN ENG<31L> M8 FLANGE	0-91150-108-0	03	1	0411-0602	●
174	NUT; CLIP BRKT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE	0-91150-108-0	03	1	0411-0602		●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0602	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602	●	●
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	03	1	0603-	●	●
174	NUT; CLIP BRKT 6SD1 TCN ENG<31L> M8 FLANGE THA	0-91180-108-0	03	1	0603-	●
174	NUT; CLIP BRKT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE THA	0-91180-108-0	03	1	0603-		●
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	01	1	0603-	●	●
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	02	1	0603-	●	●
269	CLIP; BAND,NYLON TUBE 6SD1 TCS ENG<83L> L=250	1-09707-126-0	01	1	0411-		●
270	CLIP; NYLON TUBE L=250	1-09707-126-0	02	1	0407-	●
270	CLIP; NYLON TUBE L=140 THA	8-97920-656-0	01	1	0407-	●
270	CLIP; NYLON TUBE L=250	1-09707-126-0	05	1	0407-		●
273	BRACKET; CLIP 6SD1 TCS ENG<83L>	1-47476-658-0	01	1	0411-		●
279	NUT; BRKT 6SD1 TCS ENG<83L> M8 FLANGE	0-91150-108-0	01	1	0411-		●
317	NUT; CLIP 6SD1 TCS ENG<83L> M8 FLANGE	0-91150-108-0	01	1	0411-		●
332	CLIP; BAND L=250	1-09707-126-0	03	1	0407-	●
376	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0410		●
376	BOLT; BRKT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X35 FLANGE	0-28680-835-0	01	1	0411-0611		●
376	BOLT; BRKT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X35 FLANGE THA	0-28650-835-0	01	1	0612-		●
376	BOLT; BRKT 6SD1 TCS ENG<83L> M8X30 FLANGE	0-28680-830-0	01	1	0411-0611		●
376	BOLT; BRKT 6SD1 TCS ENG<83L> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-		●

356 300 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0407-	●	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0407-	●	●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0407-	●	●

172 173 172 173 173 170 174 172 286 170 270 174 172 174 21 174 393 170 286 375 322 11 286 109 34 20 171 173 376 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0611	●	●
11	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	0612-	●	●
20	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0407-0410	●	●
20	BOLT; CLIP 6SD1 TCN ENG<31L> M8X30 FLANGE	0-28680-830-0	02	1	0411-0611	●
20	BOLT; CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE	0-28680-830-0	02	1	0411-0611		●
20	BOLT; CLIP 6SD1 TCN ENG<31L> M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●
20	BOLT; CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE THA	0-28650-830-0	02	1	0612-		●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0410	●	●
21	NUT; CLIP 6SD1 TCN ENG<31L> M8 FLANGE	0-91150-108-0	02	1	0411-0602	●
21	NUT; CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE	0-91150-108-0	02	1	0411-0602		●
21	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	0603-	●
21	NUT; CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE THA	0-91180-108-0	02	1	0603-		●
22	BRACKET; CLIP L=100 H=30	1-47477-645-2	01	1	0407-	●	●
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0410	●	●
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0410		●
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0411-		●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0407-		●
170	CLIP; NYLON TUBE (B) ID=35 H=45 L=33	1-09700-947-0	03	1	0407-0410	●	●
170	CLIP; NYLON TUBE (B) ID=35 H=45 L=33	1-09700-947-0	03	1	0411-	●
170	CLIP; NYLON TUBE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B) ID=35 H=45 L=33	1-09700-947-0	03	1	0411-		●
170	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	18	1	0407-0410	●	●
170	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	18	1	0411-	●
170	CLIP; NYLON TUBE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (A) L=250	1-09707-126-0	18	1	0411-		●
170	CLIP; NYLON TUBE 6SD1 TCS ENG<83L> (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0411-		●
170	CLIP; NYLON TUBE 6SD1 TCS ENG<83L> (A) L=250	1-09707-126-0	22	1	0411-		●
171	BOLT; TUBE CLIP 6SD1 TCS ENG<83L> M8X25 FLANGE	0-28680-825-0	01	1	0411-0611		●
171	BOLT; TUBE CLIP 6SD1 TCS ENG<83L> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-		●
172	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	0407-0410	●	●
172	BRACKET; TUBE CLIP 6SD1 TCN ENG<31L> (B)	1-47477-514-3	02	1	0411-	●
172	BRACKET; TUBE CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B)	1-47477-514-3	02	1	0411-		●
172	BRACKET; TUBE CLIP (D) L=150	1-47477-629-2	01	1	0407-	●	●
172	BRACKET; TUBE CLIP (D) L=150	1-47477-629-2	01	1	0407-	●	●
172	BRACKET; TUBE CLIP (A)	1-47477-961-0	01	1	0407-	●	●
172	BRACKET; TUBE CLIP 6SD1 TCS ENG<83L> (E) L=100	1-47477-620-1	02	1	0411-		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0611	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0611	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0611	●	●
173	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●	●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	03	1	0407-0410	●	●
173	BOLT; CLIP BRKT 6SD1 TCN ENG<31L> M8X30 FLANGE	0-28680-830-0	03	1	0411-0611	●
173	BOLT; CLIP BRKT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE	0-28680-830-0	03	1	0411-0611		●
173	BOLT; CLIP BRKT 6SD1 TCN ENG<31L> M8X30 FLANGE THA	0-28650-830-0	03	1	0612-	●
173	BOLT; CLIP BRKT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE THA	0-28650-830-0	03	1	0612-		●
173	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0611	●	●
173	BOLT; CLIP BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	0612-	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0410	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0410	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0411-0602	●	●
174	NUT; CLIP BRKT 6SD1 TCN ENG<31L> M8 FLANGE	0-91150-108-0	03	1	0411-0602	●
174	NUT; CLIP BRKT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE	0-91150-108-0	03	1	0411-0602		●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0602	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602	●	●
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	03	1	0603-	●	●
174	NUT; CLIP BRKT 6SD1 TCN ENG<31L> M8 FLANGE THA	0-91180-108-0	03	1	0603-	●
174	NUT; CLIP BRKT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE THA	0-91180-108-0	03	1	0603-		●
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	01	1	0603-	●	●
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	02	1	0603-	●	●
270	CLIP; NYLON TUBE L=250	1-09707-126-0	02	1	0407-	●
270	CLIP; NYLON TUBE L=140 THA	8-97920-656-0	01	1	0407-	●
270	CLIP; NYLON TUBE L=250	1-09707-126-0	05	1	0407-		●
286	CLIP; NYLON TUBE (A) ID=9 H=60	1-09700-956-0	01	1	0407-		●
286	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0407-0410		●
286	CLIP; NYLON TUBE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B) L=250	1-09707-126-0	01	1	0411-0702		●
286	CLIP; NYLON TUBE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B) L=250	1-09707-126-0	02	1	0703-		●
322	BRACKET; CLIP L=90	1-47477-755-1	01	1	0407-0410		●
322	BRACKET; CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> L=90	1-47477-755-1	01	1	0411-		●
375	CLIP; AIR PIPE ID=9 H=60	1-09700-956-0	02	1	0407-0410	●	●
375	CLIP; AIR PIPE ID=9 H=60	1-09700-956-0	02	1	0411-	●
375	CLIP; AIR PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ID=9 H=60	1-09700-956-0	02	1	0411-		●
376	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0410		●
376	BOLT; BRKT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X35 FLANGE	0-28680-835-0	01	1	0411-0611		●
376	BOLT; BRKT 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X35 FLANGE THA	0-28650-835-0	01	1	0612-		●
376	BOLT; BRKT 6SD1 TCS ENG<83L> M8X30 FLANGE	0-28680-830-0	01	1	0411-0611		●
376	BOLT; BRKT 6SD1 TCS ENG<83L> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-		●
393	NUT; UNION 6SD1 TCS ENG<83L> M8 FLANGE	0-91150-108-0	01	1	0411-		●
