Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10946 - FXZ(THAI)EURO2
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#29796) — 17 parça
Tümü
A - FXZ5MC
B - FXZ5MF
◀

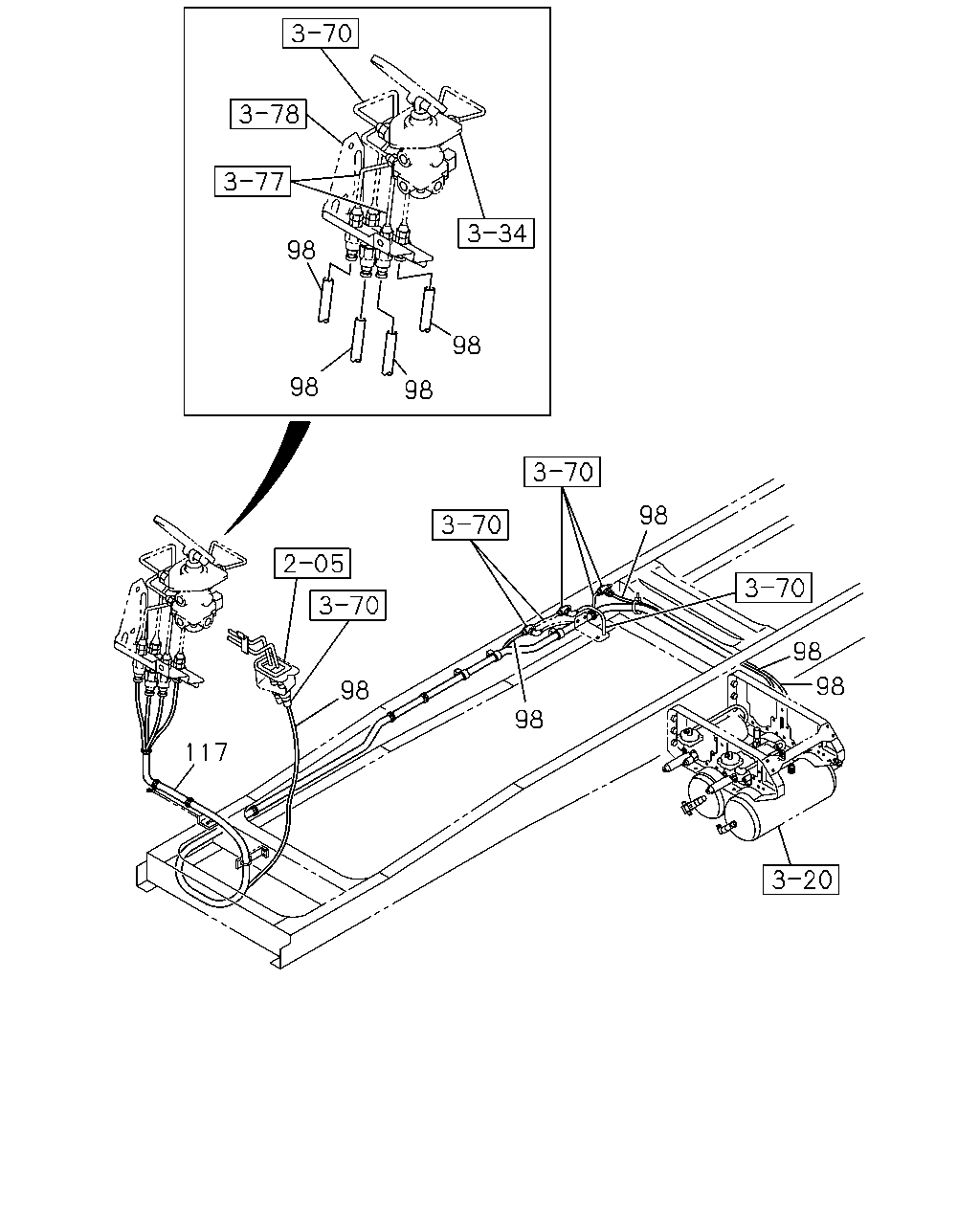

[375A] FRAME SIDE (9 parça)
[375A] CAB SIDE (8 parça)
▶
98
98
98
98
98
98
98
98
98
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
98
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0407-
●
●
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0407-
●
●
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0407-
●
●
98
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0407-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0407-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0407-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
0407-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0407-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
0407-
●
●
118
115
116
138
115
116
138
114
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
114
UNION; NYLON TUBE
1-09660-807-2
02
1
0407-
●
●
115
NUT; TUBE UNION
M16
9-99111-416-0
02
1
0407-0512
●
●
115
NUT; TUBE UNION
M16
0-91111-516-0
02
1
0601-
●
●
116
WASHER; LK,TUBE UNION
ID=16.2
9-09150-516-0
02
1
0407-0603
●
●
116
WASHER; LK,TUBE UNION
ID=16.2
0-91510-516-0
02
1
0604-
●
●
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=419
1-49115-942-3
01
1
0407-
●
●
138
WASHER; PL,UNION
ID=17
9-09160-516-0
02
1
0407-0605
●
●
138
WASHER; PL,UNION
ID=17 OD=30
0-91610-516-0
02
1
0606-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
