3-70 — BRAKE PIPING; AIR,AIR MASTER (#29795) — 163 parça

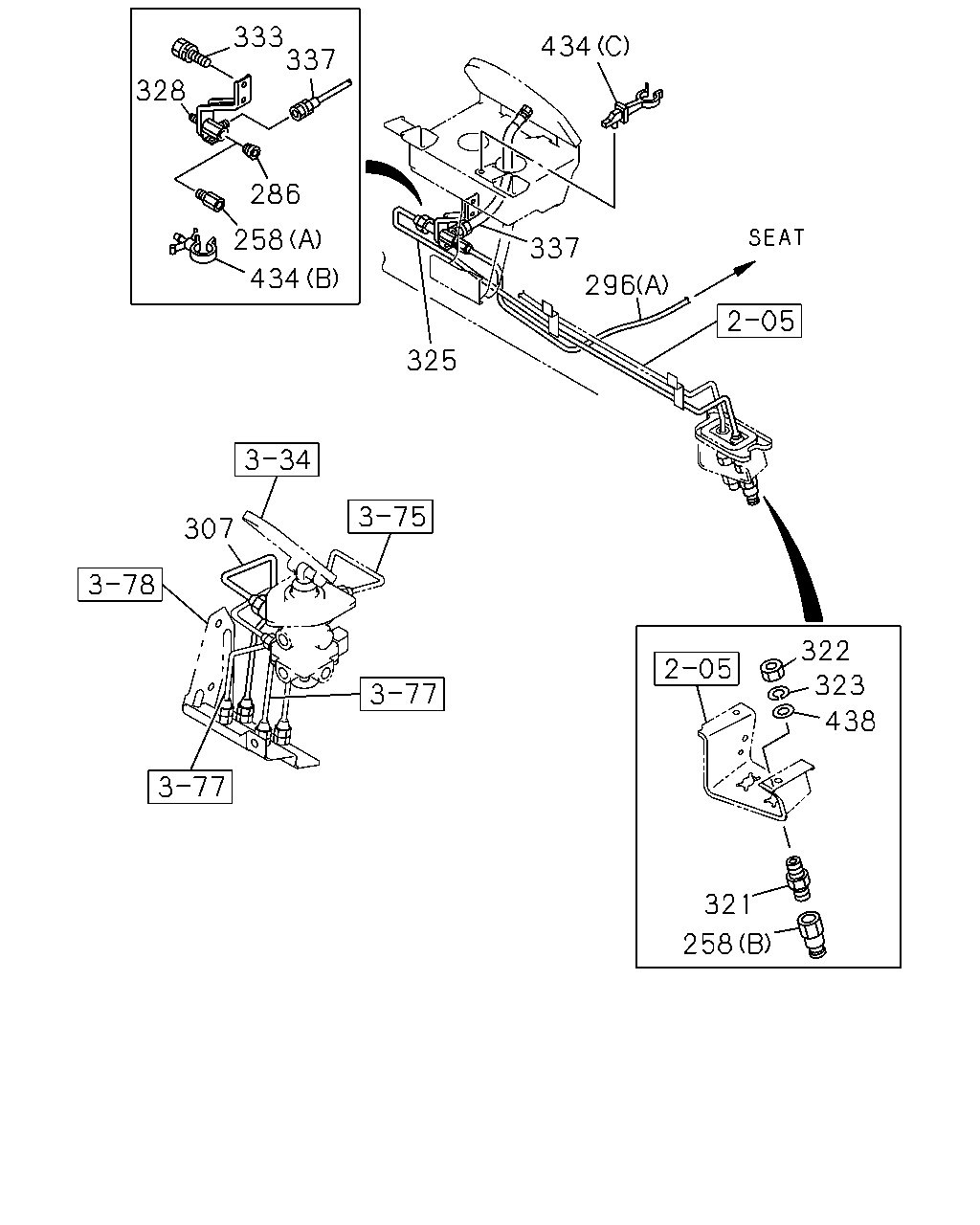

çizim 81796
333 337 434 328 286 258 337 434 296 325 307 322 323 438 321 258
BalonParca AdiParca NoAdetTipApplied Date A B
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0407- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0407- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCS ENG<83L> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0411- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCS ENG<83L> (D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0411- ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> 		9-09204-510-0 01 1 0407- ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0407- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0407- ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0407- ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0407- ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0407-0603 ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0407- ● ●
328 UNION; AIR PIPE 1-47470-362-2 01 1 0407- ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0407- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0407-0605 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606- ● ●
434 CLIP
(A) L=250 		1-09707-126-0 02 1 0407- ● ●
434 CLIP
(C) ID=17 THA 		1-09987-105-1 01 1 0407- ● ●
434 CLIP
(B) THA 		8-94297-486-0 02 1 0407- ● ●
434 CLIP
6SD1 TCS ENG<83L> (D) ID=26 L=27 		1-09701-006-0 01 1 0411- ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0407- ● ●

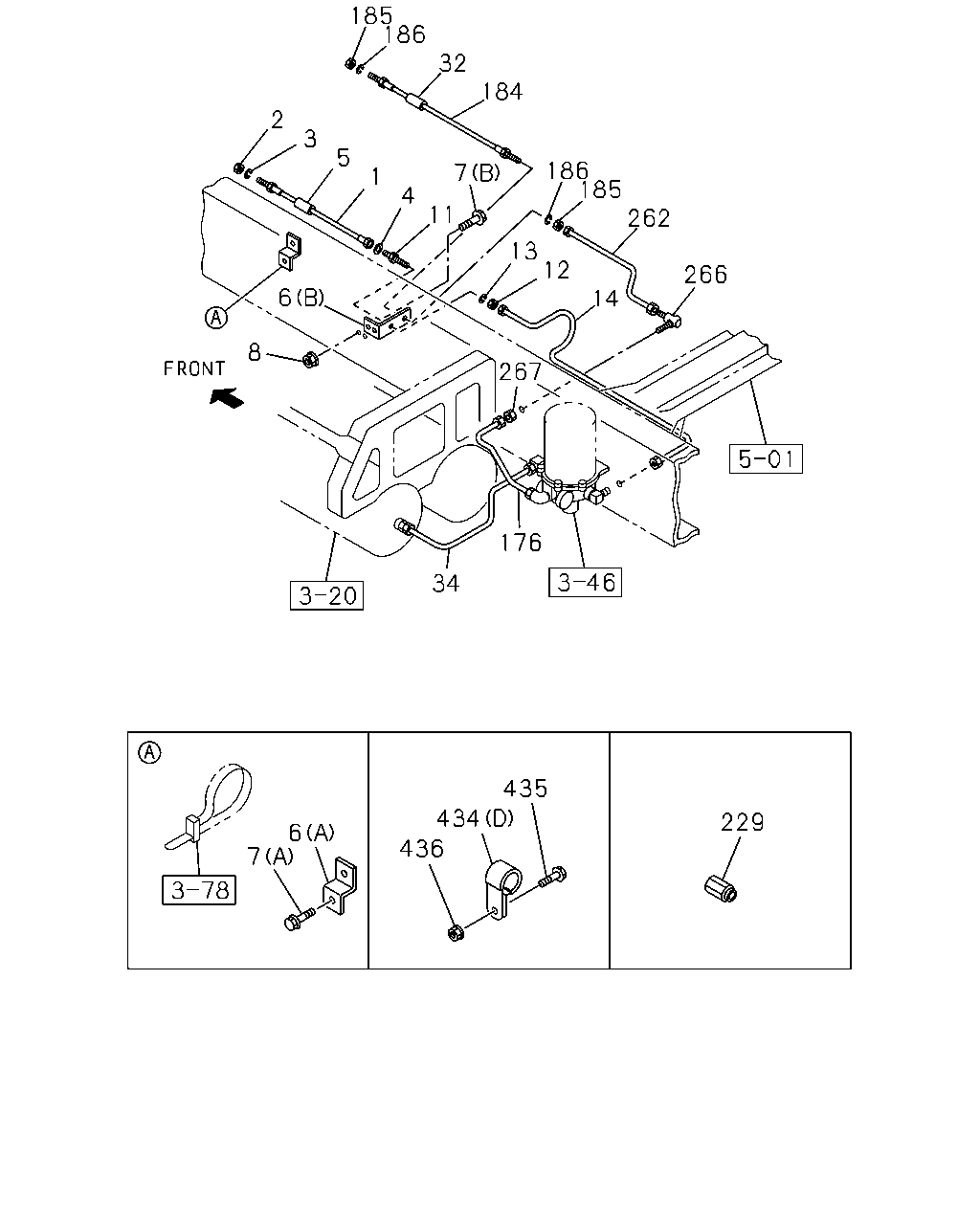

çizim 84052
185 186 32 184 2 3 5 186 185 262 7 1 4 11 13 12 266 6 14 8 267 176 34 435 434 229 6 436 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=560 		0-07806-560-1 01 1 0407-0605 ● ●
1 HOSE; FLEX,AIR TANK
L=560 		0-57806-560-1 01 1 0606- ● ●
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 0407-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
M20 		0-91111-520-0 01 1 0601- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 0407-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		0-91510-520-0 01 1 0604- ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 0407- ● ●
5 SLEEVE; FLEX HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 0407-0410 ● ●
5 SLEEVE; FLEX HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 0411- ●
5 SLEEVE; FLEX HOSE
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ID=23 OD=27 L=40 		1-09337-015-0 01 1 0411- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47475-689-0 01 1 0407-0410 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47475-689-0 01 1 0411- ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (A) 		1-47475-689-0 01 1 0411- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47477-304-0 01 1 0407-0410 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47477-304-0 01 1 0411- ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B) 		1-47477-304-0 01 1 0411- ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCS ENG<83L> (A) 		1-47476-200-0 01 1 0411- ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCS ENG<83L> (B) 		1-47479-304-0 01 1 0411- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0407-0611 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 0612- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0407-0611 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
(B) M8X35 FLANGE THA 		0-28650-835-0 02 1 0612- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 0407-0602 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE THA 		0-91180-108-0 02 1 0603- ● ●
11 UNION; AIR PIPE
M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0407- ● ●
12 NUT; UNION
M20 		9-99111-420-0 01 1 0407-0512 ● ●
12 NUT; UNION
M20 		0-91111-520-0 01 1 0601- ● ●
13 WASHER; LK,UNION
ID=20.2 		9-09150-520-0 01 1 0407-0603 ● ●
13 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 01 1 0604- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=1024 		1-49124-337-0 01 1 0407-0410 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=1024 		1-49124-337-0 01 1 0411- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> L=1024 		1-49124-337-0 01 1 0411- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCS ENG<83L> 		1-49123-236-0 01 1 0411- ●
32 SLEEVE; RUBBER,AIR PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0407-0410 ● ●
32 SLEEVE; RUBBER,AIR PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0411- ●
32 SLEEVE; RUBBER,AIR PIPE
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ID=10 OD=14 L=30 		9-09956-682-0 01 1 0411- ●
34 PIPE; AIR
L=707 		1-49124-338-0 01 1 0407- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
L=435 		1-49124-339-0 01 1 0407-0410 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
L=435 		1-49124-339-0 01 1 0411- ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> L=435 		1-49124-339-0 01 1 0411- ●
184 HOSE; FLEX,AIR GOV 1-09363-721-0 01 1 0407-0410 ● ●
184 HOSE; FLEX,AIR GOV 1-09363-721-0 01 1 0411- ●
184 HOSE; FLEX,AIR GOV
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> 		1-09363-721-0 01 1 0411- ●
184 HOSE; FLEX,AIR GOV
6SD1 TCS ENG<83L> L=580 		1-09363-692-0 01 1 0411- ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 02 1 0407-0410 ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 02 1 0411- ●
185 NUT; FLEX HOSE,AIR GOV
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M12 		9-09840-280-0 02 1 0411- ●
185 NUT; FLEX HOSE,AIR GOV
6SD1 TCS ENG<83L> M12 		9-09840-280-0 01 1 0411- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 02 1 0407-0410 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 02 1 0411-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ID=12.2 		9-09150-512-0 02 1 0411-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 02 1 0604- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ID=12.2 		0-91510-512-0 02 1 0604- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TCS ENG<83L> ID=12.2 		9-09150-512-0 01 1 0411-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TCS ENG<83L> ID=12.2 		0-91510-512-0 01 1 0604- ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407- ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCS ENG<83L> DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0411- ●
262 PIPE; AIR,UNION TO FLEX 1-49118-004-0 01 1 0407-0410 ● ●
262 PIPE; AIR,UNION TO FLEX 1-49118-004-0 01 1 0411- ●
262 PIPE; AIR,UNION TO FLEX
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> 		1-49118-004-0 01 1 0411- ●
266 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0407-0410 ● ●
266 UNION; AIR PIPE
6SD1 TCN ENG<31L> M12 ELBOW 		9-09225-206-1 01 1 0411-0607 ●
266 UNION; AIR PIPE
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M12 ELBOW 		9-09225-206-1 01 1 0411-0607 ●
266 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608- ●
266 UNION; AIR PIPE
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M12 ELBOW 		0-92125-206-0 01 1 0608- ●
267 NUT; UNION
M12 		9-09840-280-0 01 1 0407-0410 ● ●
267 NUT; UNION
M12 		9-09840-280-0 01 1 0411- ●
267 NUT; UNION
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M12 		9-09840-280-0 01 1 0411- ●
434 CLIP
(A) L=250 		1-09707-126-0 02 1 0407- ● ●
434 CLIP
(C) ID=17 THA 		1-09987-105-1 01 1 0407- ● ●
434 CLIP
(B) THA 		8-94297-486-0 02 1 0407- ● ●
434 CLIP
6SD1 TCS ENG<83L> (D) ID=26 L=27 		1-09701-006-0 01 1 0411- ●
435 BOLT; CLIP
6SD1 TCS ENG<83L> M8X20 FLANGE 		0-28680-820-0 01 1 0411-0611 ●
435 BOLT; CLIP
6SD1 TCS ENG<83L> M8X20 FLANGE THA 		0-28650-820-0 01 1 0612- ●
436 NUT; CLIP
6SD1 TCS ENG<83L> M8 FLANGE 		0-91150-108-0 01 1 0411-0602 ●
436 NUT; CLIP
6SD1 TCS ENG<83L> M8 FLANGE THA 		0-91180-108-0 01 1 0603- ●

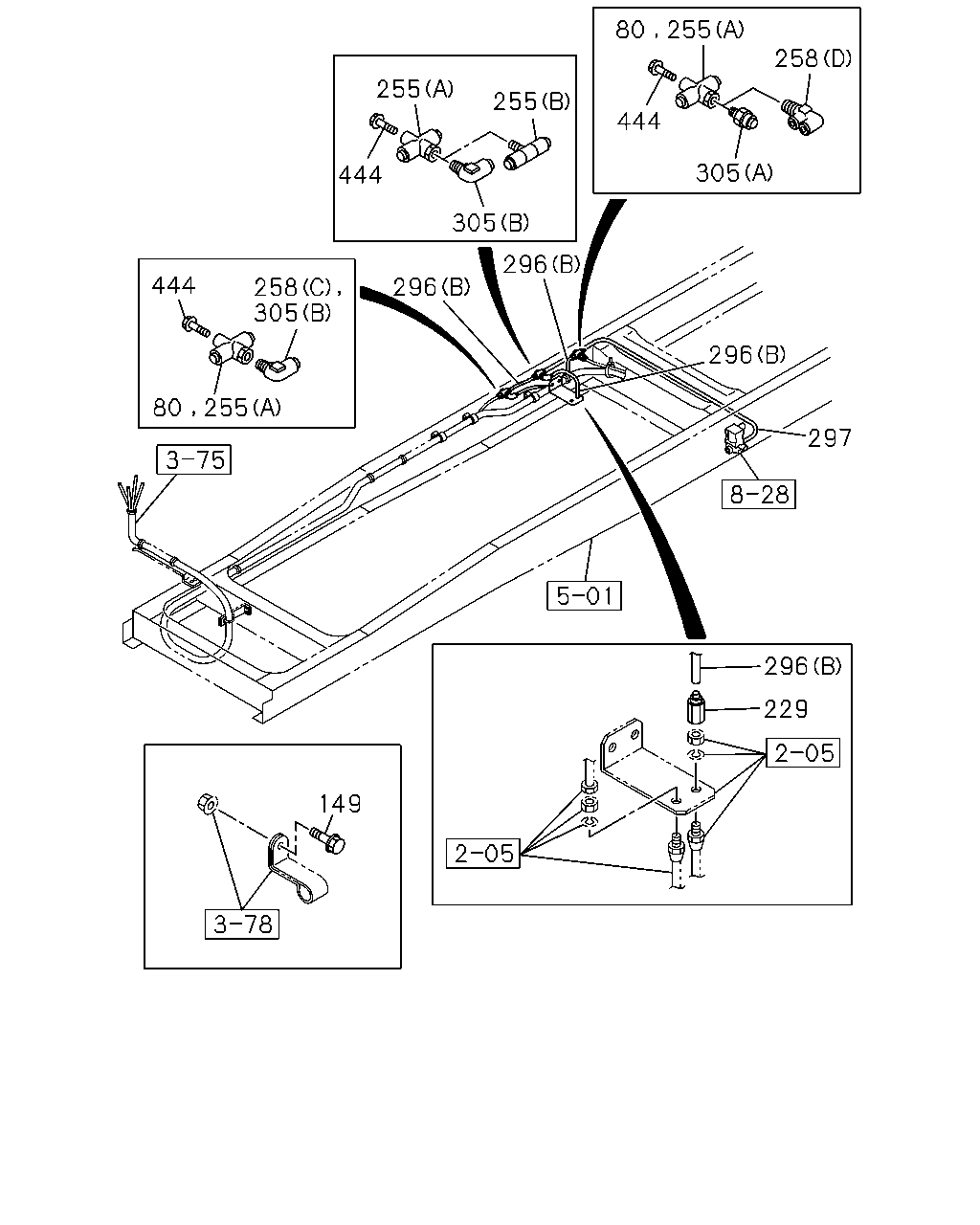

çizim 84393
258 255 255 444 305 444 305 296 444 296 258 305 296 297 296 229 149 80 255 80 255
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
6SD1 TCS ENG<83L> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0411- ●
80 UNION; 3 WAY
6SD1 TCS ENG<83L> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0411- ●
149 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28680-835-0 01 1 0407-0611 ●
149 BOLT; TUBE CLIP
M8X35 FLANGE THA 		0-28650-835-0 01 1 0612- ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0407- ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCS ENG<83L> DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0411- ●
255 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 03 1 0407-0410 ● ●
255 UNION; NYLON TUBE
(A) DIN8 RC1/4 & M8 		1-09660-735-1 03 1 0411- ●
255 UNION; NYLON TUBE
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (A) DIN8 RC1/4 & M8 		1-09660-735-1 03 1 0411- ●
255 UNION; NYLON TUBE
(B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0407-0410 ●
255 UNION; NYLON TUBE
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0411- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0407- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0407- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCS ENG<83L> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0411- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCS ENG<83L> (D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0411- ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0407- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
305 UNION ASM; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0407- ●
305 UNION ASM; NYLON TUBE
(A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0407-0410 ● ●
305 UNION ASM; NYLON TUBE
(A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0411- ●
305 UNION ASM; NYLON TUBE
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (A) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0411- ●
305 UNION ASM; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0407-0410 ●
305 UNION ASM; NYLON TUBE
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0411- ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 03 1 0407-0410 ● ●
444 BOLT; UNION
6SD1 TCN ENG<31L> M8X20 FLANGE 		0-28080-820-0 03 1 0411-0611 ●
444 BOLT; UNION
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X20 FLANGE 		0-28080-820-0 03 1 0411-0611 ●
444 BOLT; UNION
6SD1 TCN ENG<31L> M8X20 FLANGE THA 		0-28050-820-0 03 1 0612- ●
444 BOLT; UNION
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X20 FLANGE THA 		0-28050-820-0 03 1 0612- ●
444 BOLT; UNION
6SD1 TCS ENG<83L> M8X20 FLANGE 		0-28080-820-0 02 1 0411-0611 ●
444 BOLT; UNION
6SD1 TCS ENG<83L> M8X20 FLANGE THA 		0-28050-820-0 02 1 0612- ●

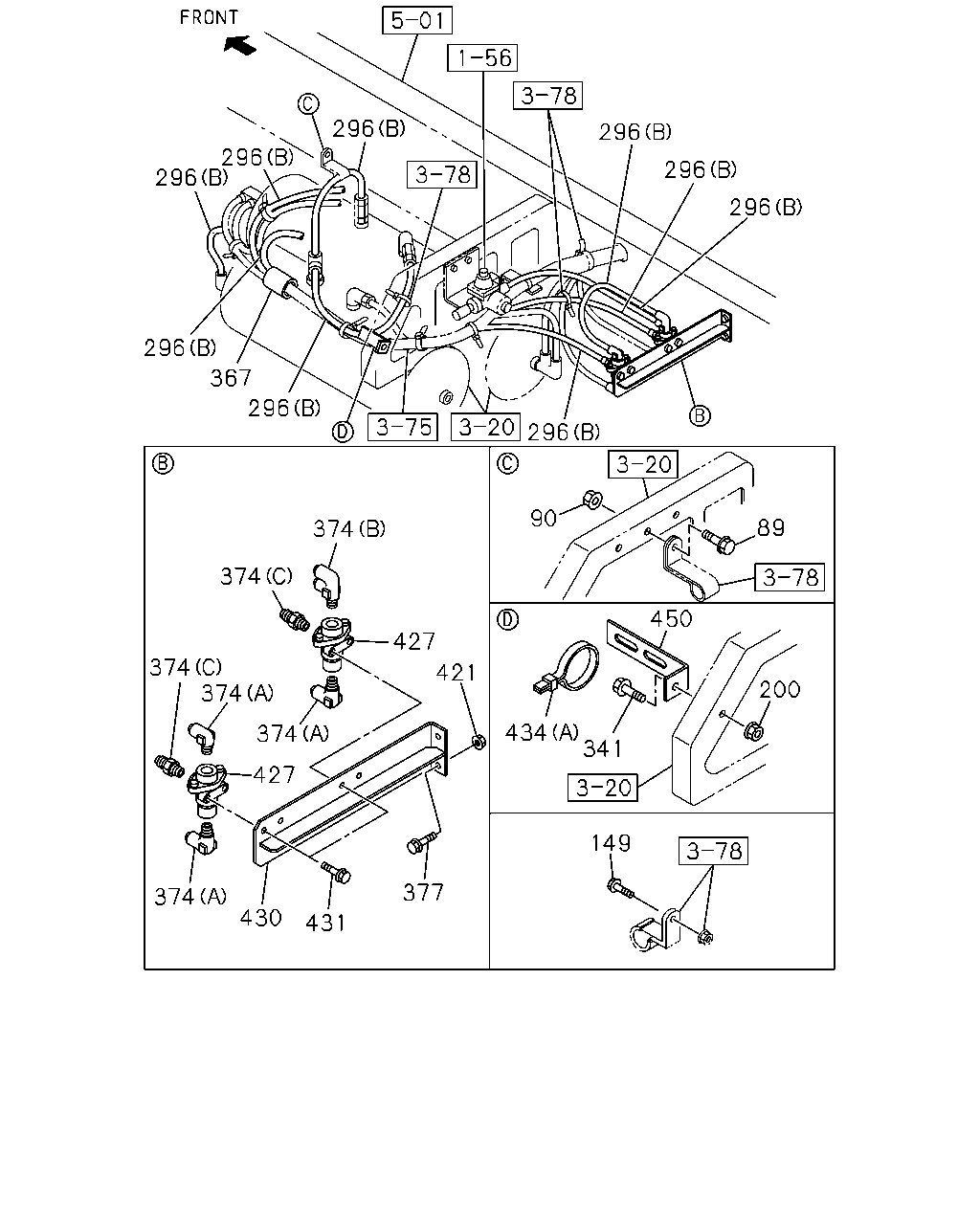

çizim 84977
296 296 296 296 296 296 296 367 296 296 90 89 374 374 450 427 374 374 421 200 434 341 374 427 149 377 374 430 431
BalonParca AdiParca NoAdetTipApplied Date A B
89 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0611 ● ●
89 BOLT; TUBE CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 0612- ● ●
90 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0602 ● ●
90 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0603- ● ●
149 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28680-835-0 01 1 0407-0611 ●
149 BOLT; TUBE CLIP
M8X35 FLANGE THA 		0-28650-835-0 01 1 0612- ●
200 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602 ● ●
200 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 0603- ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0407- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0407- ● ●
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0407- ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611 ● ●
341 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0407- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0407- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0407- ● ●
374 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0407- ●
374 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 0407- ●
374 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0407- ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28681-030-0 02 1 0407-0611 ●
377 BOLT; BRKT FIX
M10X30 FLANGE THA 		0-28651-030-0 02 1 0612- ●
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0407-0602 ●
421 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 0603- ●
427 VALVE; DOUBLE CHECK 1-48410-531-1 02 1 0407- ●
430 BRACKET; VALVE
THA 		8-97922-633-0 01 1 0407- ●
431 BOLT; DOUBLE CHECK VALVE
M8X12 W/LK WASHER 		0-50040-812-0 04 1 0407-0701 ●
431 BOLT; DOUBLE CHECK VALVE
M8X12 W/LK WASHER 		0-50540-812-0 04 1 0702- ●
434 CLIP
(A) L=250 		1-09707-126-0 02 1 0407- ● ●
434 CLIP
(C) ID=17 THA 		1-09987-105-1 01 1 0407- ● ●
434 CLIP
(B) THA 		8-94297-486-0 02 1 0407- ● ●
434 CLIP
6SD1 TCS ENG<83L> (D) ID=26 L=27 		1-09701-006-0 01 1 0411- ●
450 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 02 1 0407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
