3-58 — FIXING PARTS; OIL PIPING (#29794) — 129 parça

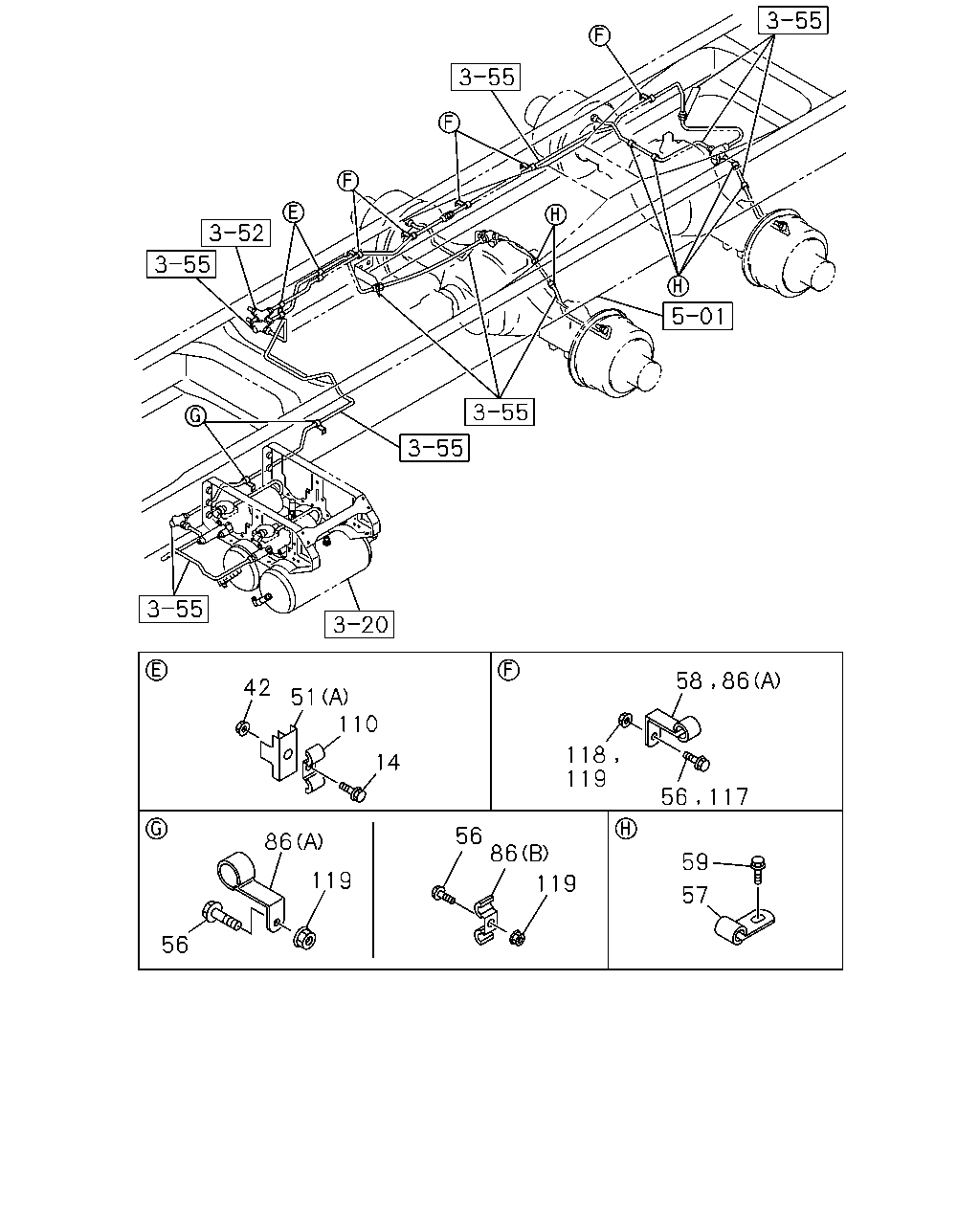

42 51 110 118 119 14 56 117 56 86 86 59 119 119 57 56 58 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0407-0410	●	●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0407-0410	●	●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0411-0611	●	●
14	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L> M8X30 FLANGE	0-28680-830-0	02	1	0411-0611	●
14	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE	0-28680-830-0	02	1	0411-0611		●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●	●
14	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L> M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●
14	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE THA	0-28650-830-0	02	1	0612-		●
14	BOLT; CLIP,OIL PIPE 6SD1 TCS ENG<83L> M8X30 FLANGE	0-28680-830-0	03	1	0411-0611		●
14	BOLT; CLIP,OIL PIPE 6SD1 TCS ENG<83L> M8X30 FLANGE THA	0-28650-830-0	03	1	0612-		●
42	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0602	●
42	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0407-0602		●
42	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	0603-	●
42	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	02	1	0603-		●
51	BRACKET; OIL PIPE (A)	1-47475-427-1	01	1	0407-	●
51	BRACKET; OIL PIPE (A)	1-47475-427-1	02	1	0407-	●	●
51	BRACKET; OIL PIPE (A)	1-47475-427-1	02	1	0407-		●
51	BRACKET; OIL PIPE 6SD1 TCS ENG<83L> (B)	1-47478-774-0	02	1	0411-		●
56	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0407-0611	●
56	BOLT; CLIP M8X30 FLANGE THA	0-28650-830-0	01	1	0612-	●
56	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0407-0410	●	●
56	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0407-0410		●
56	BOLT; CLIP 6SD1 TCN ENG<31L> M8X30 FLANGE	0-28680-830-0	02	1	0411-0611	●
56	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0411-0611		●
56	BOLT; CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE	0-28680-830-0	02	1	0411-0611		●
56	BOLT; CLIP 6SD1 TCN ENG<31L> M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●
56	BOLT; CLIP M8X30 FLANGE THA	0-28650-830-0	02	1	0612-		●
56	BOLT; CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE THA	0-28650-830-0	02	1	0612-		●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	07	1	0407-0606	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	07	1	0407-0606	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	07	1	0607-	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	07	1	0607-	●	●
58	CLIP; OIL PIPE ID=6 H=20 L=20 THA	1-09700-603-0	03	1	0407-	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	07	1	0407-	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	07	1	0407-	●	●
86	CLIP; OIL PIPE (A) ID=6 H=20 L=20 THA	1-09700-603-0	01	1	0407-	●
86	CLIP; OIL PIPE (A) ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0407-0410	●	●
86	CLIP; OIL PIPE (A) ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0407-0410		●
86	CLIP; OIL PIPE 6SD1 TCN ENG<31L> (A) ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0411-	●
86	CLIP; OIL PIPE (A) ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0411-		●
86	CLIP; OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (A) ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0411-		●
86	CLIP; OIL PIPE 6SD1 TCS ENG<83L> (B) ID=16 & 7 L=21 & 17 THA	1-09700-675-0	01	1	0411-		●
110	CLIP; OIL PIPE ID=7 & 7 L=17.5 & 17.5 THA	1-09700-745-0	01	1	0407-	●
110	CLIP; OIL PIPE ID=7 & 7 L=17.5 & 17.5 THA	1-09700-745-0	02	1	0407-		●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0407-0611	●	●
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	03	1	0612-	●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0407-0602	●	●
118	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	0603-	●	●
119	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0602	●
119	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0410	●	●
119	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0410		●
119	NUT; CLIP 6SD1 TCN ENG<31L> M8 FLANGE	0-91150-108-0	02	1	0411-0602	●
119	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0411-0602		●
119	NUT; CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE	0-91150-108-0	02	1	0411-0602		●
119	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	0603-	●
119	NUT; CLIP 6SD1 TCN ENG<31L> M8 FLANGE THA	0-91180-108-0	02	1	0603-	●
119	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	0603-		●
119	NUT; CLIP 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE THA	0-91180-108-0	02	1	0603-		●

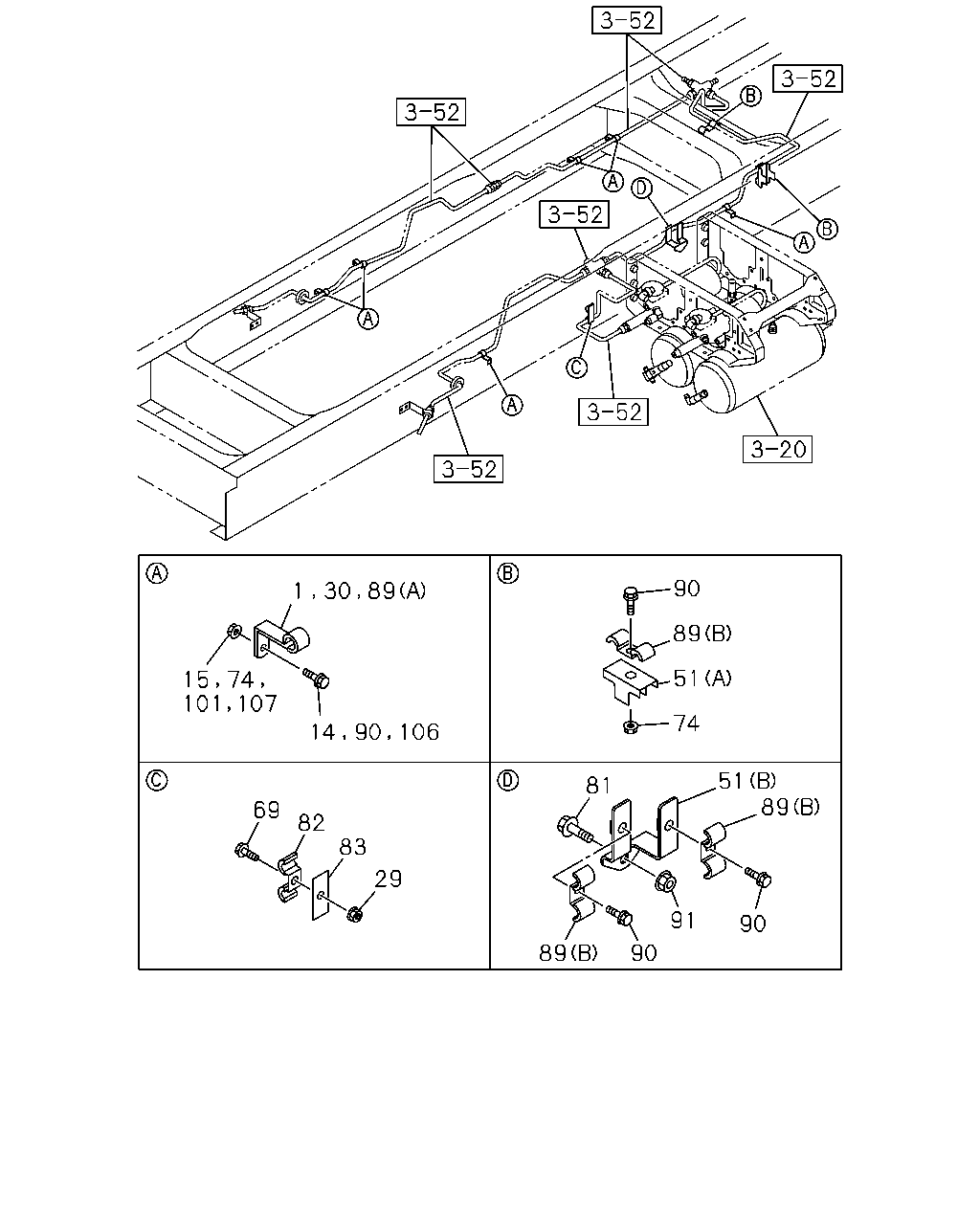

90 1 89 51 101 107 74 106 51 89 81 69 82 83 29 91 90 89 90 30 89 15 74 14 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0407-0410	●	●
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0407-0410	●	●
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0411-	●	●
1	CLIP; OIL PIPE TO BODY 6SD1 TCN ENG<31L> ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0411-	●
1	CLIP; OIL PIPE TO BODY 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0411-		●
1	CLIP; OIL PIPE TO BODY 6SD1 TCS ENG<83L> ID=6 H=20 L=20 THA	1-09700-603-0	03	1	0411-		●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0407-0410	●	●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0407-0410	●	●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0411-0611	●	●
14	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L> M8X30 FLANGE	0-28680-830-0	02	1	0411-0611	●
14	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE	0-28680-830-0	02	1	0411-0611		●
14	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●	●
14	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L> M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●
14	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE THA	0-28650-830-0	02	1	0612-		●
14	BOLT; CLIP,OIL PIPE 6SD1 TCS ENG<83L> M8X30 FLANGE	0-28680-830-0	03	1	0411-0611		●
14	BOLT; CLIP,OIL PIPE 6SD1 TCS ENG<83L> M8X30 FLANGE THA	0-28650-830-0	03	1	0612-		●
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0407-0410	●	●
15	NUT; CLIP,OIL PIPE 6SD1 TCN ENG<31L> M8 FLANGE	0-91150-108-0	02	1	0411-0602	●
15	NUT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE	0-91150-108-0	02	1	0411-0602		●
15	NUT; CLIP,OIL PIPE 6SD1 TCS ENG<83L> M8 FLANGE THA	0-91180-108-0	03	1	0603-		●
15	NUT; CLIP,OIL PIPE 6SD1 TCS ENG<83L> M8 FLANGE	0-91150-108-0	03	1	0411-0602		●
15	NUT; CLIP,OIL PIPE 6SD1 TCN ENG<31L> M8 FLANGE THA	0-91180-108-0	02	1	0603-	●
15	NUT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE THA	0-91180-108-0	02	1	0603-		●
29	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0602	●	●
29	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	0603-	●	●
30	CLIP; OIL PIPE ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0407-	●
30	CLIP; OIL PIPE ID=6 H=20 L=20 THA	1-09700-603-0	01	1	0407-0410		●
30	CLIP; OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ID=6 H=20 L=20 THA	1-09700-603-0	01	1	0411-		●
51	BRACKET; OIL PIPE (A)	1-47475-427-1	01	1	0407-	●
51	BRACKET; OIL PIPE (A)	1-47475-427-1	02	1	0407-	●	●
51	BRACKET; OIL PIPE (A)	1-47475-427-1	02	1	0407-		●
51	BRACKET; OIL PIPE 6SD1 TCS ENG<83L> (B)	1-47478-774-0	02	1	0411-		●
69	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0611	●	●
69	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0612-	●	●
74	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0407-0410	●	●
74	NUT; CLIP,OIL PIPE 6SD1 TCN ENG<31L> M8 FLANGE	0-91150-108-0	03	1	0411-0602	●
74	NUT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE	0-91150-108-0	03	1	0411-0602		●
74	NUT; CLIP,OIL PIPE 6SD1 TCS ENG<83L> M8 FLANGE THA	0-91180-108-0	02	1	0603-		●
74	NUT; CLIP,OIL PIPE 6SD1 TCS ENG<83L> M8 FLANGE	0-91150-108-0	02	1	0411-0602		●
74	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	0603-	●
74	NUT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE THA	0-91180-108-0	03	1	0603-		●
81	BOLT; BRKT,OIL PIPE 6SD1 TCS ENG<83L> M8X30 FLANGE	0-28680-830-0	02	1	0411-0611		●
81	BOLT; BRKT,OIL PIPE 6SD1 TCS ENG<83L> M8X30 FLANGE THA	0-28650-830-0	02	1	0612-		●
82	CLIP; OIL PIPE ID=7 & 9 L=17.5 & 17.5 THA	1-09700-746-0	01	1	0407-	●	●
83	BRACKET; PIPE CLIP L=50 THA	1-47475-299-2	01	1	0407-	●	●
89	CLIP; OIL PIPE (A) ID=8 H=20 L=20 THA	1-09700-604-0	01	1	0407-0410	●	●
89	CLIP; OIL PIPE (A) ID=8 H=20 L=20 THA	1-09700-604-0	01	1	0411-	●
89	CLIP; OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (A) ID=8 H=20 L=20 THA	1-09700-604-0	01	1	0411-		●
89	CLIP; OIL PIPE (B) ID=7 & 9 L=17.5 & 17.5 THA	1-09700-746-0	02	1	0407-0410	●	●
89	CLIP; OIL PIPE (B) ID=7 & 9 L=17.5 & 17.5 THA	1-09700-746-0	02	1	0411-	●
89	CLIP; OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (B) ID=7 & 9 L=17.5 & 17.5 THA	1-09700-746-0	02	1	0411-		●
89	CLIP; OIL PIPE 6SD1 TCS ENG<83L> (B) ID=7 & 9 L=17.5 & 17.5 THA	1-09700-746-0	04	1	0411-		●
90	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0407-0410	●	●
90	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L> M8X30 FLANGE	0-28680-830-0	01	1	0411-0611	●
90	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE	0-28680-830-0	01	1	0411-0611		●
90	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-	●
90	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-		●
91	NUT; BRKT,OIL PIPE 6SD1 TCS ENG<83L> M8 FLANGE	0-91150-108-0	02	1	0411-0602		●
91	NUT; BRKT,OIL PIPE 6SD1 TCS ENG<83L> M8 FLANGE THA	0-91180-108-0	02	1	0603-		●
101	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0407-0602	●	●
101	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	02	1	0603-	●	●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0407-0611	●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●
106	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0407-0410		●
106	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE	0-28680-830-0	01	1	0411-0611		●
106	BOLT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-		●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0407-0602	●
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0410		●
107	NUT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE	0-91150-108-0	01	1	0411-0602		●
107	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	02	1	0603-	●
107	NUT; CLIP,OIL PIPE 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> M8 FLANGE THA	0-91180-108-0	01	1	0603-		●
