3-55 — BRAKE PIPING; OIL,REAR (#29793) — 61 parça

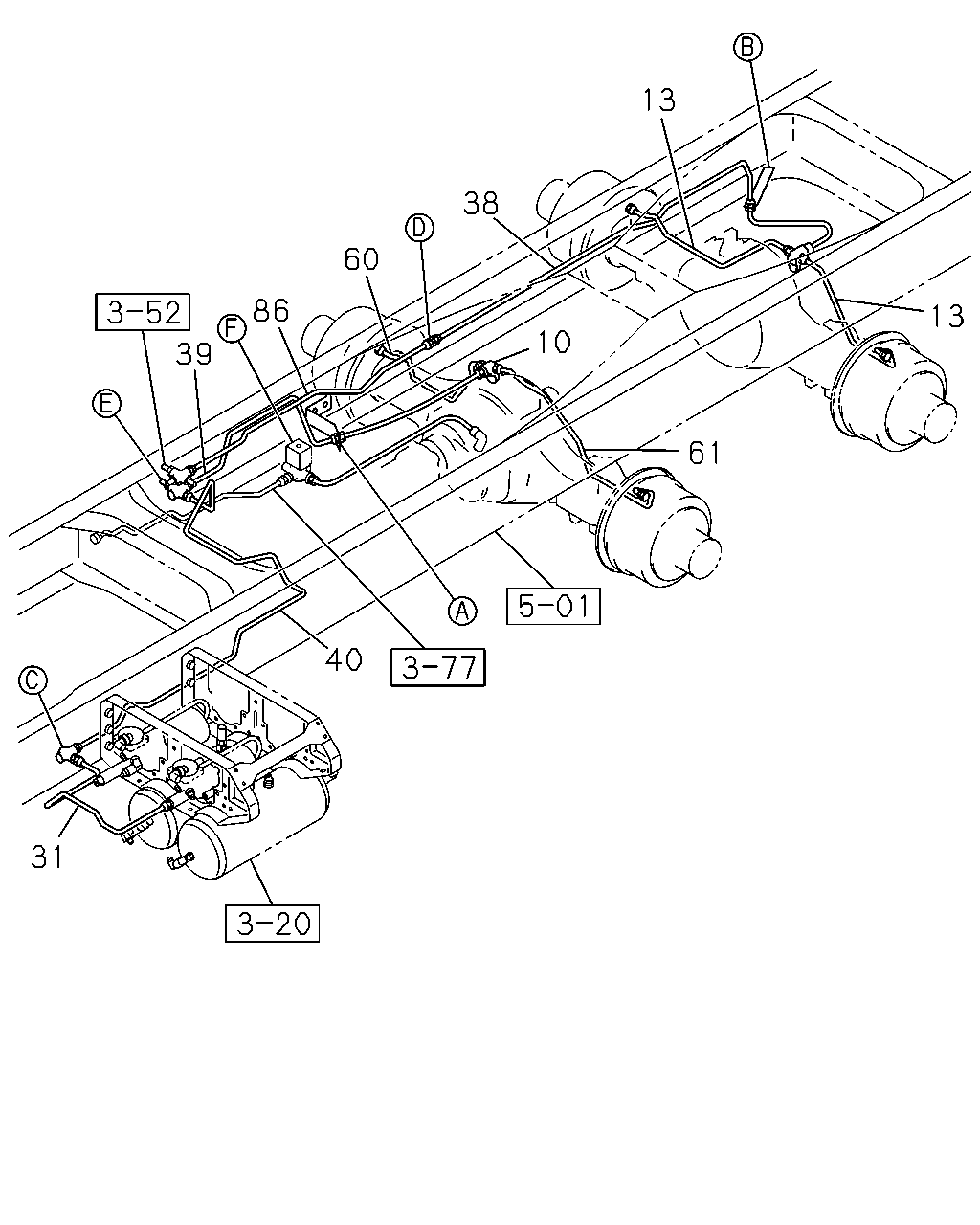

13 38 60 86 13 39 10 61 40 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0407-	●	●
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0407-	●	●
13	PIPE; BRK,RR AXLE THA	8-97917-462-0	01	1	0407-	●	●
13	PIPE; BRK,RR AXLE THA	8-97917-462-0	01	1	0407-	●	●
13	PIPE; BRK,RR AXLE THA	8-97917-460-0	01	1	0407-	●	●
13	PIPE; BRK,RR AXLE THA	8-97917-460-0	01	1	0407-	●	●
31	PIPE; OIL,AIR MASTER TO UNION THA	8-97917-625-2	01	1	0407-0410	●	●
31	PIPE; OIL,AIR MASTER TO UNION 6SD1 TCN ENG<31L> THA	8-97917-625-2	01	1	0411-	●
31	PIPE; OIL,AIR MASTER TO UNION 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> THA	8-97917-625-2	01	1	0411-		●
31	PIPE; OIL,AIR MASTER TO UNION 6SD1 TCS ENG<83L> THA	8-97922-170-1	01	1	0411-		●
38	PIPE; OIL,UNION TO FLEX HOSE THA	8-97917-637-0	01	1	0407-	●
38	PIPE; OIL,UNION TO FLEX HOSE THA	8-97916-679-0	01	1	0407-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE THA	8-97917-614-0	01	1	0407-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE THA	8-97917-613-0	01	1	0407-		●
40	PIPE; BRK,UNION TO UNION THA	8-97917-628-0	01	1	0407-0410	●	●
40	PIPE; BRK,UNION TO UNION 6SD1 TCN ENG<31L> THA	8-97917-628-0	01	1	0411-	●
40	PIPE; BRK,UNION TO UNION 6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> THA	8-97917-628-0	01	1	0411-		●
40	PIPE; BRK,UNION TO UNION 6SD1 TCS ENG<83L> THA	8-97922-171-0	01	1	0411-		●
60	PIPE ASM; BRK THA	8-97917-459-0	01	1	0407-	●	●
60	PIPE ASM; BRK THA	8-97917-459-0	01	1	0407-	●	●
61	PIPE ASM; BRK THA	8-97917-968-0	01	1	0407-	●	●
61	PIPE ASM; BRK THA	8-97917-968-0	01	1	0407-	●	●
86	PIPE; BRK,UNION TO UNION THA	8-97917-635-0	01	1	0407-	●
86	PIPE; BRK,UNION TO UNION THA	8-97917-634-1	01	1	0407-		●

5 7 4 3 85 6 5 4 1 2 1 10 2 6 7 11 32 32 32 35 35 43 42 43

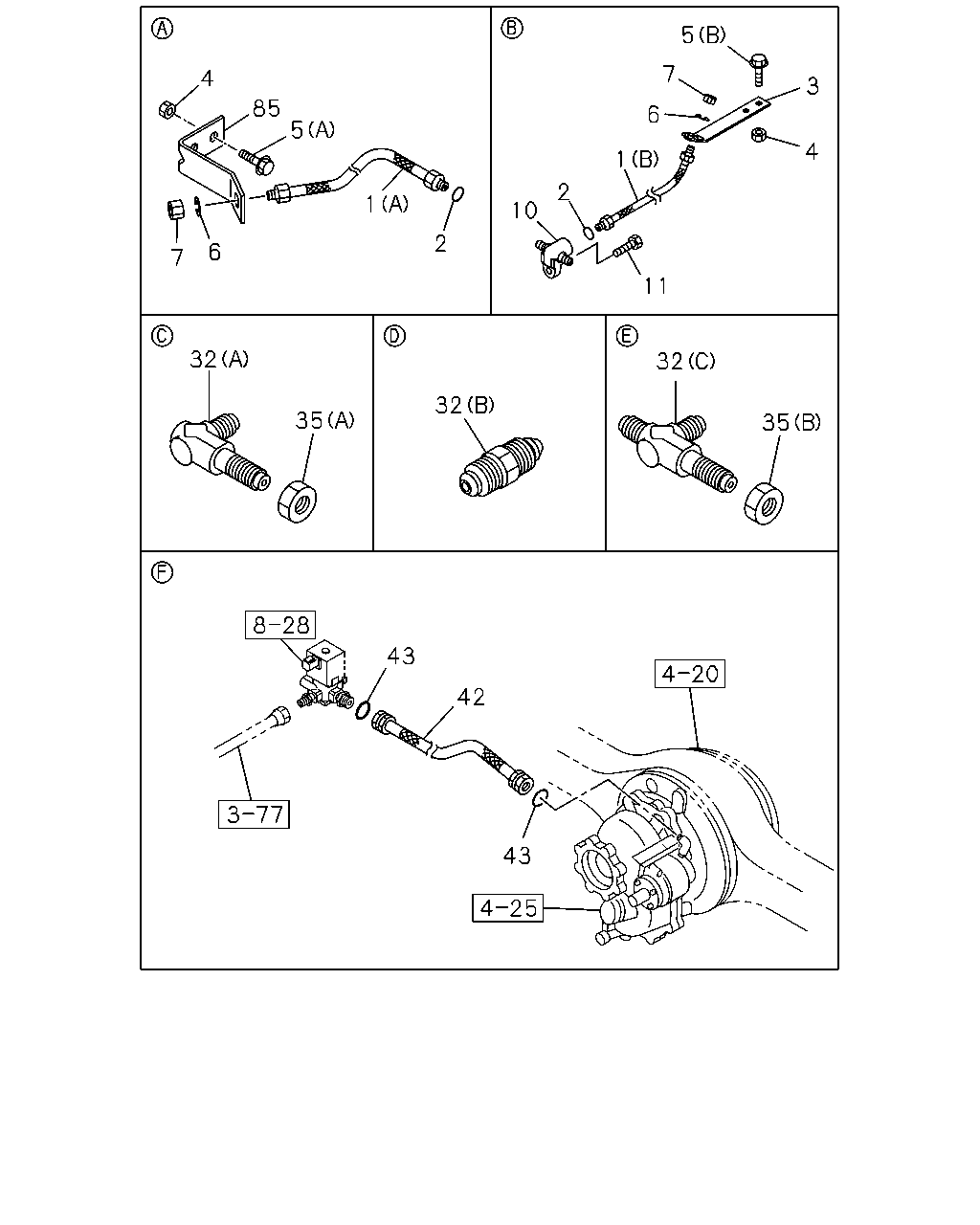

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK (A) L=525	1-09364-191-0	01	1	0407-	●	●
1	HOSE; FLEX,RR BRK (B) L=575	1-09364-195-0	01	1	0407-	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0407-	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0407-	●	●
3	BRACKET; FLEX HOSE,RR BRK	1-47476-573-1	01	1	0407-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0407-0602	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0407-0602	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE THA	0-91180-108-0	02	1	0603-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE THA	0-91180-108-0	02	1	0603-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (A) M8X35 FLANGE	0-28680-835-0	02	1	0407-0611	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (A) M8X35 FLANGE THA	0-28650-835-0	02	1	0612-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (B) M8X40 FLANGE	0-28680-840-0	02	1	0407-0611	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (B) M8X40 FLANGE THA	0-28650-840-0	02	1	0612-	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0407-0603	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0407-0603	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0407-	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0407-	●	●
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0407-	●	●
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0407-	●	●
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0407-0702	●	●
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0407-0702	●	●
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50541-025-0	01	1	0703-	●	●
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50541-025-0	01	1	0703-	●	●
32	UNION; OIL PIPE (C) M12 2WAY	1-09654-059-2	01	1	0407-	●	●
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	0407-0607	●	●
32	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0608-	●	●
32	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	0407-0607	●	●
32	UNION; OIL PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0608-	●	●
35	NUT; UNION (A) M12	9-09840-280-0	01	1	0407-	●	●
35	NUT; UNION (B) M12	9-99111-412-0	01	1	0407-0512	●	●
35	NUT; UNION (B) M12	0-91111-512-0	01	1	0601-	●	●
42	HOSE; FLEX,DIFF LOCK L=580	0-07151-580-0	01	1	0407-0605	●	●
42	HOSE; FLEX,DIFF LOCK L=580	0-57151-580-0	01	1	0606-	●	●
43	GASKET; FLEX TUBE ID=11 OD=18	9-09572-510-0	02	1	0407-	●	●
85	BRACKET; FLEX HOSE,FWD RR	1-47476-295-1	01	1	0407-	●	●
