3-20 — AIR TANK (#29787) — 81 parça

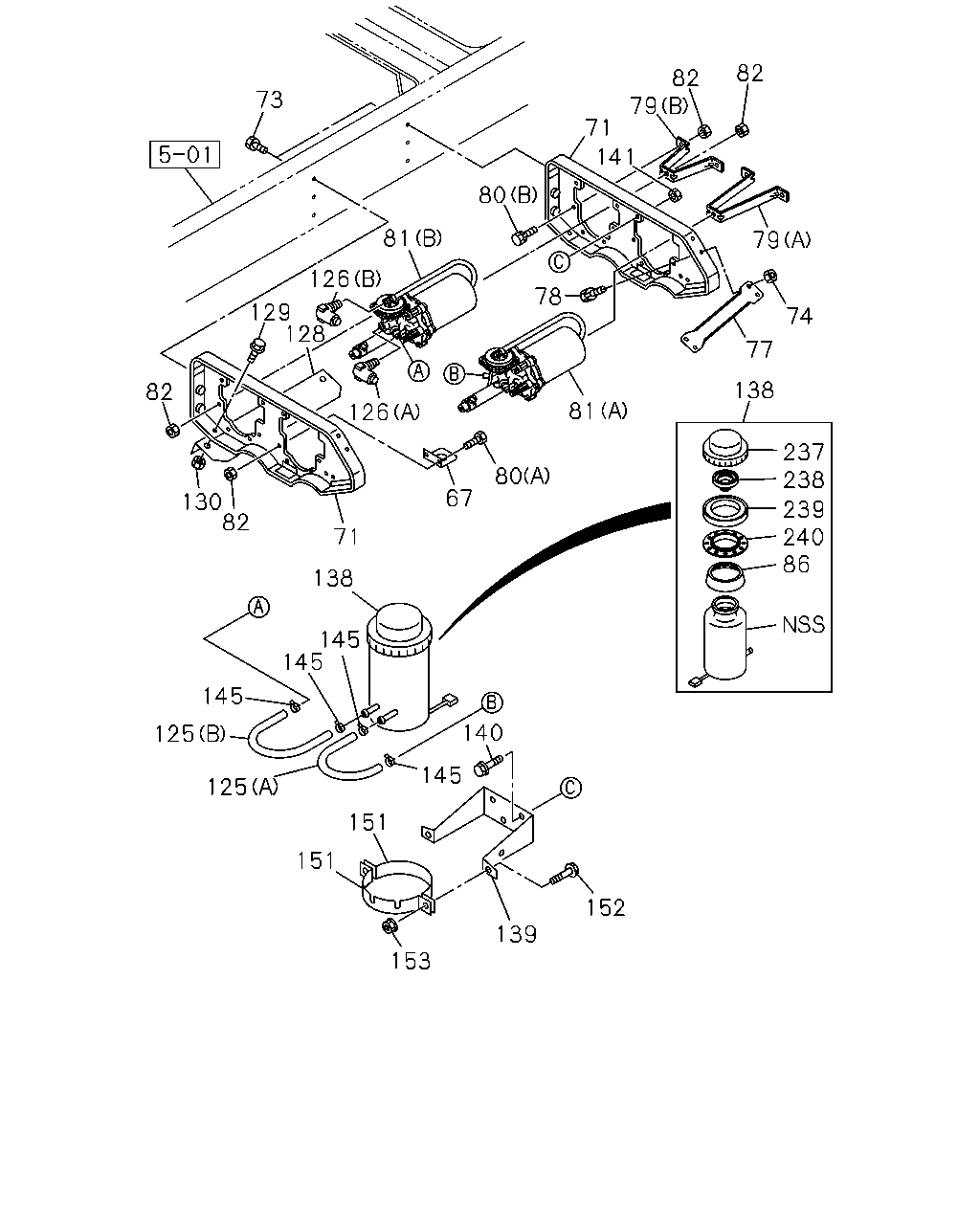

82 82 79 73 71 141 80 81 79 126 78 129 128 74 77 138 82 81 126 237 238 80 67 130 82 239 240 86 71 138 145 145 145 140 125 145 125 151 151 152 139 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
67	STAY; SUB TANK THA	1-48317-321-2	01	1	0407-	●	●
71	BRACKET; AIR MASTER,TANDEM	1-53318-276-1	02	1	0407-	●	●
73	BOLT; BRKT TO FRAME,AIR MASTER M12X40 FLANGE	0-28681-240-0	06	1	0407-0512	●	●
73	BOLT; BRKT TO FRAME,AIR MASTER M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●
74	NUT; STAY AIR MASTER M10 FLANGE	0-91150-210-0	04	1	0407-0602	●	●
74	NUT; STAY AIR MASTER M10 FLANGE THA	0-91180-210-0	04	1	0603-	●	●
77	STAY; AIR MASTER UPR	1-53318-293-1	01	1	0407-	●	●
78	BOLT; STAY AIR MASTER M10X30 FLANGE	0-28681-030-0	04	1	0407-0611	●	●
78	BOLT; STAY AIR MASTER M10X30 FLANGE THA	0-28651-030-0	04	1	0612-	●	●
79	STAY; AIR MASTER TO BRKT (A)	1-53318-347-0	01	1	0407-0805	●	●
79	STAY; AIR MASTER TO BRKT (A)	8-98120-254-0	01	1	0806-	●	●
79	STAY; AIR MASTER TO BRKT (B)	1-53318-348-0	01	1	0407-	●	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	02	1	0407-0611	●	●
80	BOLT; BRKT (A) M10X25 FLANGE THA	0-28651-025-0	02	1	0612-	●	●
80	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	04	1	0407-0611	●	●
80	BOLT; BRKT (B) M10X30 FLANGE THA	0-28651-030-0	04	1	0612-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. (A)	1-47800-794-0	01	1	0407-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. (B)	1-47800-795-0	01	1	0407-	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	16	1	0407-0602	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE THA	0-91180-210-0	16	1	0603-	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0407-	●	●
125	HOSE; OIL TANK TO AIR MASTER (A)	1-47469-118-0	01	1	0407-	●	●
125	HOSE; OIL TANK TO AIR MASTER (B)	1-47469-119-0	01	1	0407-	●	●
126	CONNECTOR; ELBOW (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0407-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0407-	●	●
126	CONNECTOR; ELBOW (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0407-	●	●
128	PROTECTOR	1-53319-018-0	01	1	0407-	●	●
129	BOLT; PROTECTOR FIX M8X30 FLANGE	0-28680-830-0	02	1	0407-0611	●	●
129	BOLT; PROTECTOR FIX M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●	●
130	NUT; PROTECTOR FIX M8 FLANGE	0-91150-108-0	02	1	0407-0602	●	●
130	NUT; PROTECTOR FIX M8 FLANGE THA	0-91180-108-0	02	1	0603-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0407-	●	●
139	BRACKET; OIL TANK	1-47537-153-0	01	1	0407-	●	●
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28681-025-0	03	1	0407-0611	●	●
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE THA	0-28651-025-0	03	1	0612-	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	03	1	0407-0602	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE THA	0-91180-210-0	03	1	0603-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14 THA	1-09704-102-0	04	1	0407-	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0407-	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0407-0611	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE THA	0-28650-820-0	02	1	0612-	●	●
153	NUT; OIL TANK TO BAND M8	9-09110-408-0	02	1	0407-0512	●	●
153	NUT; OIL TANK TO BAND M8	0-91110-508-0	02	1	0601-	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0407-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0407-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0407-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0407-	●	●

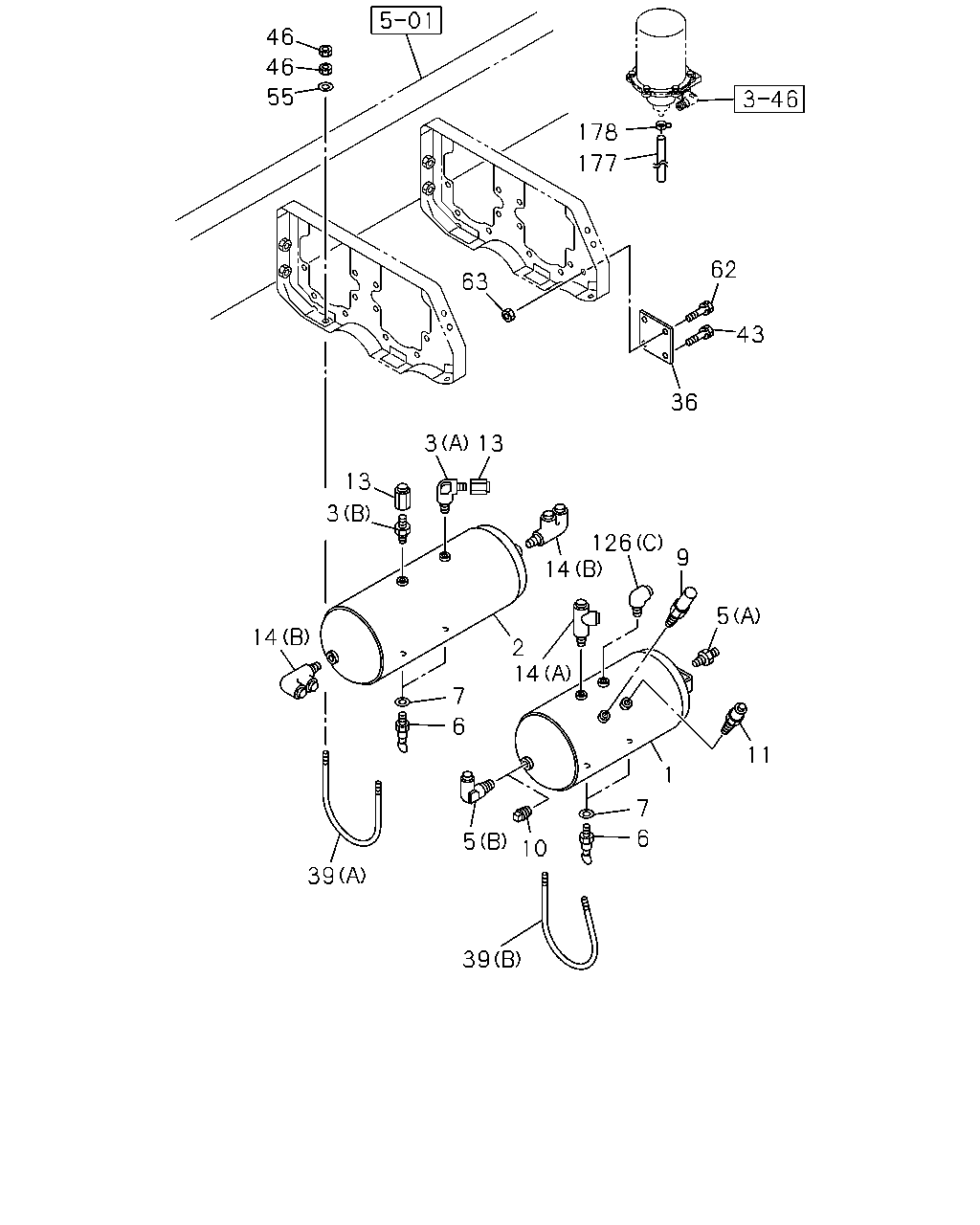

46 46 55 178 177 62 63 43 36 3 13 13 3 126 14 9 5 14 2 14 7 6 11 1 7 6 5 10 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR	1-48370-493-0	01	1	0407-	●	●
2	TANK; AIR	1-48370-810-0	01	1	0407-	●	●
3	VALVE; CHECK,AIR TANK (B) THA	1-48410-182-3	01	1	0407-	●	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW THA	1-48410-412-0	01	1	0407-	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0407-	●
5	UNION; AIR TANK (A) M22 & PT3/4 THA	1-48410-136-3	01	1	0407-	●	●
6	COCK; DRAIN,AIR TANK THA	1-48312-015-0	02	1	0407-	●	●
6	COCK; DRAIN,AIR TANK THA	1-48312-015-0	02	1	0407-	●	●
7	GASKET; DRAIN COCK ID=14 THA	1-09630-145-0	02	1	0407-	●	●
7	GASKET; DRAIN COCK ID=14 THA	1-09630-145-0	02	1	0407-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA THA	1-48340-054-1	01	1	0407-	●	●
10	PLUG; AIR TANK PT3/8	9-09204-517-0	01	1	0407-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0407-	●	●
13	ADAPTER; NYLON TUBE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0407-	●	●
14	UNION; 3 WAY,AIR TANK (A) DIN8X2 & R3/8 3WAY	1-09661-007-0	01	1	0407-	●	●
14	UNION; 3 WAY,AIR TANK (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0407-	●	●
36	STAY; MAIN TANK	1-48317-760-0	01	1	0407-	●	●
39	U-BOLT; AIR TANK (A) THA	1-48317-301-0	02	1	0407-	●	●
39	U-BOLT; AIR TANK (B) THA	1-48317-302-0	01	1	0407-	●	●
43	BOLT; STAY,AIR TANK,MAIN M10X30 FLANGE	0-28681-030-0	02	1	0407-0611	●	●
43	BOLT; STAY,AIR TANK,MAIN M10X30 FLANGE THA	0-28651-030-0	02	1	0612-	●	●
46	NUT; U-BOLT M8	9-09110-408-0	12	1	0407-0512	●	●
46	NUT; U-BOLT M8	0-91110-508-0	12	1	0601-	●	●
55	WASHER; PL,U-BOLT ID=8.4 OD=18	9-09160-608-0	04	1	0407-0605	●	●
55	WASHER; PL,U-BOLT ID=8.4 OD=18	0-91610-608-0	04	1	0606-	●	●
62	BOLT; SUPPORT M10X25 FLANGE	0-28681-025-0	02	1	0407-0611	●	●
62	BOLT; SUPPORT M10X25 FLANGE THA	0-28651-025-0	02	1	0612-	●	●
63	NUT; SUPPORT M10 FLANGE	0-91150-210-0	02	1	0407-0602	●	●
63	NUT; SUPPORT M10 FLANGE THA	0-91180-210-0	02	1	0603-	●	●
126	CONNECTOR; ELBOW (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0407-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0407-	●	●
126	CONNECTOR; ELBOW (A) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0407-	●	●
177	HOSE; RUBBER,DRAIN L=90	9-09712-638-0	01	1	0407-	●	●
178	CLIP; HOSE ID=33.6	8-94362-518-0	01	1	0407-	●	●
