3-11 — PARKING BRAKE CONTROL (#29786) — 63 parça
çizim 83066
61 324 218 46 45 46 45
BalonParca AdiParca NoAdetTipApplied Date A B
45 BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0407- ● ●
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		9-09525-535-0 03 1 0407-0606 ● ●
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		0-95235-535-0 03 1 0607- ● ●
61 CABLE; PARKING BRK
MAL6V M/T<Y2U> L=5189 THA 		8-97917-706-0 01 1 0407- ●
61 CABLE; PARKING BRK
ZF 9S109 OD M/T<Y2L> L=5094 THA 		8-97917-705-0 01 1 0407-0410 ●
61 CABLE; PARKING BRK
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ZF 9S109 OD M/T<Y2L> L=5094 THA 		8-97917-705-0 01 1 0411- ●
61 CABLE; PARKING BRK
6SD1 TCS ENG<83L> L=5179 THA 		8-97921-820-0 01 1 0411- ●
218 NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0407- ● ●
324 BRACKET 1-79998-750-3 01 1 0407- ● ●

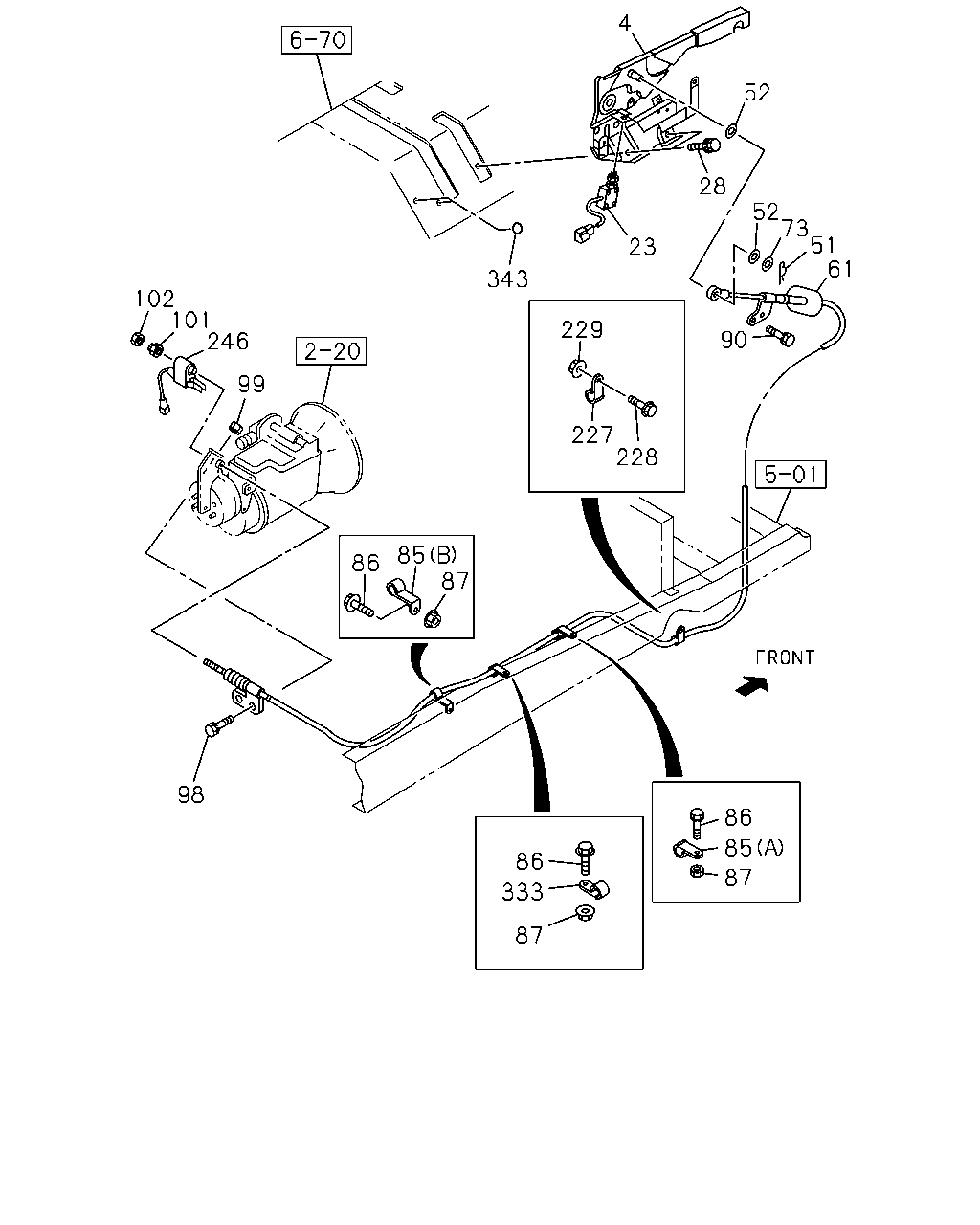

çizim 84240
4 52 28 52 73 51 61 23 343 102 101 246 90 229 99 227 228 85 87 86 98 86 85 86 87 333 87
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK 1-79996-568-0 01 1 0407- ● ●
23 SWITCH; PARKING BRK 1-82440-100-0 01 1 0407- ● ●
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0407- ● ●
51 PIN; JOINT,RELAY LEVER 1-09987-243-1 01 1 0407- ● ●
52 WASHER; CURVED RELAY LEVER
ID=19 		8-94206-429-1 02 1 0407- ● ●
61 CABLE; PARKING BRK
MAL6V M/T<Y2U> L=5189 THA 		8-97917-706-0 01 1 0407- ●
61 CABLE; PARKING BRK
ZF 9S109 OD M/T<Y2L> L=5094 THA 		8-97917-705-0 01 1 0407-0410 ●
61 CABLE; PARKING BRK
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ZF 9S109 OD M/T<Y2L> L=5094 THA 		8-97917-705-0 01 1 0411- ●
61 CABLE; PARKING BRK
6SD1 TCS ENG<83L> L=5179 THA 		8-97921-820-0 01 1 0411- ●
73 WASHER; PL,CABLE
ID=17 		9-09160-516-0 01 1 0407-0605 ● ●
73 WASHER; PL,CABLE
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ●
85 CLIP; BRKT
(A) ID=18 L=28 		1-09701-067-0 01 1 0407-0410 ● ●
85 CLIP; BRKT
(A) ID=18 L=28 		1-09701-067-0 01 1 0411- ●
85 CLIP; BRKT
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> (A) ID=18 L=28 		1-09701-067-0 01 1 0411- ●
85 CLIP; BRKT
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 0407- ● ●
85 CLIP; BRKT
6SD1 TCS ENG<83L> (A) ID=16 L=28 		1-09700-872-0 01 1 0411- ●
86 BOLT
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0410 ● ●
86 BOLT
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0410 ● ●
86 BOLT
M8X16 FLANGE 		0-28080-816-0 01 1 0411-0611 ● ●
86 BOLT
M8X16 FLANGE THA 		0-28050-816-0 01 1 0612- ● ●
86 BOLT
M8X35 FLANGE 		0-28680-835-0 01 1 0407-0409 ● ●
86 BOLT
M8X30 FLANGE 		0-28680-830-0 01 1 0410-0611 ● ●
86 BOLT
M8X30 FLANGE THA 		0-28650-830-0 01 1 0612- ● ●
86 BOLT
M8X25 FLANGE 		0-28680-825-0 02 1 0411-0611 ● ●
86 BOLT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
87 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0602 ● ●
87 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0602 ● ●
87 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 0603- ● ●
87 NUT
M8 FLANGE THA 		0-91180-108-0 03 1 0603- ● ●
90 BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407- ● ●
98 BOLT; RR COVER
M10X30 FLANGE 		0-28681-030-0 02 1 0407-0611 ● ●
98 BOLT; RR COVER
M10X30 FLANGE THA 		0-28651-030-0 02 1 0612- ● ●
99 NUT; CONT CABLE
M10 FLANGE 		0-91150-210-0 02 1 0407-0602 ● ●
99 NUT; CONT CABLE
M10 FLANGE THA 		0-91180-210-0 02 1 0603- ● ●
101 NUT; CABLE TO LEVER
M8 FLANGE 		0-91150-108-0 01 1 0407-0602 ●
101 NUT; CABLE TO LEVER 1-46259-007-0 01 1 0407- ●
101 NUT; CABLE TO LEVER
M8 FLANGE THA 		0-91180-108-0 01 1 0603- ●
102 NUT; LK,CABLE TO LEVER
M8 FLANGE 		0-91150-108-0 01 1 0407-0602 ● ●
102 NUT; LK,CABLE TO LEVER
M8 FLANGE THA 		0-91180-108-0 01 1 0603- ● ●
227 CLIP; RAD
ID=13 L=20 		9-09525-235-0 01 1 0407-0410 ● ●
227 CLIP; RAD
ID=13 L=20 		9-09525-235-0 01 1 0411-0606 ●
227 CLIP; RAD
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ID=13 L=20 		9-09525-235-0 01 1 0411-0606 ●
227 CLIP; RAD
ID=13 L=20 		0-95235-235-0 01 1 0607- ●
227 CLIP; RAD
6SD1 TCN ENG<31L>,6SD1 TCR ENG<98L> ID=13 L=20 		0-95235-235-0 01 1 0607- ●
227 CLIP; RAD
6SD1 TCS ENG<83L> ID=13 L=40 		9-09525-276-0 01 1 0411-0606 ●
227 CLIP; RAD
6SD1 TCS ENG<83L> ID=13 L=40 		0-95235-276-0 01 1 0607- ●
228 BOLT; CLIP RAD MTG
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0611 ● ●
228 BOLT; CLIP RAD MTG
M8X16 FLANGE THA 		0-28050-816-0 01 1 0612- ● ●
229 NUT; CLIP RAD MTG
M8 FLANGE 		0-91150-108-0 01 1 0407-0602 ● ●
229 NUT; CLIP RAD MTG
M8 FLANGE THA 		0-91180-108-0 01 1 0603- ● ●
246 SENSOR; BRK LOCK 1-46360-123-1 01 1 0407- ●
333 CLIP; CABLE
ID=14.5 L=20 		1-09701-012-0 01 1 0407- ● ●
333 CLIP; CABLE
ID=14.5 L=40 THA 		1-09701-014-0 01 1 0407- ● ●
343 SEAL
OD=25 BLACK THA 		1-76798-019-0 02 1 0407- ● ●
