1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#2978) — 242 parça

83 53 47 46 51 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
46	CLIP; AIR PIPE (A) ID=5.5 & 5.5 L=11.5	9-15419-039-0	06	1	9002-	●
46	CLIP; AIR PIPE (B) ID=5.5 & 5.5 L=11.5 W/NUT	9-15419-085-0	06	1	9002-	●
46	CLIP; AIR PIPE CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) ID=5.5 & 5.5 L=11.5	9-15419-039-0	01	1	9002-	●
46	CLIP; AIR PIPE CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (B) ID=5.5 & 5.5 L=11.5 W/NUT	9-15419-085-0	01	1	9002-	●
47	BOLT; CLIP M5X20	9-09802-539-0	06	1	9002-	●
47	BOLT; CLIP CONCRETE PUMP<RA5> M5X20	9-09802-539-0	01	1	9311-	●
51	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9002-	●
51	WASHER; LK,CLIP CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> ID=5.1	9-09150-505-0	01	1	9002-	●
53	BRACKET; CLIP EXC. MIXER TRUCK<RA2> L=50	1-47475-299-2	01	1	9002-	●	●
83	CLIP; FLEX HOSE CONCRETE PUMP<RA5> L=140	5-09707-031-1	01	1	9002-	●

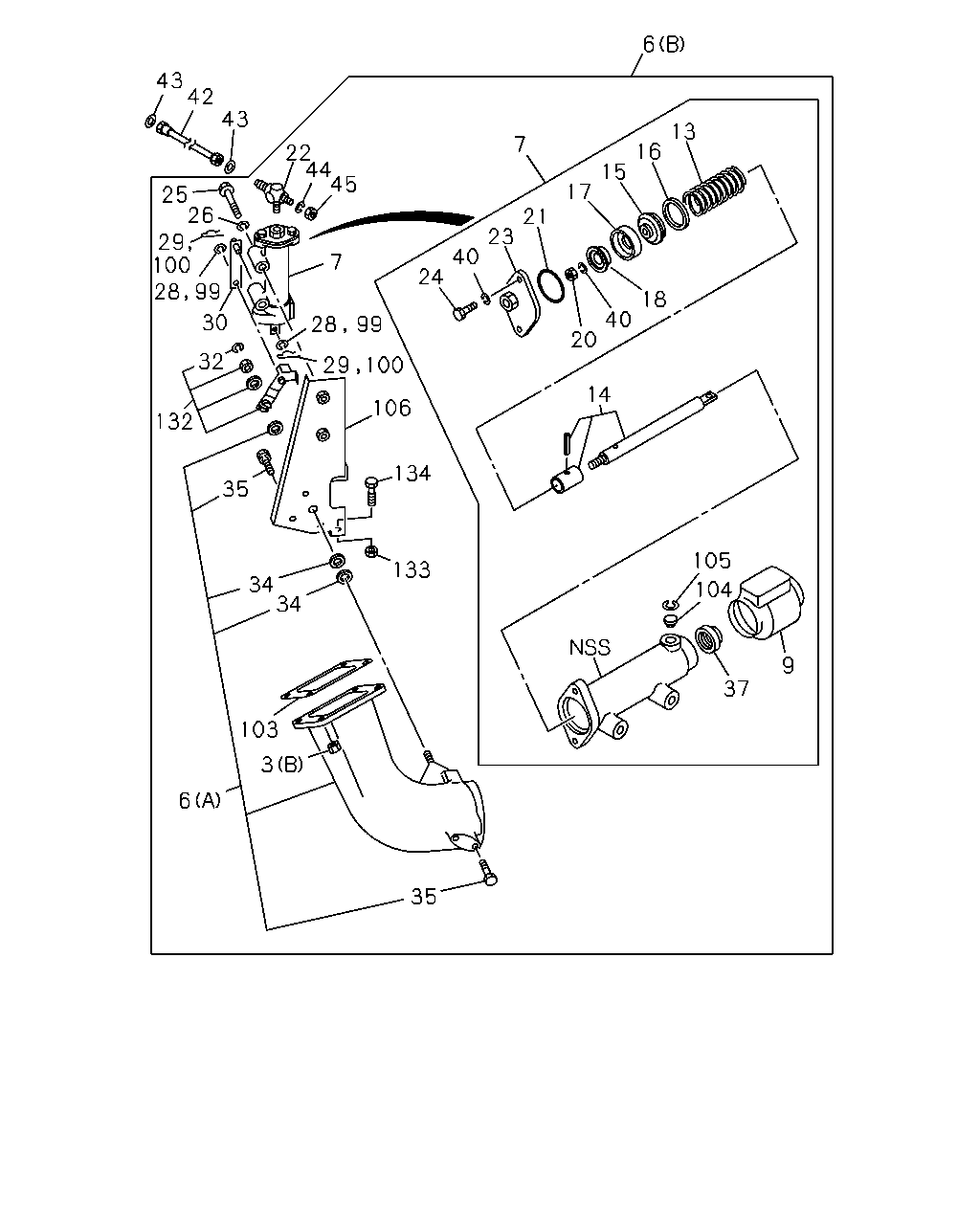

35 6 3 103 34 34 133 134 35 132 32 30 99 28 100 29 26 25 43 42 43 22 44 45 7 28 99 29 100 106 14 20 40 18 24 40 23 21 7 17 15 16 13 6 105 104 9 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	NUT (A) M8	9-09110-408-0	01	1	9002-9306	●	●
3	NUT (B) M10	9-09844-575-0	04	1	9002-	●
6	VALVE; EXH BRAKE CONCRETE PUMP<RA5> (A)	1-14144-368-1	01	1	9307-	●
6	VALVE; EXH BRAKE CONCRETE PUMP<RA5> (B)	1-14144-440-3	01	1	9307-	●
6	VALVE; EXH BRAKE EXC. CONCRETE PUMP<RA5> (A)	1-14144-369-1	01	1	9307-	●
6	VALVE; EXH BRAKE EXC. CONCRETE PUMP<RA5> (B)	1-14144-453-3	01	1	9307-	●
7	CYLINDER ASM; CONT	1-22190-531-0	01	1	9002-9306	●	●
7	CYLINDER ASM; CONT	1-22190-531-0	01	1	9307-	●
9	COVER; CYL	1-22199-008-0	01	1	9002-9306	●	●
9	COVER; CYL	1-22199-008-0	01	1	9307-	●
13	SPRING; CONT CYL	1-22199-018-0	01	1	9002-9306	●	●
13	SPRING; CONT CYL	1-22199-018-0	01	1	9307-	●
14	SHAFT; CONT CYL	1-22196-255-0	01	1	9002-9306	●	●
14	SHAFT; CONT CYL	1-22196-255-0	01	1	9307-	●
15	PLATE; CONT CYL	1-22199-020-0	01	1	9002-9306	●	●
15	PLATE; CONT CYL	1-22199-020-0	01	1	9307-	●
16	RING; WEAR,CONT CYL	1-22199-002-0	01	1	9002-9306	●	●
16	RING; WEAR,CONT CYL	1-22189-002-0	01	1	9307-	●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9002-9306	●	●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9307-	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9002-9306	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9307-	●
20	NUT; CONT CYL M8	9-09110-408-0	01	1	9002-9306	●	●
20	NUT; CONT CYL M8	9-09110-408-0	01	1	9307-	●
21	GASKET; COVER	9-88510-372-0	01	1	9002-9306	●	●
21	GASKET; COVER	9-88510-372-0	01	1	9307-	●
22	CONNECTOR; CONT CYL	1-09656-450-1	01	1	9002-9306	●	●
22	CONNECTOR; CONT CYL	1-09656-450-0	01	1	9307-	●
23	COVER; CONT CYL	9-88510-375-0	01	1	9002-9306	●	●
23	COVER; CONT CYL	9-88510-375-0	01	1	9307-	●
24	BOLT; COVER	9-88510-267-0	02	1	9002-9306	●	●
24	BOLT; COVER	9-88510-267-0	02	1	9307-	●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9002-9004	●	●
25	BOLT; CONT CYL M10X70	0-10806-070-0	02	1	9005-9306	●	●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9307-	●
26	WASHER; LK,CONT CYL ID=10.5 OD=18	9-09160-510-0	02	1	9307-	●
28	WASHER; PL,LINK ID=6.4	9-09160-506-0	02	1	9307-	●
29	PIN; SPLIT,LINK L=21.2	8-94157-840-0	02	1	9307-	●
30	ROD; LINK,CONT CYL	1-22196-113-0	01	1	9307-	●
32	WASHER; LK ID=8.4	9-09851-473-0	01	1	9307-	●
34	RING; SEAL ID=15	1-22189-025-0	02	1	9307-	●
34	RING; SEAL ID=14	9-22189-104-0	02	1	9307-	●
35	BOLT; PLATE FIX M8X16 W/LK WASHER	9-01910-816-0	05	1	9307-	●
37	COVER; BODY	1-22189-106-0	01	1	9307-	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	03	1	9307-	●
42	HOSE; FLEX,EXH BRK EXC. CONCRETE PUMP<RA5> L=270	0-07150-270-0	01	1	9002-	●	●
42	HOSE; FLEX,EXH BRK CONCRETE PUMP<RA5> L=430	0-07150-430-0	01	1	9002-	●
43	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●
44	WASHER; LK,FLEX HOSE CONCRETE PUMP<RA5> ID=12.2	9-09150-512-0	01	1	9002-	●
45	NUT; FLEX HOSE CONCRETE PUMP<RA5> M12	9-09840-280-0	01	1	9002-	●
99	WASHER; SNAP PIN ID=6.4	9-09160-506-0	02	1	9002-	●	●
100	PIN; SNAP L=21.2	8-94157-840-0	02	1	9002-	●	●
103	GASKET; MANIF TO PIPE	1-14145-117-1	01	1	9002-	●
104	RING; RET	9-88510-331-0	01	1	9307-	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9307-	●
106	BRACKET; CONT CYL	1-22186-082-0	01	1	9307-	●
132	LEVER; BRK VLV	1-22196-130-0	01	1	9002-9306	●	●
132	LEVER; BRK VLV	1-22196-130-0	01	1	9307-	●
133	NUT; LK M8	9-09110-408-0	02	1	9307-	●
134	BOLT; STOPPER M8X20	1-09000-289-0	01	1	9307-	●

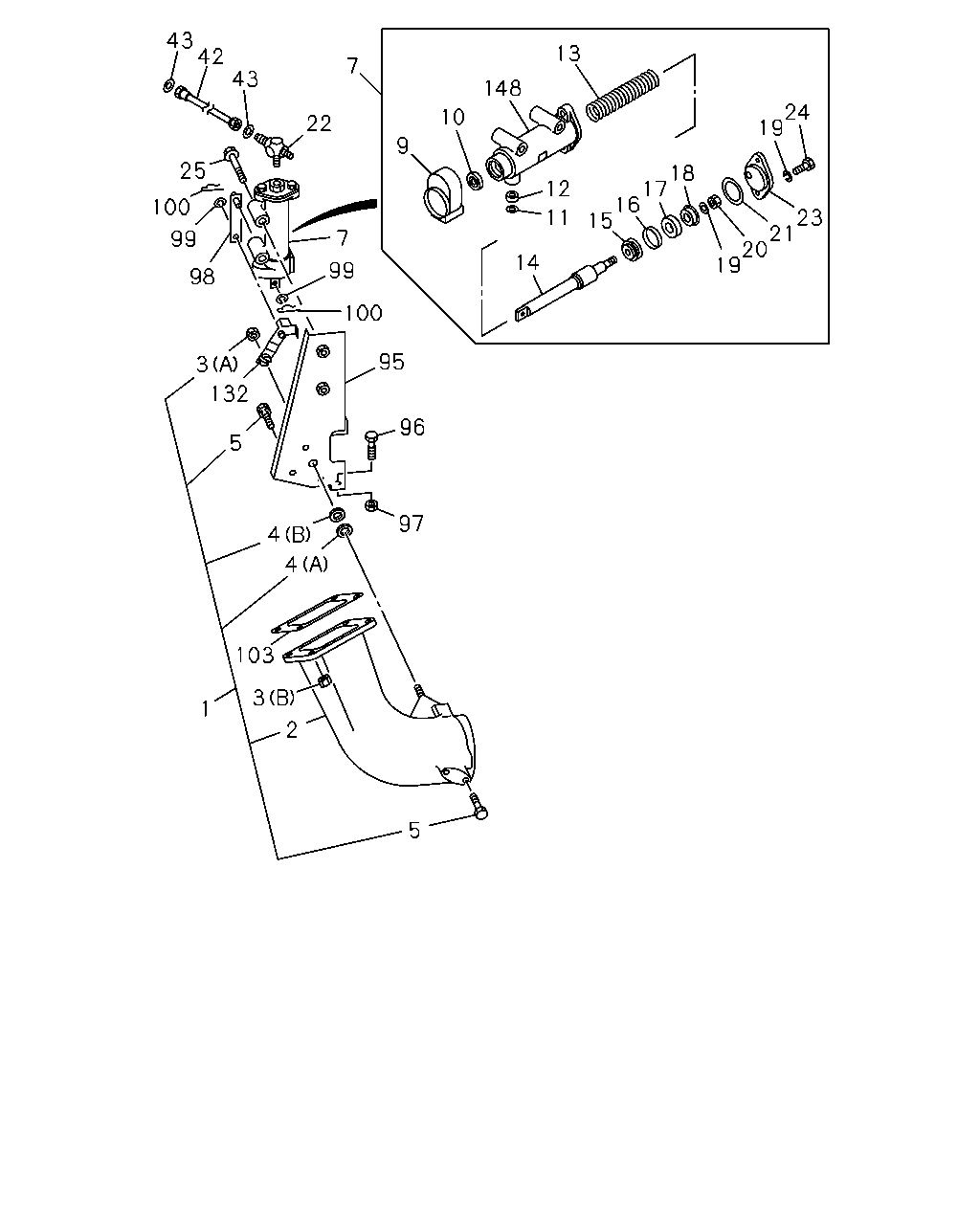

5 2 3 1 103 4 4 97 96 5 132 3 95 100 99 7 98 99 100 25 43 42 43 22 7 9 10 148 13 24 19 23 21 20 19 18 17 16 15 11 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; EXH BRAKE	1-14144-369-1	01	1	9002-9306		●
1	VALVE ASM; EXH BRAKE EXC. CONCRETE PUMP<RA5>	1-14144-369-1	01	1	9002-9306	●
2	DUCT; EXH	1-14144-355-1	01	1	9002-9306		●
2	DUCT; EXH EXC. CONCRETE PUMP<RA5>	1-14144-355-1	01	1	9002-9306	●
2	DUCT; EXH CONCRETE PUMP<RA5>	1-14144-346-0	01	1	9002-9306	●
3	NUT (A) M8	9-09110-408-0	01	1	9002-9306	●	●
3	NUT (B) M10	9-09844-575-0	04	1	9002-	●
4	RING; SEAL (B) ID=15	1-22189-025-0	02	1	9002-9306	●	●
4	RING; SEAL (A) ID=14	9-22189-104-0	02	1	9002-9306	●	●
5	BOLT; SHAFT TO VLV M8X16 W/LK WASHER	9-01910-816-0	05	1	9002-9005	●	●
5	BOLT; SHAFT TO VLV M8X16 W/LK WASHER	0-50040-816-0	05	1	9006-9306	●	●
7	CYLINDER ASM; CONT	1-22190-531-0	01	1	9002-9306	●	●
7	CYLINDER ASM; CONT	1-22190-531-0	01	1	9307-	●
9	COVER; CYL	1-22199-008-0	01	1	9002-9306	●	●
9	COVER; CYL	1-22199-008-0	01	1	9307-	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-9306	●	●
11	FILTER; CYL	9-88510-330-0	01	1	9002-9306	●	●
12	RING; RET	9-88510-331-0	01	1	9002-9306	●	●
13	SPRING; CONT CYL	1-22199-018-0	01	1	9002-9306	●	●
13	SPRING; CONT CYL	1-22199-018-0	01	1	9307-	●
14	SHAFT; CONT CYL	1-22196-255-0	01	1	9002-9306	●	●
14	SHAFT; CONT CYL	1-22196-255-0	01	1	9307-	●
15	PLATE; CONT CYL	1-22199-020-0	01	1	9002-9306	●	●
15	PLATE; CONT CYL	1-22199-020-0	01	1	9307-	●
16	RING; WEAR,CONT CYL	1-22199-002-0	01	1	9002-9306	●	●
16	RING; WEAR,CONT CYL	1-22189-002-0	01	1	9307-	●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9002-9306	●	●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9307-	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9002-9306	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9307-	●
19	WASHER; CONT,DUCT ID=8.2	9-09150-508-0	03	1	9002-9306	●	●
20	NUT; CONT CYL M8	9-09110-408-0	01	1	9002-9306	●	●
20	NUT; CONT CYL M8	9-09110-408-0	01	1	9307-	●
21	GASKET; COVER	9-88510-372-0	01	1	9002-9306	●	●
21	GASKET; COVER	9-88510-372-0	01	1	9307-	●
22	CONNECTOR; CONT CYL	1-09656-450-1	01	1	9002-9306	●	●
22	CONNECTOR; CONT CYL	1-09656-450-0	01	1	9307-	●
23	COVER; CONT CYL	9-88510-375-0	01	1	9002-9306	●	●
23	COVER; CONT CYL	9-88510-375-0	01	1	9307-	●
24	BOLT; COVER	9-88510-267-0	02	1	9002-9306	●	●
24	BOLT; COVER	9-88510-267-0	02	1	9307-	●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9002-9004	●	●
25	BOLT; CONT CYL M10X70	0-10806-070-0	02	1	9005-9306	●	●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9307-	●
42	HOSE; FLEX,EXH BRK EXC. CONCRETE PUMP<RA5> L=270	0-07150-270-0	01	1	9002-	●	●
42	HOSE; FLEX,EXH BRK CONCRETE PUMP<RA5> L=430	0-07150-430-0	01	1	9002-	●
43	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●
95	BRACKET; CONT CYL	1-22186-082-1	01	1	9002-9306	●	●
96	BOLT; STOPPER M8X20	1-09000-289-0	01	1	9002-9306	●	●
97	NUT M8	9-09110-408-0	01	1	9002-9306	●	●
98	LINK	1-22196-113-0	01	1	9002-9306	●	●
99	WASHER; SNAP PIN ID=6.4	9-09160-506-0	02	1	9002-	●	●
100	PIN; SNAP L=21.2	8-94157-840-0	02	1	9002-	●	●
103	GASKET; MANIF TO PIPE	1-14145-117-1	01	1	9002-	●
132	LEVER; BRK VLV	1-22196-130-0	01	1	9002-9306	●	●
132	LEVER; BRK VLV	1-22196-130-0	01	1	9307-	●
148	CYLINDER; CONT,DUCT	9-88510-329-0	01	1	9002-9306	●	●

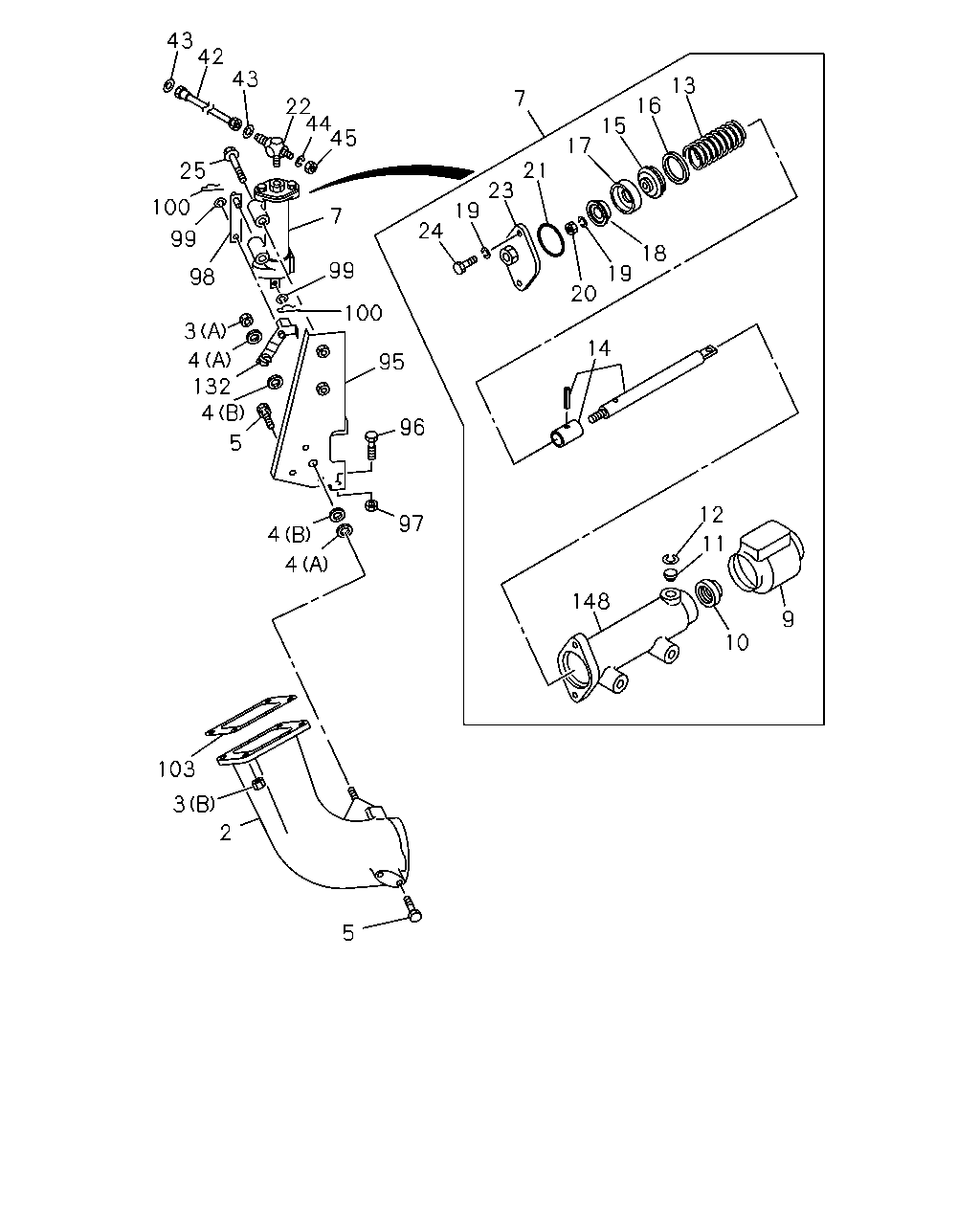

5 2 3 103 4 4 97 96 95 100 99 5 4 132 4 3 98 99 100 25 43 42 43 22 44 45 7 24 19 23 21 7 17 15 16 13 18 19 20 14 148 12 11 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DUCT; EXH	1-14144-355-1	01	1	9002-9306		●
2	DUCT; EXH EXC. CONCRETE PUMP<RA5>	1-14144-355-1	01	1	9002-9306	●
2	DUCT; EXH CONCRETE PUMP<RA5>	1-14144-346-0	01	1	9002-9306	●
3	NUT (A) M8	9-09110-408-0	01	1	9002-9306	●	●
3	NUT (B) M10	9-09844-575-0	04	1	9002-	●
4	RING; SEAL (B) ID=15	1-22189-025-0	02	1	9002-9306	●	●
4	RING; SEAL (A) ID=14	9-22189-104-0	02	1	9002-9306	●	●
5	BOLT; SHAFT TO VLV M8X16 W/LK WASHER	9-01910-816-0	05	1	9002-9005	●	●
5	BOLT; SHAFT TO VLV M8X16 W/LK WASHER	0-50040-816-0	05	1	9006-9306	●	●
7	CYLINDER ASM; CONT	1-22190-531-0	01	1	9002-9306	●	●
7	CYLINDER ASM; CONT	1-22190-531-0	01	1	9307-	●
9	COVER; CYL	1-22199-008-0	01	1	9002-9306	●	●
9	COVER; CYL	1-22199-008-0	01	1	9307-	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-9306	●	●
11	FILTER; CYL	9-88510-330-0	01	1	9002-9306	●	●
12	RING; RET	9-88510-331-0	01	1	9002-9306	●	●
13	SPRING; CONT CYL	1-22199-018-0	01	1	9002-9306	●	●
13	SPRING; CONT CYL	1-22199-018-0	01	1	9307-	●
14	SHAFT; CONT CYL	1-22196-255-0	01	1	9002-9306	●	●
14	SHAFT; CONT CYL	1-22196-255-0	01	1	9307-	●
15	PLATE; CONT CYL	1-22199-020-0	01	1	9002-9306	●	●
15	PLATE; CONT CYL	1-22199-020-0	01	1	9307-	●
16	RING; WEAR,CONT CYL	1-22199-002-0	01	1	9002-9306	●	●
16	RING; WEAR,CONT CYL	1-22189-002-0	01	1	9307-	●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9002-9306	●	●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9307-	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9002-9306	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9307-	●
19	WASHER; CONT,DUCT ID=8.2	9-09150-508-0	03	1	9002-9306	●	●
20	NUT; CONT CYL M8	9-09110-408-0	01	1	9002-9306	●	●
20	NUT; CONT CYL M8	9-09110-408-0	01	1	9307-	●
21	GASKET; COVER	9-88510-372-0	01	1	9002-9306	●	●
21	GASKET; COVER	9-88510-372-0	01	1	9307-	●
22	CONNECTOR; CONT CYL	1-09656-450-1	01	1	9002-9306	●	●
22	CONNECTOR; CONT CYL	1-09656-450-0	01	1	9307-	●
23	COVER; CONT CYL	9-88510-375-0	01	1	9002-9306	●	●
23	COVER; CONT CYL	9-88510-375-0	01	1	9307-	●
24	BOLT; COVER	9-88510-267-0	02	1	9002-9306	●	●
24	BOLT; COVER	9-88510-267-0	02	1	9307-	●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9002-9004	●	●
25	BOLT; CONT CYL M10X70	0-10806-070-0	02	1	9005-9306	●	●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9307-	●
42	HOSE; FLEX,EXH BRK EXC. CONCRETE PUMP<RA5> L=270	0-07150-270-0	01	1	9002-	●	●
42	HOSE; FLEX,EXH BRK CONCRETE PUMP<RA5> L=430	0-07150-430-0	01	1	9002-	●
43	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●
44	WASHER; LK,FLEX HOSE CONCRETE PUMP<RA5> ID=12.2	9-09150-512-0	01	1	9002-	●
45	NUT; FLEX HOSE CONCRETE PUMP<RA5> M12	9-09840-280-0	01	1	9002-	●
95	BRACKET; CONT CYL	1-22186-082-1	01	1	9002-9306	●	●
96	BOLT; STOPPER M8X20	1-09000-289-0	01	1	9002-9306	●	●
97	NUT M8	9-09110-408-0	01	1	9002-9306	●	●
98	LINK	1-22196-113-0	01	1	9002-9306	●	●
99	WASHER; SNAP PIN ID=6.4	9-09160-506-0	02	1	9002-	●	●
100	PIN; SNAP L=21.2	8-94157-840-0	02	1	9002-	●	●
103	GASKET; MANIF TO PIPE	1-14145-117-1	01	1	9002-	●
132	LEVER; BRK VLV	1-22196-130-0	01	1	9002-9306	●	●
132	LEVER; BRK VLV	1-22196-130-0	01	1	9307-	●
148	CYLINDER; CONT,DUCT	9-88510-329-0	01	1	9002-9306	●	●

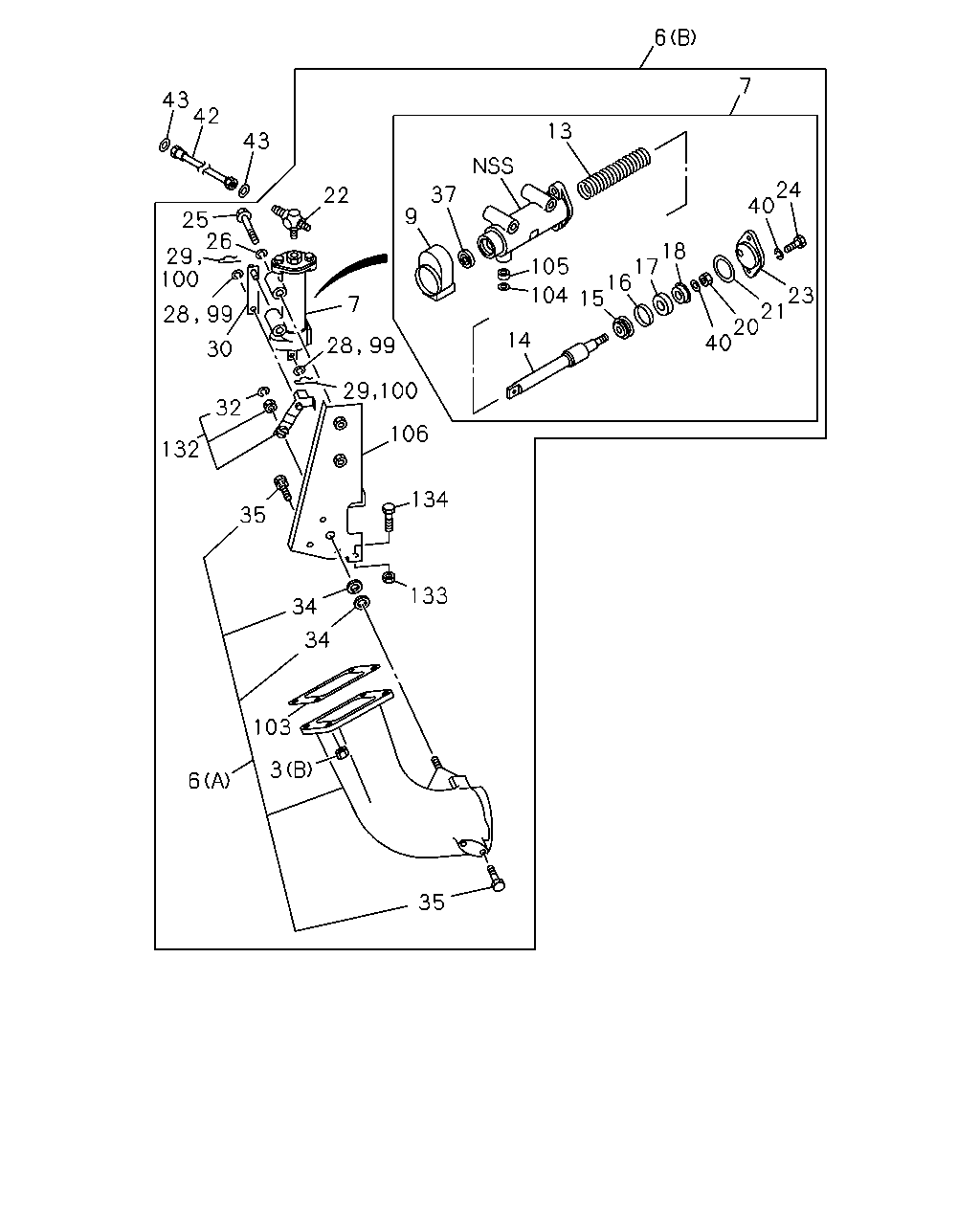

35 3 6 103 34 34 133 134 35 132 32 106 100 29 28 99 7 30 99 28 100 29 26 25 43 42 43 22 9 37 13 6 7 24 40 23 21 20 40 18 17 16 15 104 105 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	NUT (A) M8	9-09110-408-0	01	1	9002-9306	●	●
3	NUT (B) M10	9-09844-575-0	04	1	9002-	●
6	VALVE; EXH BRAKE CONCRETE PUMP<RA5> (A)	1-14144-368-1	01	1	9307-	●
6	VALVE; EXH BRAKE CONCRETE PUMP<RA5> (B)	1-14144-440-3	01	1	9307-	●
6	VALVE; EXH BRAKE EXC. CONCRETE PUMP<RA5> (A)	1-14144-369-1	01	1	9307-	●
6	VALVE; EXH BRAKE EXC. CONCRETE PUMP<RA5> (B)	1-14144-453-3	01	1	9307-	●
7	CYLINDER ASM; CONT	1-22190-531-0	01	1	9002-9306	●	●
7	CYLINDER ASM; CONT	1-22190-531-0	01	1	9307-	●
9	COVER; CYL	1-22199-008-0	01	1	9002-9306	●	●
9	COVER; CYL	1-22199-008-0	01	1	9307-	●
13	SPRING; CONT CYL	1-22199-018-0	01	1	9002-9306	●	●
13	SPRING; CONT CYL	1-22199-018-0	01	1	9307-	●
14	SHAFT; CONT CYL	1-22196-255-0	01	1	9002-9306	●	●
14	SHAFT; CONT CYL	1-22196-255-0	01	1	9307-	●
15	PLATE; CONT CYL	1-22199-020-0	01	1	9002-9306	●	●
15	PLATE; CONT CYL	1-22199-020-0	01	1	9307-	●
16	RING; WEAR,CONT CYL	1-22199-002-0	01	1	9002-9306	●	●
16	RING; WEAR,CONT CYL	1-22189-002-0	01	1	9307-	●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9002-9306	●	●
17	GASKET; CONT CYL	9-88510-373-0	01	1	9307-	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9002-9306	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9307-	●
20	NUT; CONT CYL M8	9-09110-408-0	01	1	9002-9306	●	●
20	NUT; CONT CYL M8	9-09110-408-0	01	1	9307-	●
21	GASKET; COVER	9-88510-372-0	01	1	9002-9306	●	●
21	GASKET; COVER	9-88510-372-0	01	1	9307-	●
22	CONNECTOR; CONT CYL	1-09656-450-1	01	1	9002-9306	●	●
22	CONNECTOR; CONT CYL	1-09656-450-0	01	1	9307-	●
23	COVER; CONT CYL	9-88510-375-0	01	1	9002-9306	●	●
23	COVER; CONT CYL	9-88510-375-0	01	1	9307-	●
24	BOLT; COVER	9-88510-267-0	02	1	9002-9306	●	●
24	BOLT; COVER	9-88510-267-0	02	1	9307-	●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9002-9004	●	●
25	BOLT; CONT CYL M10X70	0-10806-070-0	02	1	9005-9306	●	●
25	BOLT; CONT CYL M10X70	9-01056-070-0	02	1	9307-	●
26	WASHER; LK,CONT CYL ID=10.5 OD=18	9-09160-510-0	02	1	9307-	●
28	WASHER; PL,LINK ID=6.4	9-09160-506-0	02	1	9307-	●
29	PIN; SPLIT,LINK L=21.2	8-94157-840-0	02	1	9307-	●
30	ROD; LINK,CONT CYL	1-22196-113-0	01	1	9307-	●
32	WASHER; LK ID=8.4	9-09851-473-0	01	1	9307-	●
34	RING; SEAL ID=15	1-22189-025-0	02	1	9307-	●
34	RING; SEAL ID=14	9-22189-104-0	02	1	9307-	●
35	BOLT; PLATE FIX M8X16 W/LK WASHER	9-01910-816-0	05	1	9307-	●
37	COVER; BODY	1-22189-106-0	01	1	9307-	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	03	1	9307-	●
42	HOSE; FLEX,EXH BRK EXC. CONCRETE PUMP<RA5> L=270	0-07150-270-0	01	1	9002-	●	●
42	HOSE; FLEX,EXH BRK CONCRETE PUMP<RA5> L=430	0-07150-430-0	01	1	9002-	●
43	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●
99	WASHER; SNAP PIN ID=6.4	9-09160-506-0	02	1	9002-	●	●
100	PIN; SNAP L=21.2	8-94157-840-0	02	1	9002-	●	●
103	GASKET; MANIF TO PIPE	1-14145-117-1	01	1	9002-	●
104	RING; RET	9-88510-331-0	01	1	9307-	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9307-	●
106	BRACKET; CONT CYL	1-22186-082-0	01	1	9307-	●
132	LEVER; BRK VLV	1-22196-130-0	01	1	9002-9306	●	●
132	LEVER; BRK VLV	1-22196-130-0	01	1	9307-	●
133	NUT; LK M8	9-09110-408-0	02	1	9307-	●
134	BOLT; STOPPER M8X20	1-09000-289-0	01	1	9307-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
