◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10883 - CXH LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#29773) — 35 parça

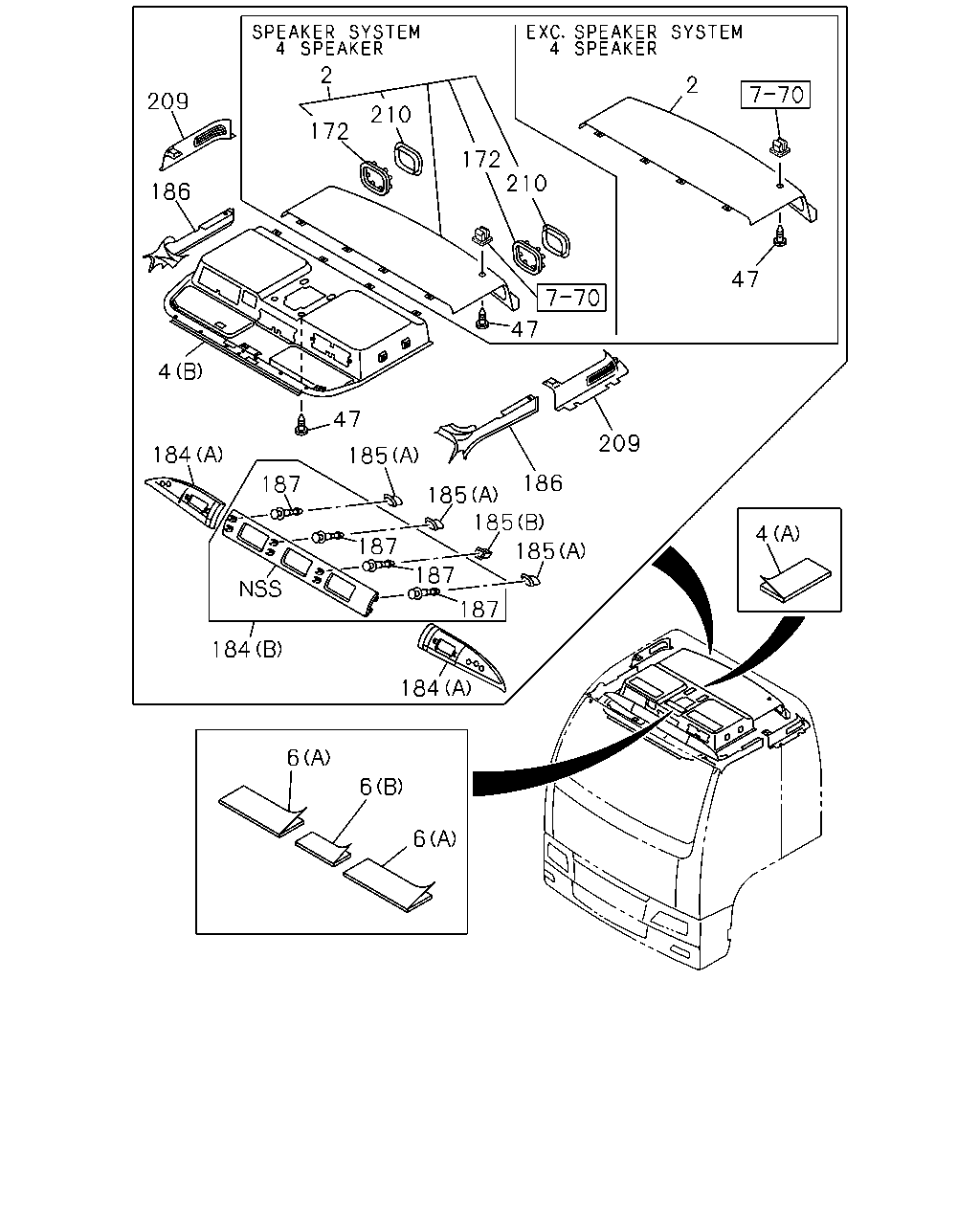

çizim 81147
2 2 209 210 172 172 210 186 47 47 4 47 209 184 185 186 187 185 185 4 187 185 187 187 184 184 6 6 6
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73317-403-8 01 1 0105-
2 LINING; HD,ROOF RR
EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73317-402-8 01 1 0105-
4 LINING; ROOF,FRT
CHINA GB VAR1<JAC> ROOM LAMP FLUORESCENT<NGG> (B) 		1-73317-516-3 01 1 0212-
4 LINING; ROOF,FRT
CHINA GB VAR1<JAC> EXC. ROOM LAMP FLUORESCENT<NGG> (B) 		1-73317-517-3 01 1 0212-
4 LINING; ROOF,FRT
(A) 		1-73317-436-0 02 1 0105-
4 LINING; ROOF,FRT
ROOM LAMP FLUORESCENT<NGG> (B) 		1-73317-473-2 01 1 0105-0211
4 LINING; ROOF,FRT
ROOM LAMP FLUORESCENT<NGG> EXC. CHINA GB VAR1<JAC> (B) 		1-73317-473-4 01 1 0212-
4 LINING; ROOF,FRT
EXC. ROOM LAMP FLUORESCENT<NGG> (B) 		1-73317-478-2 01 1 0105-0211
4 LINING; ROOF,FRT
EXC. CHINA GB VAR1<JAC>,ROOM LAMP FLUORESCENT<NGG> (B) 		1-73317-478-4 01 1 0212-
6 SPACER; HD LINING
(B) 140X300 		1-73317-435-2 01 1 0105-
6 SPACER; HD LINING
(A) 		1-73317-430-0 01 1 0105-0208
6 SPACER; HD LINING
(A) 140X800 		1-73317-429-0 01 1 0105-0208
6 SPACER; HD LINING
(A) 140X800 		1-73317-429-2 02 1 0209-
47 CLIP; HEADLINING
CHINA GB VAR1<JAC> EXC. WINDOW CURTAIN ROUND<BW4> D7.7X25 LIGHT GRAY 		1-73317-371-0 08 1 0212-
47 CLIP; HEADLINING
D5X14.7 		1-09983-183-0 05 1 0105-
47 CLIP; HEADLINING
D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0105-
47 CLIP; HEADLINING
EXC. ROOM LAMP FLUORESCENT<NGG> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0105-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73317-449-0 01 1 0105-
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73317-448-0 01 1 0105-
184 ORNAMENT; ROOF
(B) 		1-73318-626-0 01 1 0105-0111
184 ORNAMENT; ROOF
(B) 		1-73318-660-3 01 1 0112-
184 ORNAMENT; ROOF
(A) 		1-73317-388-0 01 1 0105-0111
184 ORNAMENT; ROOF
(A) 		1-73317-409-2 01 1 0112-
184 ORNAMENT; ROOF
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-73317-452-1 01 1 0105-
184 ORNAMENT; ROOF
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-73317-387-0 01 1 0105-0111
184 ORNAMENT; ROOF
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-73317-408-2 01 1 0112-
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0105-
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0105-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-2 01 1 0105-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-2 01 1 0105-
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0105-
209 COVER; GRILLE 1-73347-866-3 01 1 0105-
209 COVER; GRILLE 1-73347-865-3 01 1 0105-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73347-886-1 01 1 0105-
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73347-885-1 01 1 0105-
