◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10883 - CXH LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#29771) — 136 parça

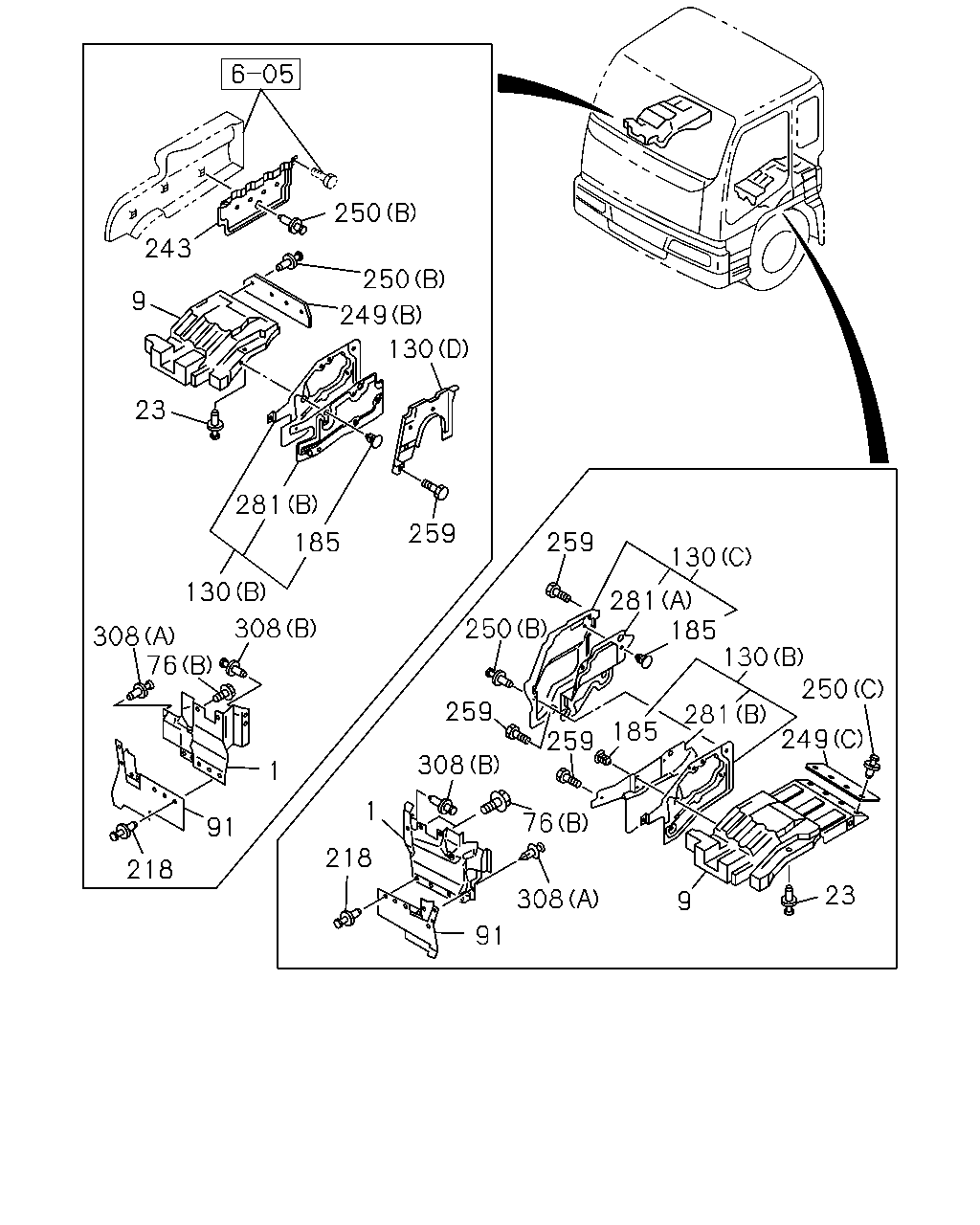

çizim 20995
243 250 250 9 249 130 23 281 259 259 185 130 130 281 185 130 250 308 250 308 76 259 259 281 185 249 308 1 1 76 91 218 218 23 308 9 91
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0105-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0105-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0105-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
91 COVER; MUD,FRT 1-79931-200-1 01 1 0105-
91 COVER; MUD,FRT 1-79931-199-1 01 1 0105-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-79937-897-3 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(B) 		1-79937-897-3 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-79937-899-2 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(C) 		1-79937-899-3 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) 		1-79937-943-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-1 01 1 0403-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-79937-916-4 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(C) 		1-79937-918-2 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 		1-79937-918-2 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(A) 		1-53193-328-1 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-945-1 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) 		1-79937-945-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-3 01 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-0402
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-0402
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0203-0303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0203-0303
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 11 1 0304-0402
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 17 1 0105-0303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0312
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0105-0202
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0105-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0105-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-167-0 01 1 0105-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-71907-167-0 01 1 0304-0402
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-71907-171-2 01 1 0304-0402
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0105-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0105-

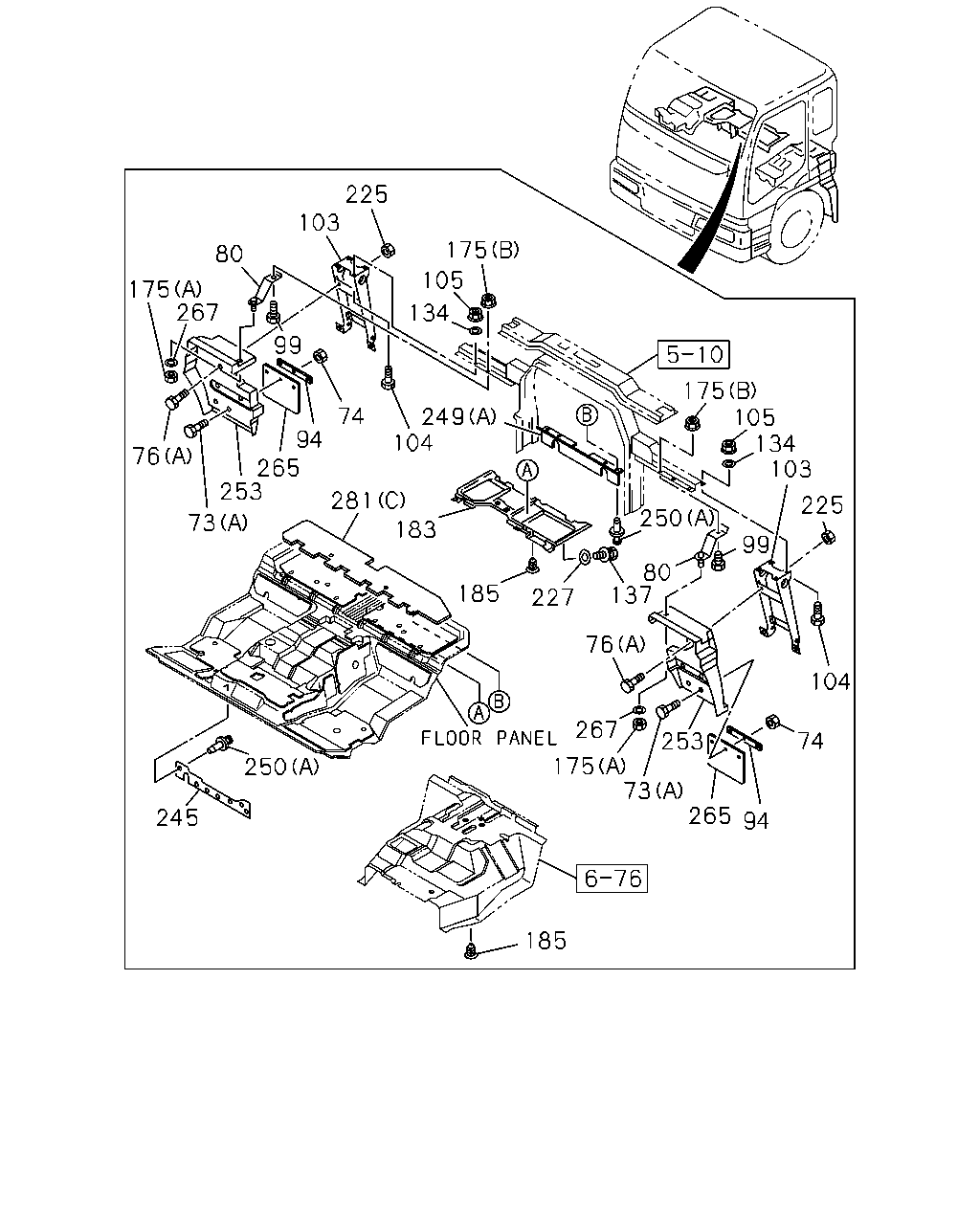

çizim 22661
225 103 175 80 105 175 267 134 99 175 105 134 103 74 249 104 94 265 253 76 281 183 225 250 73 99 80 137 185 227 76 104 253 267 74 175 73 250 265 245 94 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0105-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0105-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0105-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0105-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 0105-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0105-
103 BRACKET ASM; RR MUD FLAP 1-79931-088-4 02 1 0105-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 08 1 0105-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 0105-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0105-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0105-
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-0402
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-0402
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0203-0303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0203-0303
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 11 1 0304-0402
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 17 1 0105-0303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0312
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 06 1 0304-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0105-0202
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0105-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0105-
245 RUBBER; SHUTTER,RAD 1-79937-949-1 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0105-
253 GUARD; MUD 1-79931-066-7 01 1 0105-
253 GUARD; MUD 1-79931-065-7 01 1 0105-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0105-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-167-0 01 1 0105-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-71907-167-0 01 1 0304-0402
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-71907-171-2 01 1 0304-0402
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-

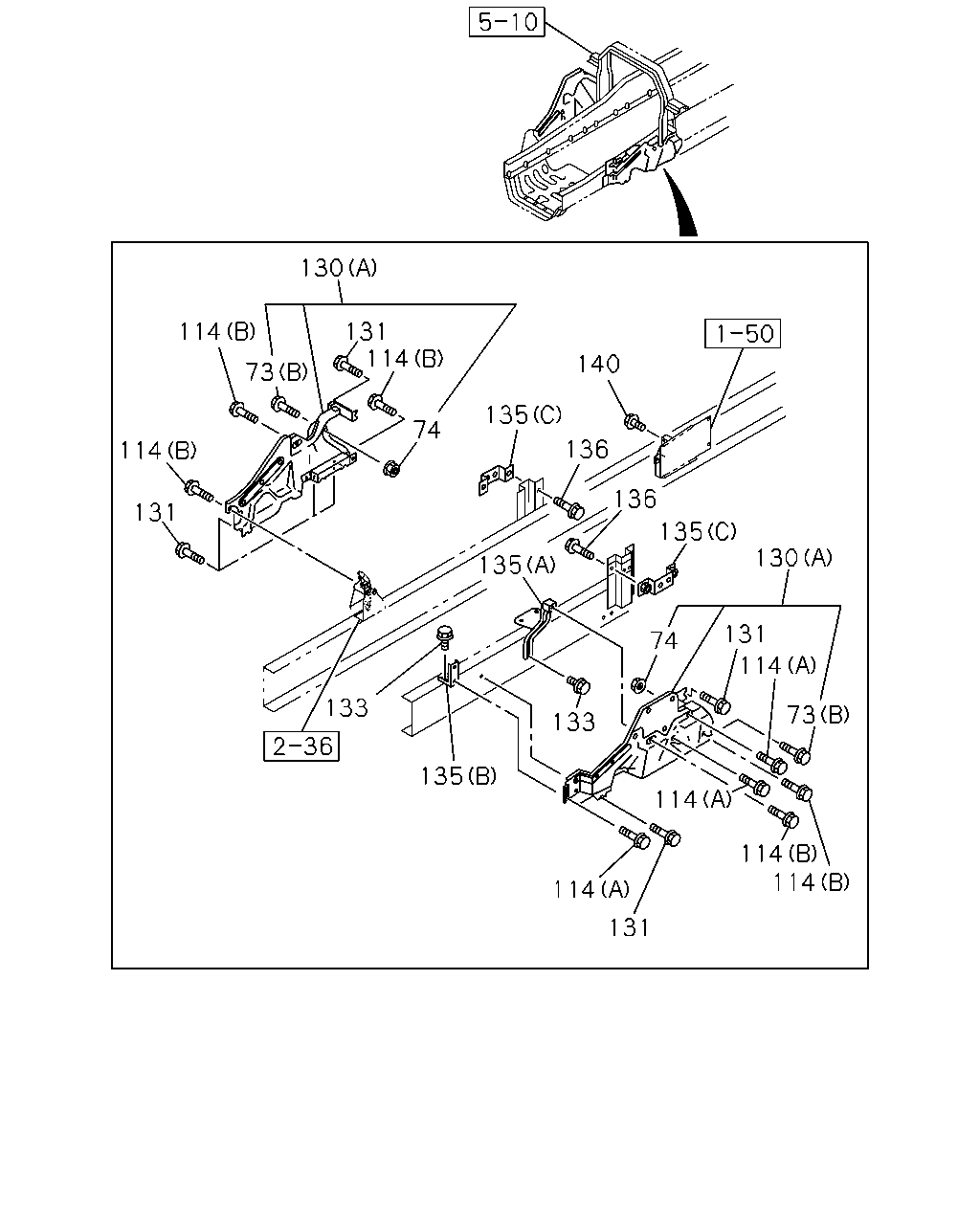

çizim 82946
130 131 114 114 140 73 135 74 136 114 136 131 135 135 130 131 74 114 133 73 133 135 114 114 114 114 131
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0105-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0105-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0105-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0105-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0105-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-79937-897-3 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(B) 		1-79937-897-3 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-79937-899-2 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(C) 		1-79937-899-3 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) 		1-79937-943-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-1 01 1 0403-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-79937-916-4 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(C) 		1-79937-918-2 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 		1-79937-918-2 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(A) 		1-53193-328-1 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-945-1 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) 		1-79937-945-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-3 01 1 0105-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 0105-
135 BRACKET; SIDE PANEL
(B) 		1-53441-507-0 01 1 0105-
135 BRACKET; SIDE PANEL
(C) 		1-53441-520-0 02 1 0105-
135 BRACKET; SIDE PANEL
(A) 		1-53441-598-1 01 1 0105-
136 BOLT
M8X25 FLANGE 		0-28680-825-0 04 1 0105-
140 BOLT; SIDE PANEL
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
140 BOLT; SIDE PANEL
M8X30 FLANGE 		0-28680-830-0 02 1 0105-
