Sayfa 1-50 - Isuzu EPC

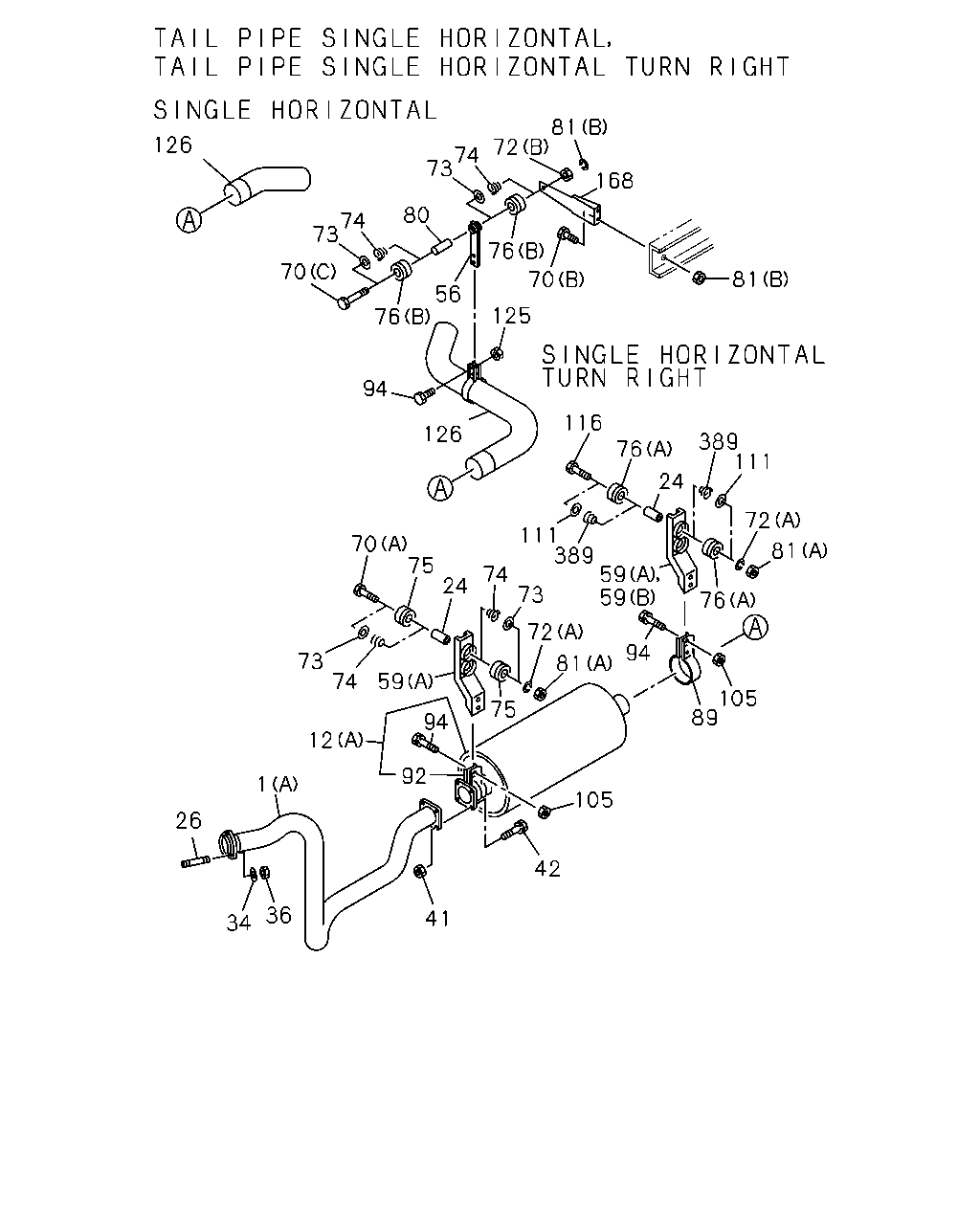

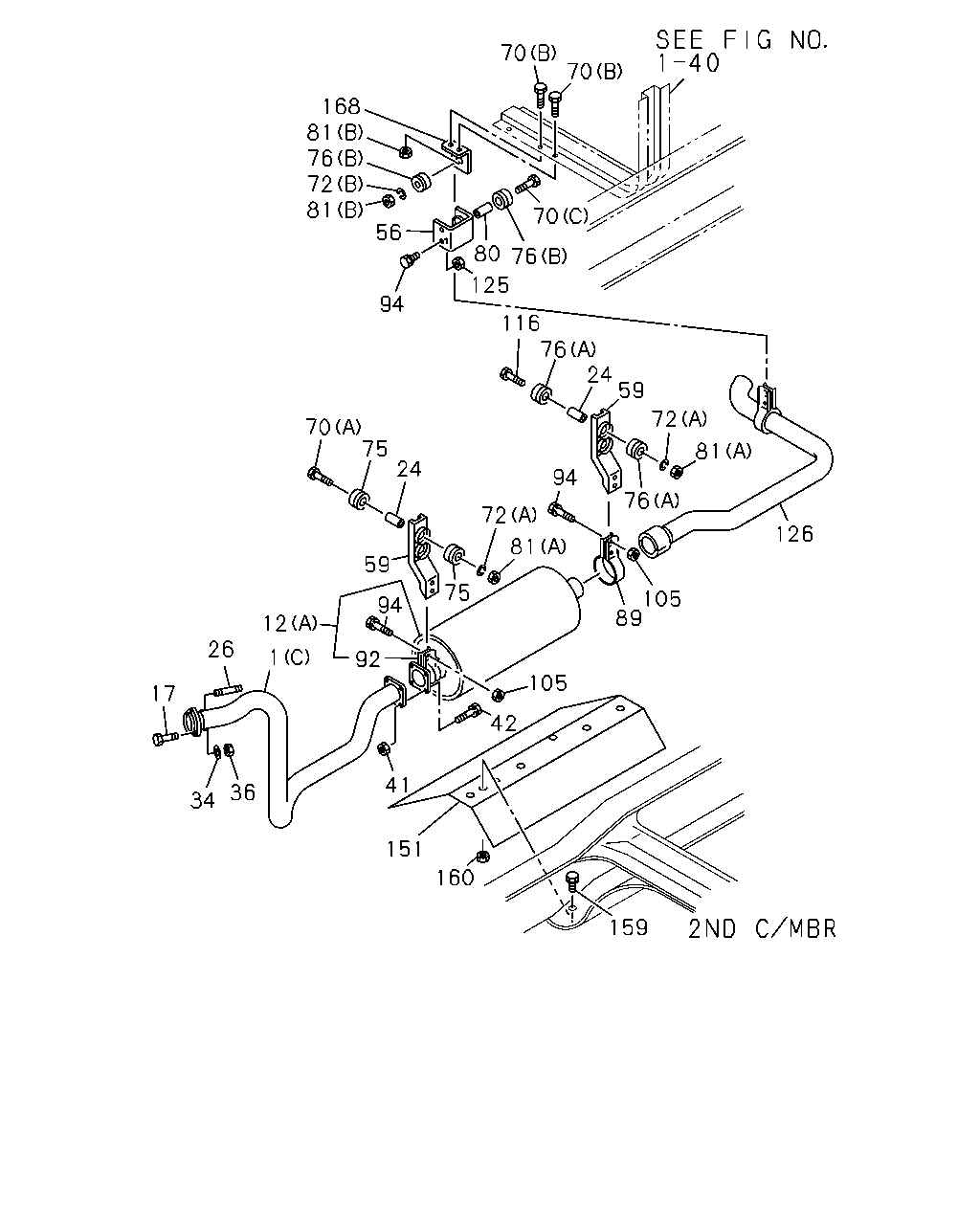

1-50 — EXHAUST PIPE AND SILENCER (#2977) — 275 parça

159 160 151 41 36 34 17 26 1 12 92 94 59 75 105 42 89 105 81 72 24 75 70 94 76 126 81 72 59 24 76 116 125 94 56 81 72 76 81 168 70 70 70 76 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22121-930-0	01	1	9002-	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-591-2	01	1	9002-	●	●
1	PIPE; EXH LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (A)	1-22121-591-2	01	1	9002-	●	●
1	PIPE; EXH SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22121-885-1	01	1	9002-9306	●	●
1	PIPE; EXH CONCRETE PUMP<RA5> (C)	1-22121-598-0	01	1	9002-		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-626-2	01	1	9002-9103	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-2	01	1	9104-9306	●	●
12	SILENCER ASM; EXH SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-704-2	01	1	9002-9306	●	●
12	SILENCER ASM; EXH LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-704-2	01	1	9002-9306	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9307-		●
12	SILENCER ASM; EXH LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-668-0	01	1	9002-		●
17	BOLT; EXH PIPE CONCRETE PUMP<RA5> M12X85	1-09000-313-0	01	1	9002-		●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	04	1	9002-	●	●
26	STUD; EXH MANIF	1-09302-090-0	03	1	9002-	●
26	STUD; EXH MANIF EXC. CONCRETE PUMP<RA5>	1-09302-090-0	03	1	9002-		●
26	STUD; EXH MANIF CONCRETE PUMP<RA5>	1-09302-090-0	02	1	9002-		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9002-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9002-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> L=217	1-22131-126-2	01	1	9002-	●	●
56	BRACKET; CLAMP,EXH PIPE CONCRETE PUMP<RA5>	1-22131-414-0	01	1	9002-9208		●
56	BRACKET; CLAMP,EXH PIPE CONCRETE PUMP<RA5>	1-22131-646-0	01	1	9209-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (A) FRONT & LONG CHASSIS REAR L=299	1-22151-414-1	01	1	9002-9306	●	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (A) FRONT & LONG CHASSIS REAR L=299	1-22151-414-1	01	1	9002-9306		●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) REAR L=292	1-22151-395-0	01	1	9002-9306	●	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) REAR L=292	1-22151-395-0	01	1	9002-9306	●
59	BRACKET; EXH SILENCER,FRT CONCRETE PUMP<RA5> L=277	1-22151-333-1	02	1	9002-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (A),(B) L=299	1-22151-414-1	02	1	9307-		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (C) M10X55	9-01056-055-0	01	1	9002-9004	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (C) M10X55	0-10806-055-0	01	1	9005-	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X55	9-01056-055-0	02	1	9002-9004	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X55	0-10806-055-0	02	1	9005-	●	●
70	BOLT; BRKT CONCRETE PUMP<RA5> (C) M10X50	9-01046-050-0	01	1	9002-9204		●
70	BOLT; BRKT CONCRETE PUMP<RA5> (C) M10X50	0-10806-050-0	01	1	9205-		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) ID=10.2	9-09150-510-0	01	1	9002-	●	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) ID=10.2	9-09150-510-0	04	1	9002-	●	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9>	1-22159-065-0	04	1	9002-9306	●	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> OD=40	1-22159-094-0	08	1	9307-		●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> (B)	1-22159-065-0	02	1	9002-9306	●	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) OD=40	1-22159-094-0	02	1	9307-		●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> (A)	1-22159-065-0	04	1	9002-9306	●	●
80	COLLAR; DIST,SUPPORT RUBBER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	01	1	9002-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10	9-09110-510-0	01	1	9002-9306	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10	9-09110-510-0	02	1	9002-9306	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10	9-09110-510-0	04	1	9002-9306	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10	9-09110-510-0	03	1	9307-		●
89	CLAMP; EXH SILENCER,RR SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=97	1-22133-218-0	01	1	9002-9306	●	●
89	CLAMP; EXH SILENCER,RR LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=97	1-22133-218-0	01	1	9002-9306	●
89	CLAMP; EXH SILENCER,RR LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=83	1-22133-217-0	01	1	9002-		●
92	CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> D=83	1-22133-213-0	01	1	9002-	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	06	1	9002-9005	●	●
94	BOLT; CLAMP CONCRETE PUMP<RA5> M8X35 W/LK WASHER	9-01910-835-0	06	1	9002-9005		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	06	1	9006-9302	●	●
94	BOLT; CLAMP CONCRETE PUMP<RA5> M8X35 W/LK WASHER	0-50040-835-0	06	1	9006-9302		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	06	1	9303-9306	●	●
94	BOLT; CLAMP CONCRETE PUMP<RA5> M8X35 FLANGE	0-28080-835-0	06	1	9303-9306		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	06	1	9307-		●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	04	1	9002-	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X55	9-01056-055-0	04	1	9002-9004	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X55	0-10806-055-0	04	1	9005-	●	●
125	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22121-927-0	01	1	9002-9306	●
126	PIPE; EXH,RR LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22122-097-0	01	1	9002-9306	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22112-639-1	01	1	9002-	●	●
126	PIPE; EXH,RR SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22122-099-0	01	1	9002-9306	●	●
126	PIPE; EXH,RR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,CONCRETE PUMP<RA5>	1-22126-164-0	01	1	9510-		●
126	PIPE; EXH,RR CONCRETE PUMP<RA5>	1-22122-096-0	01	1	9002-9509		●
126	PIPE; EXH,RR CONCRETE PUMP<RA5> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)	1-22122-096-0	01	1	9510-		●
126	PIPE; EXH,RR CONCRETE PUMP<RA5> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)	1-22126-166-0	01	1	9510-		●
126	PIPE; EXH,RR LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5>	1-22122-095-0	01	1	9002-9509		●
126	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>,CONCRETE PUMP<RA5>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)	1-22122-095-0	01	1	9510-		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-099-1	01	1	9002-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22159-104-2	01	1	9002-	●	●
151	PROTECTOR; HEAT,EXH PIPE CONCRETE PUMP<RA5>	1-22159-097-2	01	1	9002-		●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28080-820-0	08	1	9303-	●	●
159	BOLT; HEAT PROTECTOR CONCRETE PUMP<RA5> M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-		●
160	NUT; HEAT PROTECTOR CONCRETE PUMP<RA5> M10	9-09110-510-0	02	1	9002-		●
168	BRACKET; EXH PIPE,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5>	1-22131-363-0	01	1	9002-9509	●	●
168	BRACKET; EXH PIPE,FRT EXC. SILENCER SINGLE VERTICAL<N28>,CONCRETE PUMP<RA5>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)	1-22131-363-0	01	1	9510-		●
168	BRACKET; EXH PIPE,FRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,CONCRETE PUMP<RA5>	1-22131-643-0	01	1	9510-		●
168	BRACKET; EXH PIPE,FRT CONCRETE PUMP<RA5>	1-22131-415-0	01	1	9002-9208		●
168	BRACKET; EXH PIPE,FRT CONCRETE PUMP<RA5>	1-22131-645-0	01	1	9209-		●

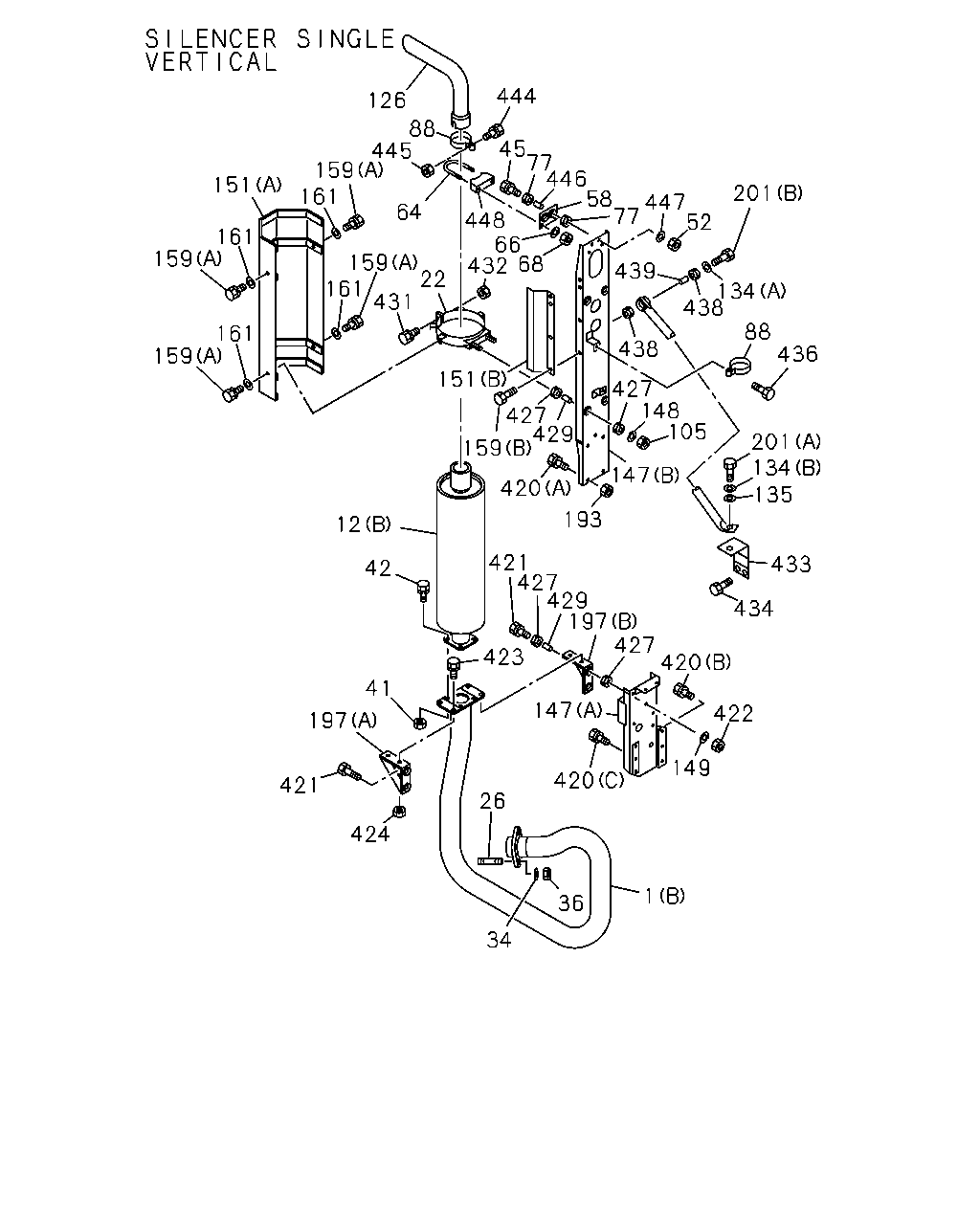

34 36 1 26 424 421 197 41 420 147 423 42 12 421 427 429 197 427 420 422 149 434 433 135 134 201 105 148 427 147 193 420 159 429 427 151 431 22 159 161 161 159 159 161 151 161 159 445 88 126 64 448 66 432 68 58 446 77 45 444 447 77 201 52 439 438 134 436 88 438

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22121-930-0	01	1	9002-	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-591-2	01	1	9002-	●	●
1	PIPE; EXH LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (A)	1-22121-591-2	01	1	9002-	●	●
1	PIPE; EXH SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22121-885-1	01	1	9002-9306	●	●
1	PIPE; EXH CONCRETE PUMP<RA5> (C)	1-22121-598-0	01	1	9002-		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-626-2	01	1	9002-9103	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-2	01	1	9104-9306	●	●
12	SILENCER ASM; EXH SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-704-2	01	1	9002-9306	●	●
12	SILENCER ASM; EXH LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-704-2	01	1	9002-9306	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9307-		●
12	SILENCER ASM; EXH LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-668-0	01	1	9002-		●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-163-0	02	1	9002-	●	●
26	STUD; EXH MANIF	1-09302-090-0	03	1	9002-	●
26	STUD; EXH MANIF EXC. CONCRETE PUMP<RA5>	1-09302-090-0	03	1	9002-		●
26	STUD; EXH MANIF CONCRETE PUMP<RA5>	1-09302-090-0	02	1	9002-		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9002-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9002-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50	9-01056-050-0	02	1	9002-9004	●	●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50	0-10806-050-0	02	1	9005-	●	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	02	1	9002-	●	●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-169-0	01	1	9002-	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-063-1	01	1	9002-	●	●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9002-	●	●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	9-09110-408-0	02	1	9002-	●	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	04	1	9002-9306	●	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9307-		●
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> ID=97	1-22133-043-1	01	1	9002-	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	04	1	9002-	●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22121-927-0	01	1	9002-9306	●
126	PIPE; EXH,RR LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22122-097-0	01	1	9002-9306	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22112-639-1	01	1	9002-	●	●
126	PIPE; EXH,RR SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22122-099-0	01	1	9002-9306	●	●
126	PIPE; EXH,RR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,CONCRETE PUMP<RA5>	1-22126-164-0	01	1	9510-		●
126	PIPE; EXH,RR CONCRETE PUMP<RA5>	1-22122-096-0	01	1	9002-9509		●
126	PIPE; EXH,RR CONCRETE PUMP<RA5> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)	1-22122-096-0	01	1	9510-		●
126	PIPE; EXH,RR CONCRETE PUMP<RA5> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)	1-22126-166-0	01	1	9510-		●
126	PIPE; EXH,RR LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5>	1-22122-095-0	01	1	9002-9509		●
126	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>,CONCRETE PUMP<RA5>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)	1-22122-095-0	01	1	9510-		●
134	WASHER; LK,STAY SILENCER SINGLE VERTICAL<N28> (A) ID=10.2	9-09150-510-0	01	1	9002-	●	●
134	WASHER; LK,STAY SILENCER SINGLE VERTICAL<N28> (B) ID=14.2	9-09150-614-0	01	1	9002-	●	●
135	WASHER; PL,STAY SILENCER SINGLE VERTICAL<N28> ID=15	9-09160-514-0	01	1	9002-	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (B) UPPER	1-22151-408-5	01	1	9002-	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (A) LOWER	1-22151-582-2	01	1	9002-	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (A) LOWER	1-22151-518-4	01	1	9002-	●	●
148	WASHER; LK,CLAMP SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	04	1	9002-	●	●
149	WASHER; LK,PIPE BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	04	1	9002-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-099-1	01	1	9002-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22159-104-2	01	1	9002-	●	●
151	PROTECTOR; HEAT,EXH PIPE CONCRETE PUMP<RA5>	1-22159-097-2	01	1	9002-		●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28080-820-0	08	1	9303-	●	●
159	BOLT; HEAT PROTECTOR CONCRETE PUMP<RA5> M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-		●
161	WASHER; PL,HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	08	1	9002-	●	●
193	NUT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9002-	●	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (B)	1-22151-405-2	01	1	9002-	●	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (A)	1-22151-409-2	01	1	9002-	●	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (B) M10X50	9-01056-050-0	01	1	9002-9004	●	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (B) M10X50	0-10806-050-0	01	1	9005-	●	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (A) M14X40	9-92061-440-0	01	1	9002-	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (A) M12X25	9-01911-225-0	04	1	9002-9005	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (A) M12X25 W/LK WASHER	0-50041-225-0	04	1	9006-	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (B) M12X32 W/LK WASHER	9-01911-232-0	03	1	9002-9005	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (B) M12X32 W/LK WASHER	0-50041-232-0	03	1	9006-	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (C) M12X45	9-01911-245-0	03	1	9002-9005	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (C) M12X45 W/LK WASHER	0-50041-245-0	03	1	9006-	●	●
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X50	9-01056-050-0	04	1	9002-9004	●	●
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X50	0-10806-050-0	04	1	9005-	●	●
422	NUT; PIPE SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●	●
423	BOLT; PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
423	BOLT; PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
424	NUT; BRKT TO PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-412-0	04	1	9002-9304	●	●
424	NUT; BRKT TO PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9305-	●	●
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	16	1	9002-9306	●	●
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	16	1	9307-		●
429	COLLAR; DIST,SUPPORT SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	08	1	9002-	●	●
431	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40	9-01901-040-0	02	1	9002-9204	●	●
431	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-	●	●
432	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	02	1	9002-	●	●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-523-1	01	1	9002-	●	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X35 W/LK WASHER	0-50041-035-0	04	1	9002-	●	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22151-514-0	01	1	9002-	●	●
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	02	1	9002-9306	●	●
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	9307-		●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=23.2	9-22159-009-1	01	1	9002-9109	●	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	9110-9507	●	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	01	1	9508-		●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10X40	9-01901-040-0	01	1	9002-9204	●	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-	●	●
445	NUT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	01	1	9002-	●	●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	02	1	9002-	●	●
447	WASHER; LK,BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	02	1	9002-	●	●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-064-0	01	1	9002-	●	●

41 36 34 26 1 12 92 94 59 74 73 75 81 72 73 74 24 75 70 111 389 59 59 89 105 42 105 76 81 72 111 389 24 76 116 126 94 94 76 56 125 70 76 168 81 81 72 74 73 80 74 73 70 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22121-930-0	01	1	9002-	●	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-591-2	01	1	9002-	●	●
1	PIPE; EXH LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (A)	1-22121-591-2	01	1	9002-	●	●
1	PIPE; EXH SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22121-885-1	01	1	9002-9306	●	●
1	PIPE; EXH CONCRETE PUMP<RA5> (C)	1-22121-598-0	01	1	9002-		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-626-2	01	1	9002-9103	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-2	01	1	9104-9306	●	●
12	SILENCER ASM; EXH SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-704-2	01	1	9002-9306	●	●
12	SILENCER ASM; EXH LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-704-2	01	1	9002-9306	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9307-		●
12	SILENCER ASM; EXH LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-668-0	01	1	9002-		●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	04	1	9002-	●	●
26	STUD; EXH MANIF	1-09302-090-0	03	1	9002-	●
26	STUD; EXH MANIF EXC. CONCRETE PUMP<RA5>	1-09302-090-0	03	1	9002-		●
26	STUD; EXH MANIF CONCRETE PUMP<RA5>	1-09302-090-0	02	1	9002-		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9002-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9002-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> L=217	1-22131-126-2	01	1	9002-	●	●
56	BRACKET; CLAMP,EXH PIPE CONCRETE PUMP<RA5>	1-22131-414-0	01	1	9002-9208		●
56	BRACKET; CLAMP,EXH PIPE CONCRETE PUMP<RA5>	1-22131-646-0	01	1	9209-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (A) FRONT & LONG CHASSIS REAR L=299	1-22151-414-1	01	1	9002-9306	●	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (A) FRONT & LONG CHASSIS REAR L=299	1-22151-414-1	01	1	9002-9306		●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) REAR L=292	1-22151-395-0	01	1	9002-9306	●	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) REAR L=292	1-22151-395-0	01	1	9002-9306	●
59	BRACKET; EXH SILENCER,FRT CONCRETE PUMP<RA5> L=277	1-22151-333-1	02	1	9002-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (A),(B) L=299	1-22151-414-1	02	1	9307-		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (C) M10X55	9-01056-055-0	01	1	9002-9004	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5> (C) M10X55	0-10806-055-0	01	1	9005-	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X55	9-01056-055-0	02	1	9002-9004	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X55	0-10806-055-0	02	1	9005-	●	●
70	BOLT; BRKT CONCRETE PUMP<RA5> (C) M10X50	9-01046-050-0	01	1	9002-9204		●
70	BOLT; BRKT CONCRETE PUMP<RA5> (C) M10X50	0-10806-050-0	01	1	9205-		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) ID=10.2	9-09150-510-0	01	1	9002-	●	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) ID=10.2	9-09150-510-0	04	1	9002-	●	●
73	WASHER; PL FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	06	1	9002-9306		●
74	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	06	1	9002-9306		●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9>	1-22159-065-0	04	1	9002-9306	●	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> OD=40	1-22159-094-0	08	1	9307-		●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> (B)	1-22159-065-0	02	1	9002-9306	●	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) OD=40	1-22159-094-0	02	1	9307-		●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> (A)	1-22159-065-0	04	1	9002-9306	●	●
80	COLLAR; DIST,SUPPORT RUBBER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	01	1	9002-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10	9-09110-510-0	01	1	9002-9306	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10	9-09110-510-0	02	1	9002-9306	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10	9-09110-510-0	04	1	9002-9306	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10	9-09110-510-0	03	1	9307-		●
89	CLAMP; EXH SILENCER,RR SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=97	1-22133-218-0	01	1	9002-9306	●	●
89	CLAMP; EXH SILENCER,RR LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=97	1-22133-218-0	01	1	9002-9306	●
89	CLAMP; EXH SILENCER,RR LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=83	1-22133-217-0	01	1	9002-		●
92	CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> D=83	1-22133-213-0	01	1	9002-	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	06	1	9002-9005	●	●
94	BOLT; CLAMP CONCRETE PUMP<RA5> M8X35 W/LK WASHER	9-01910-835-0	06	1	9002-9005		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	06	1	9006-9302	●	●
94	BOLT; CLAMP CONCRETE PUMP<RA5> M8X35 W/LK WASHER	0-50040-835-0	06	1	9006-9302		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	06	1	9303-9306	●	●
94	BOLT; CLAMP CONCRETE PUMP<RA5> M8X35 FLANGE	0-28080-835-0	06	1	9303-9306		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	06	1	9307-		●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	04	1	9002-	●	●
111	WASHER; PL,BRKT FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	04	1	9002-9306		●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X55	9-01056-055-0	04	1	9002-9004	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10X55	0-10806-055-0	04	1	9005-	●	●
125	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22121-927-0	01	1	9002-9306	●
126	PIPE; EXH,RR LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22122-097-0	01	1	9002-9306	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22112-639-1	01	1	9002-	●	●
126	PIPE; EXH,RR SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22122-099-0	01	1	9002-9306	●	●
126	PIPE; EXH,RR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,CONCRETE PUMP<RA5>	1-22126-164-0	01	1	9510-		●
126	PIPE; EXH,RR CONCRETE PUMP<RA5>	1-22122-096-0	01	1	9002-9509		●
126	PIPE; EXH,RR CONCRETE PUMP<RA5> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)	1-22122-096-0	01	1	9510-		●
126	PIPE; EXH,RR CONCRETE PUMP<RA5> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)	1-22126-166-0	01	1	9510-		●
126	PIPE; EXH,RR LONG CHASSIS(CVR*MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5>	1-22122-095-0	01	1	9002-9509		●
126	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>,CONCRETE PUMP<RA5>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)	1-22122-095-0	01	1	9510-		●
168	BRACKET; EXH PIPE,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. CONCRETE PUMP<RA5>	1-22131-363-0	01	1	9002-9509	●	●
168	BRACKET; EXH PIPE,FRT EXC. SILENCER SINGLE VERTICAL<N28>,CONCRETE PUMP<RA5>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)	1-22131-363-0	01	1	9510-		●
168	BRACKET; EXH PIPE,FRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>,CONCRETE PUMP<RA5>	1-22131-643-0	01	1	9510-		●
168	BRACKET; EXH PIPE,FRT CONCRETE PUMP<RA5>	1-22131-415-0	01	1	9002-9208		●
168	BRACKET; EXH PIPE,FRT CONCRETE PUMP<RA5>	1-22131-645-0	01	1	9209-		●
389	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	04	1	9002-9306		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
