◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10891 - FTR34(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#29768) — 22 parça

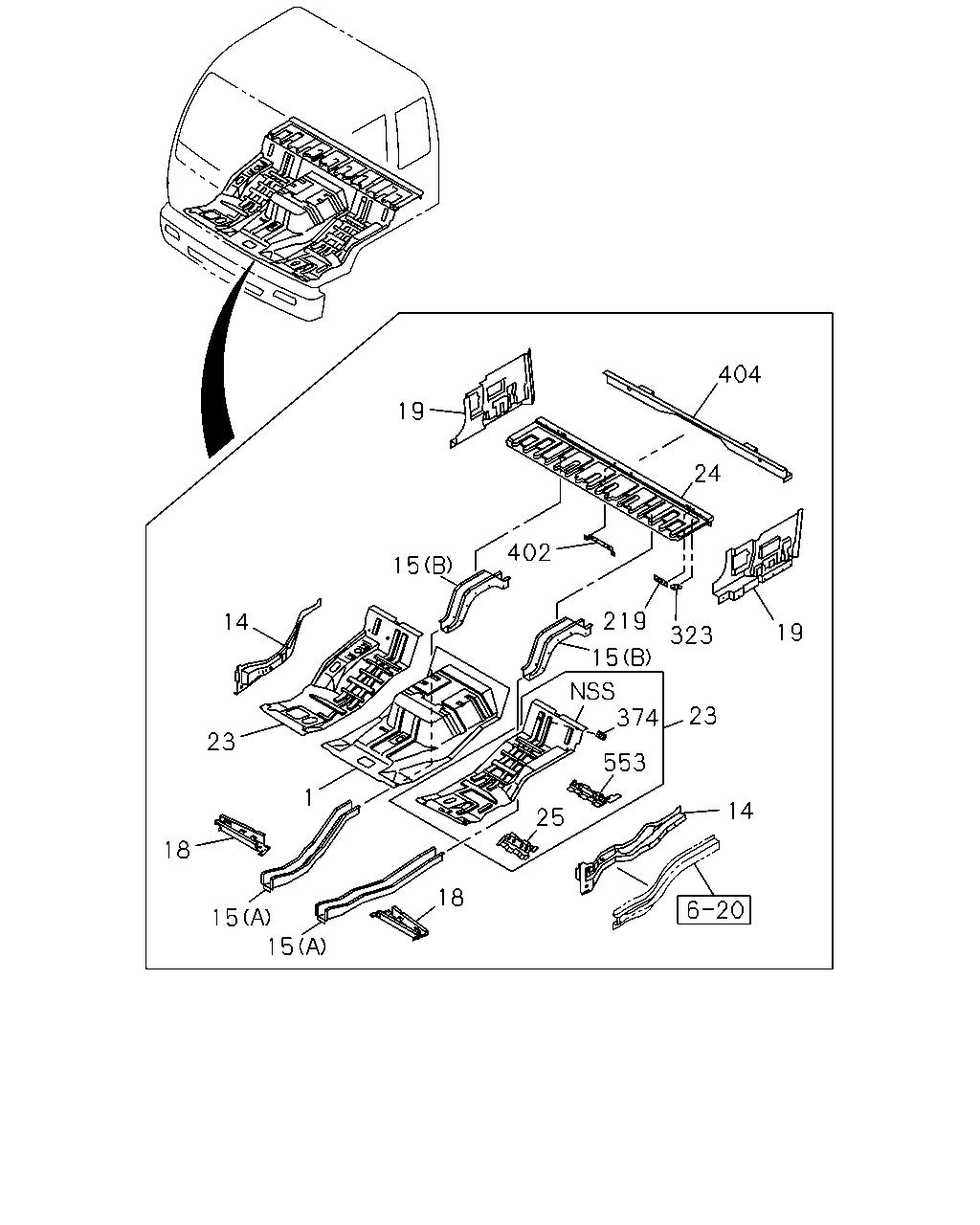

çizim 82375
19 404 24 19 323 219 15 23 14 374 553 25 18 15 15 18 1 23 14 15 402
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 1-62183-405-2 01 1 0107-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0107-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0107-
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 0107-0401
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402-
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0107-
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0107-
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0107-
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 0107-
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 0107-
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0107-
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0107-
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 0107-
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 0107-
24 PANEL; BED PAN 1-62182-940-9 01 1 0107-
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0107-
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0107-
323 PATCH; HAND LEVER 1-62182-961-0 01 1 0107-
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 0107-
402 PATCH; CAB LOCK 1-62182-947-2 01 1 0107-
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 0107-
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 0107-
