Isuzu WW
▶
TRUCKS
▶
FTR
▶
10891 - FTR34(RHD)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

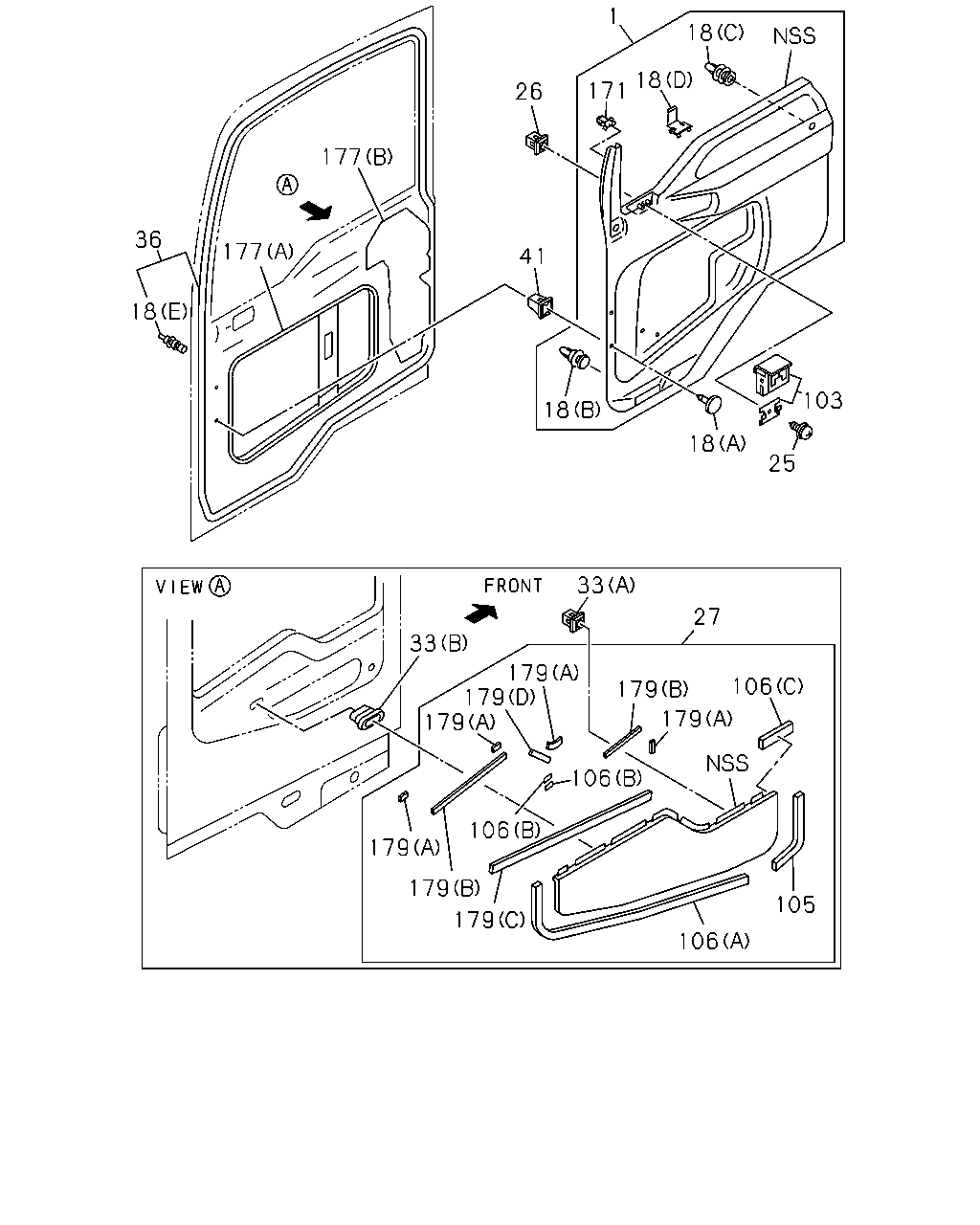

6-35 — FRONT DOOR TRIM
(#29762) — 39 parça
1
26
171
18
18
177
177
18
36
41
18
18
103
25
33
27
33
179
179
179
179
179
106
179
106
179
179
106
105
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
1-73338-539-0
01
1
0107-0702
1
PAD; TRIM,FRT DOOR
1-73337-516-1
01
1
0703-
1
PAD; TRIM,FRT DOOR
1-73337-509-0
01
1
0107-0702
1
PAD; TRIM,FRT DOOR
1-73337-513-1
01
1
0703-
18
CLIP; DOOR PAD
(D)
1-09987-262-0
10
1
0107-
18
CLIP; DOOR PAD
(A) D4.2X19.9 GRAY
1-09987-272-0
04
1
0107-
18
CLIP; DOOR PAD
(C) OD=7.9 BLACK
8-94279-974-1
02
1
0107-
18
CLIP; DOOR PAD
(B) OD=8.5 GRAY
8-97893-482-0
10
1
0107-
18
CLIP; DOOR PAD
(E) NATURAL
1-09987-257-0
23
1
0107-
18
CLIP; DOOR PAD
(E) NATURAL
1-09987-257-0
23
1
0107-
25
SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING
8-94279-123-0
02
1
0107-
26
GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0107-
27
PANEL; ORNAMENT,DOOR
1-76218-099-7
01
1
0107-
27
PANEL; ORNAMENT,DOOR
1-76218-095-7
01
1
0107-1210
27
PANEL; ORNAMENT,DOOR
8-98229-328-0
01
1
1211-
33
GROMMET; DOOR ORNAMENT
(A)
1-09983-149-1
02
1
0107-0802
33
GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
02
1
0803-
33
GROMMET; DOOR ORNAMENT
(B)
1-74998-111-0
02
1
0107-
36
SEAL; DOOR,MAIN,CAB SIDE
1-76718-177-9
01
1
0107-1010
36
SEAL; DOOR,MAIN,CAB SIDE
8-98177-764-0
01
1
1011-
36
SEAL; DOOR,MAIN,CAB SIDE
1-76718-176-9
01
1
0107-1010
36
SEAL; DOOR,MAIN,CAB SIDE
8-98177-763-0
01
1
1011-
41
GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
04
1
0107-
103
TRAY ASM; ASH,DOOR
1-76457-054-0
01
1
0107-0111
103
TRAY ASM; ASH,DOOR
1-76458-086-1
01
1
0112-
103
TRAY ASM; ASH,DOOR
1-76457-053-0
01
1
0107-0111
103
TRAY ASM; ASH,DOOR
1-76458-085-1
01
1
0112-
105
SEAL; DOOR ORNAMENT,FRT
1-76218-082-2
02
1
0107-
106
SEAL; DOOR ORNAMENT
(C)
8-98226-642-0
01
1
1211-
106
SEAL; DOOR ORNAMENT
(A)
1-76218-083-2
02
1
0107-
106
SEAL; DOOR ORNAMENT
(B)
1-76218-104-0
02
1
0107-
171
RETAINER; DOOR PAD
1-09987-264-0
02
1
0107-
177
SEAL; WATER,DOOR
(B)
1-76778-055-2
02
1
0107-
177
SEAL; WATER,DOOR
(A)
1-76778-052-2
01
1
0107-
177
SEAL; WATER,DOOR
(A)
1-76778-035-6
01
1
0107-
179
TAPE; ORNAMENT
(A) L=45
1-76218-063-2
08
1
0107-
179
TAPE; ORNAMENT
(C) L=770
1-76218-091-2
02
1
0107-
179
TAPE; ORNAMENT
(D) L=160
1-76218-094-1
02
1
0107-
179
TAPE; ORNAMENT
(B) L=235
1-76218-127-1
04
1
0107-
