Isuzu WW
▶
TRUCKS
▶
CVR
▶
10661 - CVR
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

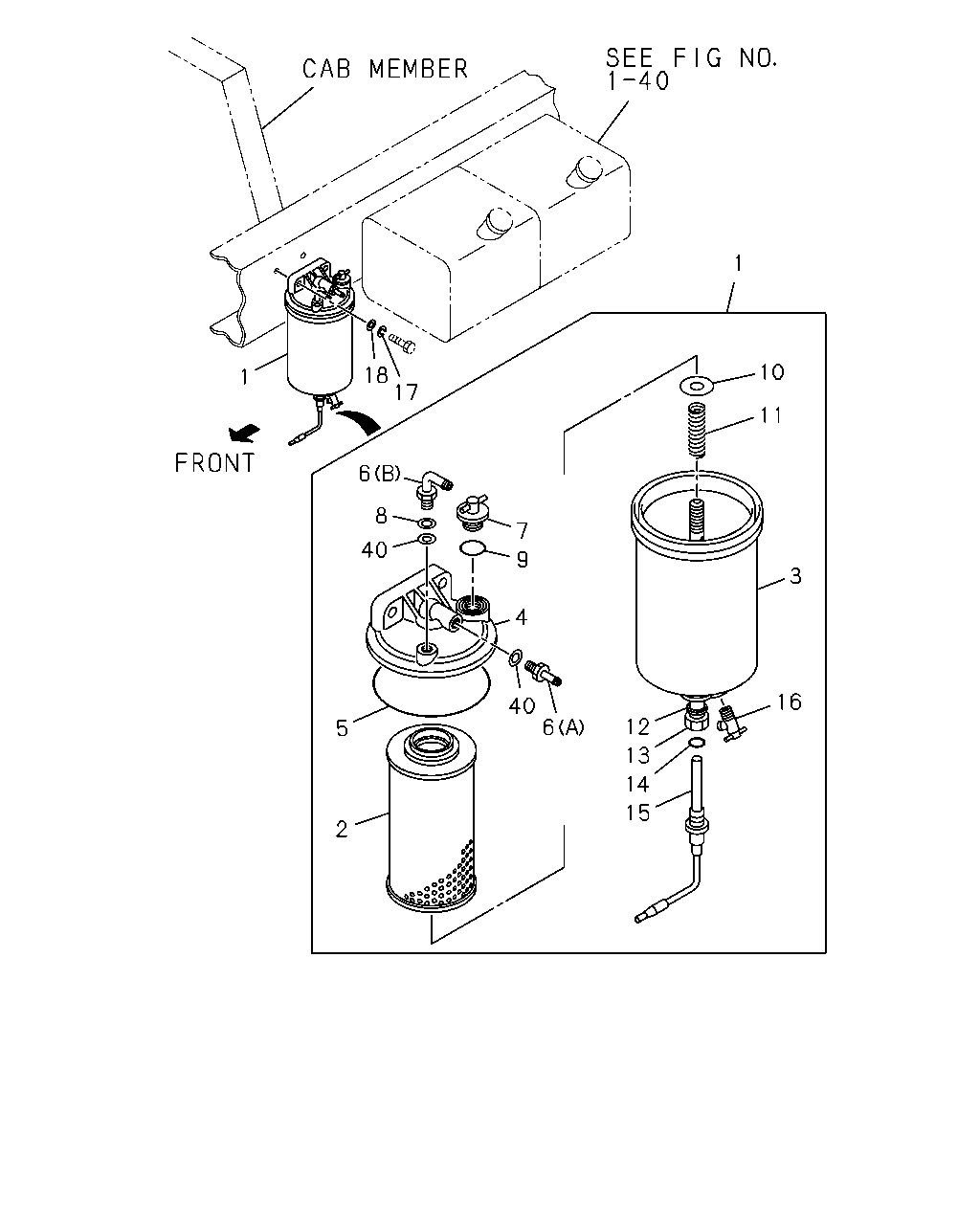

1-45 - WATER SEDIMENTER; FUEL
▶
1-45 — WATER SEDIMENTER; FUEL
(#2976) — 20 parça
Tümü
A - 6RB1 STD ENG
B - 6QA1 STD ENG
15
14
13
12
6
40
5
2
16
3
11
10
1
4
9
7
40
8
6
17
18
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SEDIMENTER; FUEL
1-13200-468-1
01
1
9002-
●
●
2
ELEMENT; FUEL FILTER
1-13240-020-0
01
1
9002-
●
●
3
BODY ASM; SEDIMENTER
1-13211-116-0
01
1
9002-
●
●
4
COVER; UPR,SEDIMENTER ASM
1-13212-055-0
01
1
9002-
●
●
5
GASKET; UPR COVER,SEDIMENTER
1-09630-072-0
01
1
9002-
●
●
6
CONNECTOR ASM; SEDIMENTER
(A)
1-13229-003-0
01
1
9002-
●
●
6
CONNECTOR ASM; SEDIMENTER
(B)
1-13229-004-0
01
1
9002-
●
●
7
PLUG; DRAIN,SEDIMENTER
1-13219-059-0
01
1
9002-
●
●
8
STOPPER; CONN,SEDIMENTER
1-13229-001-0
01
1
9002-
●
●
9
GASKET; DRAIN PLUG & CONNECTOR
1-13219-060-0
01
1
9002-
●
●
10
SEAT; ELEMENT,SEDIMENTER
1-13249-020-0
01
1
9002-
●
●
11
SPRING; SET,SCREEN
1-13249-019-0
01
1
9002-
●
●
12
GASKET; CENTER BOLT
1-13219-057-0
01
1
9002-
●
●
13
BOLT; CENTER,SEDIMENTER
1-13231-058-0
01
1
9002-
●
●
14
GASKET; SENSOR TO CENTER BOLT
9-09562-110-0
01
1
9002-
●
●
15
SENSOR ASM; SEDIMENTER
1-13249-028-0
01
1
9002-
●
●
16
COCK ASM; DRAIN
1-13219-058-0
01
1
9002-
●
●
17
WASHER; LK,FUEL SEDIMENTER
ID=14.2
9-09150-514-0
02
1
9002-
●
●
18
WASHER; PL,FUEL SEDIMENTER
ID=15
9-09160-514-0
02
1
9002-
●
●
40
GASKET; CONNECTOR TO COVER
ID=14.2 OD=19.2
1-09630-085-0
02
1
9002-
●
●
