◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10891 - FTR34(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#29756) — 156 parça

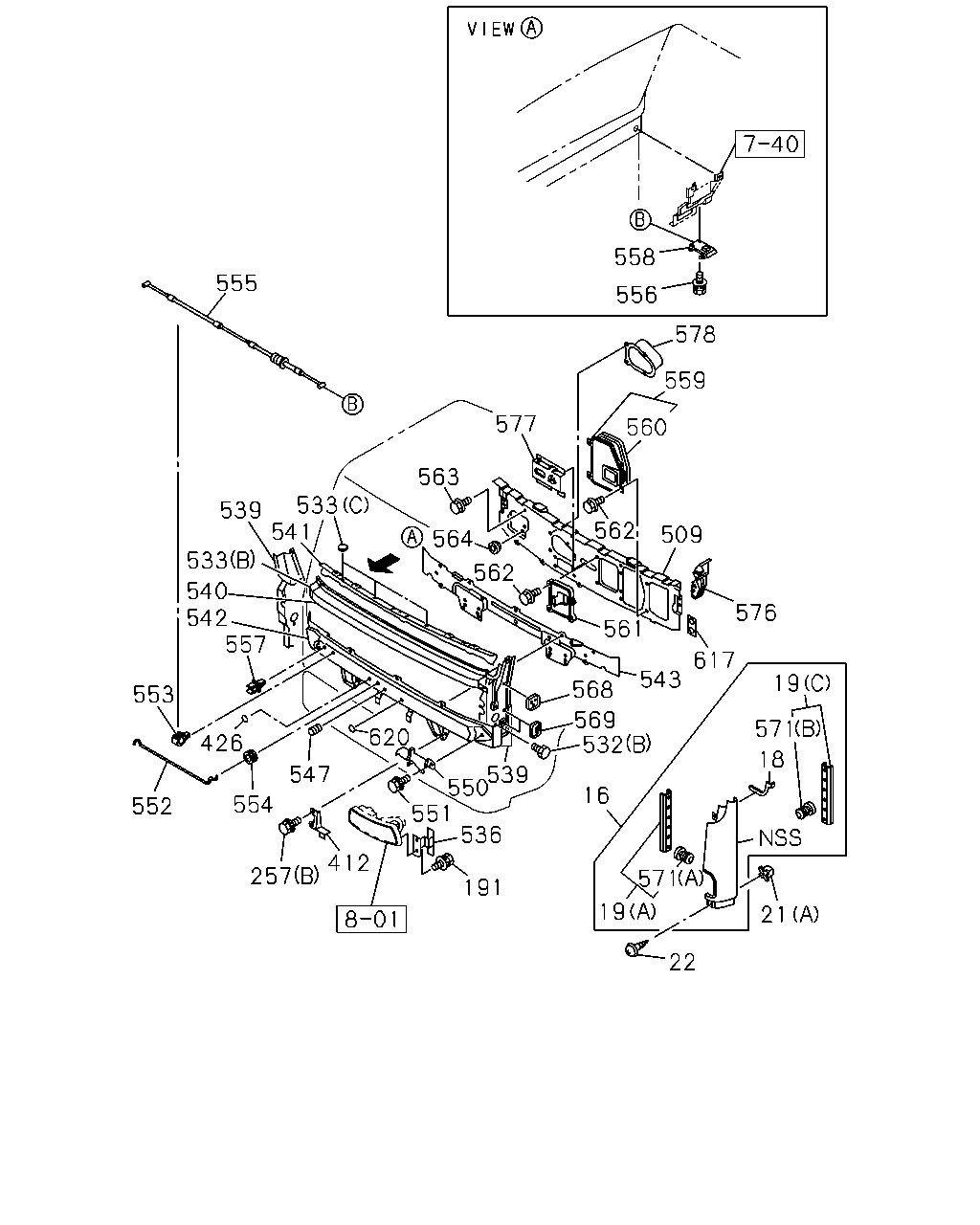

çizim 23101
558 555 556 578 559 577 560 563 533 541 539 562 509 564 533 562 540 542 557 576 561 617 543 19 568 553 569 532 426 620 18 547 539 550 551 16 554 552 536 412 257 571 191 19 21 22 571
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 0107-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 0107-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0107-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0107-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0107-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0107-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0107-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0107-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0107-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0107-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0107-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0107-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0107-0708
191 BOLT; HINGE
M6X16 FLANGE 		0-28650-616-0 04 1 0709-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0107-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0107-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0107-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0107-
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 0107-0112
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 0201-
509 PANEL; DASH 1-62280-213-1 01 1 0107-0604
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0107-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0107-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0107-0406
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0107-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0107-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0107-
536 HINGE 1-86830-004-5 01 1 0107-
536 HINGE 1-86830-003-5 01 1 0107-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0107-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0107-
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 0107-
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 0107-
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 0107-
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 0107-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0107-
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0107-
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0107-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0107-
552 STAY; FRT LID 1-71998-810-2 01 1 0107-0205
552 STAY; FRT LID 1-71996-310-0 01 1 0206-0706
552 STAY; FRT LID 1-71996-352-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 0107-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0107-
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 0107-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0107-
558 LEVER; FRT LID 1-79338-003-1 01 1 0107-0212
558 LEVER; FRT LID 1-79338-007-0 01 1 0301-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0107-
560 SEAL; COVER 1-71998-827-1 01 1 0107-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0107-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0107-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 0107-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0107-
568 PATCH; INST REINF 1-61480-675-2 02 1 0107-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0107-
569 PATCH; LWR GRIP 1-61480-689-2 01 1 0107-
571 CLIP; SEAL
(A) 		1-09987-228-0 12 1 0107-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0107-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0107-
576 FRAME; INST SIDE 1-62280-177-7 01 1 0107-0604
576 FRAME; INST SIDE 1-62280-176-6 01 1 0107-0604
577 BRACKET; IDLER 1-62280-195-0 01 1 0107-0604
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0107-0604
617 SEAL; DASH 1-61281-497-0 02 1 0107-0604
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 0107-

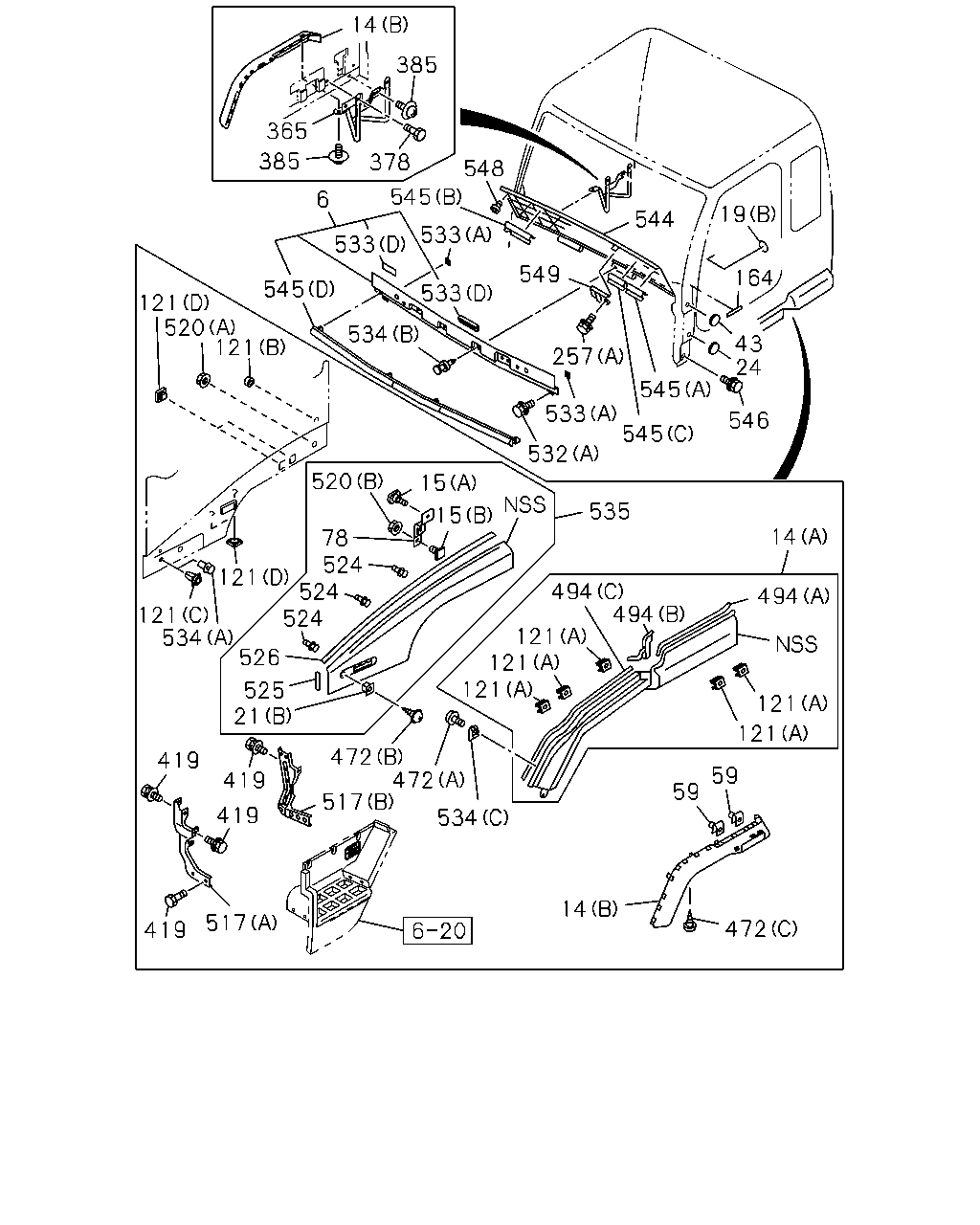

çizim 23102
14 385 365 385 378 548 545 6 19 544 533 533 549 164 545 533 121 520 121 534 43 24 257 545 533 545 546 532 520 15 535 15 14 78 524 524 524 121 494 494 494 121 534 121 121 121 526 525 21 121 121 472 472 517 419 59 419 59 419 534 14 517 472 419
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-744-2 01 1 0107-
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 0107-0209
14 FENDER; FRT
(A) WHITE 		1-65482-045-0 01 1 0210-
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 0107-0209
14 FENDER; FRT
(A) WHITE 		1-65482-044-0 01 1 0210-
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 0107-
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 0107-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0107-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0107-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0107-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0107-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0107-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0107-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0107-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0107-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0107-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 0107-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0107-
59 GROMMET; SCREW 8-94279-723-0 02 1 0107-
78 BRACKET; FENDER 1-71268-323-0 01 1 0107-
78 BRACKET; FENDER 1-71268-322-0 01 1 0107-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0107-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0107-0304
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305-
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 0107-0304
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0107-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0107-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0107-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0107-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
365 SUPPORT; FENDER 1-71996-147-1 01 1 0107-
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0107-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 0107-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0107-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0107-0204
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 0107-
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 0107-
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0107-
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0107-
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 0107-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0107-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0107-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0107-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0107-
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 0107-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0107-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0107-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0107-
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0107-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0107-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0107-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER 1-71268-275-1 02 1 0107-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0107-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0107-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0107-0406
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0107-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0107-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0107-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0107-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(C) 		1-71996-035-1 04 1 0107-0404
534 FASTENER
(C) 		1-71996-035-1 06 1 0405-
534 FASTENER
(C) 		1-71996-035-1 20 1 0107-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0107-
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 0107-0209
535 FENDER; BLISTER
WHITE 		1-71268-429-0 01 1 0210-
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 0107-0209
535 FENDER; BLISTER
WHITE 		1-71268-428-0 01 1 0210-
544 LID; FRT 1-71108-235-3 01 1 0107-
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0107-
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0107-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0107-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0107-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0107-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0107-
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 0107-0301
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302-
