Isuzu WW
▶
TRUCKS
▶
FTR
▶
10891 - FTR34(RHD)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

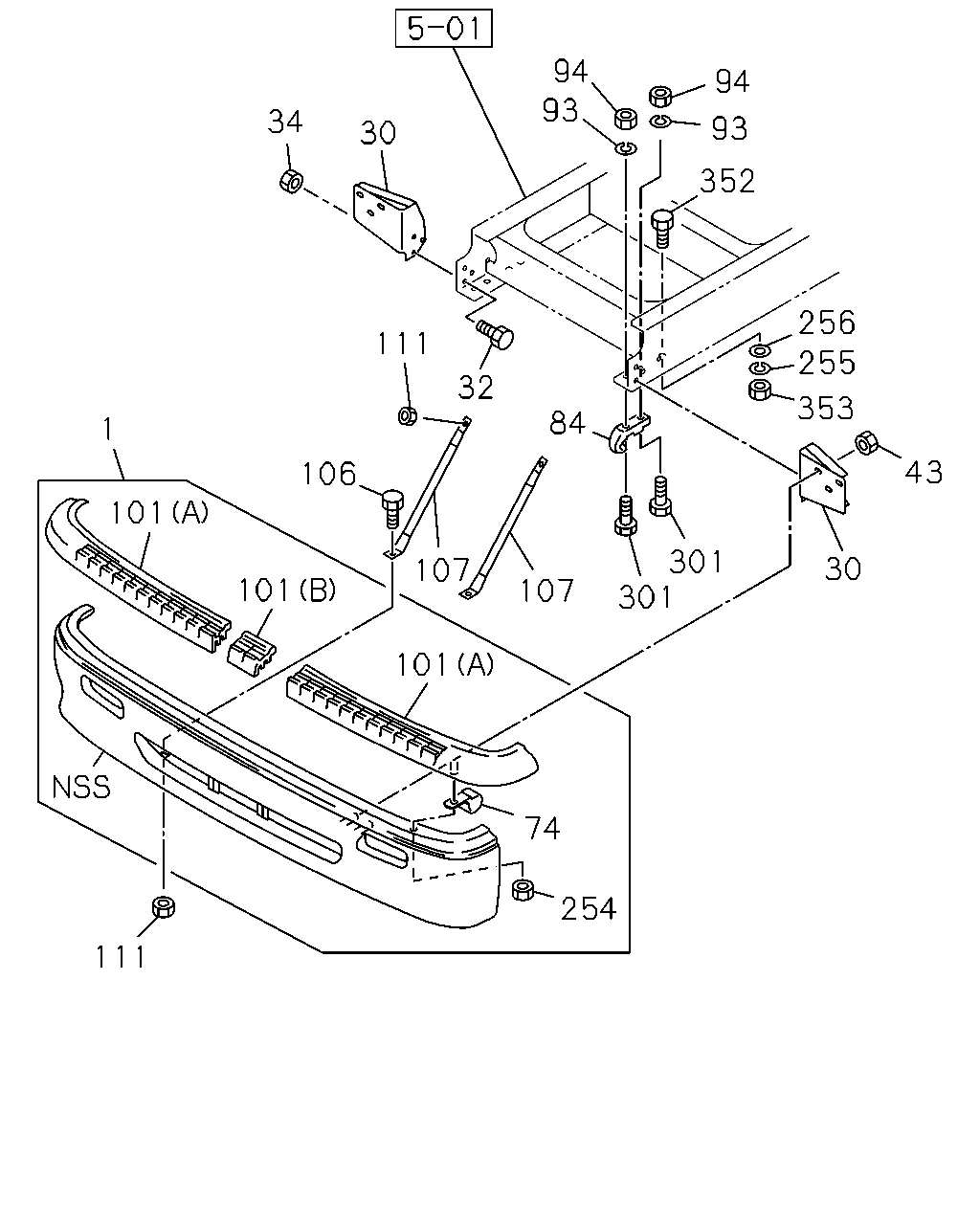

6-01 — FRONT BUMPER
(#29753) — 39 parça
94
93
94
34
93
30
352
256
111
255
32
353
84
43
106
101
107
301
301
30
101
107
101
74
254
111
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE
1-71210-846-2
01
1
0107-
30
BRACKET; FRT BUMPER
1-71230-511-0
01
1
0107-
30
BRACKET; FRT BUMPER
1-71230-510-0
01
1
0107-
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28681-030-0
06
1
0107-0512
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28651-030-0
06
1
0601-
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91150-210-0
06
1
0107-0602
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
06
1
0603-
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
06
1
0107-0602
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91180-210-0
06
1
0603-
74
CLIP; FOG LAMP HARNESS
1-09701-203-0
05
1
0107-
84
HOOK
1-57181-027-1
01
1
0107-
93
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
0107-0603
93
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
0604-
94
NUT; HOOK
M16
9-99110-416-0
02
1
0107-0206
94
NUT; HOOK
M16
9-99110-516-0
02
1
0207-0512
94
NUT; HOOK
M16
0-91110-516-0
02
1
0601-
101
STEP; BUMPER
(B)
1-71260-082-1
01
1
0107-
101
STEP; BUMPER
(A)
1-71260-081-1
01
1
0107-
101
STEP; BUMPER
(A)
1-71260-080-1
01
1
0107-
106
BOLT; AIR DAM
M10X25 FLANGE
0-28681-025-0
02
1
0107-0512
106
BOLT; AIR DAM
M10X25 FLANGE
0-28651-025-0
02
1
0601-
107
STAY; AIR DAM
1-71260-132-1
01
1
0107-
107
STAY; AIR DAM
1-71260-131-1
01
1
0107-
111
NUT; STAY
M10 FLANGE
0-91150-210-0
04
1
0107-0602
111
NUT; STAY
M10 FLANGE
0-91180-210-0
04
1
0603-
254
NUT; STEP
M8 FLANGE
0-91150-108-0
11
1
0107-0602
254
NUT; STEP
M8 FLANGE
0-91180-108-0
11
1
0603-
255
WASHER; LK
ID=16.2
9-09150-616-0
01
1
0107-0206
255
WASHER; LK
ID=16.2
9-09150-516-0
01
1
0207-0603
255
WASHER; LK
ID=16.2
0-91510-516-0
01
1
0604-
256
WASHER; PL
ID=16.2
1-09503-223-0
01
1
0107-
301
BOLT; HOOK TO FRAME
M16X60
0-10811-660-0
01
1
0107-0512
301
BOLT; HOOK TO FRAME
M16X60
0-10861-660-0
01
1
0601-
301
BOLT; HOOK TO FRAME
M16X70
0-10811-670-0
01
1
0107-0512
301
BOLT; HOOK TO FRAME
M16X70
0-10861-670-0
01
1
0601-
352
BOLT; FRAME
M16X40
0-20801-640-0
01
1
0107-0512
352
BOLT; FRAME
M16X40
0-20851-640-0
01
1
0601-
353
NUT; FRAME
M16
9-99110-516-0
01
1
0107-0512
353
NUT; FRAME
M16
0-91110-516-0
01
1
0601-
