Sayfa 1-41 - Isuzu EPC

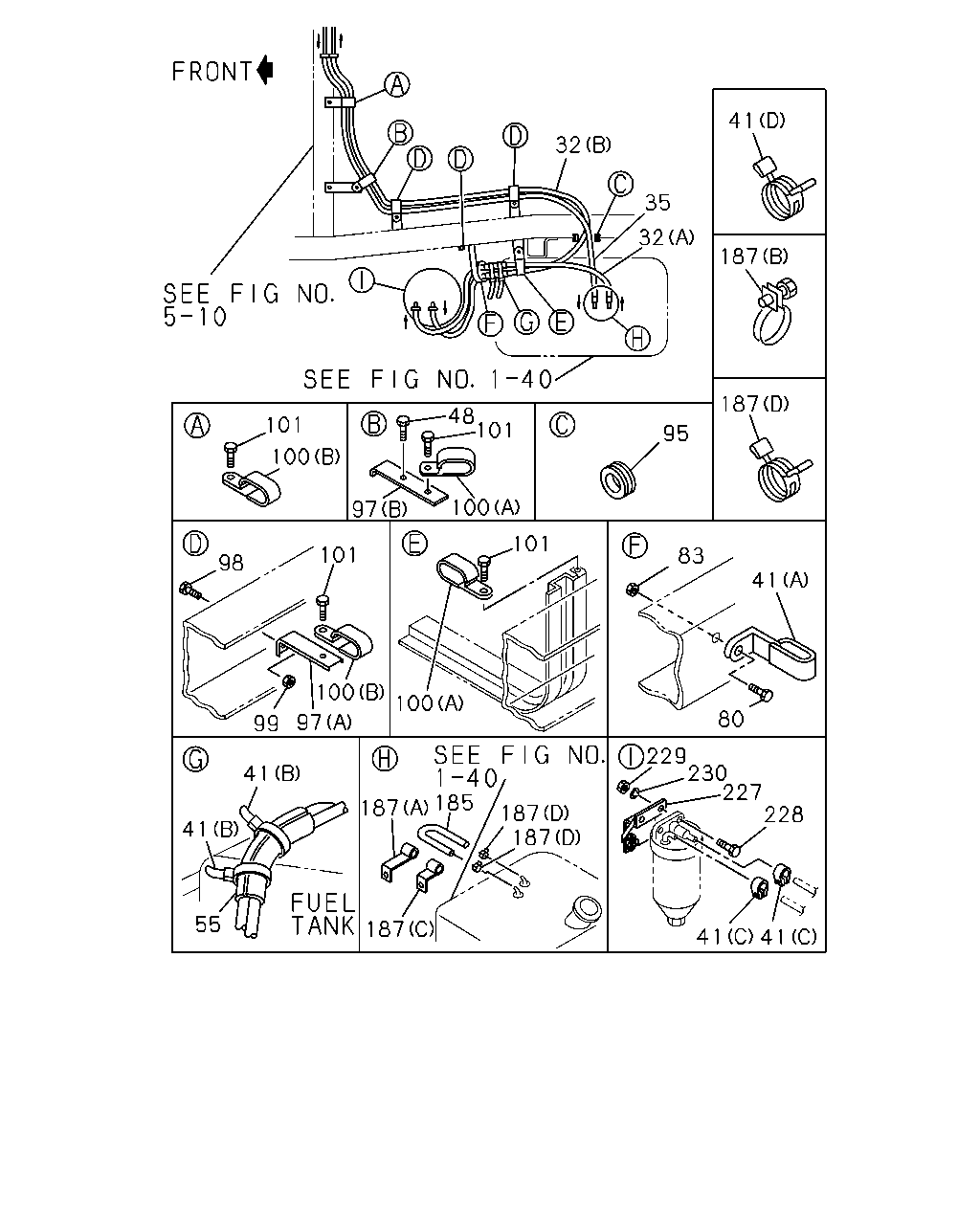

1-41 — FUEL PIPING; CHASSIS (#2975) — 242 parça

187 187 185 187 187 41 41 228 227 230 229 154 144 140 102 100 101 101 100 144 140 154 102 100 101 101 100 97 99 98 101 100 97 48 32 95 41 32 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK MIXER TRUCK<RA2> TROPICAL ZONE KIT(WB6) EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) L=3150	0-01160-315-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK CVR SHORT CHASSIS&LHD(CVR6MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> TROPICAL ZONE KIT(WB6) EXC. MIXER TRUCK<RA2> (B) L=3150	0-01160-315-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> MIXER TRUCK<RA2> TROPICAL ZONE KIT(WB6) (B) L=2850 SERVICED BY L=8000	0-01160-800-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> TROPICAL ZONE KIT(WB6) (A) L=3150	0-01160-315-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK CVR SHORT CHASSIS&LHD(CVR6MC) TROPICAL ZONE KIT(WB6) EXC. MIXER TRUCK<RA2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) L=2250 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK CVR LONG CHASSIS&LHD(CVR6MF) TROPICAL ZONE KIT(WB6) (B) L=2250 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK CVR SHORT CHASSIS&LHD(CVR6MC) TROPICAL ZONE KIT(WB6) EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=900	0-01160-300-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK CVR LONG CHASSIS&LHD(CVR6MF) TROPICAL ZONE KIT(WB6) (A) L=900	0-01160-300-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK CHINA TIBET EQUIPMENT(WD1) (A) L=900	0-01160-300-0	01	1	9002-9306		●
32	PIPE; DELIVERY,FUEL TANK MIXER TRUCK<RA2> EXC. TROPICAL ZONE KIT(WB6),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) L=2350 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> MIXER TRUCK<RA2> EXC. TROPICAL ZONE KIT(WB6) (B) L=2850 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CVR*MC) EXC. MIXER TRUCK<RA2>,TROPICAL ZONE KIT(WB6),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) L=2100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9012	●	●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CVR*MF) EXC. CONCRETE PUMP<RA5>,TROPICAL ZONE KIT(WB6), CHINA TIBET EQUIPMENT(WD1) (B) L=2100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9012	●	●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (B) L=2100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9012		●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CVR*MC) EXC. MIXER TRUCK<RA2>,TROPICAL ZONE KIT(WB6),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) L=2100 SERVICED BY L=10000	9-09914-701-0	01	1	9101-9306	●	●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CVR*MF) EXC. CONCRETE PUMP<RA5>,TROPICAL ZONE KIT(WB6), CHINA TIBET EQUIPMENT(WD1) (B) L=2100 SERVICED BY L=10000	9-09914-701-0	01	1	9101-9306	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. CONCRETE PUMP<RA5>,CHINA TIBET EQUIPMENT(WD1) (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9307-		●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. MIXER TRUCK<RA2>,TROPICAL ZONE KIT(WB6) (B) L=2600 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. TROPICAL ZONE KIT(WB6) (A) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CVR*MC) EXC. TROPICAL ZONE KIT(WB6),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CVR*MF) EXC. CONCRETE PUMP<RA5>,TROPICAL ZONE KIT(WB6), CHINA TIBET EQUIPMENT(WD1) (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK CHINA TIBET EQUIPMENT(WD1) (B) L=3150	0-01160-315-0	01	1	9002-9306		●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (B) L=2200 SERVICED BY L=3000	0-01260-300-0	01	1	9307-		●
32	PIPE; DELIVERY,FUEL TANK CHINA TIBET EQUIPMENT(WD1) (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9307-		●
32	PIPE; DELIVERY,FUEL TANK EXC. CONCRETE PUMP<RA5> (B) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	9307-		●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (A) L=4100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9012		●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (A) L=3550 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9101-9306		●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (B) L=2200 SERVICED BY L=10000	9-09914-701-0	01	1	9101-9306		●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (A) L=3550 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9307-		●
35	PIPE; FUEL TANK,RETURN MIXER TRUCK<RA2> TROPICAL ZONE KIT(WB6) EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=3150	0-01160-315-0	01	1	9002-9306	●
35	PIPE; FUEL TANK,RETURN TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> MIXER TRUCK<RA2> TROPICAL ZONE KIT(WB6) L=3000	0-01160-300-0	01	1	9002-9306	●
35	PIPE; FUEL TANK,RETURN CVR LONG CHASSIS&RHD(CVR5MF) TROPICAL ZONE KIT(WB6) EXC. MIXER TRUCK<RA2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=1850	0-01160-300-0	01	1	9002-9306	●
35	PIPE; FUEL TANK,RETURN CVR LONG CHASSIS&LHD(CVR6MF) TROPICAL ZONE KIT(WB6) L=1850	0-01160-300-0	01	1	9002-9306	●
35	PIPE; FUEL TANK,RETURN CVR LONG CHASSIS&LHD(CVR6MF) CHINA TIBET EQUIPMENT(WD1) L=1850	0-01160-300-0	01	1	9002-9306		●
35	PIPE; FUEL TANK,RETURN CVR SHORT CHASSIS&LHD(CVR6MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> TROPICAL ZONE KIT(WB6) EXC. MIXER TRUCK<RA2> L=3000	0-01160-300-0	01	1	9002-9306	●
35	PIPE; FUEL TANK,RETURN MIXER TRUCK<RA2> EXC. TROPICAL ZONE KIT(WB6),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=2100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
35	PIPE; FUEL TANK,RETURN TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> MIXER TRUCK<RA2> EXC. TROPICAL ZONE KIT(WB6) L=2250 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(CVR*MC) EXC. MIXER TRUCK<RA2>,TROPICAL ZONE KIT(WB6),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=1840 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
35	PIPE; FUEL TANK,RETURN LONG CHASSIS(CVR*MF) EXC. CONCRETE PUMP<RA5>,TROPICAL ZONE KIT(WB6), CHINA TIBET EQUIPMENT(WD1) L=1840 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. MIXER TRUCK<RA2>,TROPICAL ZONE KIT(WB6) L=2000 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
35	PIPE; FUEL TANK,RETURN CONCRETE PUMP<RA5> L=4720 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9012		●
35	PIPE; FUEL TANK,RETURN CONCRETE PUMP<RA5> L=4450 SERVICED BY L=10000	9-09914-701-0	01	1	9101-9306		●
35	PIPE; FUEL TANK,RETURN CONCRETE PUMP<RA5> L=4500 SERVICED BY L=8000	0-01160-800-0	01	1	9307-9307		●
35	PIPE; FUEL TANK,RETURN CONCRETE PUMP<RA5> L=4500 SERVICED BY L=8000	0-01260-800-0	01	1	9308-		●
35	PIPE; FUEL TANK,RETURN EXC. CONCRETE PUMP<RA5> L=3000	0-01160-300-0	01	1	9307-9307		●
35	PIPE; FUEL TANK,RETURN EXC. CONCRETE PUMP<RA5> L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	9308-		●
41	CLIP; FUEL PIPE,FUEL TANK TROPICAL ZONE KIT(WB6) (D) ID=14	1-09704-102-0	06	1	9002-9306	●
41	CLIP; FUEL PIPE,FUEL TANK CHINA TIBET EQUIPMENT(WD1) (D) ID=14	1-09704-102-0	06	1	9002-9306		●
41	CLIP; FUEL PIPE,FUEL TANK CHINA TIBET EQUIPMENT(WD1) (D) ID=14	1-09704-102-0	06	1	9307-		●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) ID=20 L=70	1-09701-033-0	01	1	9002-9306	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. CHINA TIBET EQUIPMENT(WD1) (D) ID=14	1-09704-102-0	04	1	9307-		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. CHINA TIBET EQUIPMENT(WD1) (C) ID=15	9-09715-098-0	02	1	9307-		●
41	CLIP; FUEL PIPE,FUEL TANK CONCRETE PUMP<RA5> (B) L=250	5-09707-030-1	04	1	9002-		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. CONCRETE PUMP<RA5> (B) L=250	5-09707-030-1	02	1	9307-		●
48	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●
48	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●
48	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	01	1	9002-	●	●
97	BRACKET; CLIP (A) L=135	1-22518-099-0	02	1	9002-	●	●
97	BRACKET; CLIP EXC. CONCRETE PUMP<RA5> (B) L=158	1-47475-395-0	01	1	9002-	●	●
97	BRACKET; CLIP CONCRETE PUMP<RA5> (C) L=118	1-47475-359-0	01	1	9002-		●
98	BOLT; BRKT,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
98	BOLT; BRKT,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
98	BOLT; BRKT,FUEL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	02	1	9002-	●	●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	01	1	9002-	●
100	CLIP; FUEL PIPE EXC. CONCRETE PUMP<RA5> (A) ID=16X2 L=50	9-09535-586-0	01	1	9002-		●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	02	1	9002-	●	●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	02	1	9002-	●	●
100	CLIP; FUEL PIPE CONCRETE PUMP<RA5> (A) ID=16X2 L=50	9-09535-586-0	02	1	9002-		●
100	CLIP; FUEL PIPE CONCRETE PUMP<RA5> (C) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9002-		●
100	CLIP; FUEL PIPE CONCRETE PUMP<RA5> (D) ID=16X2 L=20	9-09535-533-0	02	1	9002-		●
100	CLIP; FUEL PIPE CONCRETE PUMP<RA5> (B) ID=16X2 L=20	9-09535-536-0	01	1	9101-		●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9204	●
101	BOLT; CLIP,FUEL PIPE EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9204		●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302	●
101	BOLT; CLIP,FUEL PIPE EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9303-	●
101	BOLT; CLIP,FUEL PIPE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	03	1	9303-		●
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M6X25 W/LK WASHER	9-01900-625-0	02	1	9002-9204		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9302		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M6X25 FLANGE	0-28080-625-0	02	1	9303-		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	06	1	9002-9204		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	06	1	9205-9302		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	06	1	9303-		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9303-		●
102	NUT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M6	9-09110-406-0	02	1	9002-9012		●
102	NUT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8	9-09110-408-0	05	1	9002-		●
140	CLIP; FUEL PIPE,C/MBR CONCRETE PUMP<RA5> (A) ID=20 L=70	1-09701-033-0	01	1	9002-		●
140	CLIP; FUEL PIPE,C/MBR CONCRETE PUMP<RA5> (B)	9-09535-536-0	01	1	9002-		●
144	BOLT; CLIP,FUEL PIPE,C/MBR CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204		●
144	BOLT; CLIP,FUEL PIPE,C/MBR CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302		●
144	BOLT; CLIP,FUEL PIPE,C/MBR CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	02	1	9303-		●
154	NUT; CLIP,FUEL PIPE,C/MBR CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-		●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) L=900	0-01112-900-0	01	1	9002-9307	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> CHINA TIBET EQUIPMENT(WD1) L=900	0-01112-900-0	01	1	9002-9307		●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> CHINA TIBET EQUIPMENT(WD1) L=900 SERVICED BY L=3000	0-01262-300-0	01	1	9308-		●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6),CHINA TIBET EQUIPMENT(WD1) L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	01	1	9002-	●	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L+200L<SGY> L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	02	1	9002-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) (D)	8-94122-679-0	02	1	9002-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> CHINA TIBET EQUIPMENT(WD1) (D)	8-94122-679-0	02	1	9002-		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) (C) ID=19 H=25 L=25	9-09917-035-0	02	1	9002-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> CHINA TIBET EQUIPMENT(WD1) (C) ID=19 H=25 L=25	9-09917-035-0	02	1	9002-		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6),CHINA TIBET EQUIPMENT(WD1) (A) ID=17	1-09700-840-0	02	1	9002-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6),CHINA TIBET EQUIPMENT(WD1) (B) ID=18	1-09707-011-1	02	1	9002-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L+200L<SGY> (A) ID=17	1-09700-840-0	04	1	9002-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L+200L<SGY> (B) ID=18	1-09707-011-1	04	1	9002-	●	●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	9002-	●
227	BRACKET; FUEL SEDIMENTER EXC. CONCRETE PUMP<RA5>	1-22518-087-1	01	1	9002-		●
227	BRACKET; FUEL SEDIMENTER CONCRETE PUMP<RA5>	1-19755-143-1	01	1	9002-		●
228	BOLT; BRKT,SEDIMENTER M12X35	9-92061-235-0	04	1	9002-	●
228	BOLT; BRKT,SEDIMENTER EXC. CONCRETE PUMP<RA5> M12X35	9-92061-235-0	04	1	9002-		●
228	BOLT; BRKT,SEDIMENTER M14X45	9-92051-445-0	02	1	9002-9005	●	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	9006-	●	●
228	BOLT; BRKT,SEDIMENTER CONCRETE PUMP<RA5> M12X30	9-92061-230-0	04	1	9002-		●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	9002-	●	●
230	WASHER; LK,BRKT,FUEL TANK ID=12.2	9-09150-812-0	04	1	9002-	●	●

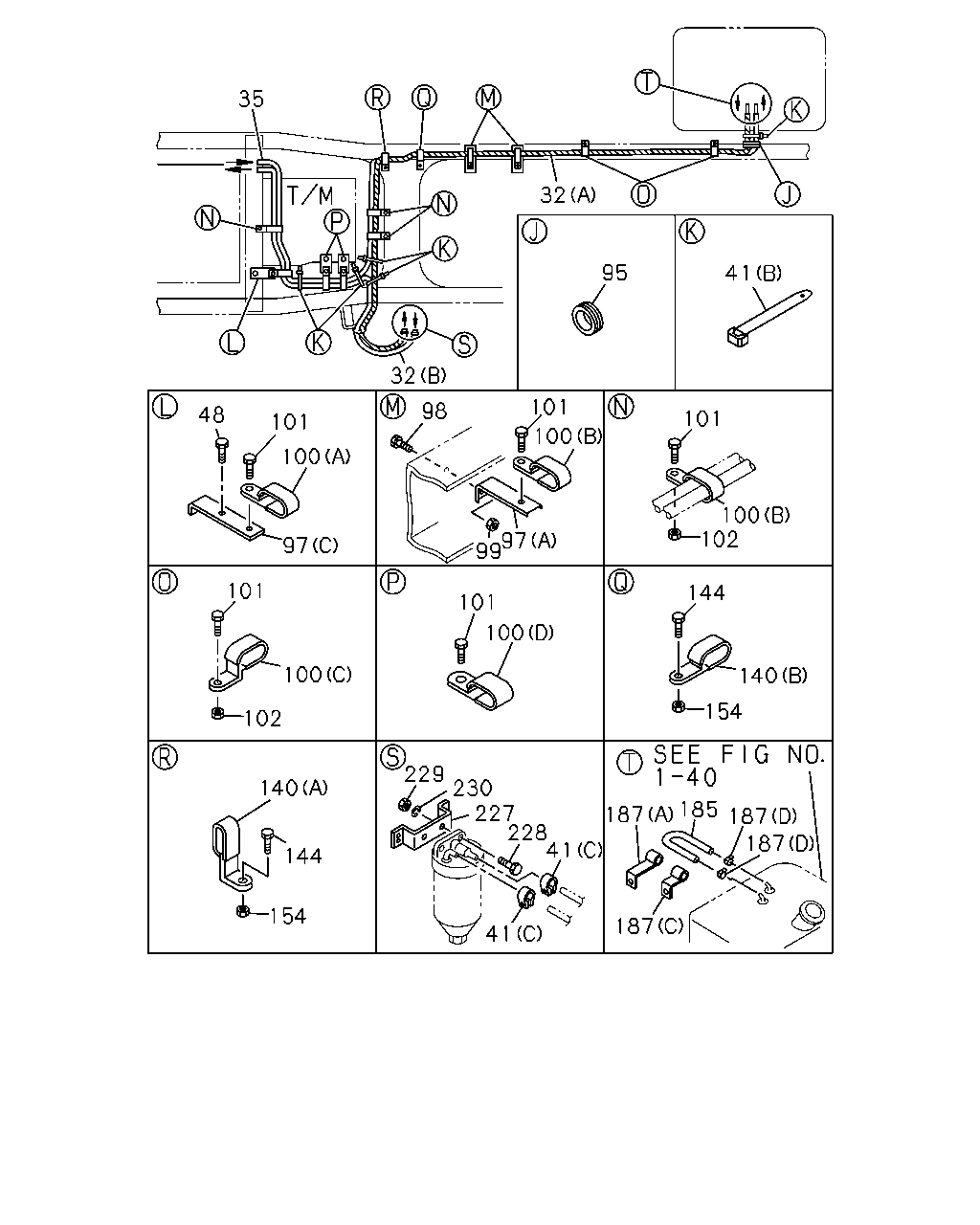

41 41 228 227 230 229 187 187 185 187 187 55 41 41 100 97 99 101 98 100 101 100 97 100 101 48 101 95 187 187 41 32 35 32 83 41 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK MIXER TRUCK<RA2> TROPICAL ZONE KIT(WB6) EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) L=3150	0-01160-315-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK CVR SHORT CHASSIS&LHD(CVR6MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> TROPICAL ZONE KIT(WB6) EXC. MIXER TRUCK<RA2> (B) L=3150	0-01160-315-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> MIXER TRUCK<RA2> TROPICAL ZONE KIT(WB6) (B) L=2850 SERVICED BY L=8000	0-01160-800-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> TROPICAL ZONE KIT(WB6) (A) L=3150	0-01160-315-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK CVR SHORT CHASSIS&LHD(CVR6MC) TROPICAL ZONE KIT(WB6) EXC. MIXER TRUCK<RA2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) L=2250 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK CVR LONG CHASSIS&LHD(CVR6MF) TROPICAL ZONE KIT(WB6) (B) L=2250 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK CVR SHORT CHASSIS&LHD(CVR6MC) TROPICAL ZONE KIT(WB6) EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=900	0-01160-300-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK CVR LONG CHASSIS&LHD(CVR6MF) TROPICAL ZONE KIT(WB6) (A) L=900	0-01160-300-0	01	1	9002-9306	●
32	PIPE; DELIVERY,FUEL TANK CHINA TIBET EQUIPMENT(WD1) (A) L=900	0-01160-300-0	01	1	9002-9306		●
32	PIPE; DELIVERY,FUEL TANK MIXER TRUCK<RA2> EXC. TROPICAL ZONE KIT(WB6),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) L=2350 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> MIXER TRUCK<RA2> EXC. TROPICAL ZONE KIT(WB6) (B) L=2850 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CVR*MC) EXC. MIXER TRUCK<RA2>,TROPICAL ZONE KIT(WB6),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) L=2100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9012	●	●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CVR*MF) EXC. CONCRETE PUMP<RA5>,TROPICAL ZONE KIT(WB6), CHINA TIBET EQUIPMENT(WD1) (B) L=2100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9012	●	●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (B) L=2100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9012		●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CVR*MC) EXC. MIXER TRUCK<RA2>,TROPICAL ZONE KIT(WB6),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) L=2100 SERVICED BY L=10000	9-09914-701-0	01	1	9101-9306	●	●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CVR*MF) EXC. CONCRETE PUMP<RA5>,TROPICAL ZONE KIT(WB6), CHINA TIBET EQUIPMENT(WD1) (B) L=2100 SERVICED BY L=10000	9-09914-701-0	01	1	9101-9306	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. CONCRETE PUMP<RA5>,CHINA TIBET EQUIPMENT(WD1) (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9307-		●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. MIXER TRUCK<RA2>,TROPICAL ZONE KIT(WB6) (B) L=2600 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. TROPICAL ZONE KIT(WB6) (A) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(CVR*MC) EXC. TROPICAL ZONE KIT(WB6),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK LONG CHASSIS(CVR*MF) EXC. CONCRETE PUMP<RA5>,TROPICAL ZONE KIT(WB6), CHINA TIBET EQUIPMENT(WD1) (A) L=900 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK CHINA TIBET EQUIPMENT(WD1) (B) L=3150	0-01160-315-0	01	1	9002-9306		●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (B) L=2200 SERVICED BY L=3000	0-01260-300-0	01	1	9307-		●
32	PIPE; DELIVERY,FUEL TANK CHINA TIBET EQUIPMENT(WD1) (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9307-		●
32	PIPE; DELIVERY,FUEL TANK EXC. CONCRETE PUMP<RA5> (B) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	9307-		●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (A) L=4100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9012		●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (A) L=3550 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9101-9306		●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (B) L=2200 SERVICED BY L=10000	9-09914-701-0	01	1	9101-9306		●
32	PIPE; DELIVERY,FUEL TANK CONCRETE PUMP<RA5> (A) L=3550 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9307-		●
35	PIPE; FUEL TANK,RETURN MIXER TRUCK<RA2> TROPICAL ZONE KIT(WB6) EXC. TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=3150	0-01160-315-0	01	1	9002-9306	●
35	PIPE; FUEL TANK,RETURN TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> MIXER TRUCK<RA2> TROPICAL ZONE KIT(WB6) L=3000	0-01160-300-0	01	1	9002-9306	●
35	PIPE; FUEL TANK,RETURN CVR LONG CHASSIS&RHD(CVR5MF) TROPICAL ZONE KIT(WB6) EXC. MIXER TRUCK<RA2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=1850	0-01160-300-0	01	1	9002-9306	●
35	PIPE; FUEL TANK,RETURN CVR LONG CHASSIS&LHD(CVR6MF) TROPICAL ZONE KIT(WB6) L=1850	0-01160-300-0	01	1	9002-9306	●
35	PIPE; FUEL TANK,RETURN CVR LONG CHASSIS&LHD(CVR6MF) CHINA TIBET EQUIPMENT(WD1) L=1850	0-01160-300-0	01	1	9002-9306		●
35	PIPE; FUEL TANK,RETURN CVR SHORT CHASSIS&LHD(CVR6MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> TROPICAL ZONE KIT(WB6) EXC. MIXER TRUCK<RA2> L=3000	0-01160-300-0	01	1	9002-9306	●
35	PIPE; FUEL TANK,RETURN MIXER TRUCK<RA2> EXC. TROPICAL ZONE KIT(WB6),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=2100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
35	PIPE; FUEL TANK,RETURN TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> MIXER TRUCK<RA2> EXC. TROPICAL ZONE KIT(WB6) L=2250 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(CVR*MC) EXC. MIXER TRUCK<RA2>,TROPICAL ZONE KIT(WB6),TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=1840 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
35	PIPE; FUEL TANK,RETURN LONG CHASSIS(CVR*MF) EXC. CONCRETE PUMP<RA5>,TROPICAL ZONE KIT(WB6), CHINA TIBET EQUIPMENT(WD1) L=1840 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. MIXER TRUCK<RA2>,TROPICAL ZONE KIT(WB6) L=2000 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
35	PIPE; FUEL TANK,RETURN CONCRETE PUMP<RA5> L=4720 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9012		●
35	PIPE; FUEL TANK,RETURN CONCRETE PUMP<RA5> L=4450 SERVICED BY L=10000	9-09914-701-0	01	1	9101-9306		●
35	PIPE; FUEL TANK,RETURN CONCRETE PUMP<RA5> L=4500 SERVICED BY L=8000	0-01160-800-0	01	1	9307-9307		●
35	PIPE; FUEL TANK,RETURN CONCRETE PUMP<RA5> L=4500 SERVICED BY L=8000	0-01260-800-0	01	1	9308-		●
35	PIPE; FUEL TANK,RETURN EXC. CONCRETE PUMP<RA5> L=3000	0-01160-300-0	01	1	9307-9307		●
35	PIPE; FUEL TANK,RETURN EXC. CONCRETE PUMP<RA5> L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	9308-		●
41	CLIP; FUEL PIPE,FUEL TANK TROPICAL ZONE KIT(WB6) (D) ID=14	1-09704-102-0	06	1	9002-9306	●
41	CLIP; FUEL PIPE,FUEL TANK CHINA TIBET EQUIPMENT(WD1) (D) ID=14	1-09704-102-0	06	1	9002-9306		●
41	CLIP; FUEL PIPE,FUEL TANK CHINA TIBET EQUIPMENT(WD1) (D) ID=14	1-09704-102-0	06	1	9307-		●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) ID=20 L=70	1-09701-033-0	01	1	9002-9306	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. CHINA TIBET EQUIPMENT(WD1) (D) ID=14	1-09704-102-0	04	1	9307-		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. CHINA TIBET EQUIPMENT(WD1) (C) ID=15	9-09715-098-0	02	1	9307-		●
41	CLIP; FUEL PIPE,FUEL TANK CONCRETE PUMP<RA5> (B) L=250	5-09707-030-1	04	1	9002-		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. CONCRETE PUMP<RA5> (B) L=250	5-09707-030-1	02	1	9307-		●
48	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●
48	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●
48	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●
55	COVER; PIPE,FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=150	1-09369-006-1	01	1	9002-9306	●	●
55	COVER; PIPE,FUEL TANK EXC. CONCRETE PUMP<RA5> L=1300	1-09360-677-1	01	1	9307-		●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204	●	●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302	●	●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X30 FLANGE	0-28080-830-0	01	1	9303-9306	●	●
83	NUT; CLIP,FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	01	1	9002-9306	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	01	1	9002-	●	●
97	BRACKET; CLIP (A) L=135	1-22518-099-0	02	1	9002-	●	●
97	BRACKET; CLIP EXC. CONCRETE PUMP<RA5> (B) L=158	1-47475-395-0	01	1	9002-	●	●
97	BRACKET; CLIP CONCRETE PUMP<RA5> (C) L=118	1-47475-359-0	01	1	9002-		●
98	BOLT; BRKT,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
98	BOLT; BRKT,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
98	BOLT; BRKT,FUEL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	02	1	9002-	●	●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	01	1	9002-	●
100	CLIP; FUEL PIPE EXC. CONCRETE PUMP<RA5> (A) ID=16X2 L=50	9-09535-586-0	01	1	9002-		●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	02	1	9002-	●	●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	02	1	9002-	●	●
100	CLIP; FUEL PIPE CONCRETE PUMP<RA5> (A) ID=16X2 L=50	9-09535-586-0	02	1	9002-		●
100	CLIP; FUEL PIPE CONCRETE PUMP<RA5> (C) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9002-		●
100	CLIP; FUEL PIPE CONCRETE PUMP<RA5> (D) ID=16X2 L=20	9-09535-533-0	02	1	9002-		●
100	CLIP; FUEL PIPE CONCRETE PUMP<RA5> (B) ID=16X2 L=20	9-09535-536-0	01	1	9101-		●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9204	●
101	BOLT; CLIP,FUEL PIPE EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9204		●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302	●
101	BOLT; CLIP,FUEL PIPE EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9303-	●
101	BOLT; CLIP,FUEL PIPE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	03	1	9303-		●
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M6X25 W/LK WASHER	9-01900-625-0	02	1	9002-9204		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9302		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M6X25 FLANGE	0-28080-625-0	02	1	9303-		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	06	1	9002-9204		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	06	1	9205-9302		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	06	1	9303-		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302		●
101	BOLT; CLIP,FUEL PIPE CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9303-		●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) L=900	0-01112-900-0	01	1	9002-9307	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> CHINA TIBET EQUIPMENT(WD1) L=900	0-01112-900-0	01	1	9002-9307		●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> CHINA TIBET EQUIPMENT(WD1) L=900 SERVICED BY L=3000	0-01262-300-0	01	1	9308-		●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6),CHINA TIBET EQUIPMENT(WD1) L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	01	1	9002-	●	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L+200L<SGY> L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	02	1	9002-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) (D)	8-94122-679-0	02	1	9002-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> CHINA TIBET EQUIPMENT(WD1) (D)	8-94122-679-0	02	1	9002-		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) (C) ID=19 H=25 L=25	9-09917-035-0	02	1	9002-	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> CHINA TIBET EQUIPMENT(WD1) (C) ID=19 H=25 L=25	9-09917-035-0	02	1	9002-		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6),CHINA TIBET EQUIPMENT(WD1) (A) ID=17	1-09700-840-0	02	1	9002-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6),CHINA TIBET EQUIPMENT(WD1) (B) ID=18	1-09707-011-1	02	1	9002-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L+200L<SGY> (A) ID=17	1-09700-840-0	04	1	9002-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L+200L<SGY> (B) ID=18	1-09707-011-1	04	1	9002-	●	●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	9002-	●
227	BRACKET; FUEL SEDIMENTER EXC. CONCRETE PUMP<RA5>	1-22518-087-1	01	1	9002-		●
227	BRACKET; FUEL SEDIMENTER CONCRETE PUMP<RA5>	1-19755-143-1	01	1	9002-		●
228	BOLT; BRKT,SEDIMENTER M12X35	9-92061-235-0	04	1	9002-	●
228	BOLT; BRKT,SEDIMENTER EXC. CONCRETE PUMP<RA5> M12X35	9-92061-235-0	04	1	9002-		●
228	BOLT; BRKT,SEDIMENTER M14X45	9-92051-445-0	02	1	9002-9005	●	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	9006-	●	●
228	BOLT; BRKT,SEDIMENTER CONCRETE PUMP<RA5> M12X30	9-92061-230-0	04	1	9002-		●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	9002-	●	●
230	WASHER; LK,BRKT,FUEL TANK ID=12.2	9-09150-812-0	04	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
