◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10891 - FTR34(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#29744) — 13 parça

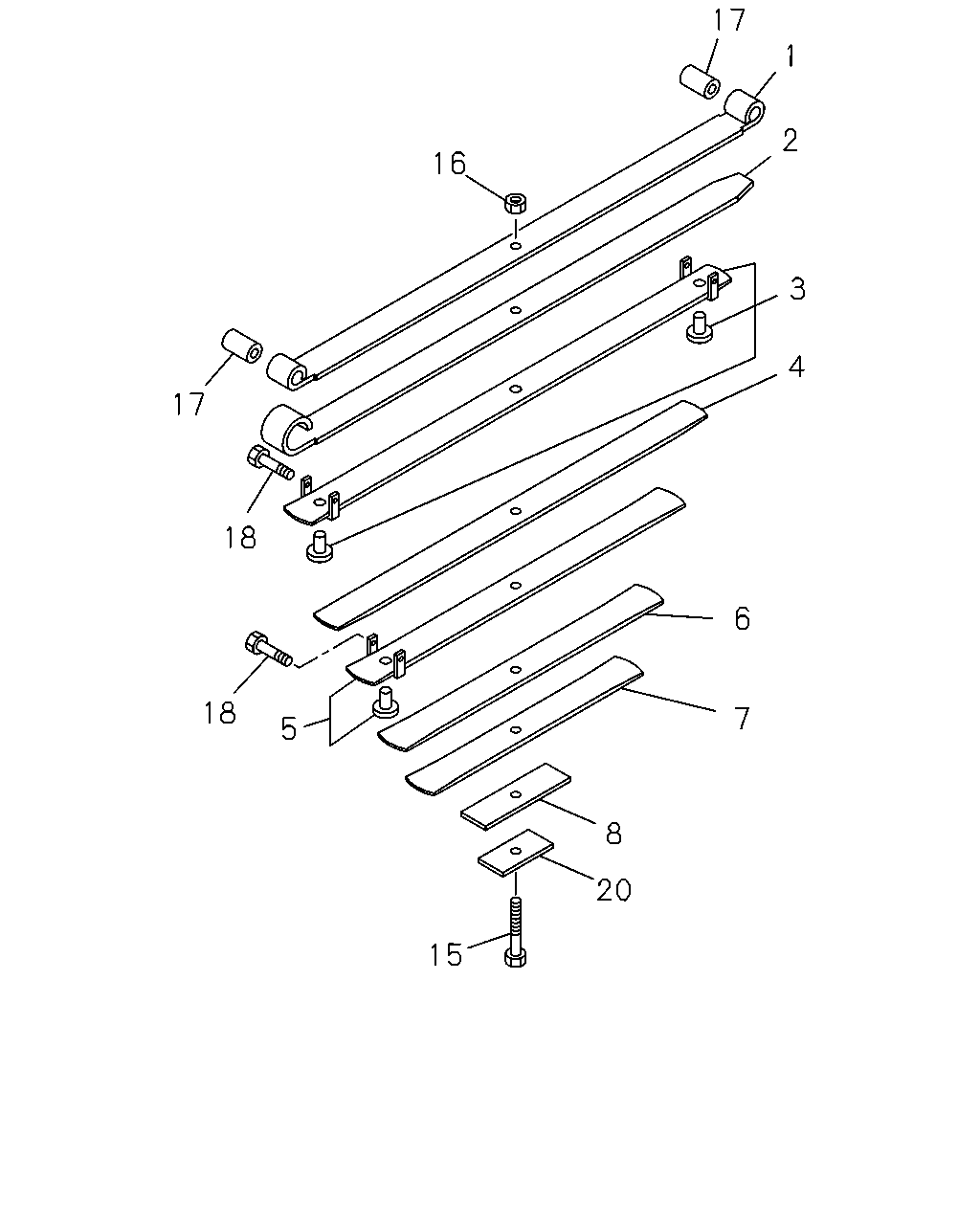

çizim 79922
17 1 2 16 3 4 17 18 6 18 7 5 8 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-343-0 		1-51131-343-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-343-0 		1-51132-343-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
W/CLIP ASM PART: A = 1-51130-343-0 		1-51133-343-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-343-0 		1-51134-343-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
W/CLIP ASM PART: A = 1-51130-343-0 		1-51135-343-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 1-51130-343-0 		1-51136-343-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 1-51130-343-0 		1-51137-343-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: A = 1-51130-343-0 		1-51138-343-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: A = 1-51130-343-0 		1-51156-333-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-343-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-343-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-343-0 		1-09000-328-0 03 1 -
20 SEAT; LEAF SPR,FRT
T=13 ASM PART: A = 1-51130-343-0 		1-51177-181-0 01 1 -
