4-36 — POWER STEERING CONTROL; ENGINE SIDE (#29740) — 13 parça

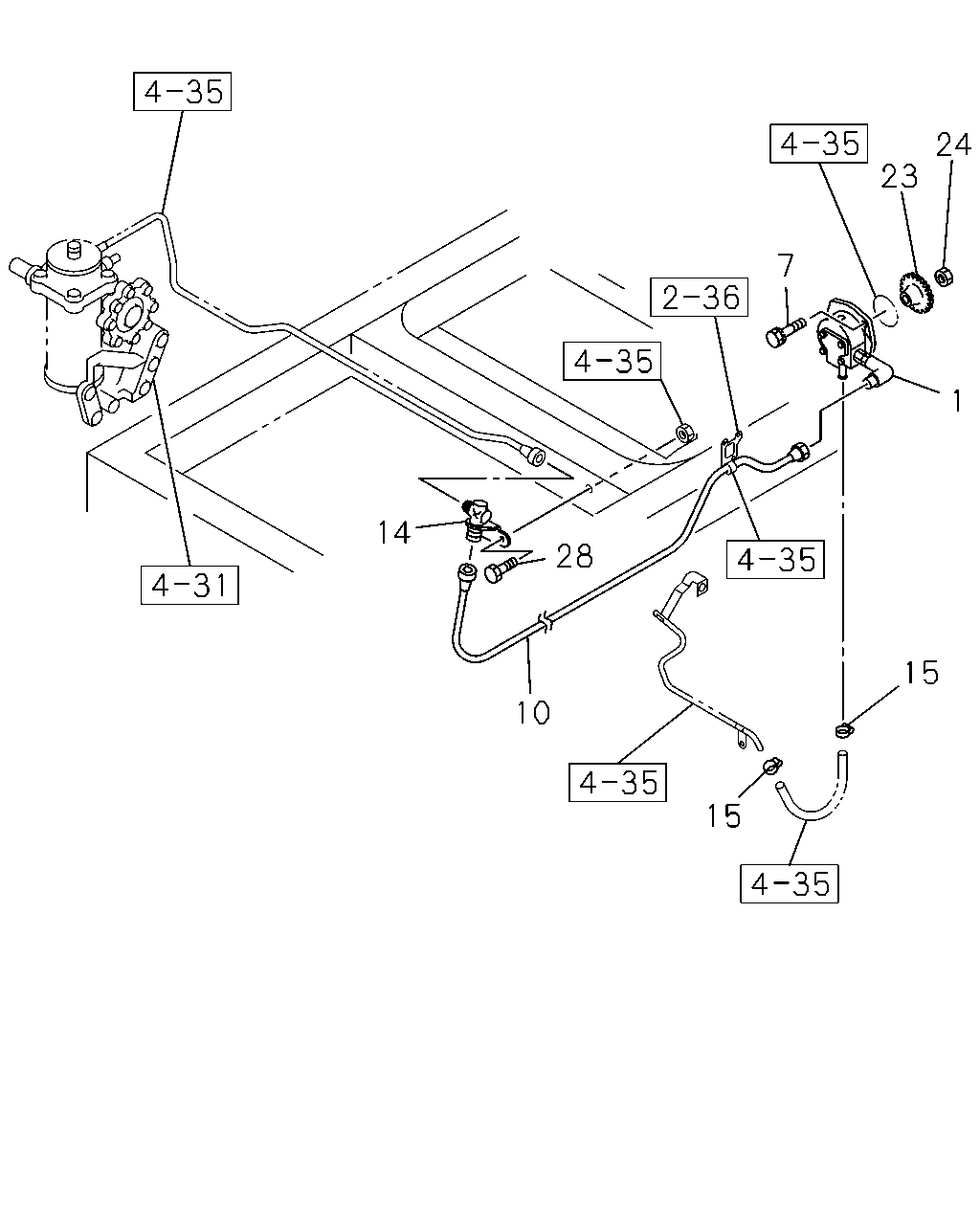

çizim 79750
24 23 7 1 14 28 15 10 15
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-530-0 01 1 0107-0202
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-595-1 01 1 0203-1112
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98202-668-0 01 1 1201-
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 0107-0805
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0806-
10 HOSE; FLEX,P/S OIL PUMP,INL 1-09365-181-0 01 1 0107-
14 UNION; FLEX HOSE,P/S 1-47470-654-0 01 1 0107-
15 CLIP; OIL PIPE SUCTION
ID=32 		1-09704-085-0 02 1 0107-
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0107-
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0107-0712
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0801-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
